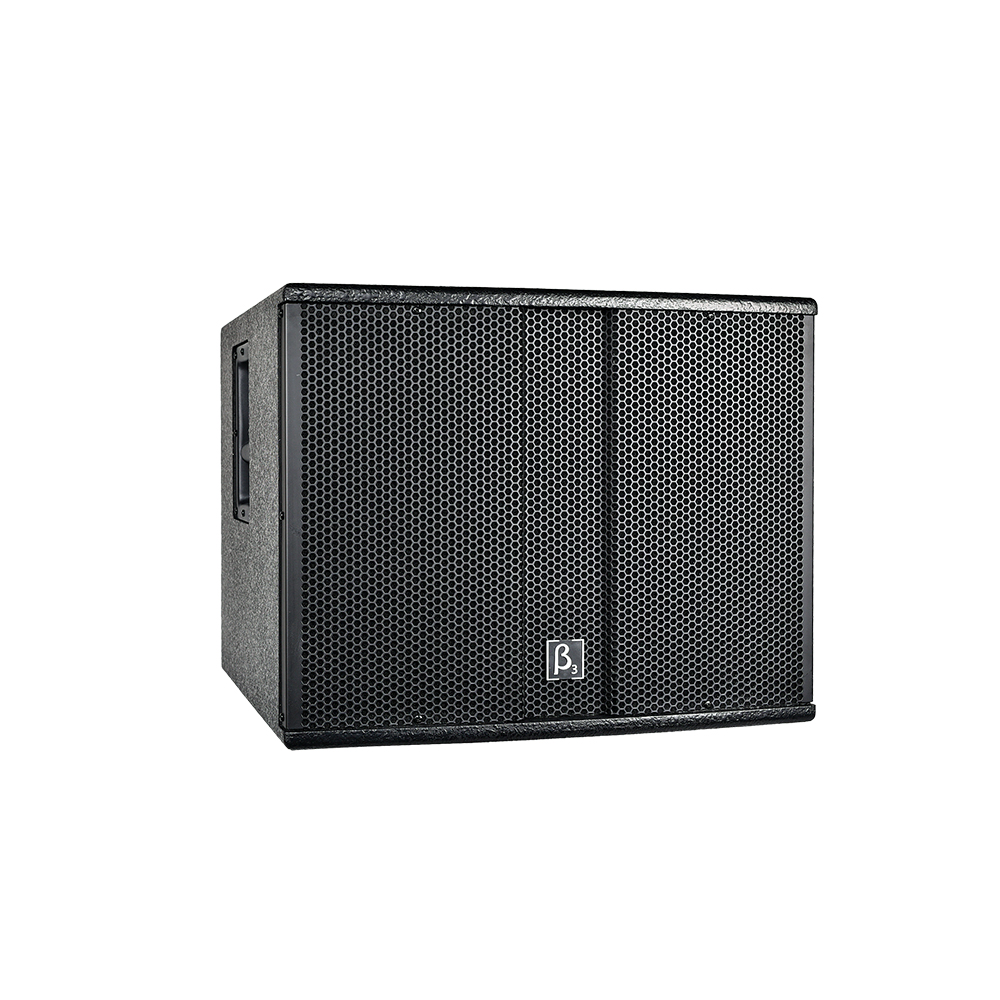

Features
Ultra high output and excellent low-frequency performance
Adopting a built-in low-frequency divider design, the sound quality is more natural, delicate, and pleasant to listen to.
D-class high-power amplifier module
High power voice coil long stroke direct radiation low-frequency unit
Exquisite, professional, and elegant appearance has perfect performance in any application situation
Sturdy spray painted wooden box for long-lasting durability
Sound quality characteristics: clean, powerful, and not losing elasticity.
Specifications
Acoustical specifications
Frequency Response(-3db):
40Hz-200Hz
Max SPL @ 1m:
121dB/127dB(PEAK)
Transducers
Woofer:
1 x 15" Subwoofer

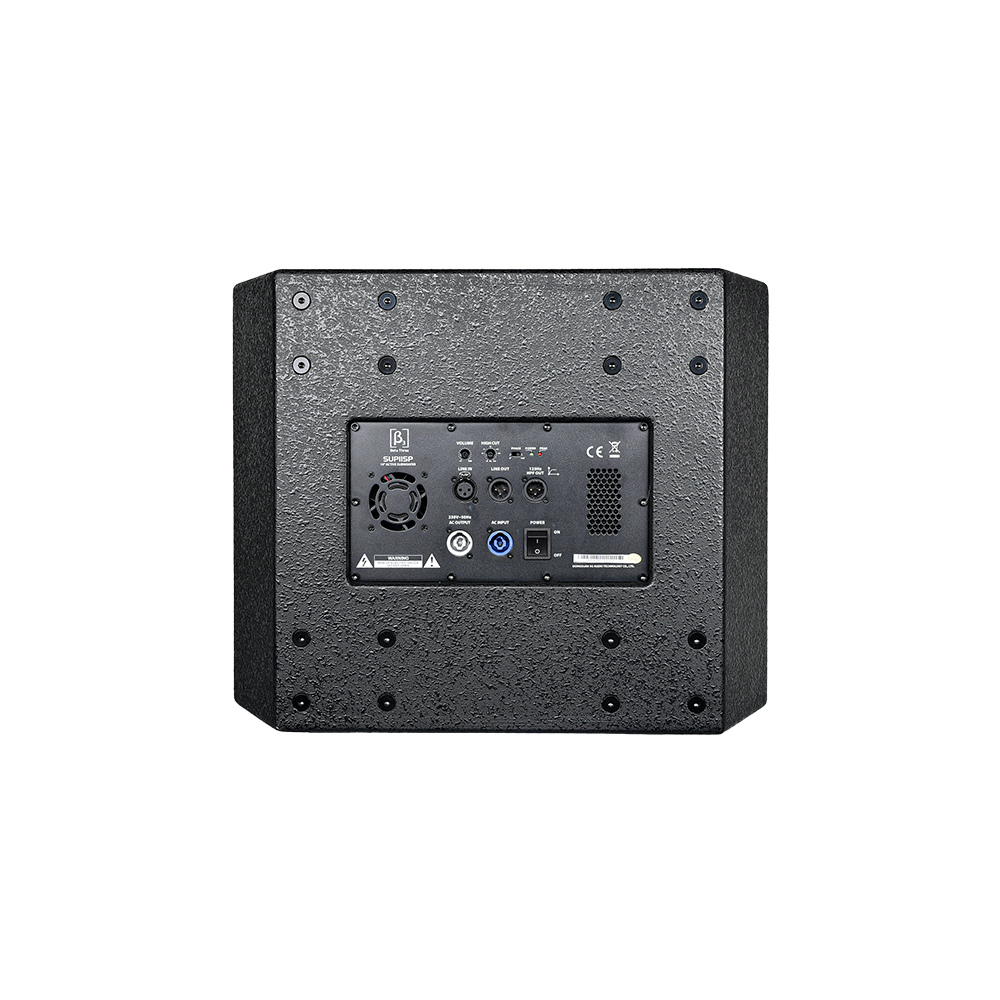

Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
1 x XLR
Power section
Total Power:
700W(RMS); 1400W(MUSIC); 2800W(PEAK);
Nominal Impedance (Ohm):
8Ω
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Cabinet/Case Material:
18mm Plywood

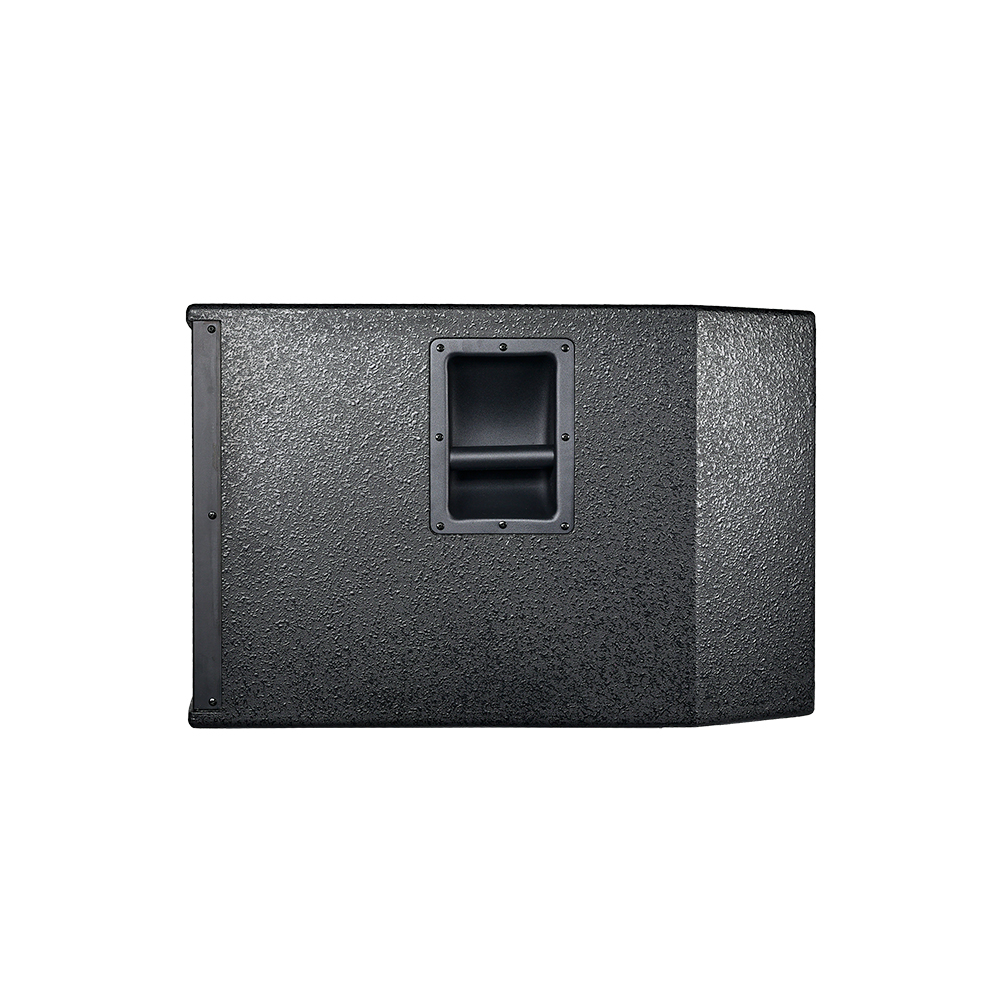

Handles:
2 × Iron handles
Grille:
Polypropylene plastic injection molding, power coated grill
Color:
Black
Size
Dimension (W x D x H):
550 x 680 x 435mm / (21.7 x 26.8 x 17.1in)
Package Dimensions (W x D x H):
670 x 800 x 565mm / (26.4 x 31.5 x 22.2in)
Weight
Net Weight:
31.5 kg / 69.4 lb
Gross Weight:
36 kg / 79.4 lb
