Features

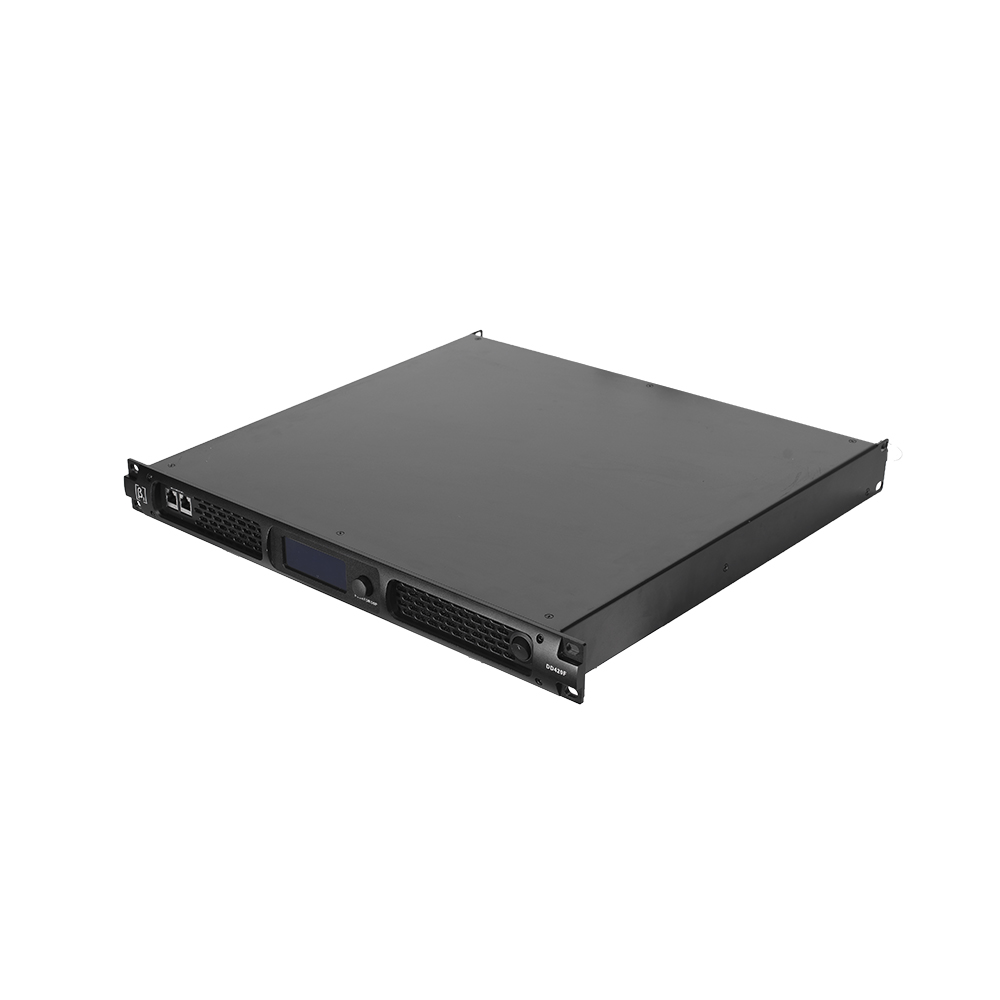

- Compact 1U body with a stable and ultra lightweight structure.

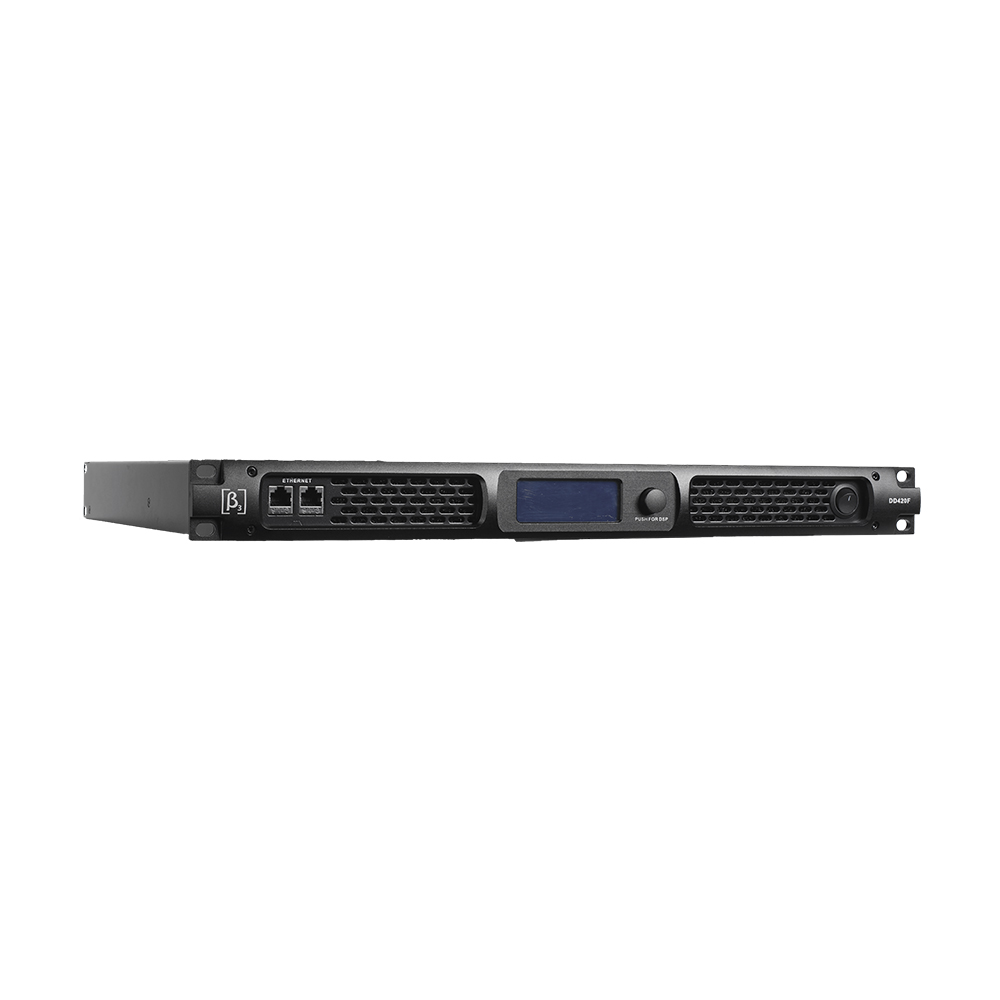

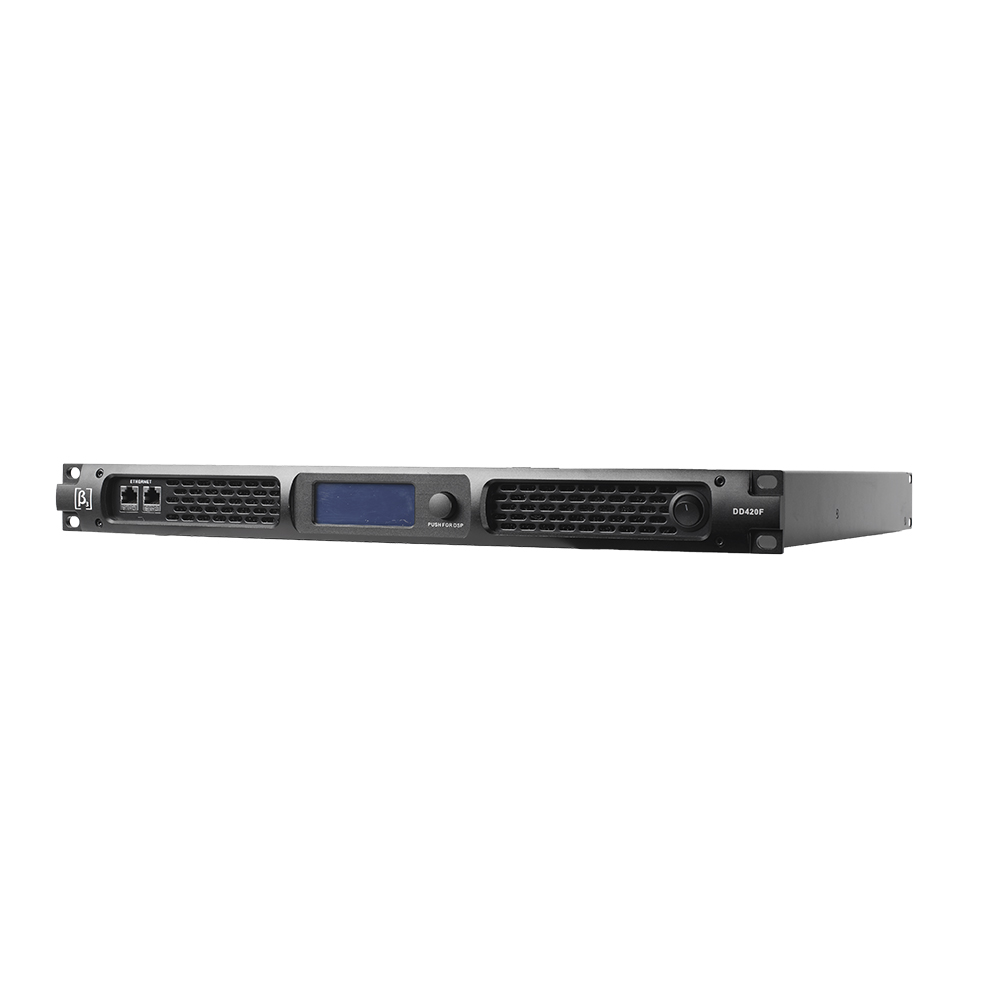

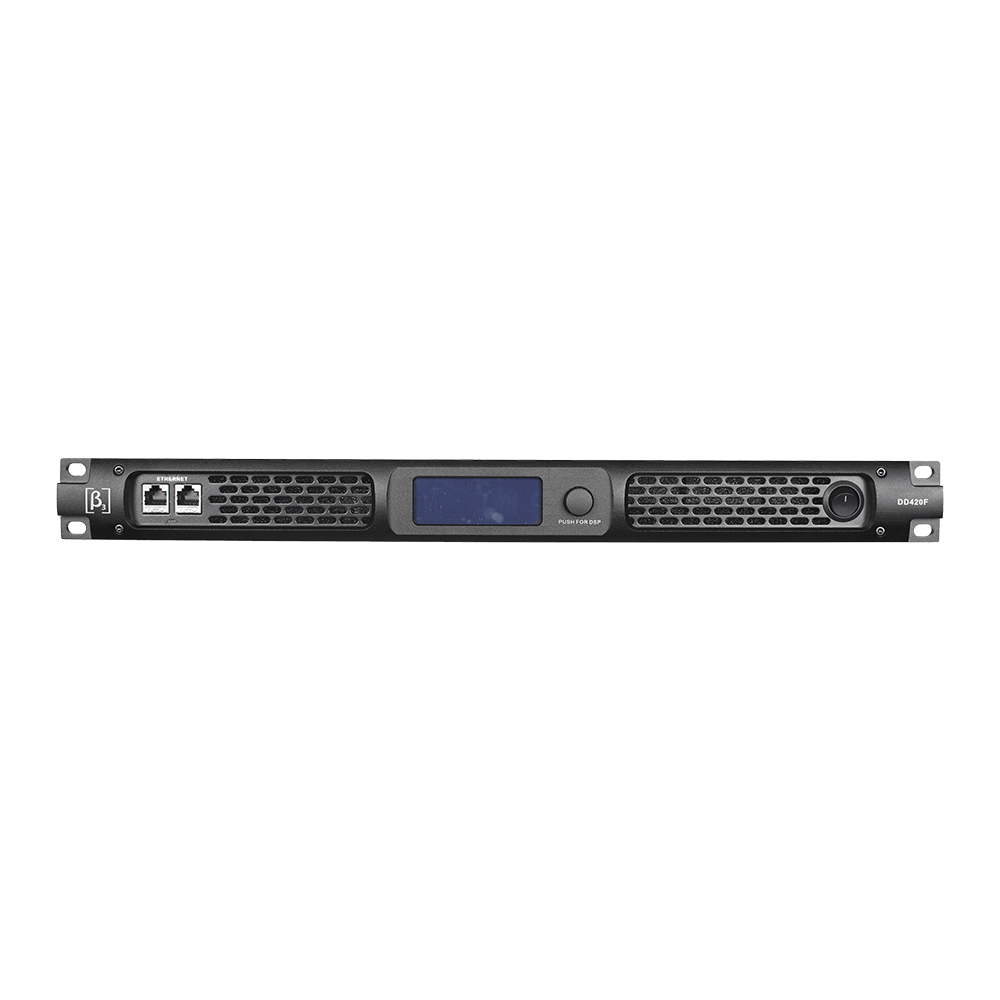

- 3.3 inch LCD display screen for more intuitive operation.
- Excellent sound quality, equipped with high-performance audio dedicated DSP.
- Supports Dante digital audio signal transmission.
- 4x4 audio routing matrix.
- Support importing and exporting 512 order FIR filter parameters per channel.
- Modular design, simple and easy to maintain, ensuring long-term reliable performance.
- Safe and controllable, power amplifier monitoring is achieved through a single network cable, allowing for quick local diagnosis.
Specifications
RMS Stereo Power(8ohms):
4 x 2000W
RMS Stereo Power(4ohms):
4 x 3400W
RMS Stereo Power(2ohms):
4 x 4760W
RMS Bridge Power(16ohms):
2 x 4000W
RMS Bridge Power(8ohms):
2 x 6800W
RMS Bridge Power(4ohms):
2 x 9520W
Power(4ohms):
4 x 3400W
Power(8ohms):
4 x 2000W
S/N Ratio:
126.5V
Frequency Response:
20Hz~20kHz ( ±2dB )
THD (@1kHz):
126.5V
Power Supply Specifications:
90~260VAC,50/60Hz
Dimension (W x D x H):
483 x 45 x 465mm / (19 x 1.8 x 18.3in)
Net Weight:
13 kg / 28.7 lb
