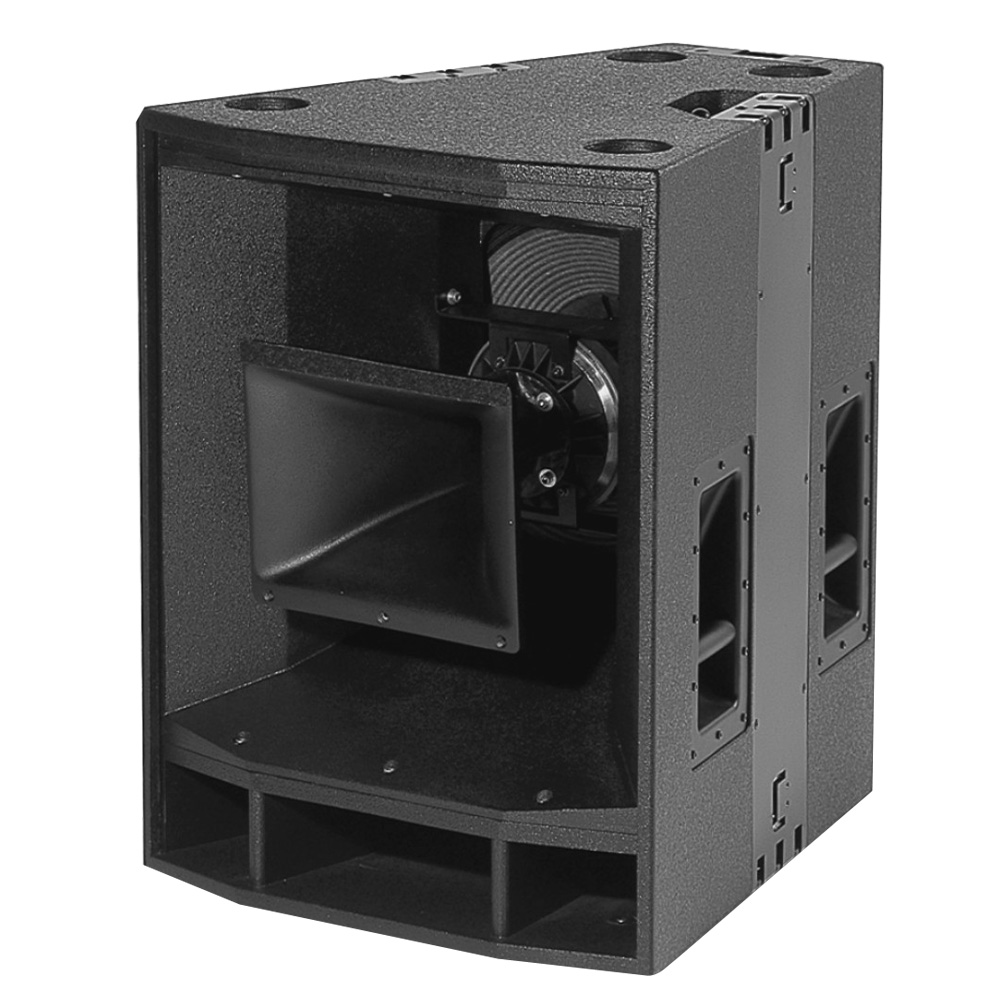

S15F 15" Three Way Full Range Speaker

S15F

15" Three Way Full Range Speaker

S15F is a high SPL performance speaker with big power woofer and coaxial mid-high transducer (MF 100mm, HF 44mm). The mid-high transducer and the woofer are in a same axes, combining with a dispersion 60°x30°horn. It is designed to easy ground stacking and arraying. S15F can be applied as a full range crossover built-in Passive speaker or Bi-amped speaker.


Features

◇ Three-way full-range speaker system with high sound pressure and high sensitivity.

◇ A 15-inch low frequency drive unit, a 4-inch and a 1.75-inch coaxial and a horn are combined into one.

◇ Equipped with built-in/external crossover mode switch

◇ Built-in passive frequency divider between medium and high frequency; choose to use built-in frequency dividing device or external frequency dividing device by switching between middle and low frequency.

◇Three-speaker, three-way, one-tone shaft design, can obtain smooth frequency response and excellent music listening sense, as well as large steady-state high sound pressure

◇Accurately designed box structure and pointing angle, so that the speaker array will not interfere with each other when combined.

◇ It can adapt to the requirements of medium and long distance sound reinforcement in complex environments

◇ Suitable for large-scale sound reinforcement systems with long range and high sound pressure, such as stadiums and large-scale performances.

Specifications

Acoustical specifications
Frequency Response(-3db):
150Hz-20kHz
Max SPL @ 1m:
135dB/131dB(PEAK)
Dispersion (H x V):
60° x 40°
Transducers
Compression driver:
1 x 44mm HF
Midrange:
1 x 100mm MF
Woofer:
1 x 15" LF
Input/Output section
Input Connectors:
1 x NL4
Sensitivity (1W @ 1m):
104dB
Power section
Total Power:
500W(RMS); 1000W(MUSIC); 2000W(PEAK);
Nominal Impedance (Ohm):
Physical specifications
Cabinet/Case Material:
18mm Plywood
Handles:
4 x Iron handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size
Dimension (W x D x H):
580 x 720 x 660mm / (22.8 x 28.3 x 26in)
Package Dimensions (W x D x H):
770 x 840 x 690mm / (30.3 x 33.1 x 27.2in)
Weight
Net Weight:
51 kg / 112.4 lb
Gross Weight:
55 kg / 121.3 lb
