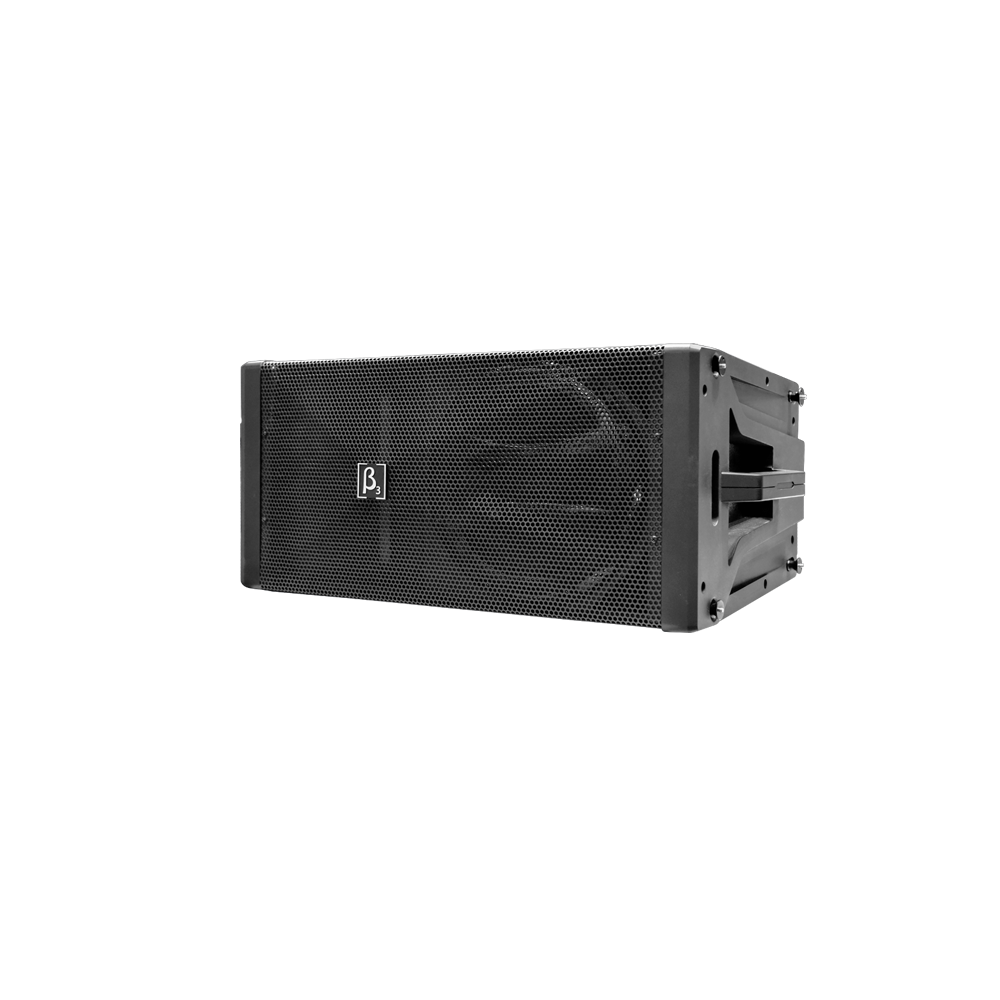

MS110 10" Line Array Full-range Speaker

MS110

10" Line Array Full-range Speaker

MS110 is a high sound pressure two-way passive line array full-range loudspeaker. The box adopts a new acoustic design, with a small and exquisite volume, and a fashionable and high-end appearance. The speaker adopts a new shape structure and a new surface painting process. The box body adopts a T-shaped structure, and the hardware connectors are installed by bolt connection, which is very convenient to disassemble. The adjustment range of the box angle is 0-10°, and one person can operate to complete its angle adjustment task.The MS110 box is made of 15mm thick multi-layer laminates, and its special wooden wedge-type box structure does not use a single nail in the entire box. Surface polyurethane paint has strong anti-wear ability. Mainly used in theaters, multi-function halls, large lecture halls, mobile performances and other places. The surface of the speaker's surface mesh adopts the powder spraying process, so that the surface mesh not only has high strength, but also has good resistance to salt spray. In practical use, it can be used continuously for 5 years without rust. . The inside of the iron mesh is made of cotton material, which can prevent the direct entry of external rainwater.


Features

◇ Two 1.75" NdFeB compression drivers

◇ A 10" woofer

◇ Built-in crossover and external crossover are optional

◇ The driver has overvoltage protection function

◇ Architectural compatibility beautiful and elegant design

◇ The paint and advanced spraying technology used on the surface of the box make the surface the damage resistance of the surface is 3 times higher than that of ordinary technology and paint

Specifications

Acoustical specifications
Frequency Response(-3db):
55Hz-18kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Dispersion (H x V):
100° x 30°
Transducers
Compression driver:
2 x 44mm HF
Woofer:
1 x 10" LF
Input/Output section
Input Connectors:
2 x NL8
Sensitivity (1W @ 1m):
95dB
Processor section
Crossover frequencies:
1.7kHz
Power section
Total Power:
250W(RMS); 500W(MUSIC); 1000W(PEAK);
Nominal Impedance (Ohm):
Physical specifications
Cabinet/Case Material:
Plywood
Handles:
2 x handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated ,inside is black cotton
Color:
Black
Size
Dimension (W x D x H):
658 x 437 x 317mm / (25.9 x 17.2 x 12.5in)
Package Dimensions (W x D x H):
515 x 385 x 715mm / (20.3 x 15.2 x 28.1in)
Weight
Net Weight:
18.5 kg / 40.8 lb
Gross Weight:
20.5 kg / 45.2 lb

MS110 Application

    MS110 Installation

      MS110 Parts

        MS110 Cases

          MS110 Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              MS110β3 MS110 Datasheet 1.0MS110  200KB 2024-03-29 18:10:20
