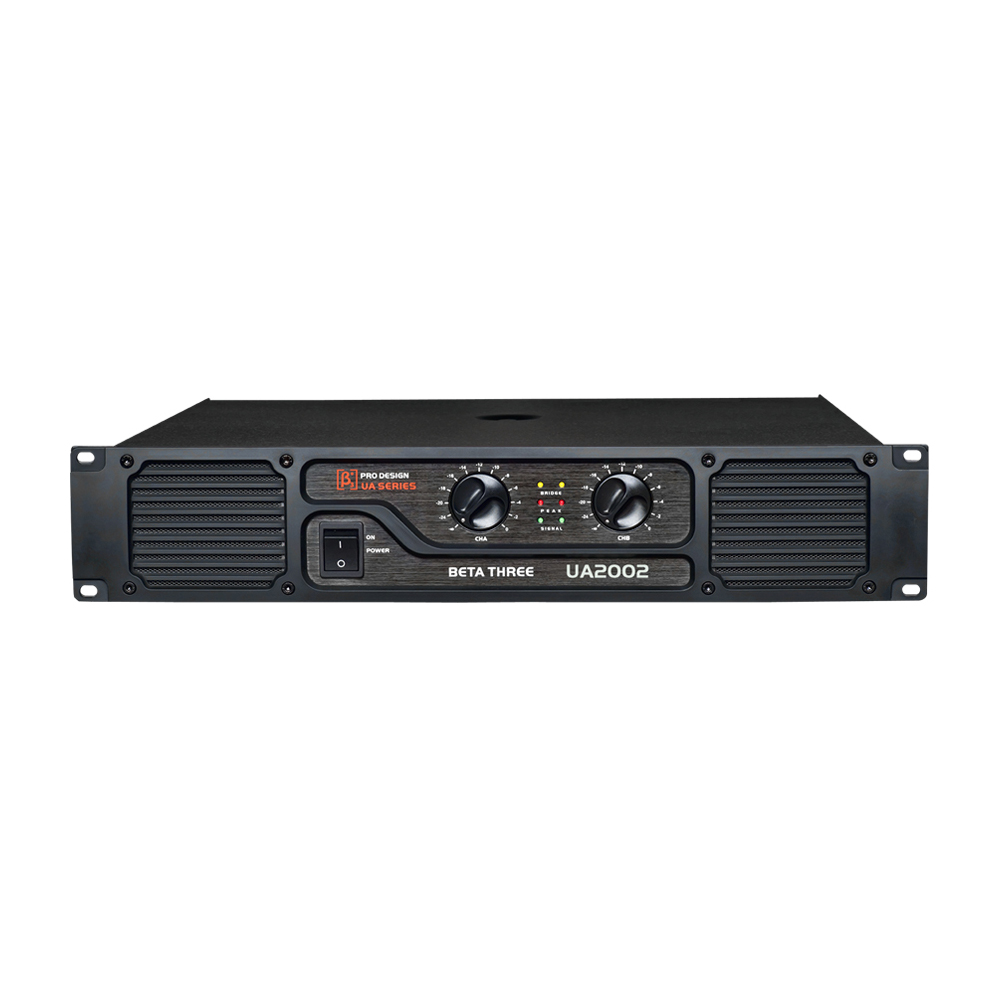

UA2002 - Stereo Amplifier

UA2002

Stereo Amplifier

The UA Series 2U professional amplifiers have been engineered for reliability where full power is required for extended times in fixed installations or portable applications. The UA Series delivers extraordinary performance at unmatched value.


Features

  • Housed in a rugged, all-steel 2U chassis
  • Rear panel selection switch for Stereo, Parallel and Bridged modes, including Low-cut filter, Ground lift and Limiter switches
  • Operates within 4Ω and 2Ω loads
  • Innovative heatsink with front to back air flow for efficient cooling
  • Variable fan speed is automatically adjusted by temperature
  • Electronically balanced XLR inputs
  • Touch proof binding post and Speakon outputs
  • Precision indented level controls, power switch
  • Protect, Peak and Signal LEDs indicators for each channel
  • Amplifier protection includes short circuit, excessive temperature, and DC on outputs

Specifications

Rated Power (Stereo 4Ω)

2 x 950W
Rated Power (Stereo 2Ω)2 x 1500W
Rated Power (Bridge 8Ω)1900W
Rated Power (Bridge 4Ω)3000W
Rated Power (Parallel mono 4Ω)950W
Rated Power (Parallel mono 2Ω)1500W
THD (@1kHz)<0.05%(10%Rated power)
Amplifier TypeClass H
S/N Ratio>108dB(A-Weight)
Damping Factor>800 @ 8ohm/100Hz
Frequency Response (+0/-0.25dB)20Hz-20kHz
Input Sensitivity1V
Input Impedance20kΩ Balanced, 10kΩ Unbalanced
Input connector2 x XLR, 2 x 6.5mm TRS
Output Connector2 x NL4 + 4 x Binding post
Power Supply220V-230V 50/60Hz, 1500VA
Cooling4 x fans, airflow from front to back
Dimensions (W x D x H)483mm x 375mm x 88mm
Packing Dimension (W x D x H)550mm x 540mm x 175mm
Net Weight30kg
Gross Weight32kg
