The Beta Three® CTM series is a series of active professional speakers ideally suited for a wide range of portable and installed applications. The CTM series offers a collection of full-range speakers in various sizes and preferences (Standard, Bluetooth, MP3 player). The CTM series is highly versatile for sound reinforcement in applications including Houses of Worships, conference rooms, multifunctional halls, auditoriums, stadiums, and other venues.

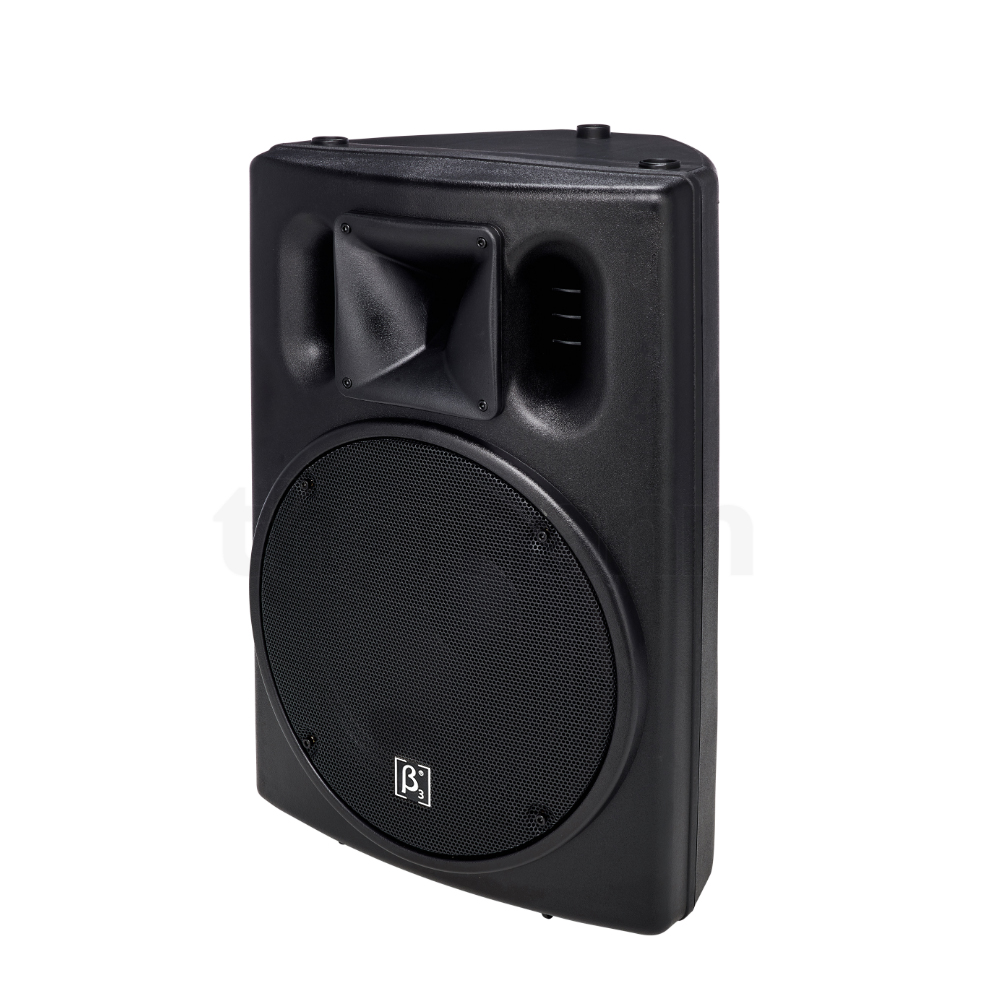

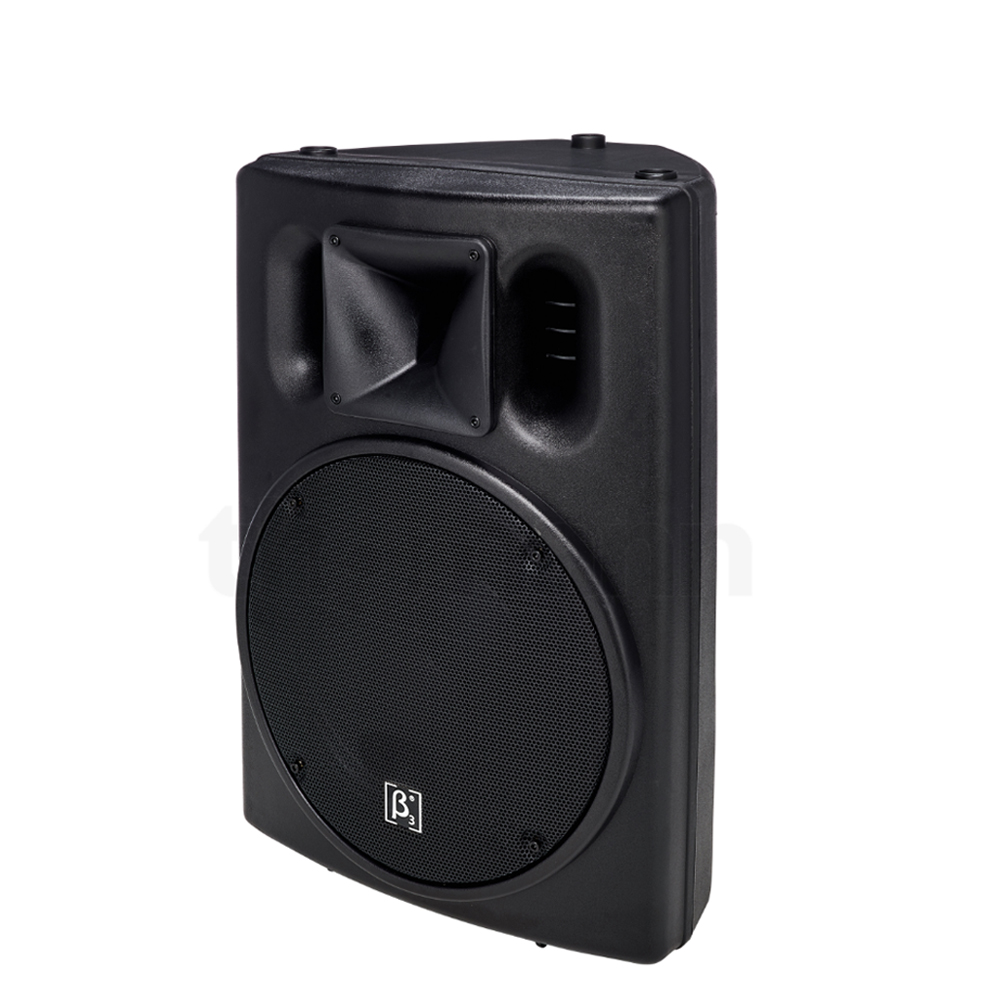

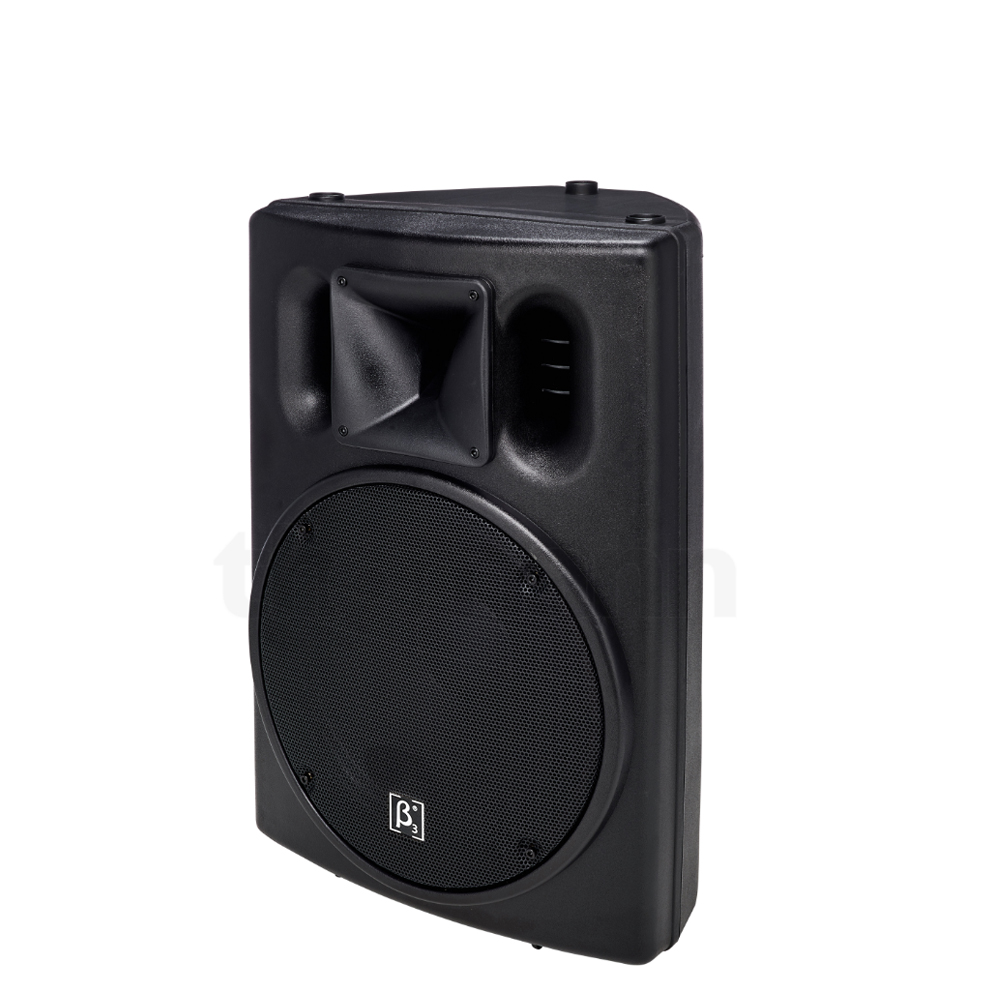

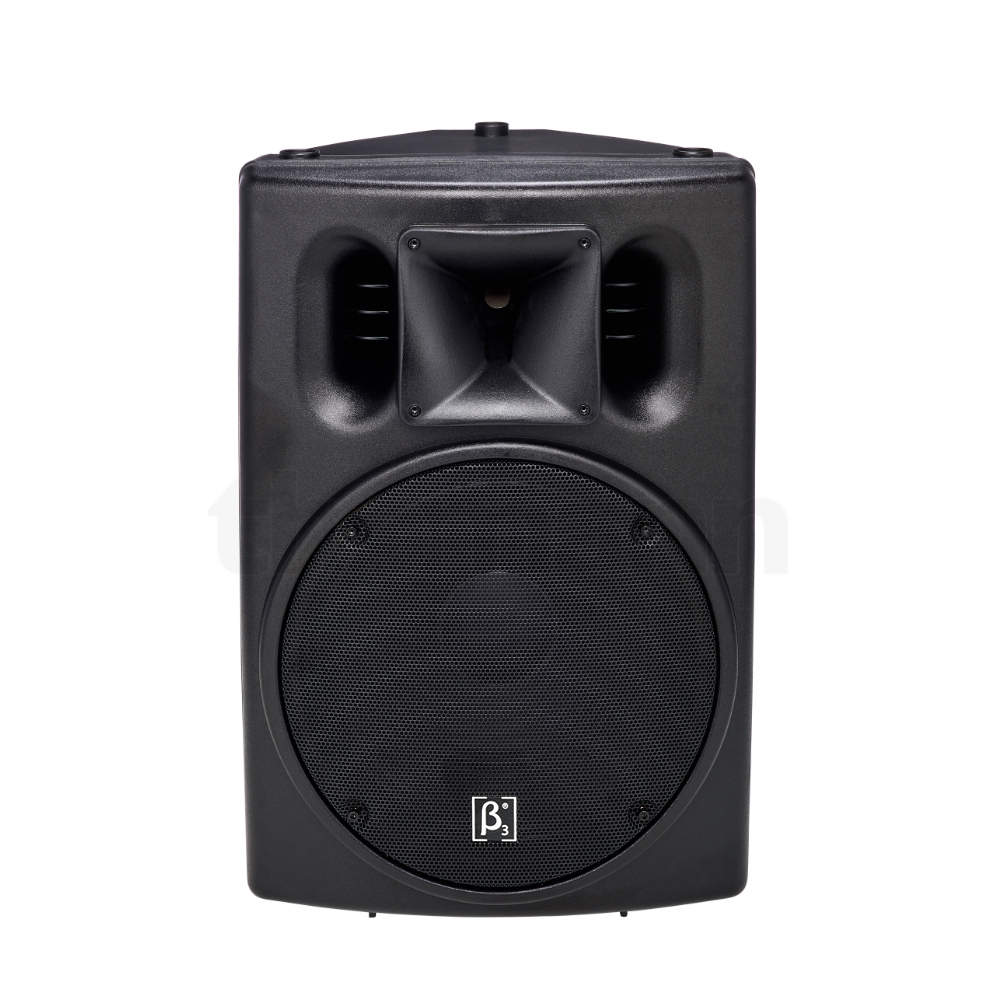

CTM800B 8" Two-way Full Range Active Speaker
CTM800B 8" Two-way Full Range Active Speaker
CTM800B 8" Two-way Full Range Active Speaker
CTM800B 8" Two-way Full Range Active Speaker
CTM800B 8" Two-way Full Range Active Speaker

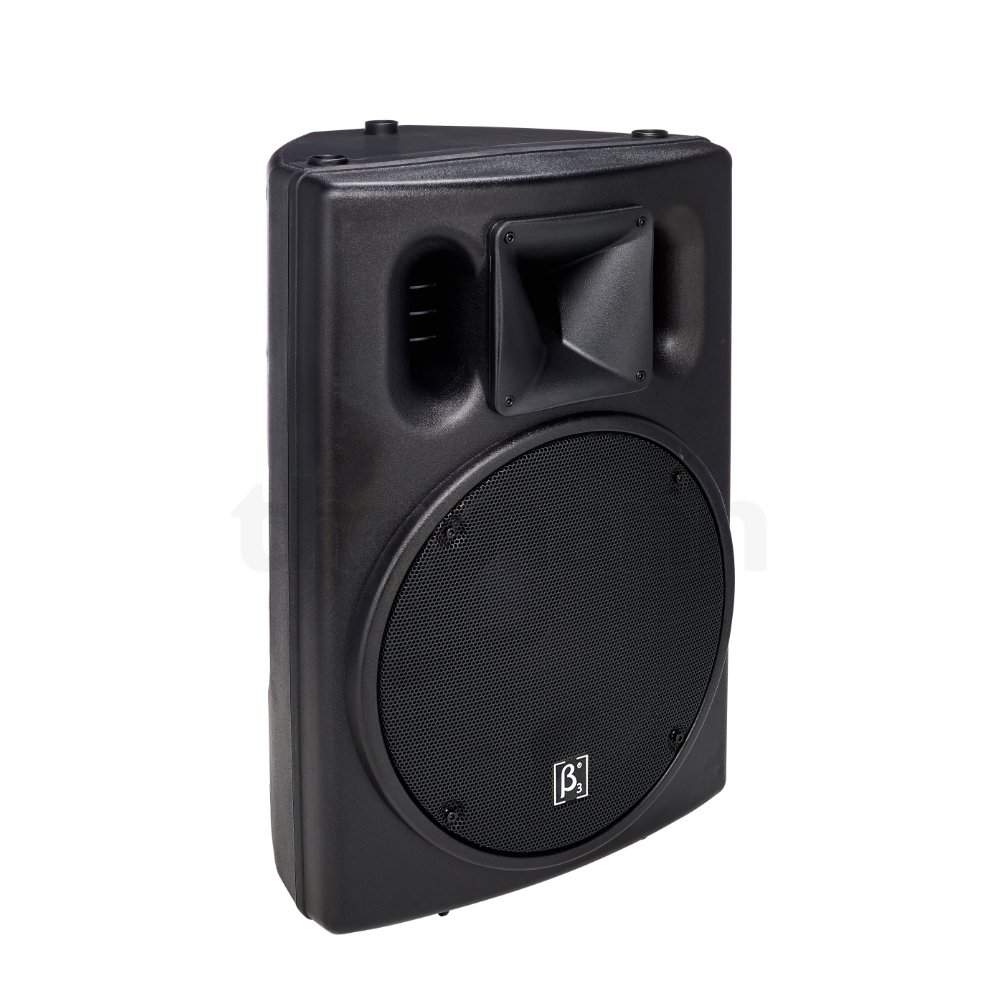

CTM800B

8" Two-way Full Range Active Speaker

The Beta Three® portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship, Medium-sized Conference Rooms,Multi-functional Hall, Church, Auditorium Performance Places etc. The CTM Active Series delivers extraordinary performance at unmatched value.


Features

  • High output SPL and sensitivity
  • 1 x 8" high power transducer
  • 1 x 25mm diaphragm compression driver
  • Heavy duty protective grill and high strength polypropylene precision Injection molded
  • Built-in Class D power amplifier module
  • Master volume, Bass and Treble control
  • Switchable between Mic and Line input
  • Bluetooth connection available

Specifications

Acoustical specifications
Frequency Response(-3db):
65Hz-18kHz
Max SPL @ 1m:
110dB/116dB(PEAK)
Dispersion (H x V):
120° x 120°
Transducers
Compression driver:
1 x 25mm Compression Driver
Woofer:
1 x 8" LF
Input/Output section
Input Connectors:
1 x XLR
Power section
Total Power:
120W+40W(RMS);
Nominal Impedance (Ohm):
Voltage range:
AC 100V-240V~, 50Hz/60Hz
Physical specifications
Cabinet/Case Material:
Polypropylene Injection Molding

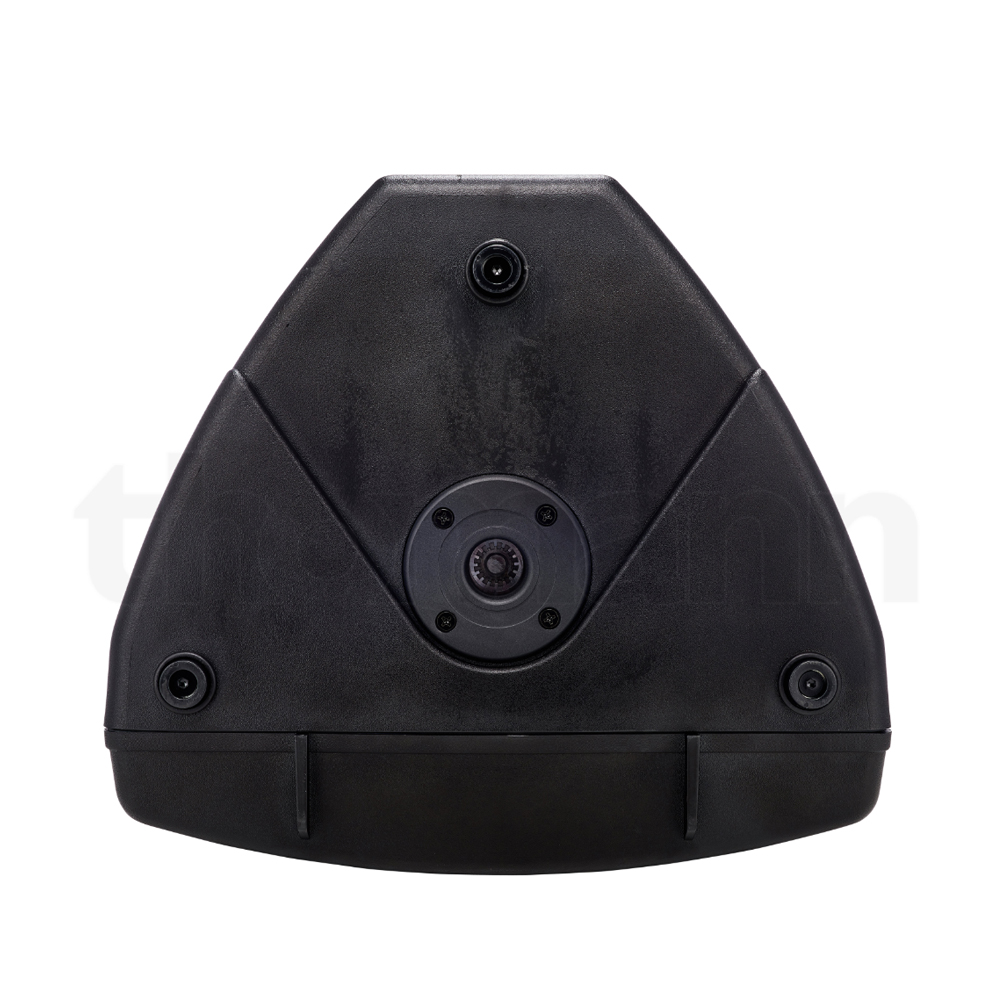

Hardware:
3 Hanging point

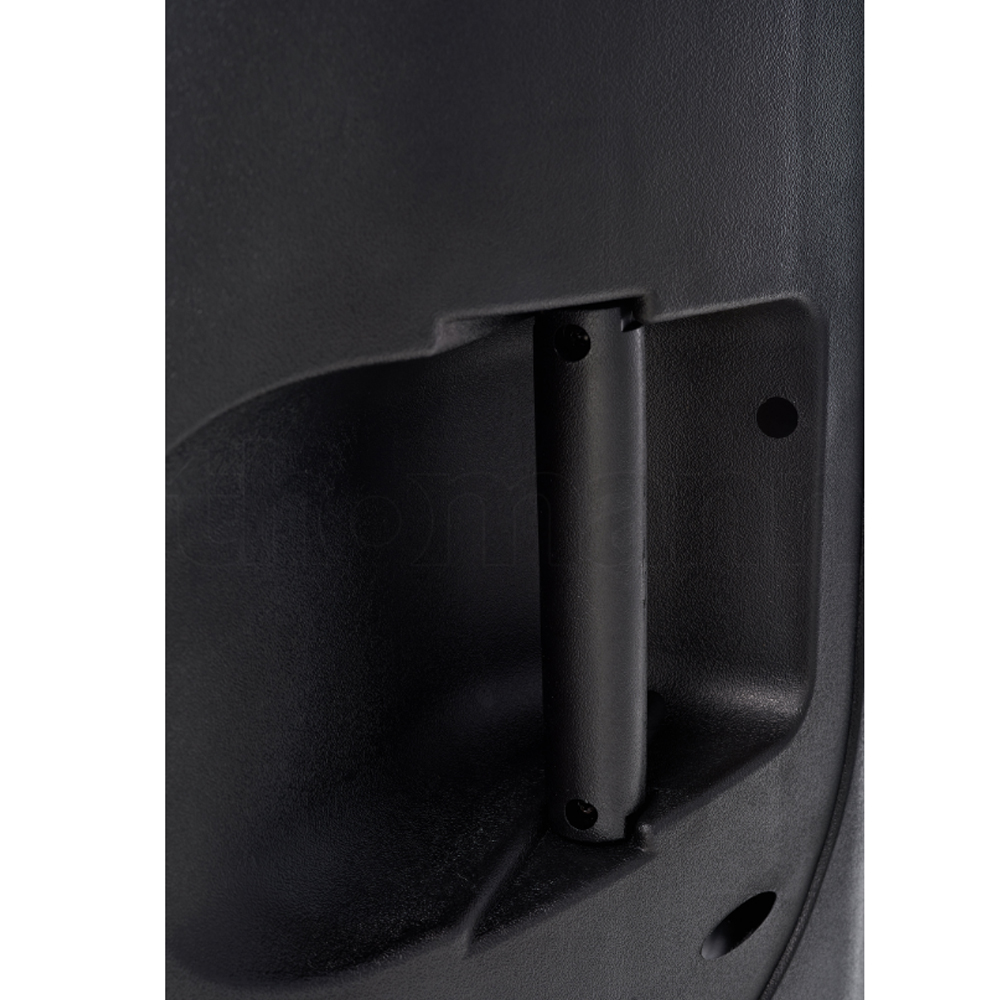

Handles:
Plastic Handles
Grille:
Powdered Coated Grill
Color:
Black
Size
Dimension (W x D x H):
277 x 257 x 400mm / (10.9 x 10.1 x 15.7in)
Package Dimensions (W x D x H):
360 x 330 x 475mm / (14.2 x 13 x 18.7in)
Weight
Net Weight:
7.7 kg / 17 lb
Gross Weight:
8.7 kg / 19.2 lb

CTM800B Application

  • Multi-function hall Multi-function hall
  • Auditorium Auditorium

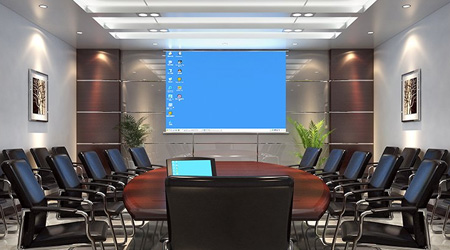

  • Medium-sized Conference Rooms Medium-sized Conference Rooms
  • Church Church
  • Performance Places Performance Places

CTM800B Installation

    CTM800B Parts

      CTM800B Cases

        CTM800B Collocation

          Videos

            Downloads

            FilenameVersionLanguageSizeUpdated
            CTM800Bβ3 CTM800B Datasheet 1.0CTM800B  200KB 2024-03-28 15:27:58
            CTM Series BrochureCTM Series Brochure 1CTM Series Brochure  8800KB 2020-11-06 17:17:45
