Features
Compact,small and high SPL
Specially designed for small touring performance
Portable and easy installation design
Max.SPL 125dB (peak)
Bi-amp module of CLASS D
Bluetooth connection available
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-18kHz
Max SPL @ 1m:
119dB/125dB(PEAK)
Dispersion (H x V):
90° x 40°
Transducers
Compression driver:
8 × 2" Full-frequency unit
Woofer:
1× 15" Woofer
Input/Output section
Input Connectors:
Three channel balanced input XLR/ 6.35、TRS、RCA
Power section
Total Power:
550W(RMS); 1100W(MUSIC); 2200W(PEAK);
Mid frequencies:
200W
Low frequencies:
350W
Nominal Impedance (Ohm):
4Ω
Cooling:
Forced air-cooled drives
Power consumption(static):
28W
Power consumption(rated):
400W
Voltage range:
AC 110V/230V, 50Hz/60Hz
Physical specifications
Cabinet/Case Material:
Plywood,column loudspeaker

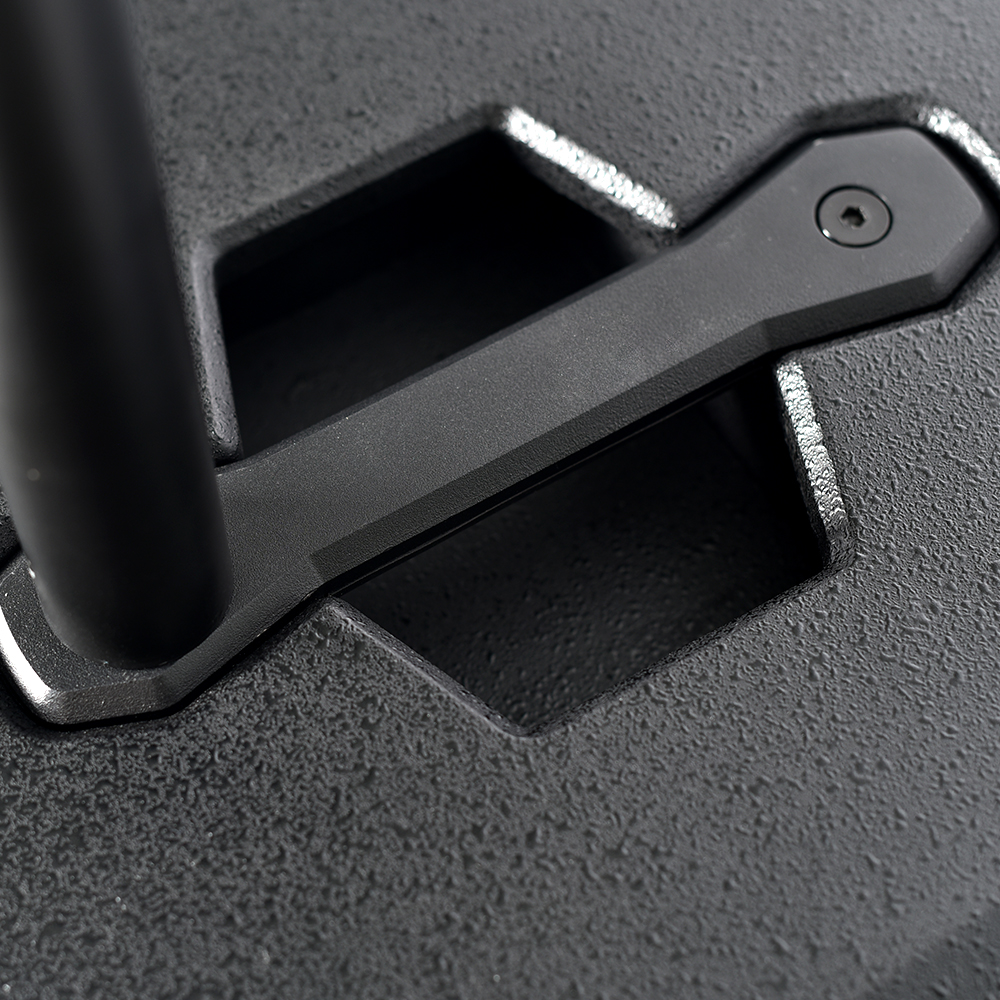

Handles:
2 x Wooden handles + 1 x Aluminum handle
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated ，inside is black cotton
Color:
Black
Size
Dimension (W x D x H):
420 x 490 x 2021mm / (16.5 x 19.3 x 79.6in)
Package Dimensions (W x D x H):
720 x 515 x 655mm / (28.3 x 20.3 x 25.8in)
Weight
Net Weight:
27.3 kg / 60.2 lb
Gross Weight:
32.55 kg / 71.8 lb
