CL Line Array Series

CL Line Array Series

The Beta Three® CL Line Array Series is a medium sized line array loudspeaker that is suitable for applications including sound reinforcement for Houses of Worship, Events, Theme Parks, Multifunctional Auditoriums, Schools, and Transit Terminals etc. The CL series line array loudspeaker delivers extraordinary performance where high speech intelligibility and natural sounding music is required at unmatched value.

CL110 2-Way Full Range Speaker
CL110 2-Way Full Range Speaker
CL110 2-Way Full Range Speaker

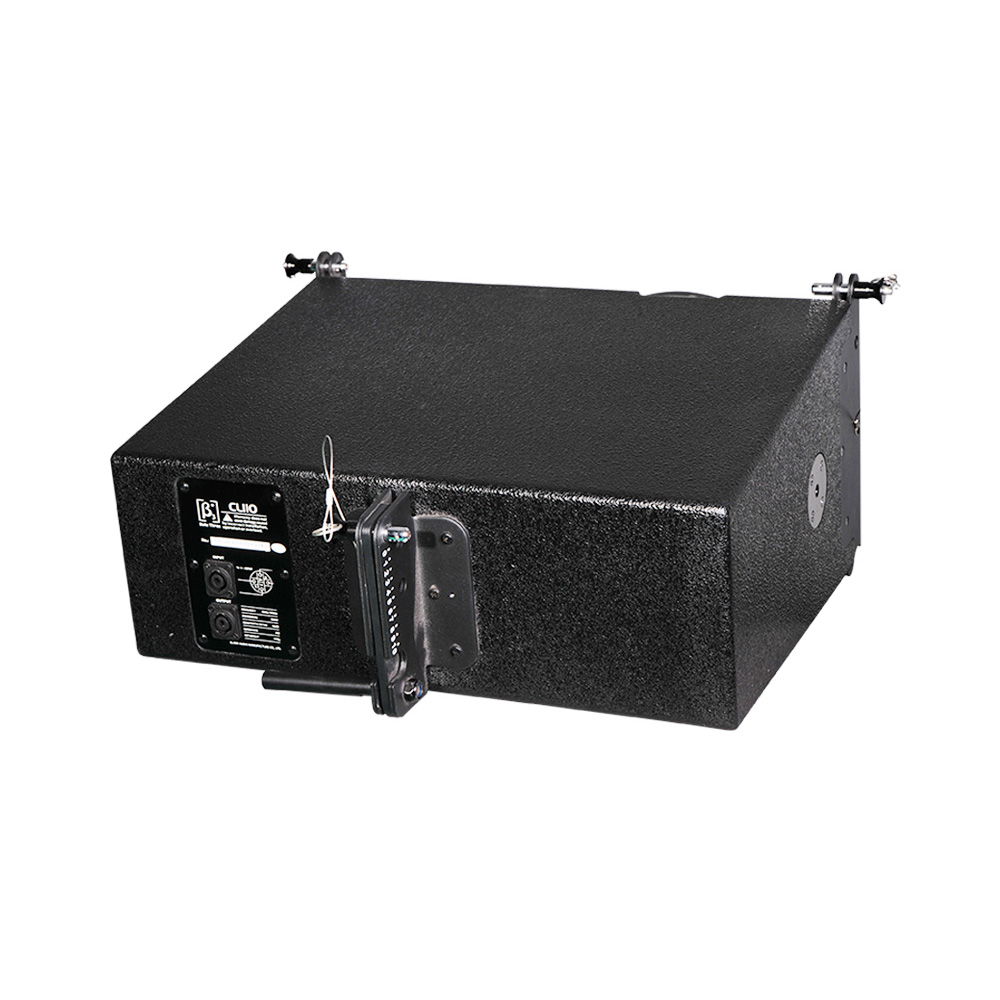

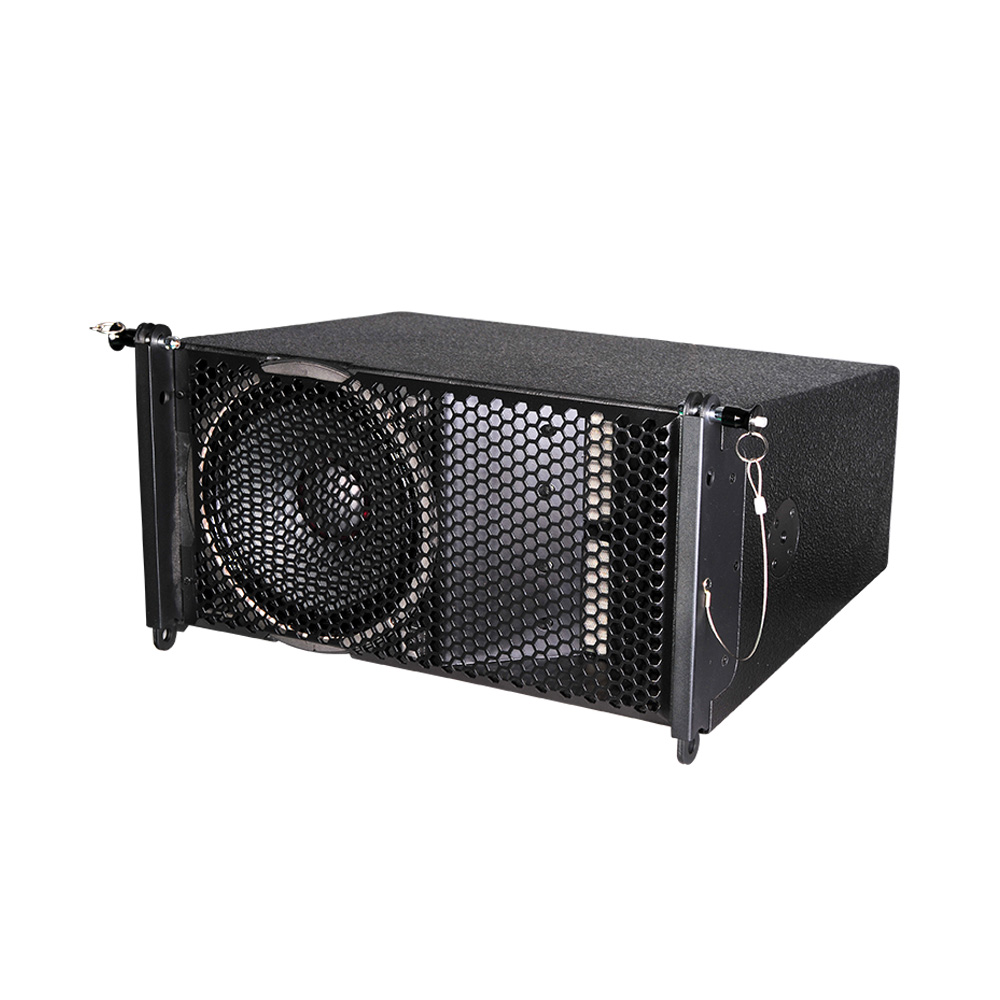

CL110

2-Way Full Range Speaker

The Beta Three® CL110 is a medium sized line array loudspeaker that is suitable for applications including sound reinforcement for Houses of Worship, Events, Theme Parks, Multifunctional Auditoriums, Schools, and Transit Terminals etc. The CL series line array loudspeaker delivers extraordinary performance where high speech intelligibility and natural sounding music is required at unmatched value.


Features

  • CL110 is a set of medium full range speakers in the CL Array Series.It is composed of one 10" neodymium LF transducer and two 1.7" HF transducers,with built-in crossover.

  • Dispersion 120° x 30° at 1kHz

  • Sensitivity 95 dB, Max SPL 118 dB.

  • RMS Power 200W, Peak Power 800W.

  • 4xCL110 and 1xCL212B make up an excellent point source system.

  • T shape cabinet structure,easy installation and uninstallation with lockpins,5 adjustable cabinet angle range.

  • With the customized hanging wares,the system can be used both for hanging and be put on the ground.

Specifications

Acoustical specifications
Frequency Response(-3db):
55Hz-19kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Dispersion (H x V):
120° x 30°
Transducers
Compression driver:
2 x 44mm HF Compression driver
Woofer:
1 x 10" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
95dB
Processor section
Crossover frequencies:
3kHz
Power section
Total Power:
200W(RMS); 400W(MUSIC); 800W(PEAK);
Nominal Impedance (Ohm):
Physical specifications
Cabinet/Case Material:
Trapezoidal cabinet,15mm Plywood
Hardware:
Specialized hardware
Grille:
Black Polyurethane painting for cabinet & Black Powder coated grille
Color:
Black
Size

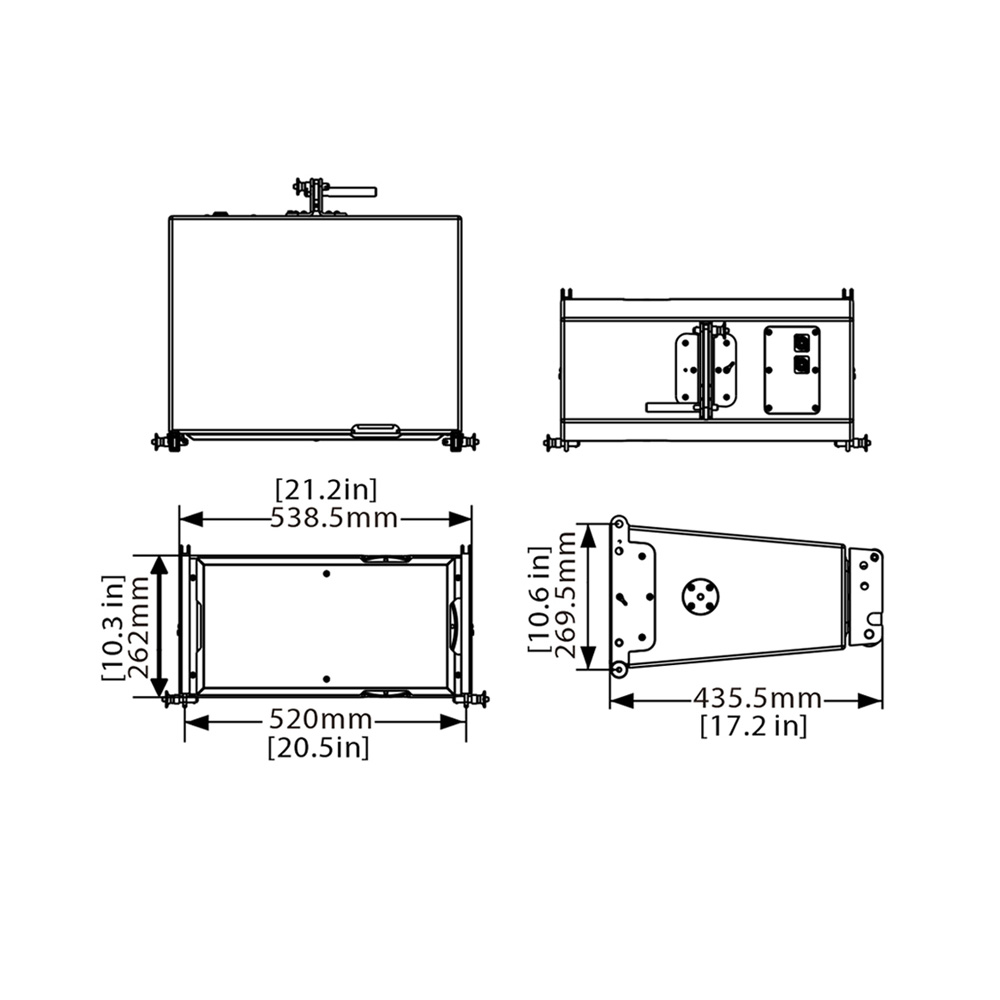

Dimension (W x D x H):
538.5 x 434.5 x 262mm / (21.2 x 17.1 x 10.3in)
Package Dimensions (W x D x H):
630 x 595 x 380mm / (24.8 x 23.4 x 15in)
Weight
Net Weight:
17 kg / 37.5 lb
Gross Weight:
18.5 kg / 40.8 lb

CL110 Application

    CL110 Installation

      CL110 Parts

        CL110 Collocation

          Videos

            Downloads

            FilenameVersionLanguageSizeUpdated
            CL110β3 CL110 Datasheet 1.0CL110  200KB 2024-03-28 20:25:56
            β3_CL110_PA_English_Manualβ3_CL110_PA_English_Manual 1β3_CL110_PA_English_Manual  5860KB 2022-05-09 15:01:22
