Name: TLX214a + TLX118Ba - 14" Active Line Array System
Brand: Beta Three
SKU: TLX214a + TLX118Ba
Availability: InStock
Rating: 5.0 (100 reviews)

14" Active Line Array System

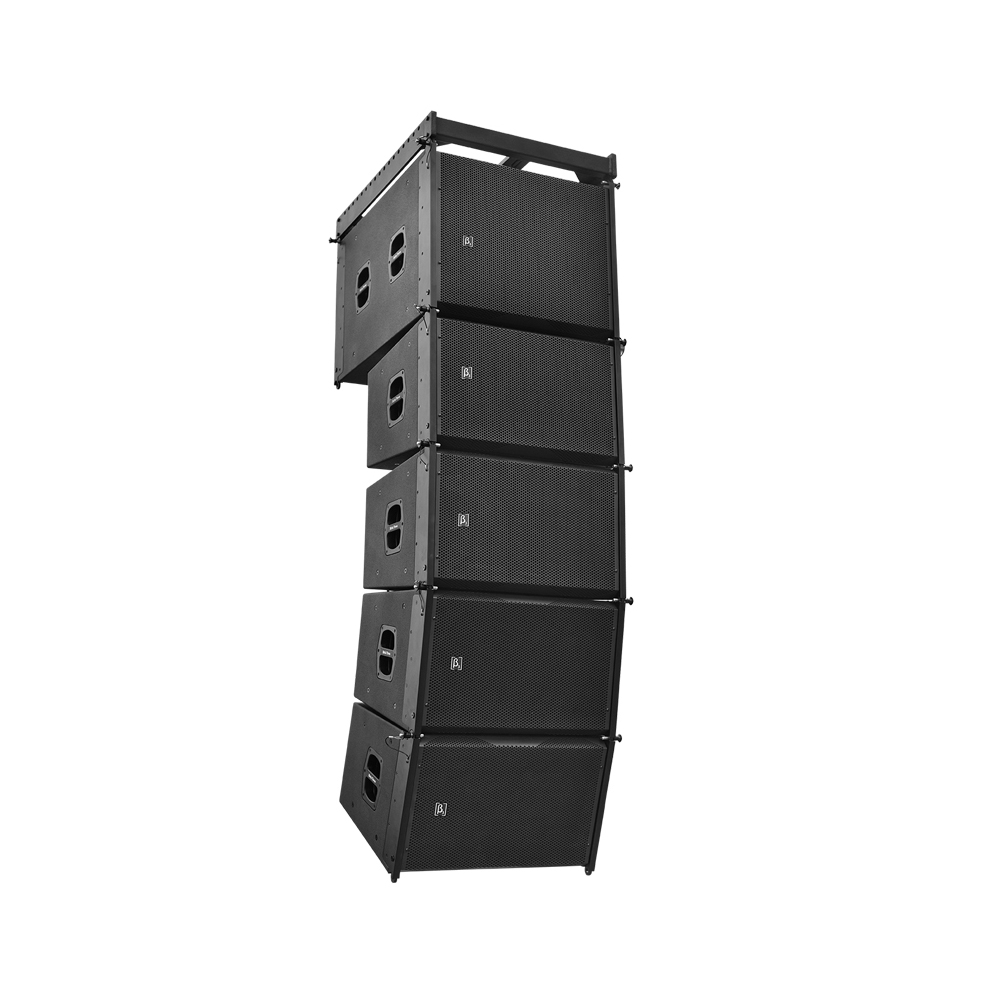

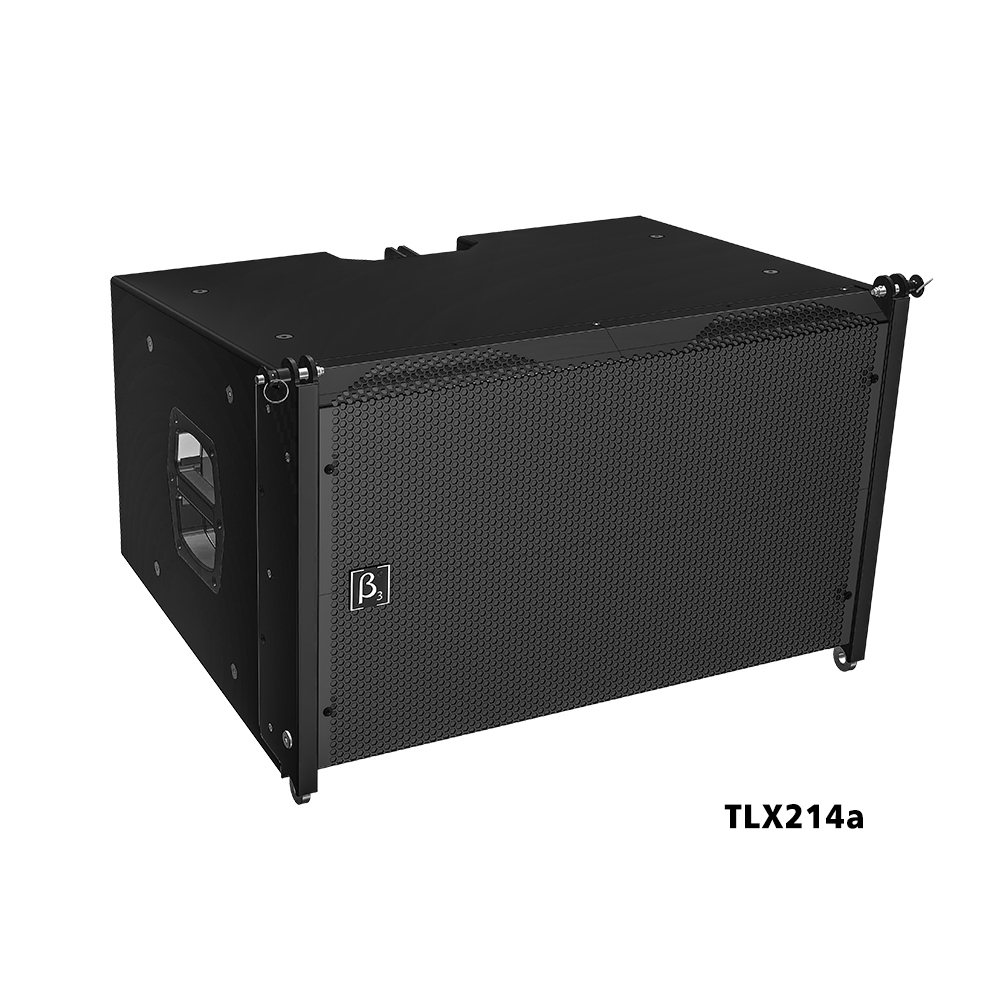

The TLX214a is an active 2-way line array module for small & medium events of indoors and outdoors. Equipped with 1 x neodymium driver and 2 x75mm drivers, it offers excellent sound quality and high SPL. TLX214a is driven by an onboard amplifier with DSP which provides 4 presets for users to select according to different applications. The optimized construction and high efficiency transducers makes TLX214a a compact enclosure with max SPL 132dB. TLX214a offers practical horizontal of 120 degree and can be curved up from 0 to 10˚ for each element.TLX118Ba is an active 18'' subwoofer, ideally paired with TLX214a for bass reproduction. The 3-point rigging system offers easy and quick set-up and allows TLX214a and TLX118Ba to suspend in an array. The TLX214a/TLX118Ba cabinets are constructed of Russian birch plywood and coated with a durable polyster finish to ensure maximum acoustical and mechanical integrity.　

Features

Cutting edge 14'' line array technology
Customized B&C high performance transducers
Customized waveguide
Switching mode technology grants reliability and robustness.
Built-in DSP with 4 presets
3-point rigging system for quick set-up

Specifications

Acoustical specifications

Frequency Response(-3db):

TLX214a: LF:45Hz-3kHz; HF: 500Hz-18kHz;TLX118Ba: 40Hz-200Hz

Max SPL @ 1m:

TLX214a: LF: 124dB/130dB(PEAK), HF: 126dB/132dB(PEAK); TLX118Ba: 124dB/130dB(PEAK)

Dispersion (H x V):

120° x 0-10°

Transducers

Transducer Driver:

TLX214a: 2 x 3" HF + 1 x 14" LF;TLX118Ba: 1 x 18" LF

Input/Output section

Input Connectors:

TLX214a: 2 x XLR; TLX118Ba: 2 x XLR

Power section

Total Power:

TLX214a: 700W x 2; TLX118Ba: 1400W(RMS);

Voltage range:

AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)

Physical specifications

Color:

Black

Size

Dimension (W x D x H):

TLX214a: 660 x 489 x 440; TLX118Ba: 660 x 807 x 568; Frame: 660 x 829 x 110

Weight

Net Weight:

86.7 kg / 191.1 lb
