The Beta Three® Meline series is a series of highly versatile and ultra-compact portable PA systems perfectly suited for DJs, musicians, presenters, and other live performances accommodating up to 300 audiences. All members in the Meline series are lightweight, low-profile, and extremely easy to set up and transport. Innovative DSP onboard allows users to have control over various presets, and users can stream music wirelessly from their smart devices using the Bluetooth technology.

Meline S1 Small PA speaker system
Meline S1 Small PA speaker system
Meline S1 Small PA speaker system
Meline S1 Small PA speaker system
Meline S1 Small PA speaker system

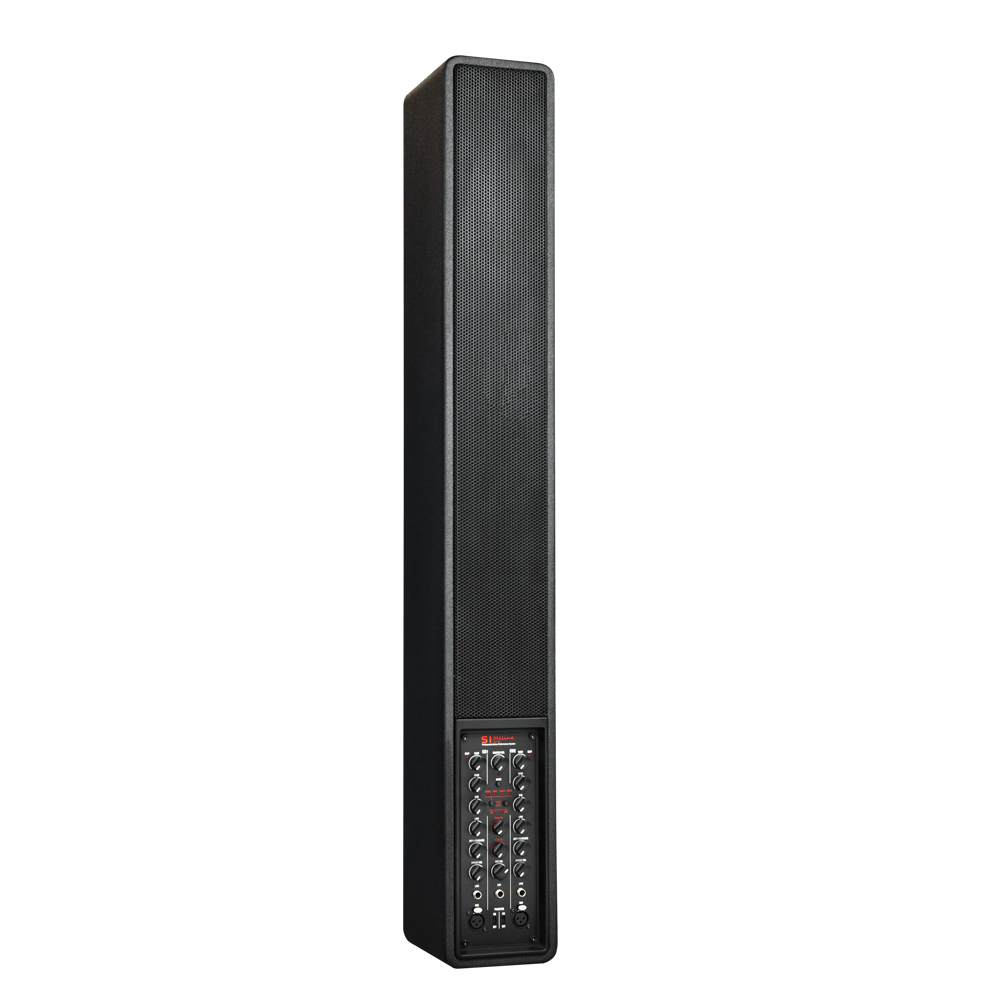

Meline S1

Small PA speaker system

Meline S1 is a compact portable sound system with integrated solo, monitor, small performances, meeting presentations and other functions all in one. Lightweight, impact resistant structure, high power output, stable balanced audio output. Melanie S1 is specially designed for anytime, anywhere by anyone stage performances with unmatched value.


Features

  • Compact portable and eye catching design
  • Slim column system with floor stand, high power output and natural sound
  • 6x4” neodymium mid-woofer dive lower bass and 1” neodymium soft fabric dome tweeter delivers extended clarity for high end field
  • Class D module for LF and CLASS AB module for HF, including multiple DSP preset for sound adjustment

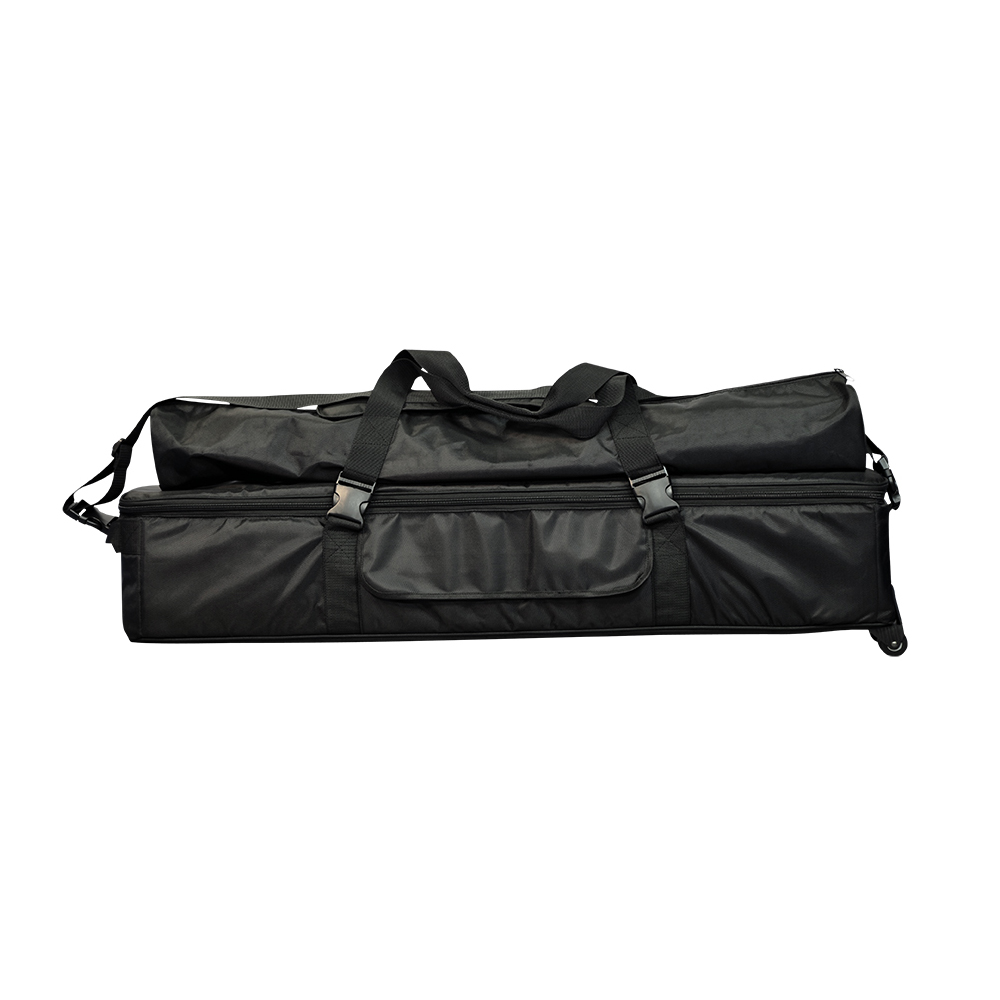

  • Specialized carry bag for ease of transportation

Specifications

Acoustical specifications
Frequency Response(-3db):
80Hz-18KHz
Max SPL @ 1m:
114dB/120dB(PEAK)
Dispersion (H x V):
90° x 30°
Transducers
Compression driver:
1 x 1" Neo dome tweeter
Woofer:
6 x 4" Neo mid-woofer
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
XLR/TRS COMBO,RCA, 3.5mm JACK
Power section
Total Power:
LF: 300W; HF: 50W(RMS);
Nominal Impedance (Ohm):
Voltage range:
AC 100V-240V~, 50Hz/60Hz
Physical specifications
Cabinet/Case Material:
Plywood
Handles:
1 x Wooden handles
Color:
Black
Size
Dimension (W x D x H):
145 x 185 x 1100mm / (5.7 x 7.3 x 43.3in)
Package Dimensions (W x D x H):
225 x 265 x 1200mm / (8.9 x 10.4 x 47.2in)
Weight
Net Weight:
9 kg / 19.8 lb
Gross Weight:
10.5 kg / 23.1 lb

Meline S1 Application

    Meline S1 Installation

      Meline S1 Parts

        Meline S1 Cases

          Meline S1 Collocation
