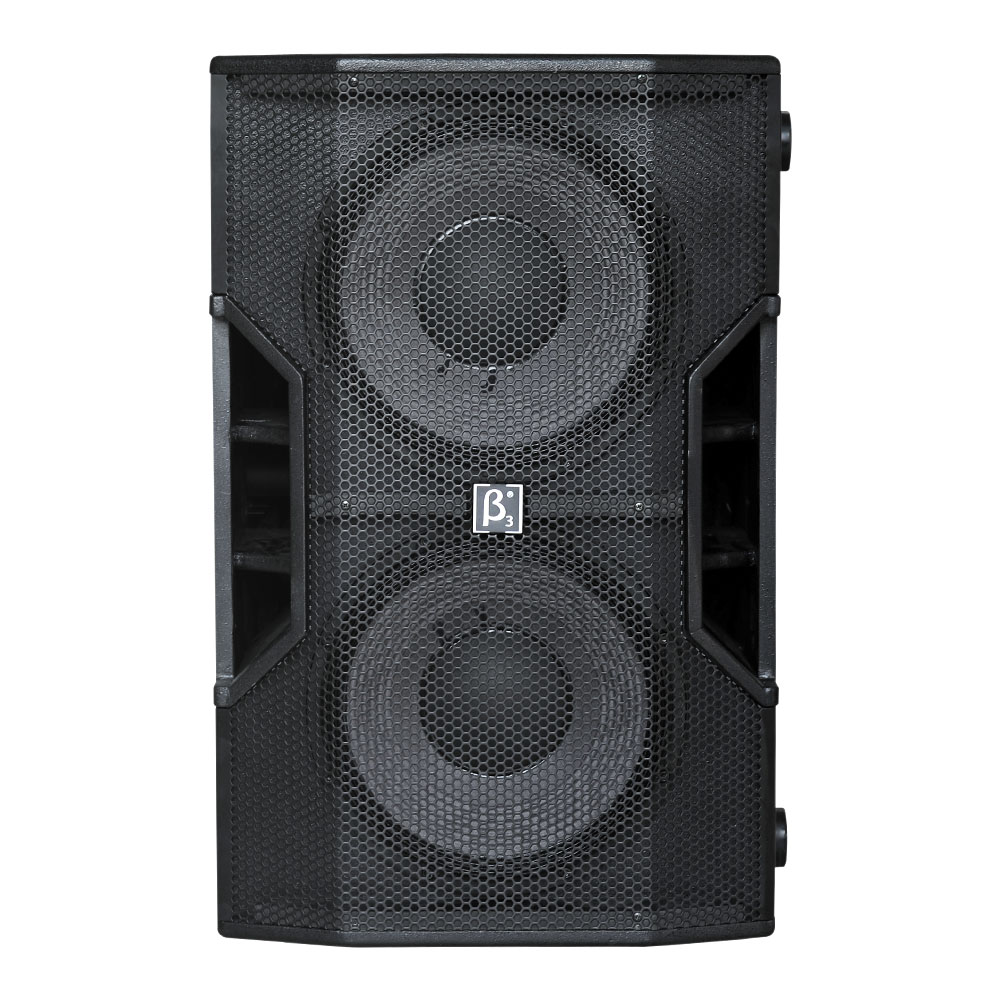

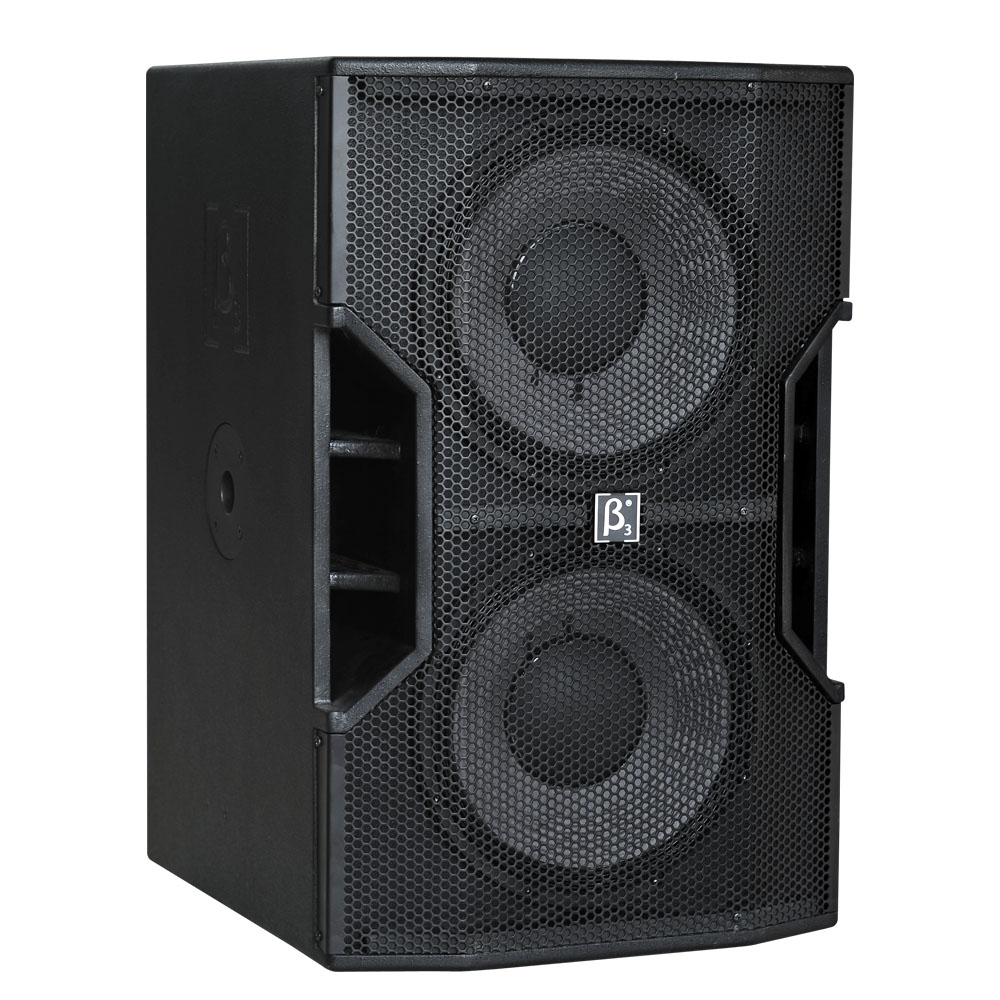

T212B - Dual 12" LF wooden speaker
T212B - Dual 12" LF wooden speaker

T212B

Dual 12" LF wooden speaker

Portable and installed wooden loudspeakers used in applications including sound reinforcement in Front of House and applications in house of worship, events, clubs, rehearsal etc. Both active and passive version deliver extraordinary performance at unmatched value.


Features

  • Light weight passive bass speaker
  • Heavy duty protective grill
  • High intensity design wooden cabinet
  • 35mm pole mount on top and side
  • M8 rigging points are convenient for different installation
  • Suitable for use with any full range or mid/high speaker cabinets for extended low frequency, high quality music reproduction

Specifications

Acoustical specifications
Frequency Response(-3db):
48Hz-2.2kHz
Max SPL @ 1m:
133dB/139dB(PEAK)
Transducers
Woofer:
2 x 12" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
96dB
Power section
Total Power:
1000W(RMS); 2000W(MUSIC); 4000W(PEAK)
Nominal Impedance (Ohm):
Physical specifications
Cabinet/Case Material:
Plywood
Hardware:
Fixed supporting base
Handles:
2 x Iron handle
Grille:
Polyurethane-based painting. Steel grille is coated by dots to provide strong ultra-Weatherability
Color:
Black
Size
Dimension (W x D x H):
460 x 520 x 720mm / (18.1 x 20.5 x 28.3in)
Package Dimensions (W x D x H):
580 x 630 x 850mm / (22.8 x 24.8 x 33.5in)
Weight
Net Weight:
39 kg / 86 lb
Gross Weight:
42 kg / 92.6 lb

T212B Application

    T212B Installation

      T212B Parts

        T212B Cases

          T212B Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              β3_T212B_PA_Chinese_Manualβ3_T212B_PA_Chinese_Manual 1β3_T212B_PA_Chinese_Manual  1253.23KB 2018-07-12 02:25:39
              β3_T212B_PA_English_Manualβ3_T212B_PA_English_Manual 1β3_T212B_PA_English_Manual  1014.44KB 2018-07-12 02:25:39
