DS1800 - Distribution Splitter
DS1800 - Distribution Splitter

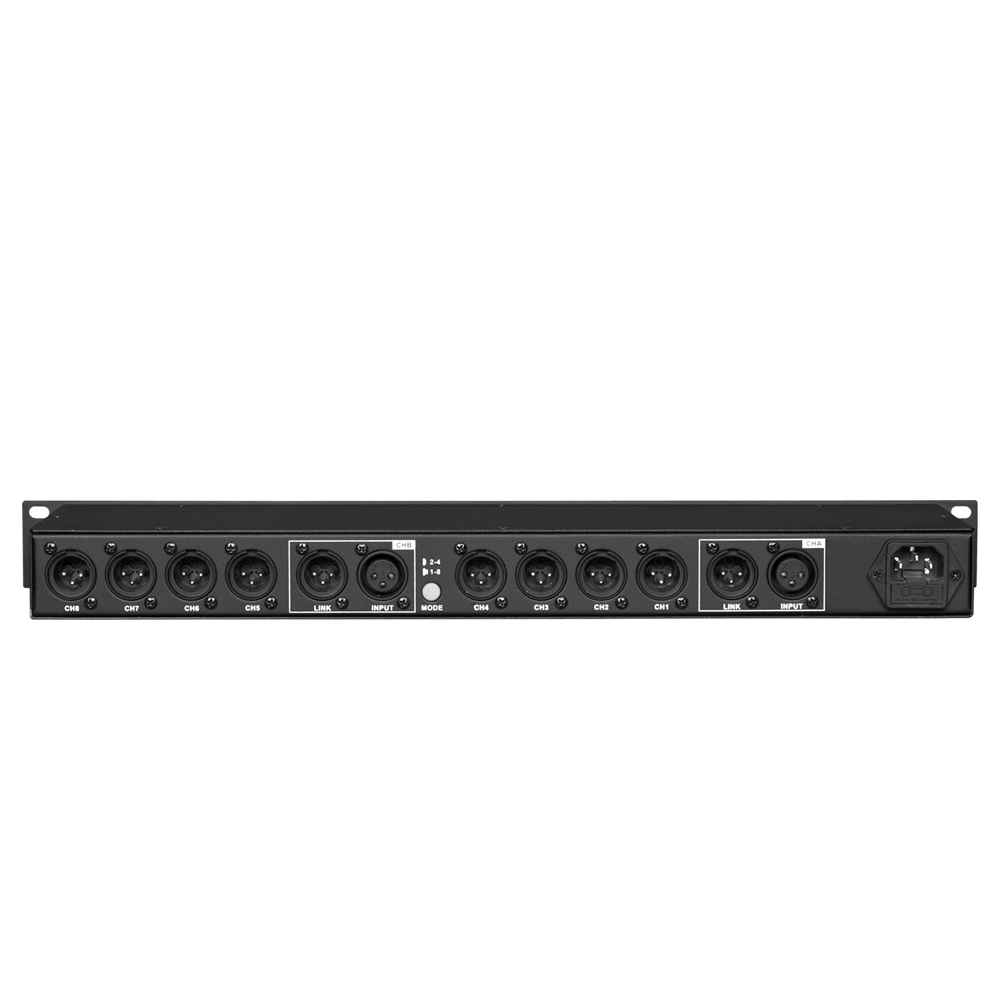

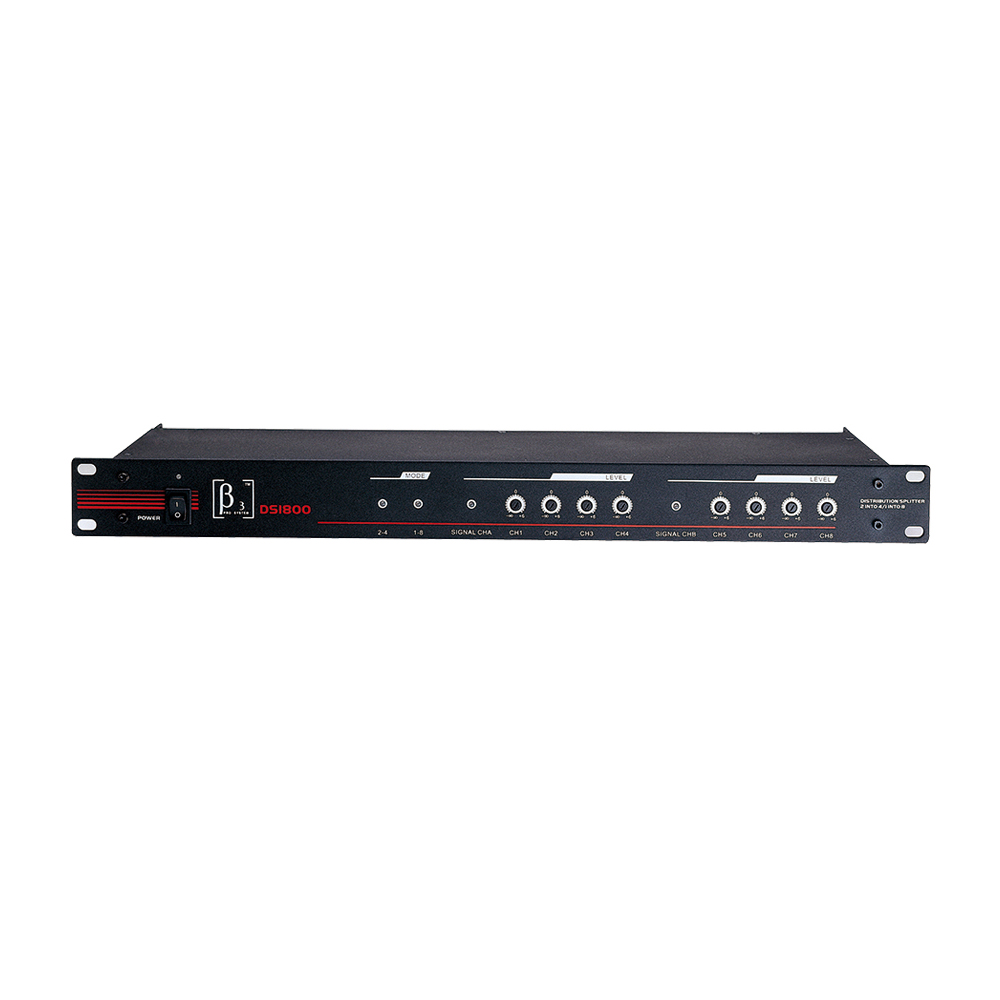

DS1800

Distribution Splitter

DS1800 is a high-quality Signal Distribution Splitter designed specifically for both live and studio applications.


Features

  • Work mode with 'Two Input Four Output', or 'One Input Eight Output'
  • Independent potentiometer for each channel to adjust
  • Full electric balance input and output connector
  • Link output connector
  • Concealed potentiometer knob to guarantee effectively the stable setting status of distributor.
  • Electrocircuit design for the super low Distortion & super low Noise.

Specifications

Input Impedance10KΩ(Balanced)
Output Impedance47 Ohm (Balanced)
Output Max.Voltage Gain Per Channel+6dB
Max.Output Level>20dBu
Max Input Level>20dBu
THD+N<0.008%

Dynamic Range

>115dB
S/N>100dB A weight
Frequency Response20HZ - 20KHZ, ±0.3dB
Distortion<0.03%
Power Consumption<8W
Net Weight2.5Kg

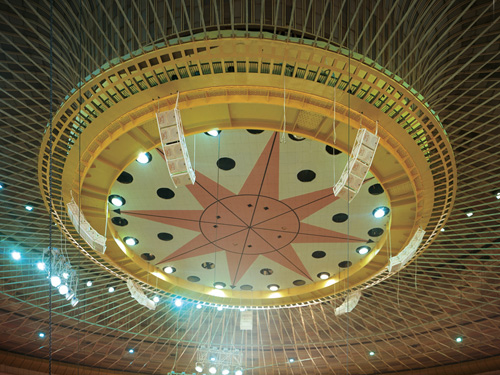

DS1800 Application

    DS1800 Installation

      DS1800 Parts

        DS1800 Collocation

          Videos

            Downloads

            FilenameVersionLanguageSizeUpdated
            DS1800β3 DS1800 Datasheet 1.0DS1800  200KB 2022-07-05 21:47:35
            β3_DS1800_Electronic_Periphery_Chinese_Manualβ3_DS1800_Electronic_Periphery_Chinese_Manual 1β3_DS1800_Electronic_Periphery_Chinese_Manual  524.97KB 2018-07-12 02:25:39
            β3_DS1800_Electronic_Periphery_English_Manualβ3_DS1800_Electronic_Periphery_English_Manual 1β3_DS1800_Electronic_Periphery_English_Manual  134.43KB 2018-07-12 02:25:39
