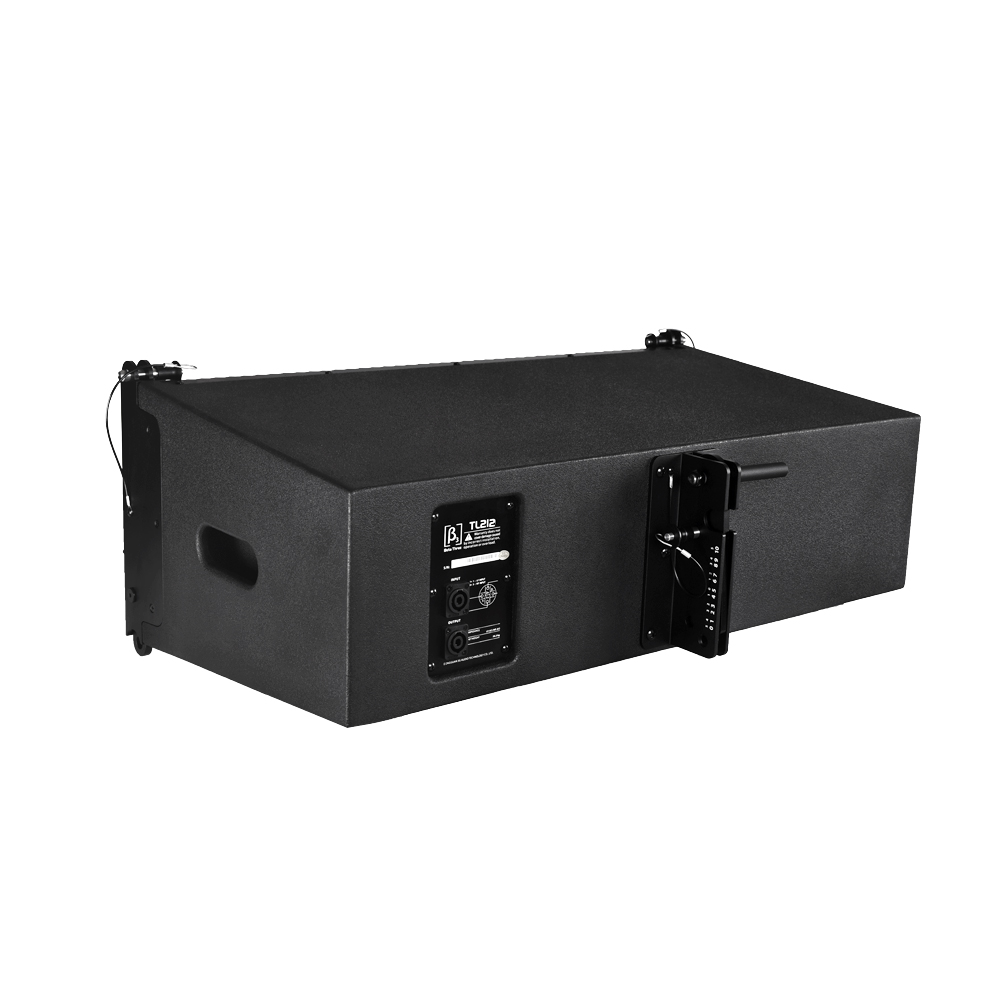

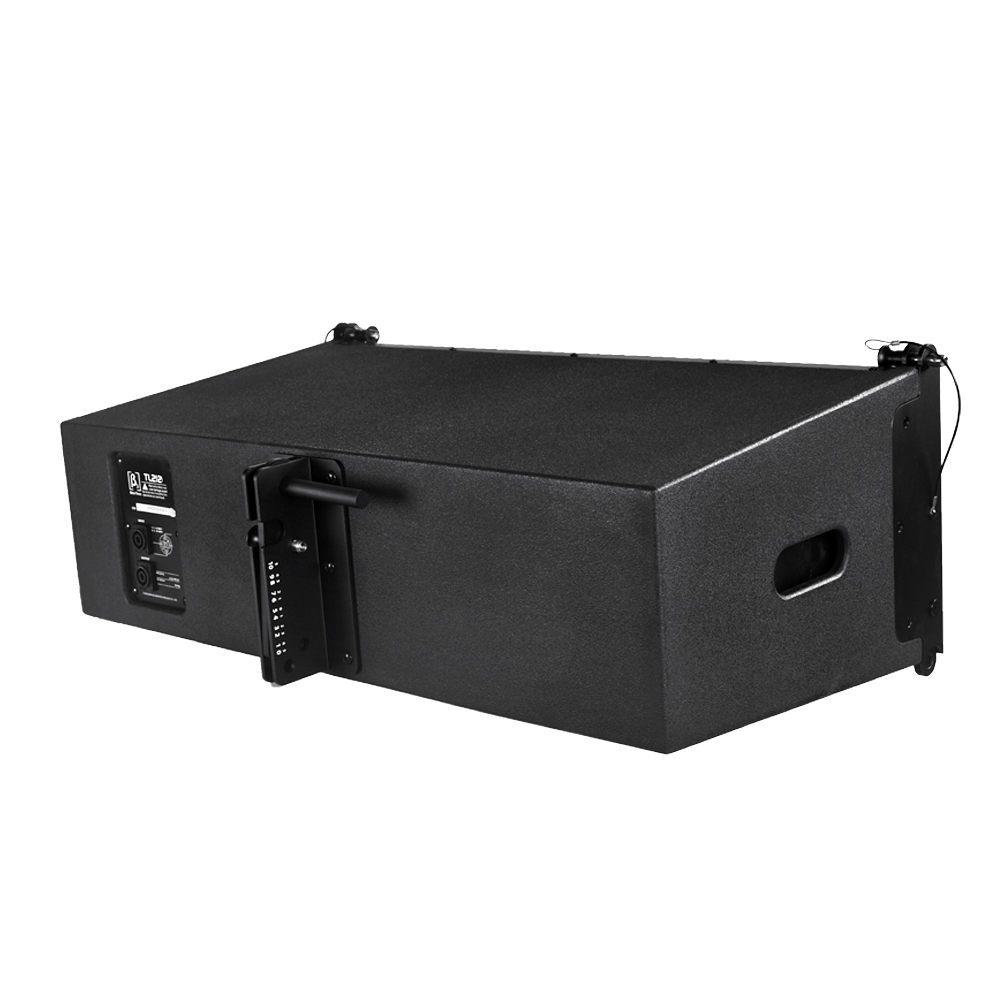

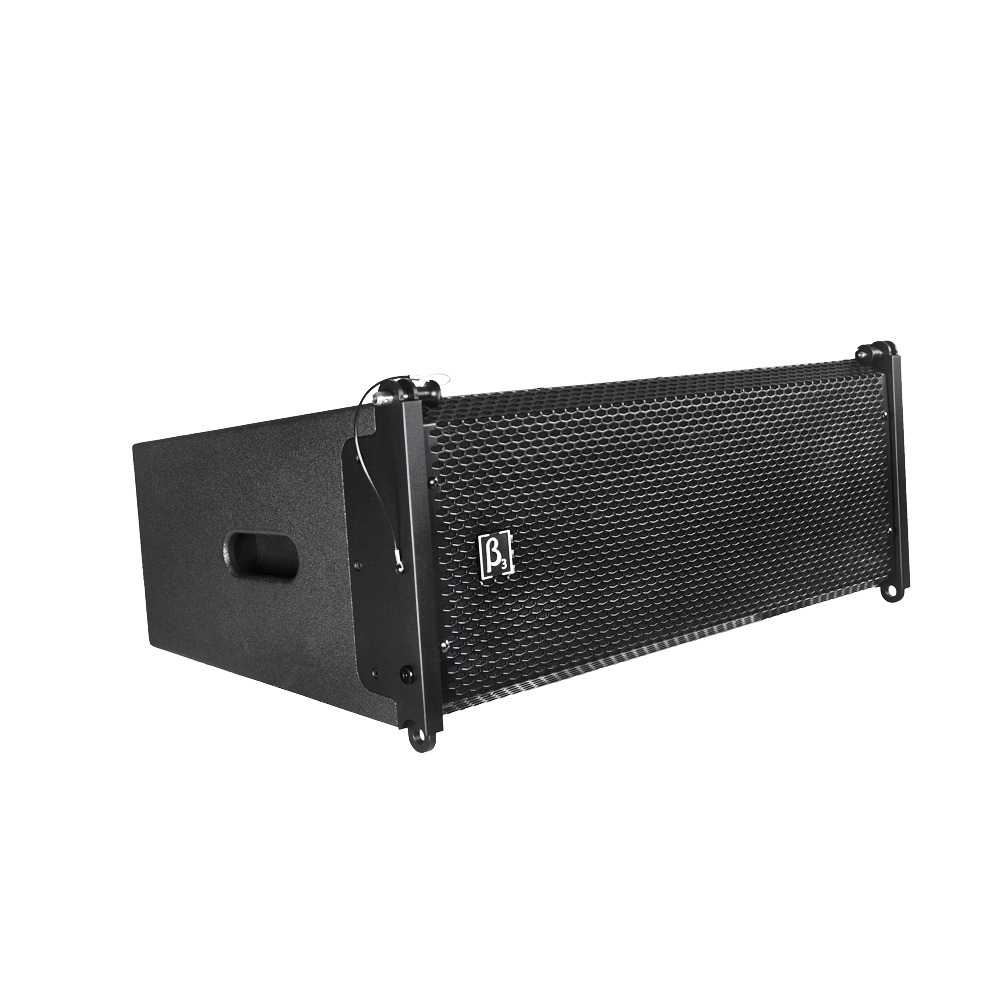

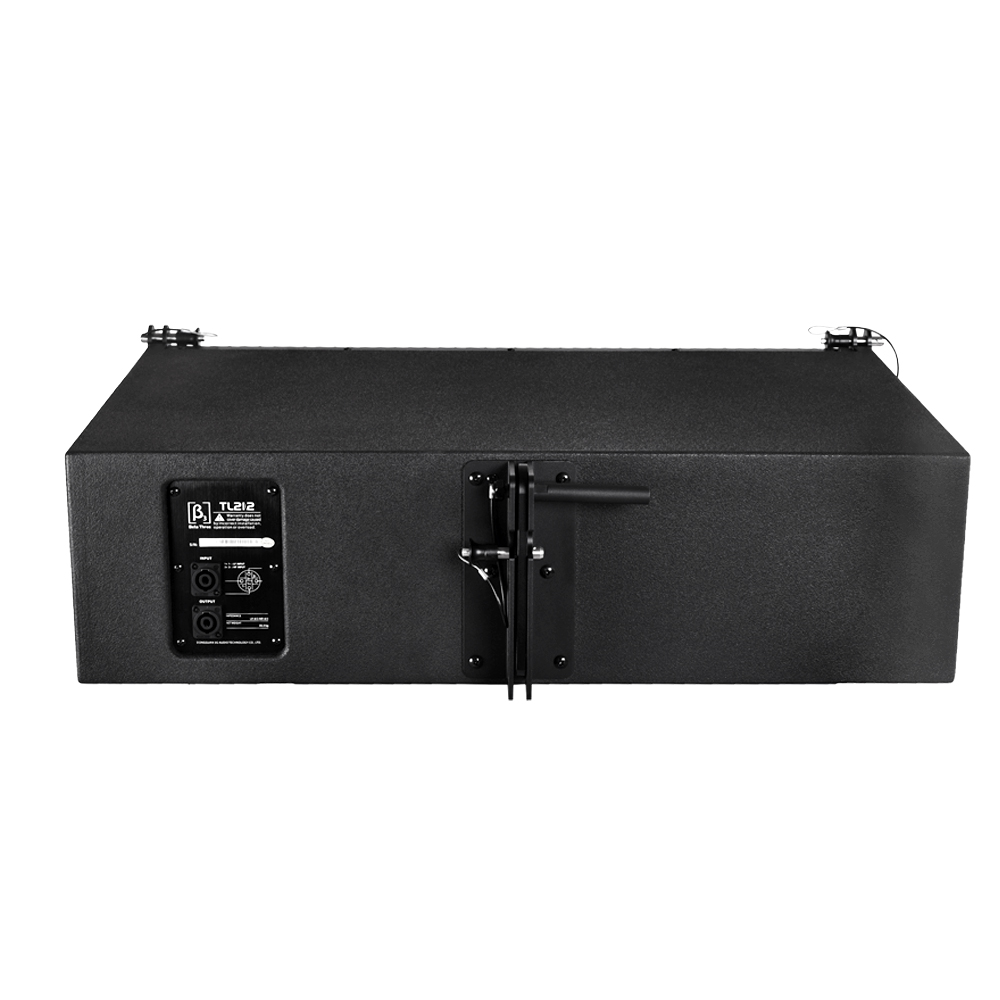

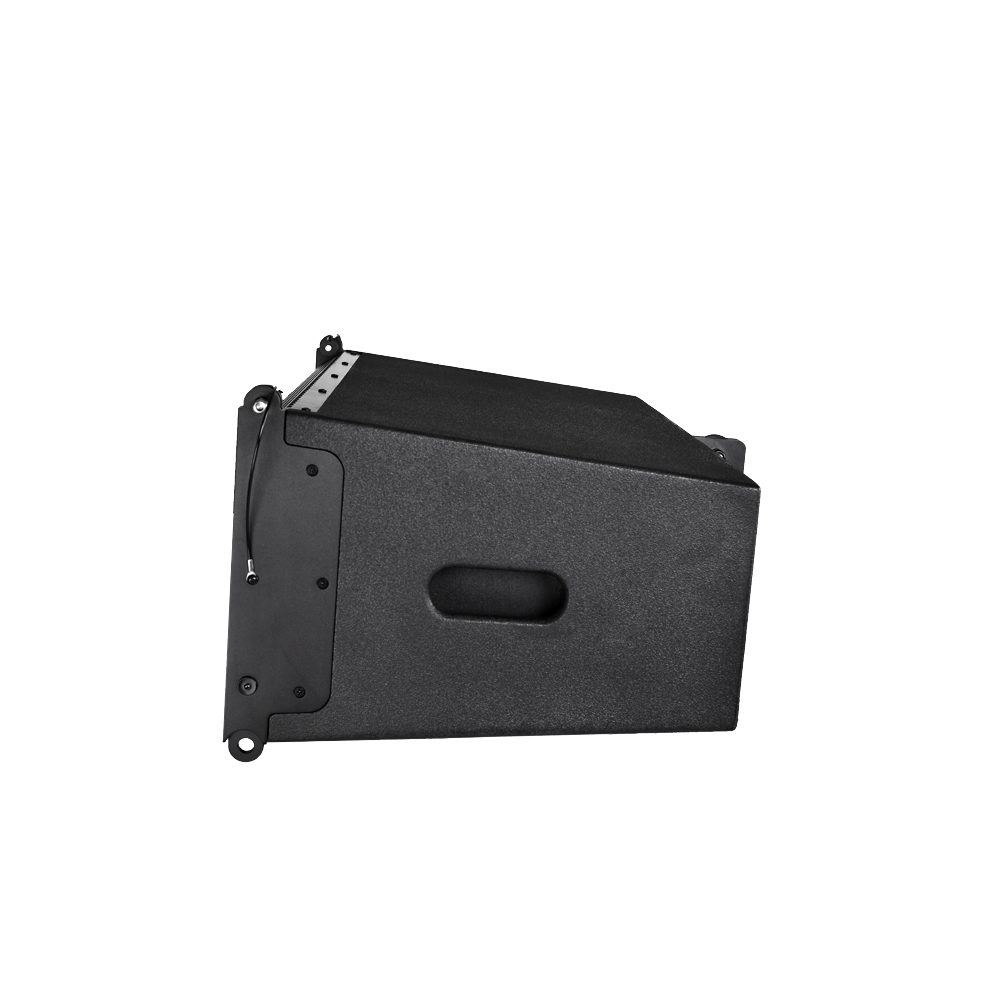

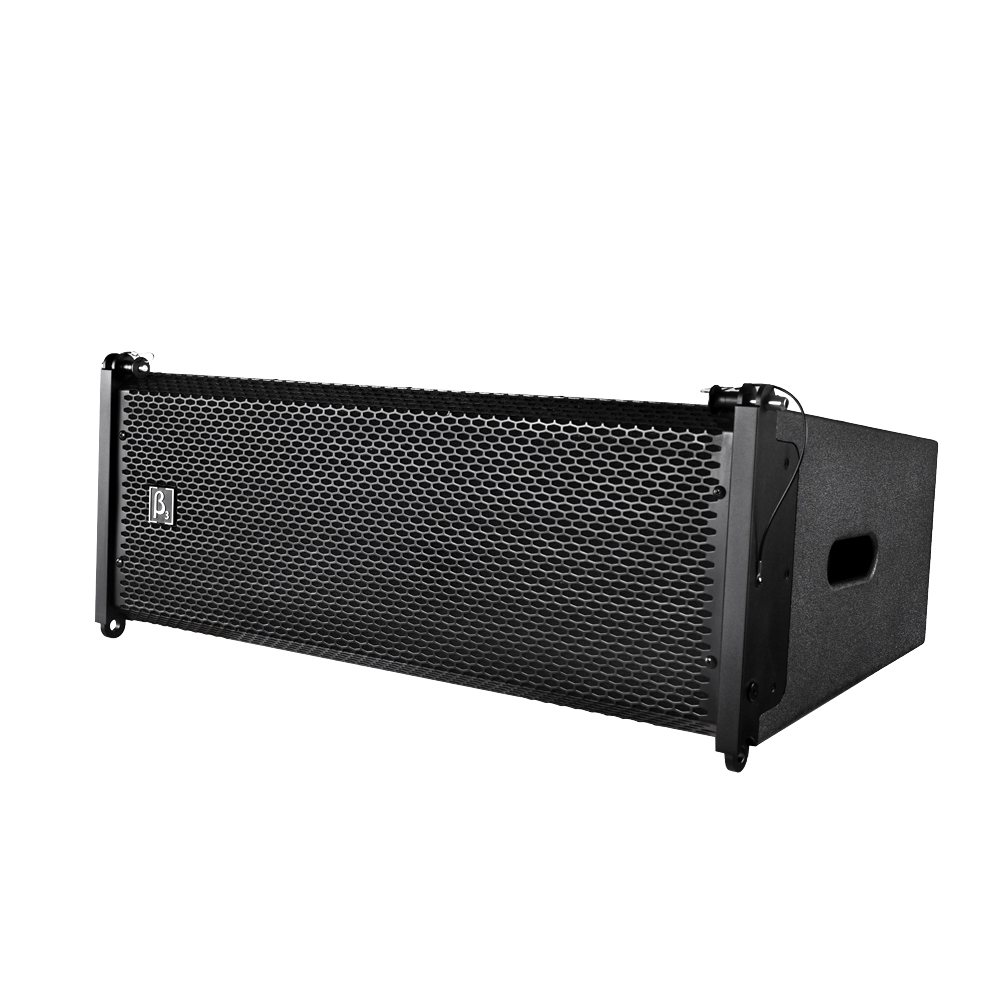

TL212

Dual 12" 2-way Line Array Speaker

The Beta Three® TL212 is a compact 2-way bass-reflex line array speaker specially designed for touring applications that require superior sound and intelligibility. It comes with 2 x 12" high-efficiency woofers and 1 x 1.7" coaxial neodymium compression driver and delivers 400W RMS, 1600W peak power output. With a special flying frame, the inter-cabinet angle for the TL212 is adjustable from 0° to 10°. Along with the TL215B subwoofer, the entire line array system can be ground-stacked, suspended, or mounted. Altogether, they perform superior sound at an unmatched value for various applications.


Features

  • High quality birch plywood cabinet
  • High SPL output and sensitivity
  • 2 x 10" high power LF woofers
  • 1 x 1.7" coaxial neodymium compression drivers

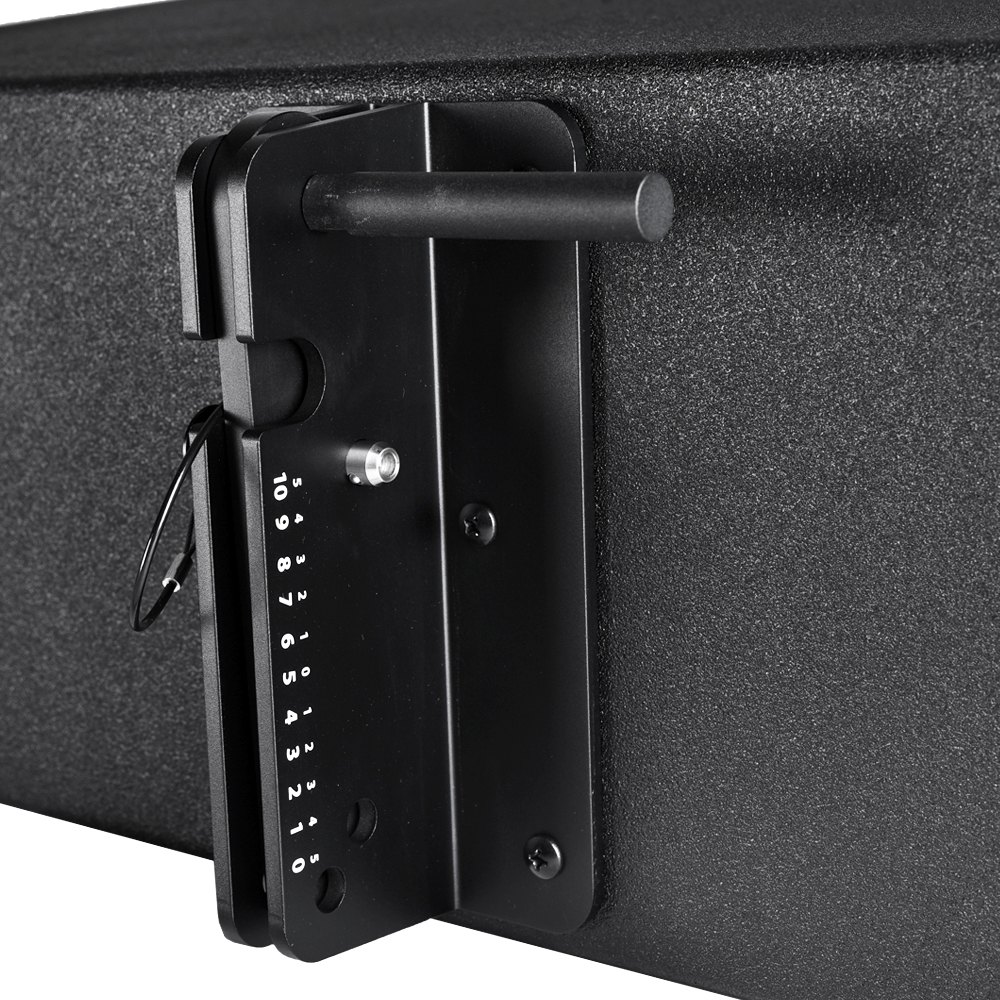

  • Adjustable inter-cabinet angle from 0° to 10°
  • 1600W peak power output
  • Suitable for use as a main system with or without sub speaker augmentation
  • Perfect line array solution arrayed with TL215B subwoofer
  • Multiple installations ranging from ground-stacked, suspended, or mounted

Specifications

Acoustical specifications
Frequency Response(-3db):
LF:50Hz-4kHz HF:260Hz-20kHz
Max SPL @ 1m:
LF:132dB MF/HF:129dB
Dispersion (H x V):
100° x 80°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
2 x 12" LF
Input/Output section

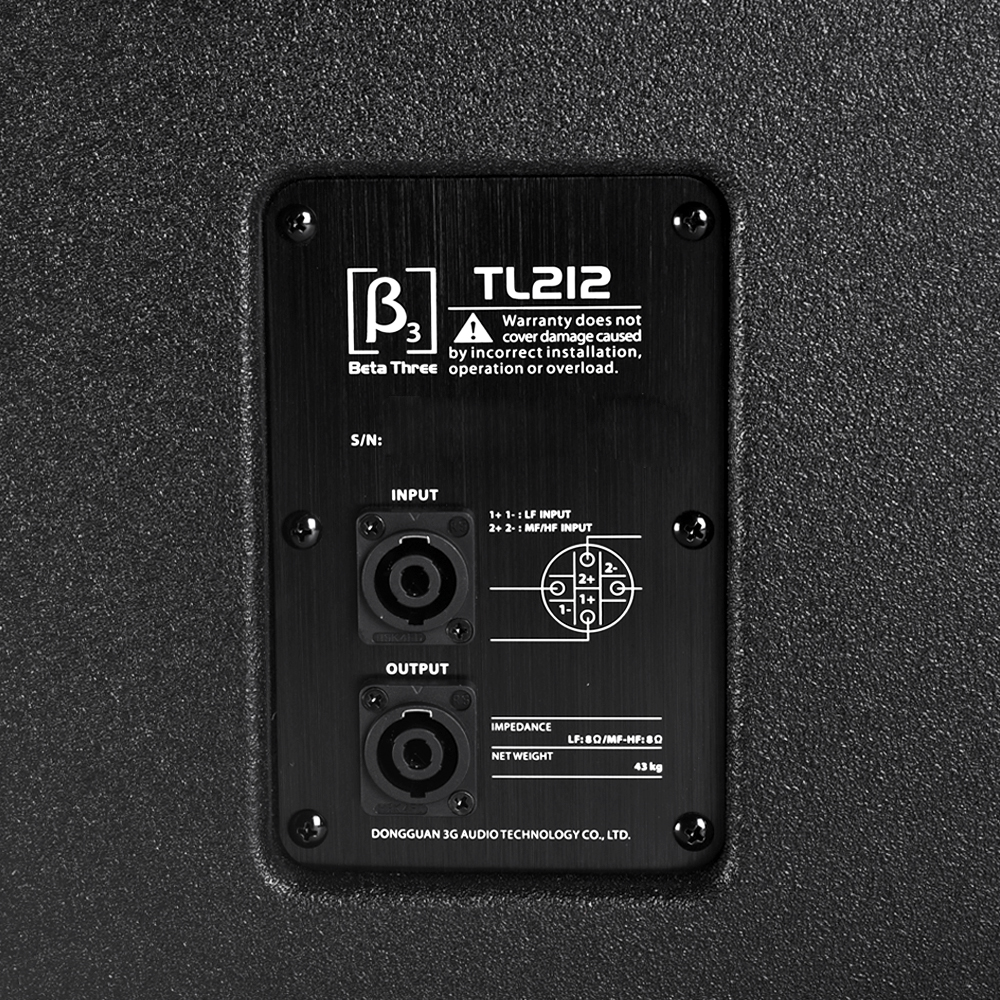

Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
LF:100dB HF:105dB
Power section
Total Power:
LF: 400W MF/HF : 70W(RMS); LF: 800W MF/HF : 140W(MUSIC); LF: 1600W MF/HF : 280W(PEAK);
Nominal Impedance (Ohm):
Physical specifications
Cabinet/Case Material:
15mm Plywood
Handles:
2 x Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size
Dimension (W x D x H):
965 x 630 x 380mm / (38 x 24.8 x 15in)
Package Dimensions (W x D x H):
705 x 445 x 1085mm / (27.8 x 17.5 x 42.7in)
Weight
Net Weight:
43 kg / 94.8 lb
Gross Weight:
48.3 kg / 106.5 lb
