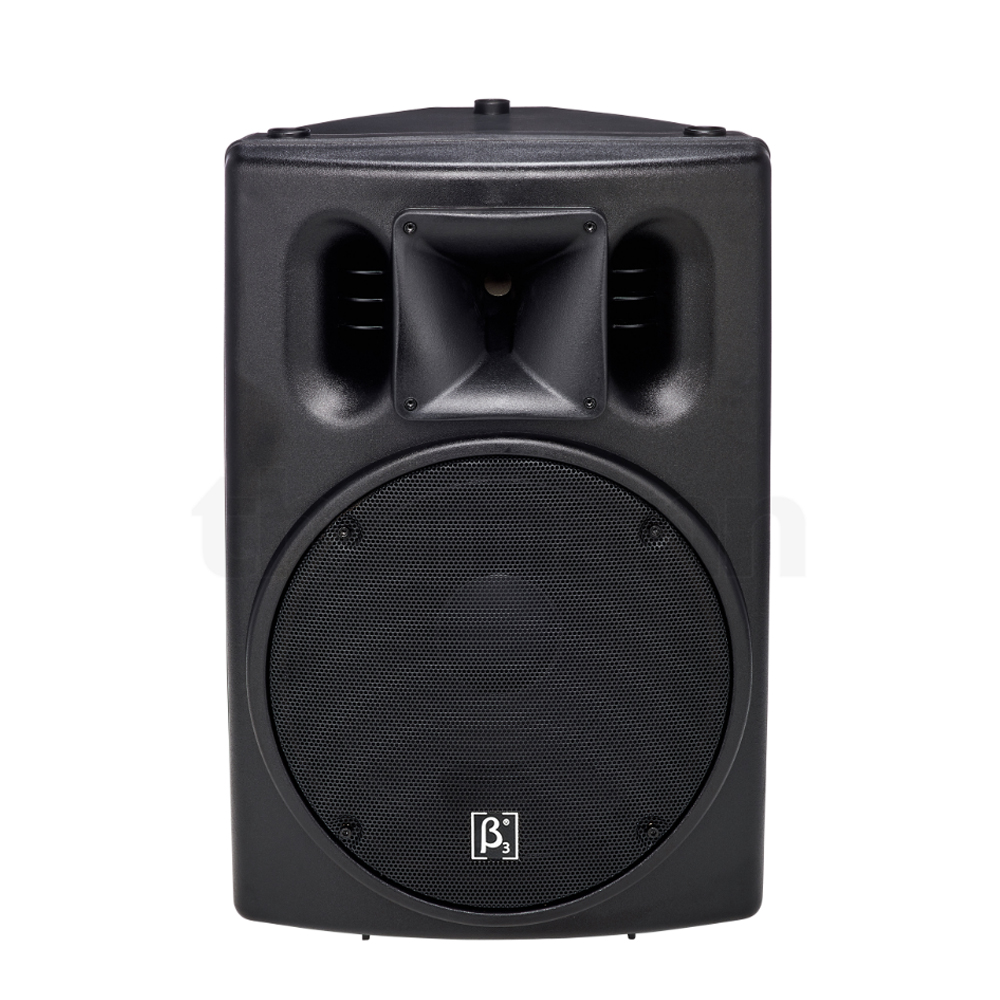

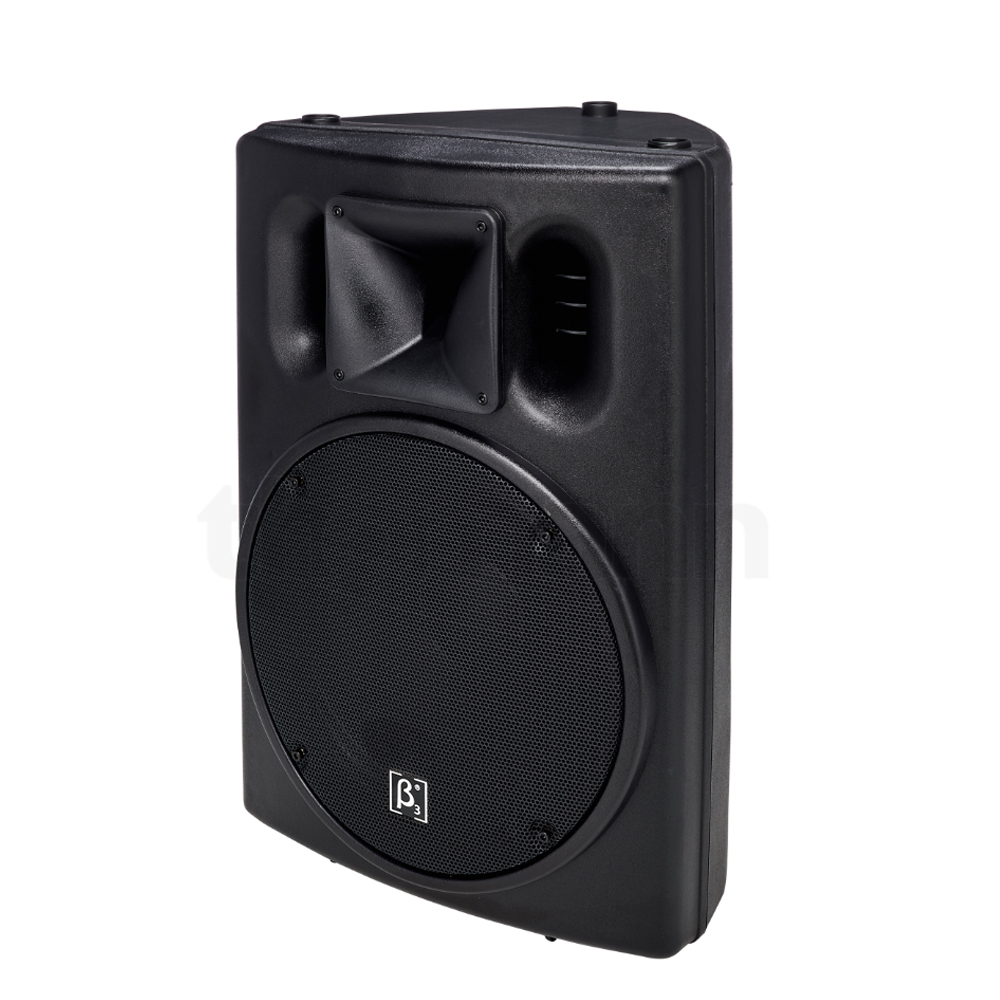

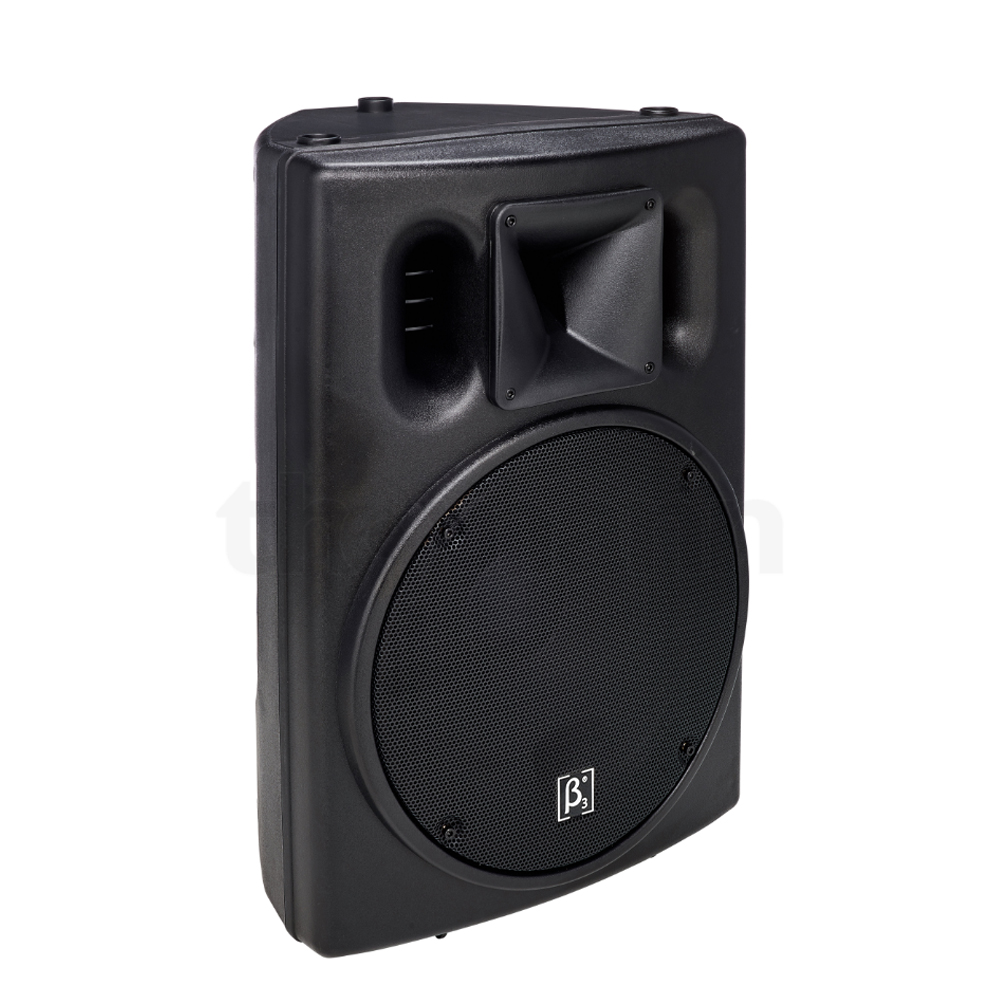

CTM1200S

12" Two-way Full Range Active Speaker

The Beta Three® portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship, Medium-sized Conference Rooms,Multi-functional Hall, Church, Auditorium Performance Places etc. The CTM Active Series delivers extraordinary performance at unmatched value.


Features

  • High output SPL and sensitivity
  • 1 x 12" high power transducer
  • 1 x 34mm diaphragm compression driver
  • Heavy duty protective grill and high strength polypropylene precision Injection molded
  • Built-in Class D power amplifier module
  • Master volume, Bass and Treble control
  • Switchable between Mic and Line input

Specifications

Acoustical specifications
Frequency Response(-3db):
45Hz-20kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Dispersion (H x V):
90° x 85°
Transducers
Compression driver:
1 x 34mm Compression Driver
Woofer:
1 x 12" LF
Input/Output section
Input Connectors:
1 x XLR
Power section
Total Power:
400W
Nominal Impedance (Ohm):
Voltage range:
AC 100V-240V~, 50Hz/60Hz
Physical specifications
Cabinet/Case Material:
Polypropylene injection moulding
Hardware:
3 Hanging point
Color:
Black
Size
Dimension (W x D x H):
415 x 385 x 600mm / (16.3 x 15.2 x 23.6in)
Package Dimensions (W x D x H):
470 x 440 x 685mm / (18.5 x 17.3 x 27in)
Weight
Net Weight:
16 kg / 35.3 lb
Gross Weight:
18.5 kg / 40.8 lb

CTM1200S Application

  • Multi-function hall Multi-function hall
  • Auditorium Auditorium
  • Medium-sized Conference Rooms Medium-sized Conference Rooms
  • Church Church
  • Performance Places Performance Places
