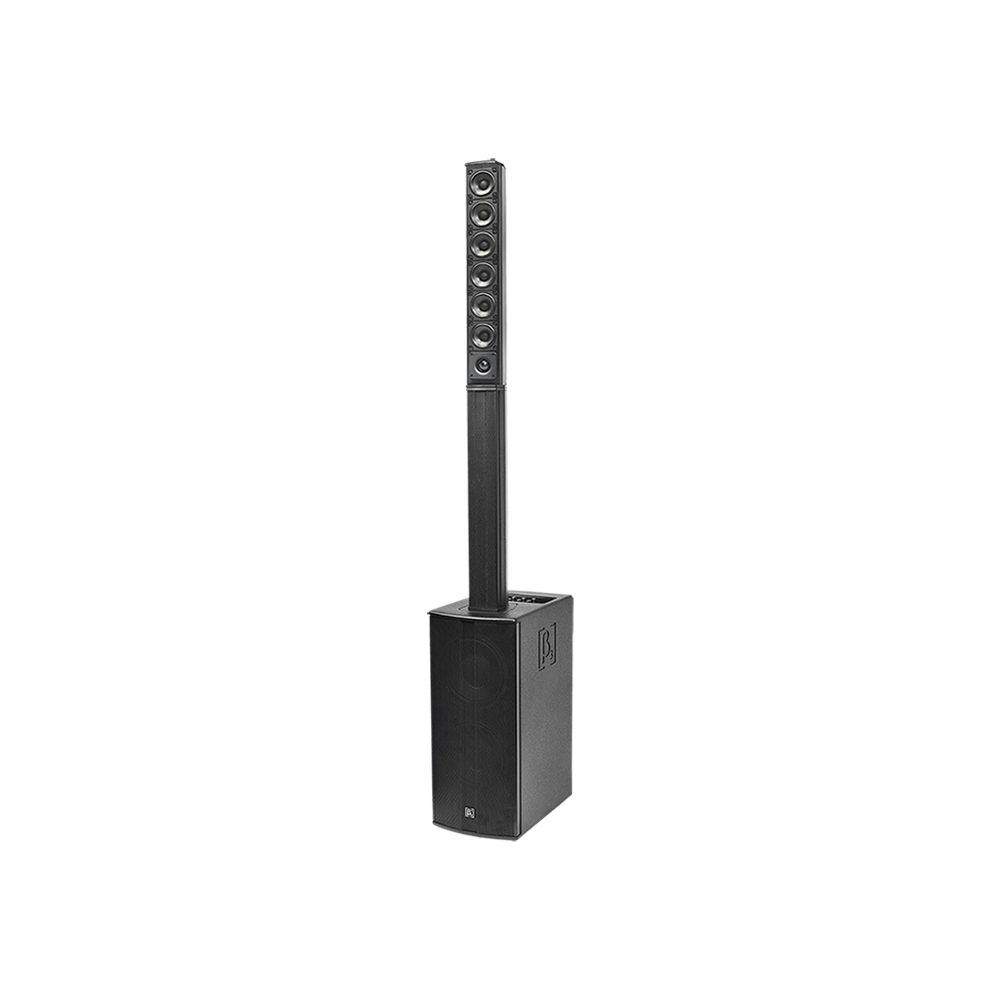

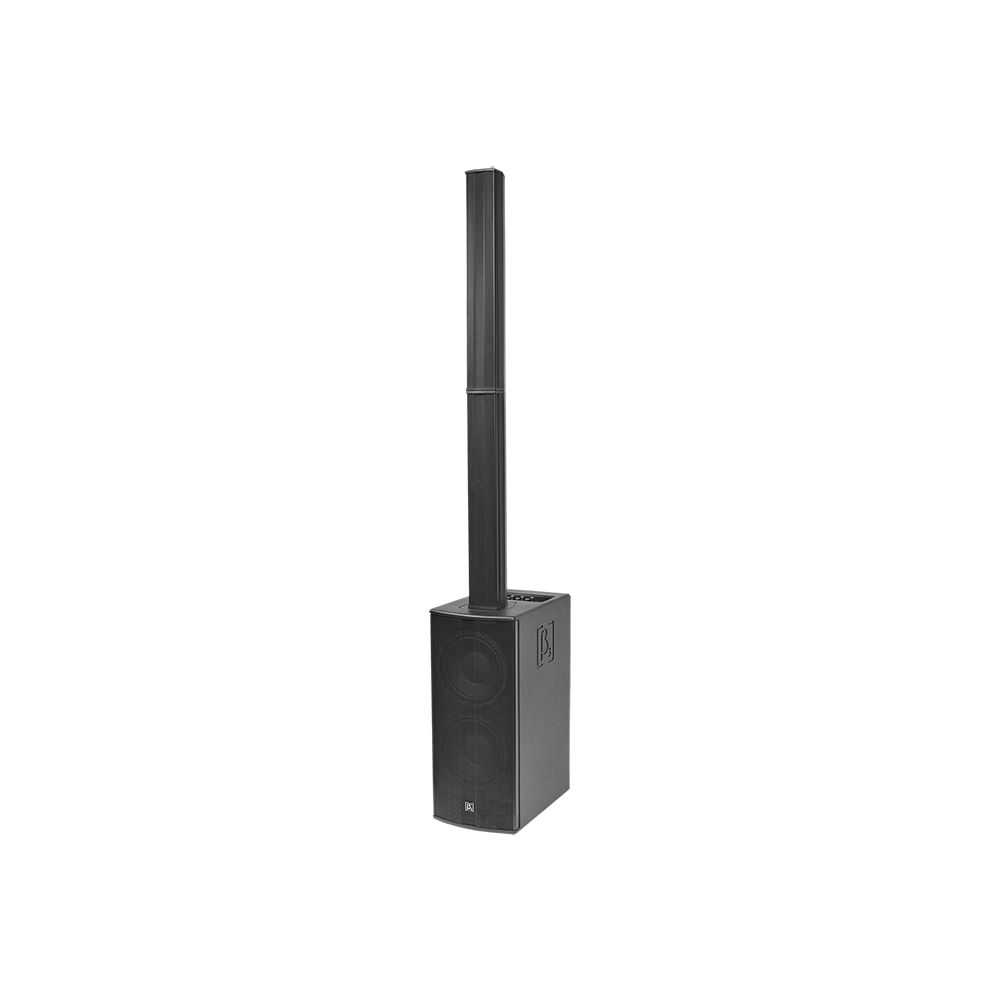

Meline S2-II

Small PA speaker system

Meline S2-II is a performance sound reinforcement system designed for musicians, meeting room presentation, DJ's etc for an audience up to 300.The three piece system is designed for quick and easy setup with new click together interconnecting speakers. The amplifier module is housed within the subwoofer.This bi-amp module includes DSP to enable superior performance.


Features

  • Compact and portable design
  • System is 1.8M high to deliver full, natural sound
  • 2x8" subwoofer speakers 12x2.75" full range and 2x25mm Silk dome tweeter

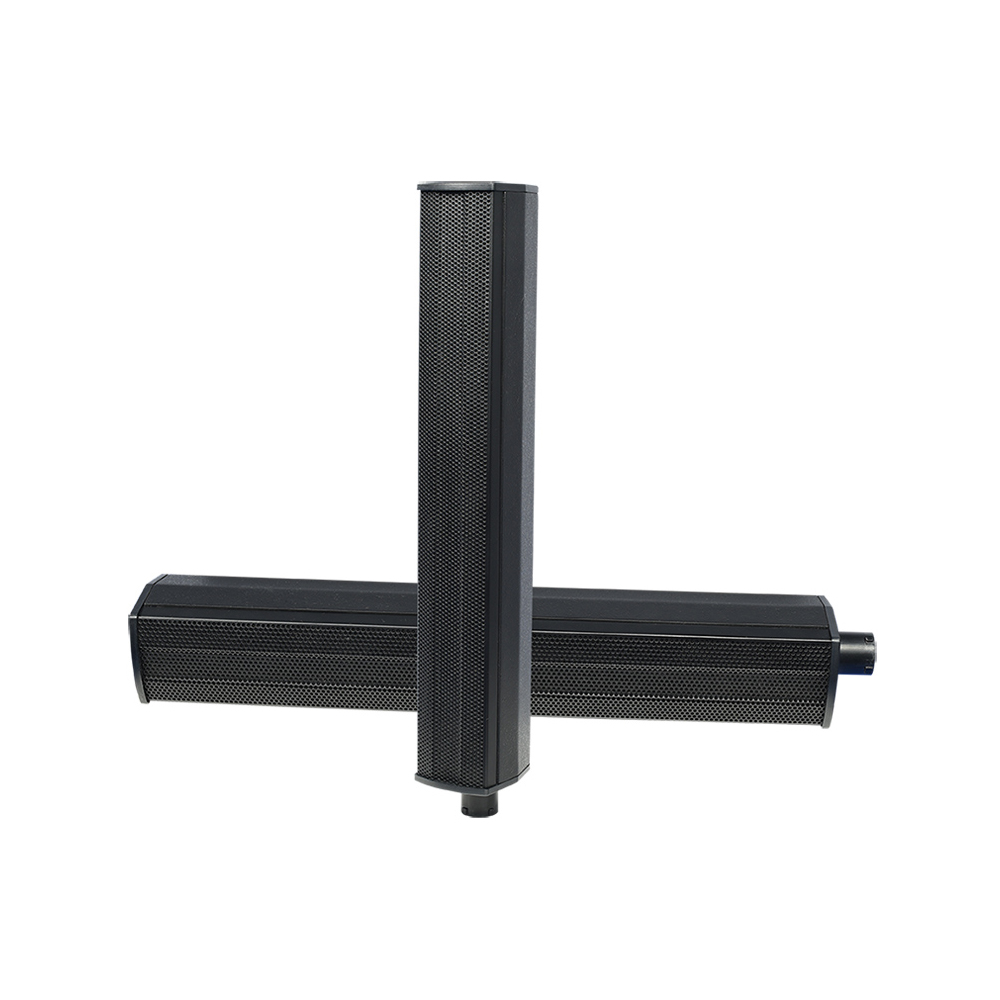

  • vertical column speakers to ensure smooth sound coverage
  • Class D module for subwoofer and CLASS AB module for full-range
  • Bi-amp module including DSP
  • Exclusive LOCK together connections, no cables required

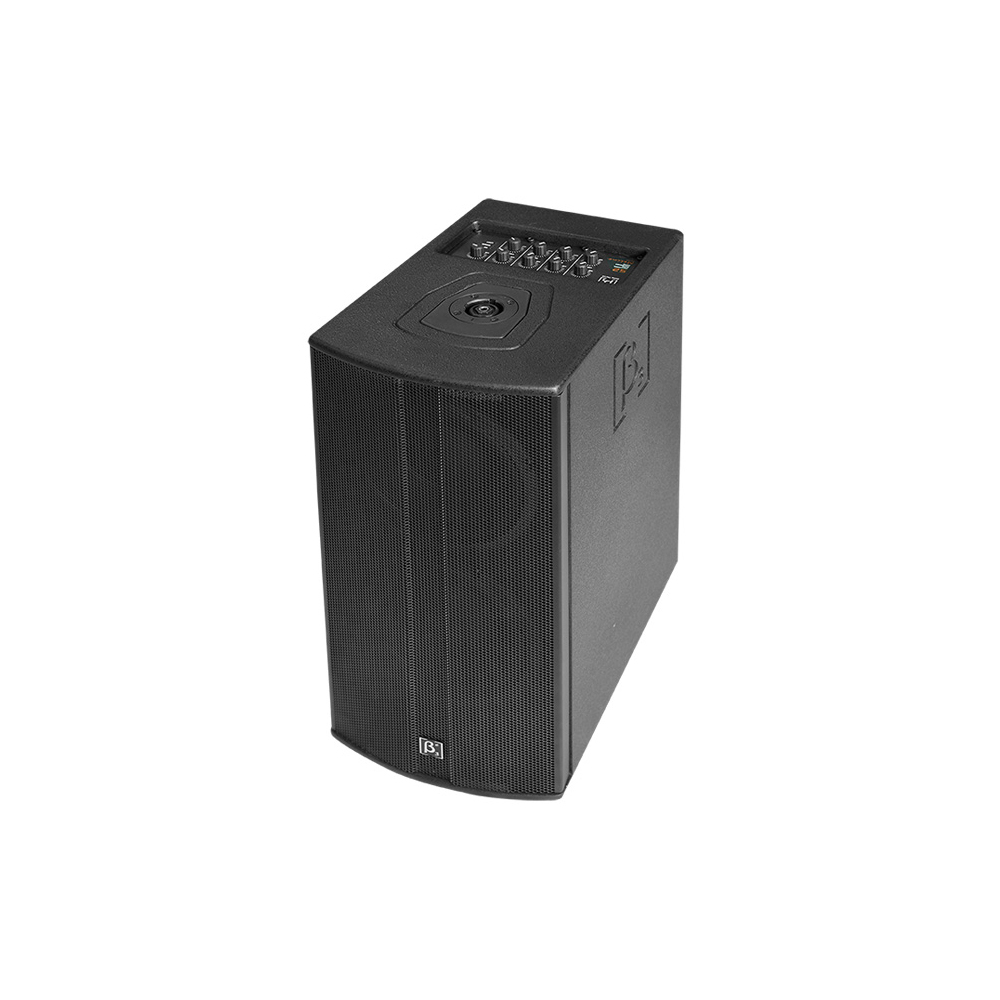

  • Handle on back of subwoofer

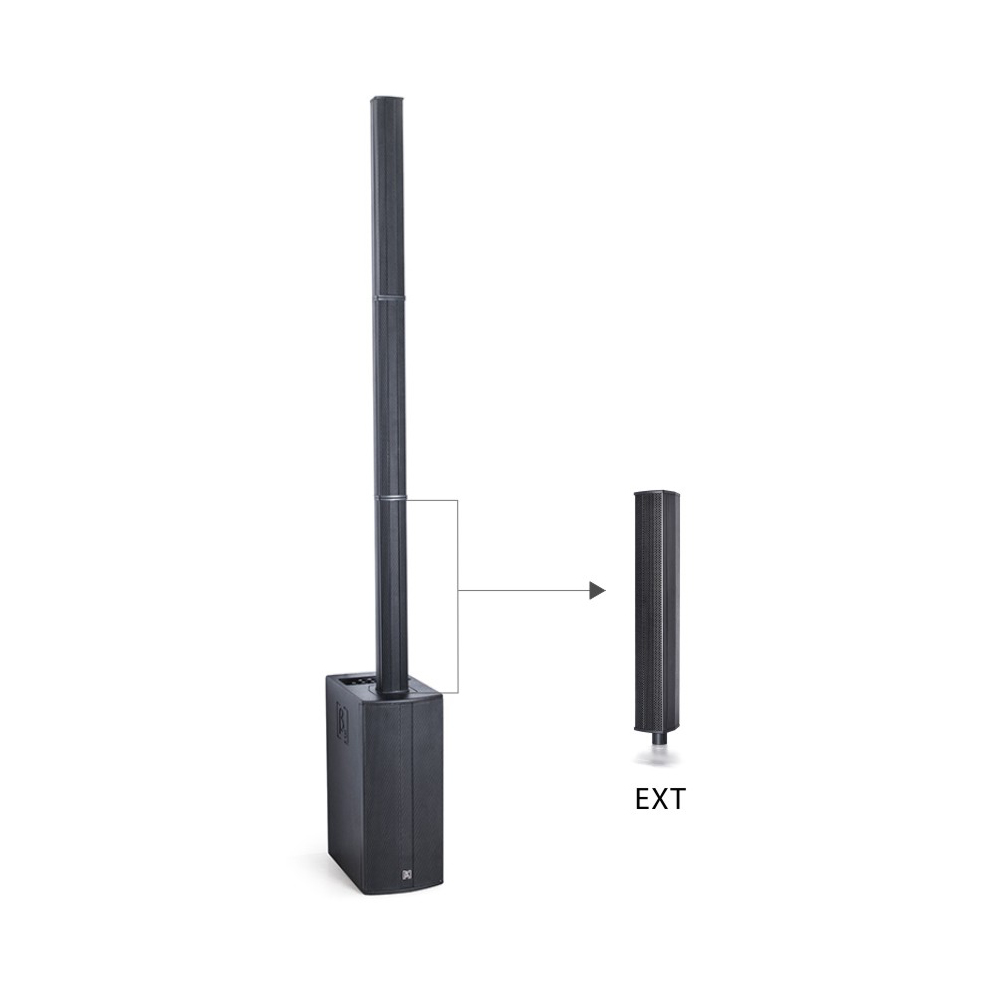

  • System height up to 2.32m with an EXT(empty cabinet, optional)

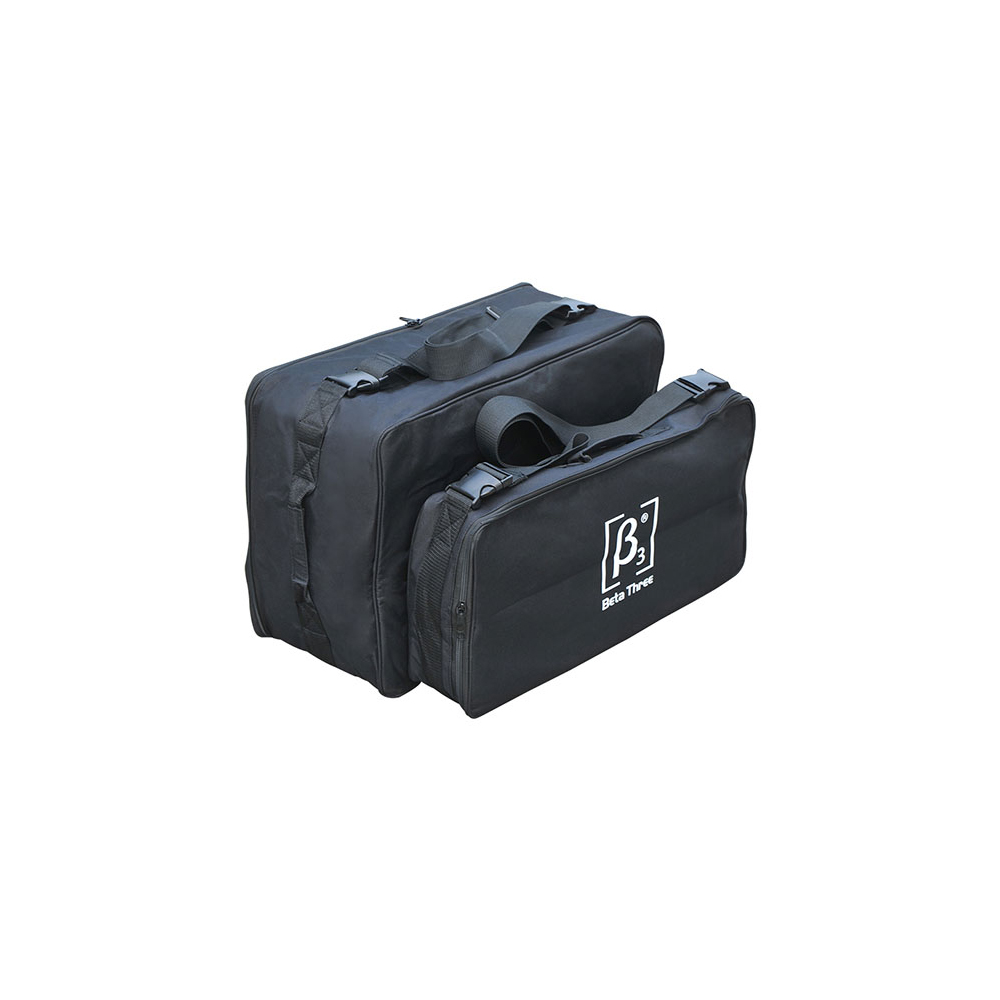

  • Specialized carry bag for ease of transportation - optional

Specifications

Acoustical specifications
Frequency Response(-3db):
45Hz-20kHz
Max SPL @ 1m:
113dB/119dB(PEAK)
Dispersion (H x V):
90° x 40°
Transducers
Compression driver:
2 x 25mm Silk Dome Tweeters
Midrange:
12 x 2.75" Midrange Unit
Woofer:
2 x 8" Woofer
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
XLR inputs, XLR outputs
Power section
Total Power:
800W
Nominal Impedance (Ohm):
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
Plywood
Handles:
1 x Wooden handles
Grille:
Polyurethane paint; powder coated grille
Color:
Black
Size
Dimension (W x D x H):
250 x 400 x 1726mm / (9.8 x 15.7 x 68in)
Package Dimensions (W x D x H):
610 x 350 x 700mm / (24 x 13.8 x 27.6in)
Weight
Net Weight:
23.5 kg / 51.8 lb
Gross Weight:
25.5 kg / 56.2 lb
