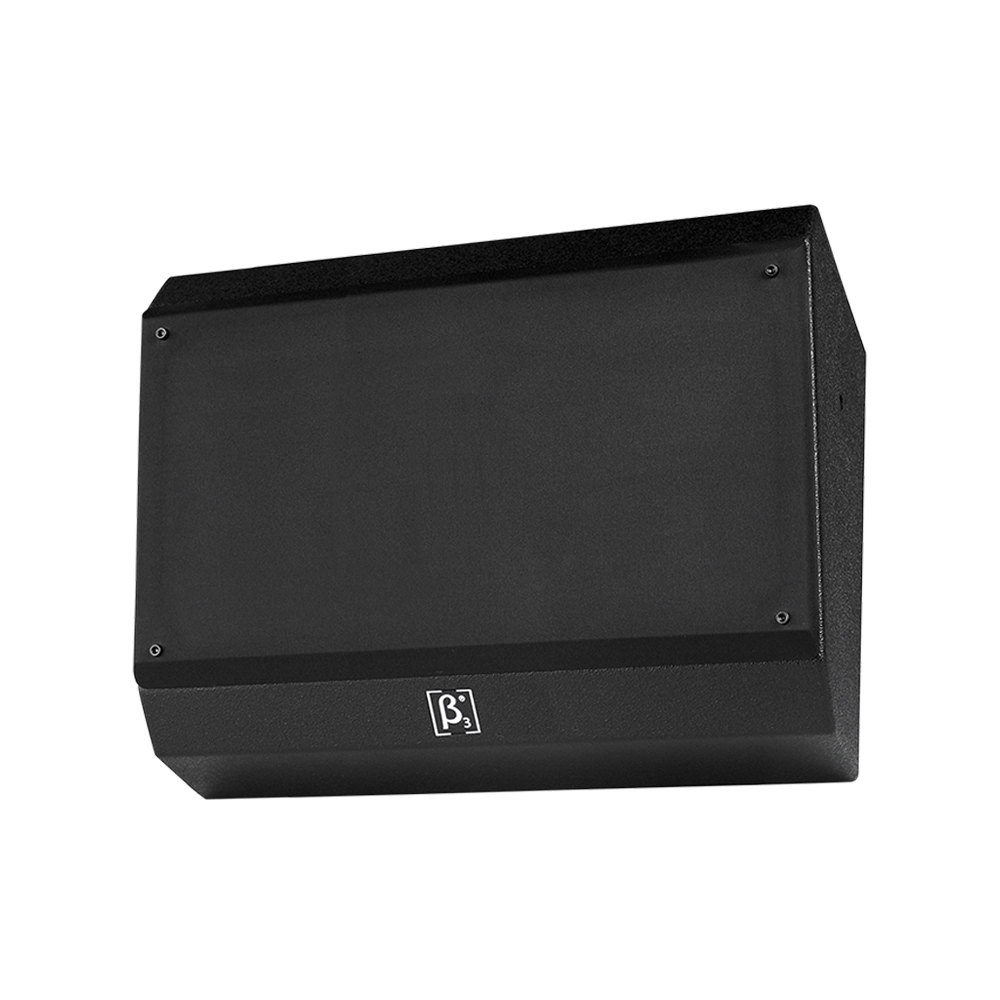

CSR215A - 15" Two Way Full Range Cinema Speaker

CSR215A

15" Two Way Full Range Cinema Speaker

The Beta Three® CSR215A Cinema Series loudspeaker is a surround two-way mid/high horn loudspeaker designed and engineered to meet the demanding requirements within Digital Cinema installations where high quality music and vocal reproduction is essential.


Features

  • Two transducers two way full range.
  • High SPL, high sensitivity.
  • One 15" big power woofer.
  • One compression driver with 75mm PEI diaphragm.
  • Built-in electronic protection crossover.
  • Computer simulating design provide very good Frequency response and phase feature.
  • Very convenient walling installation mode.
  • Suitable for THX, DTS and other multi-channel surrounding sound reinforcement in cinema.
  • Suitable for Mid/small cinema audio system.
  • Can work with Beta Three high energy bass speaker when used for high quality music replaying

Specifications

Acoustical specifications
Frequency Response(-3db):
44Hz-15kHz
Dispersion (H x V):
50-100° x 55°
Transducers
Compression driver:
1 x 3" HF
Woofer:
1 x 15" LF
Input/Output section
Input Connectors:
Spring clip
Sensitivity (1W @ 1m):
98dB
Processor section
Crossover frequencies:
2kHz
Power section
Total Power:
500W(RMS)
Nominal Impedance (Ohm):
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
775 x 321 x 495mm / (30.5 x 12.6 x 19.5in)
Package Dimensions (W x D x H):
595 x 454 x 865mm / (23.4 x 17.9 x 34.1in)
Weight
Net Weight:
34.5 kg / 76.1 lb
Gross Weight:
39 kg / 86 lb
