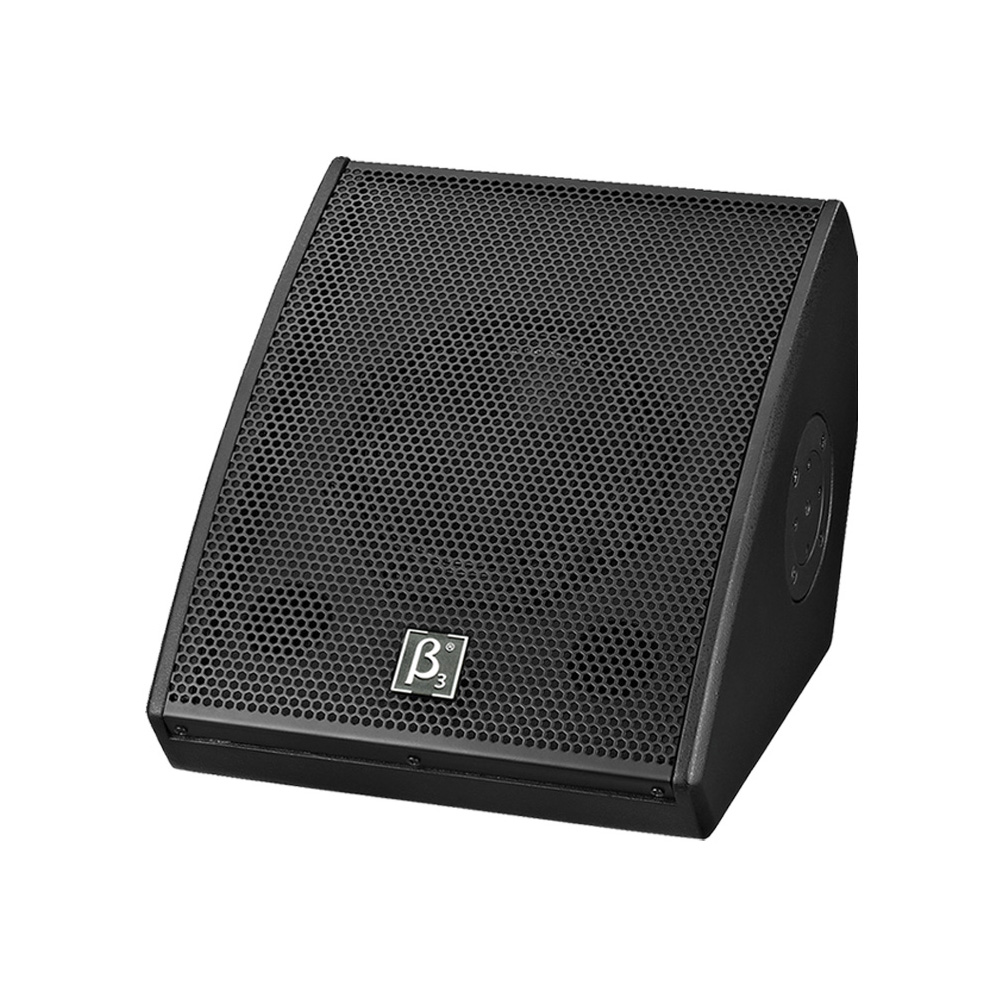

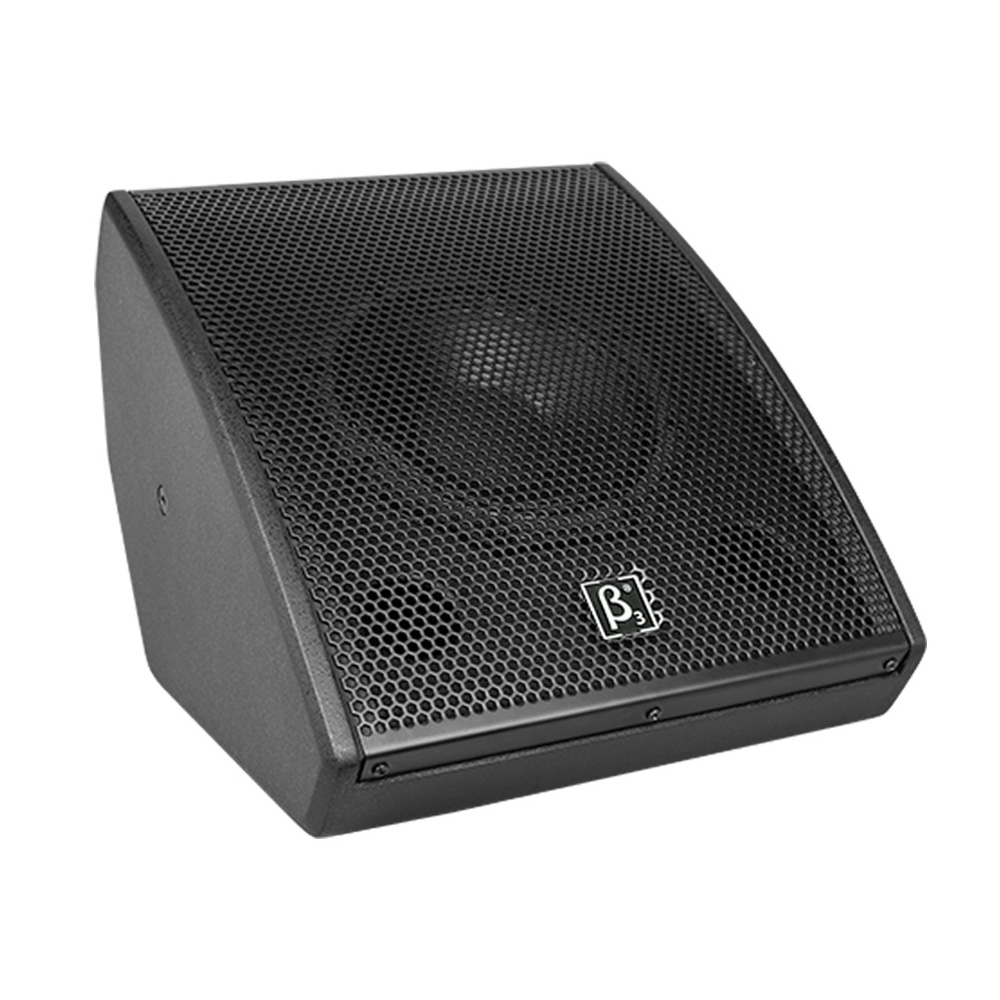

CPM108P

8" Two-way Full Range Active Coaxial Speaker

CPM108P is atwo-way full range active Coaxial speaker. Strict qulitaty control during the R&D, manufacturing, material inspection, procedure inspection and shipment inspection make sure every unit meet the high standard demand. The cabinet is made of high intensity PLY board. Special multilayer painting with scratch-resistant and erode-resistant feature protect the cabinet surface perfect. Selected POLYESTER damping materials absorb cabinet stand wave effectively.Built-in crossover circuit and different voltage output give the user more options. Aiming at this special cabinet, the transducers used are optimized by our experienced engineers, whom focus on the magnetic system and vibration system. To get the excellent performance, the engineers take a lot of advanced technology to decrease the magnetic impendence and lower the magnetic leakage, and not increase the transducer weight.


Features

  • Two transducers two way full range speaker with coaxial horn, computerized stimulation design.
  • New generation Class D amplifier, durable and reliable.
  • Performance enhanced with built-in DSP.
  • HF horn is mounted on the LF axis.
  • Used for full range sound reinforcement and can be used as ground monitor speaker.
  • Apply to monitor, conference system and small scale performance.
  • Flexible installation according to actual application.

Specifications

Acoustical specifications
Frequency Response(-3db):
90Hz-20kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Transducers
Compression driver:
1 x 44mm Compression Driver
Woofer:
1 x 8" Woofer
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
XLR for input, XLR for output
Power section
Total Power:
100W
Nominal Impedance (Ohm):
Voltage range:
AC 220V-240V~, 50/60Hz
Physical specifications
Cabinet/Case Material:
Plywood,wedge shaped
Hardware:
2 x M10 Mounting points
Handles:
1 x Wooden handles
Grille:

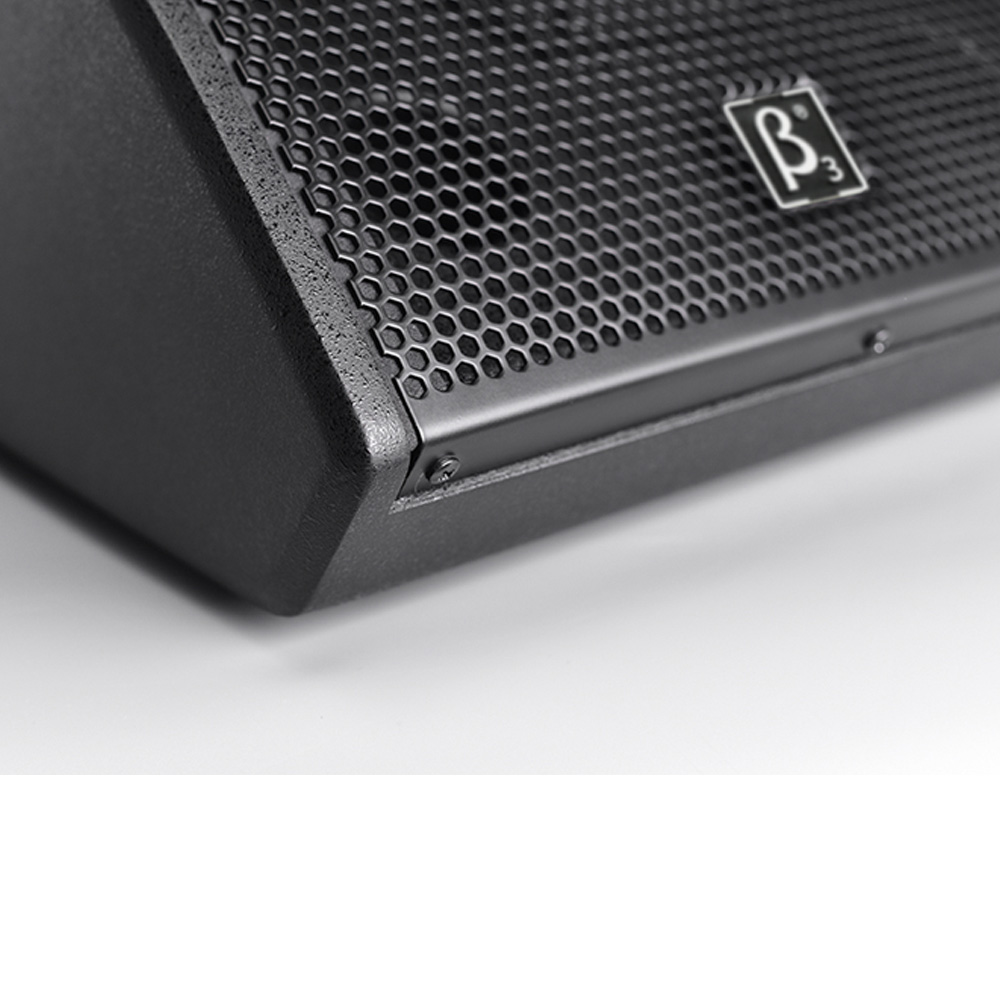

Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size
Dimension (W x D x H):
340 x 379 x 303mm / (13.4 x 14.9 x 11.9in)
Package Dimensions (W x D x H):
470 x 385 x 440mm / (18.5 x 15.2 x 17.3in)
Weight
Net Weight:
10.5 kg / 23.1 lb
Gross Weight:
12.5 kg / 27.6 lb

CPM108P Application

    CPM108P Installation

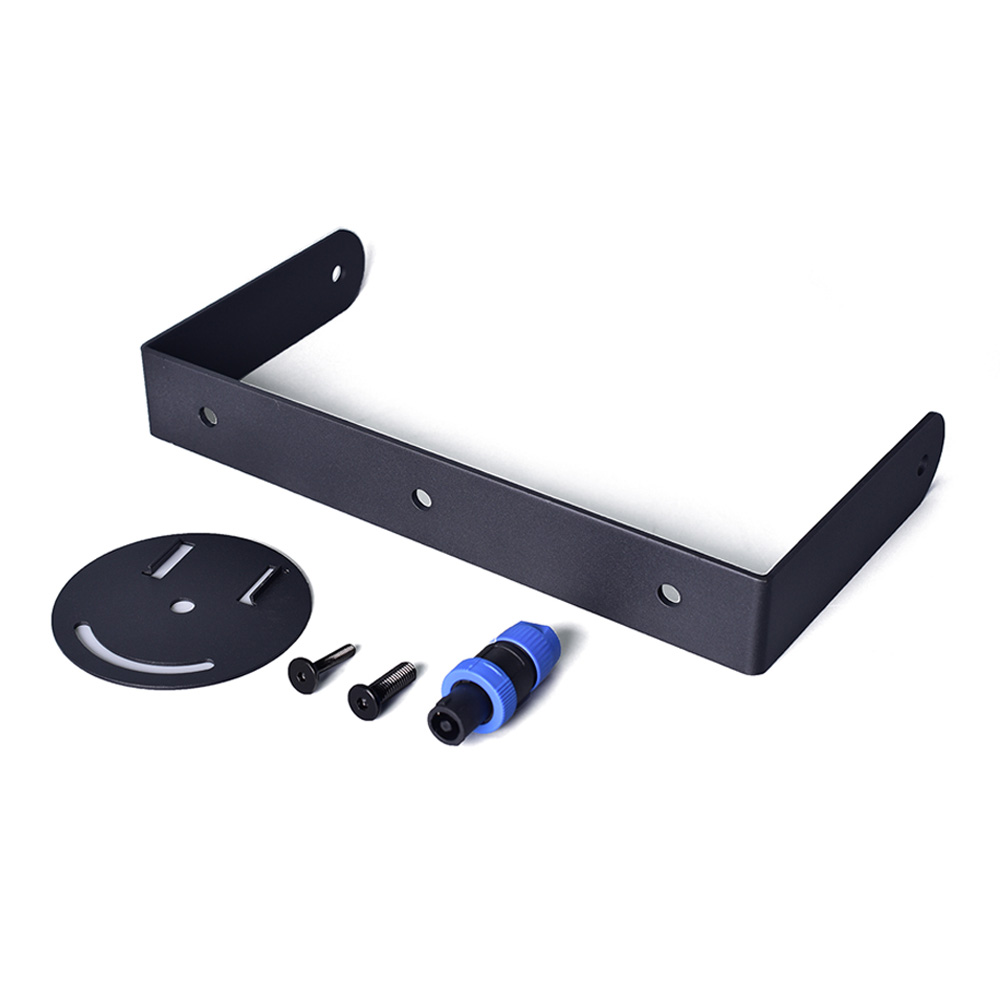

      CPM108P Parts

        CPM108P Cases

          CPM108P Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              β3_CPM108P_PA_Chinese_Manualβ3_CPM108P_PA_Chinese_Manual 1β3_CPM108P_PA_Chinese_Manual  999KB 2018-07-12 02:25:39
              β3_CPM108P_PA_English_Manualβ3_CPM108P_PA_English_Manual 1β3_CPM108P_PA_English_Manual  741.57KB 2018-07-12 02:25:39
