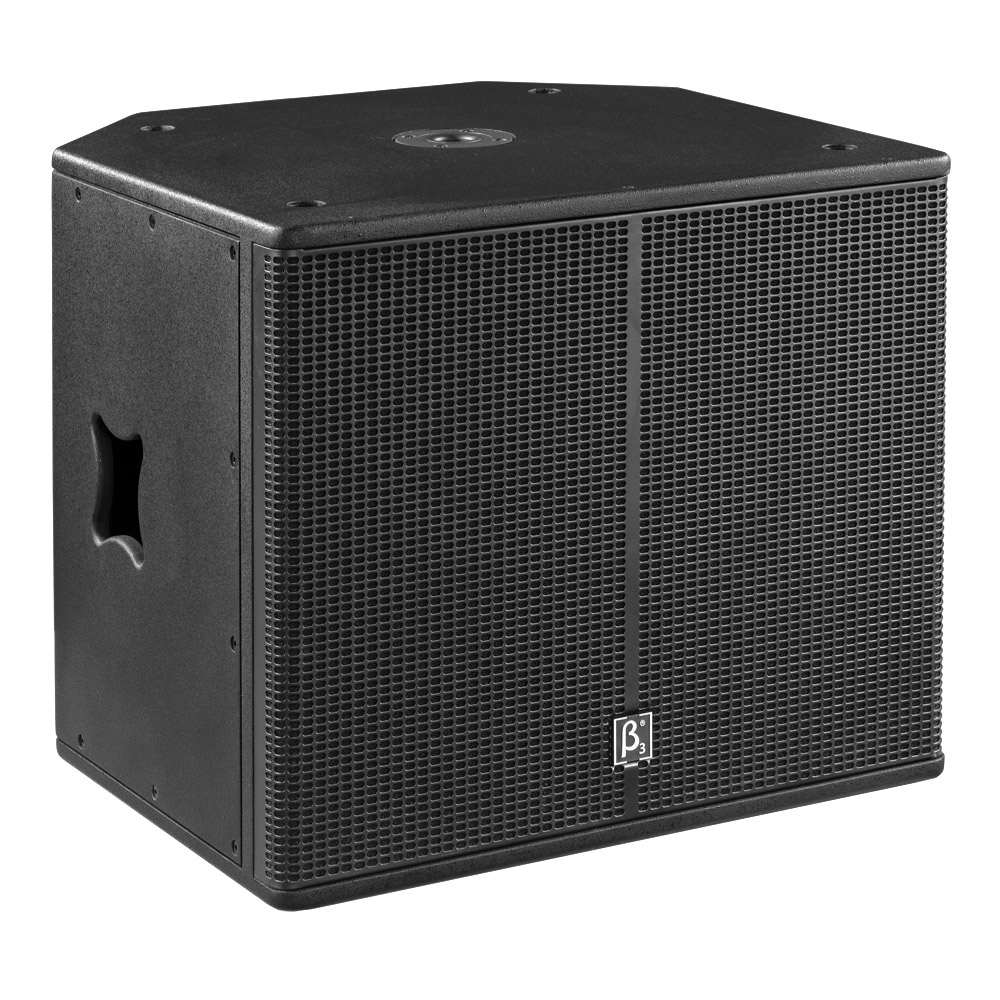

SAK118B - 18" Passive Woofer

SAK118B

18" Passive Woofer

SAK118B is a low-frequency loudspeaker with a new shape structure and surface painting process. The SAK118B cabinet is made of laminate and adopts a wooden wedge-type cabinet structure. The paint and advanced spraying technology used on the surface make the surface damage resistance three times higher than that of ordinary paint and technology. The surface treatment of the iron mesh adopts the powder spraying process, which can be used for up to 5 years without rust in the case of damage. SAK118B low frequency box is used in conjunction with SAK series full-range speakers, suitable for low frequency expansion in conference rooms, multi-purpose halls, small and medium-sized auditoriums, and performance venues.


Features

◇Super low frequency high sensitivity speaker

◇18-inch high-efficiency woofer

◇Computer optimized analog design for good frequency response and phase characteristics

Specifications

Acoustical specifications
Frequency Response(-3db):
40Hz-300Hz
Max SPL @ 1m:
127dB/133dB(PEAK)
Transducers
Woofer:
1 x 18" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
100dB
Power section
Total Power:
500W(RMS); 1000W(MUSIC); 2000W(PEAK);
Nominal Impedance (Ohm):
Physical specifications
Cabinet/Case Material:
18mm Plywood
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size
Dimension (W x D x H):
693 x 630 x 550mm / (27.3 x 24.8 x 21.7in)
Package Dimensions (W x D x H):
810 x 745 x 695mm / (31.9 x 29.3 x 27.4in)
Weight
Net Weight:
41.5 kg / 91.5 lb
Gross Weight:
46 kg / 101.4 lb
