The Beta Three® TW series is a series of professional speakers perfectly suited for a wide range of portable and installed applications. It is designed to work with ease and high efficiency. The TW series is capable of cutting through the loudest of stage backgrounds for a clear vocal and musical performance. With its distinctive design, the TW series can be used as a PA system or a stage monitor.

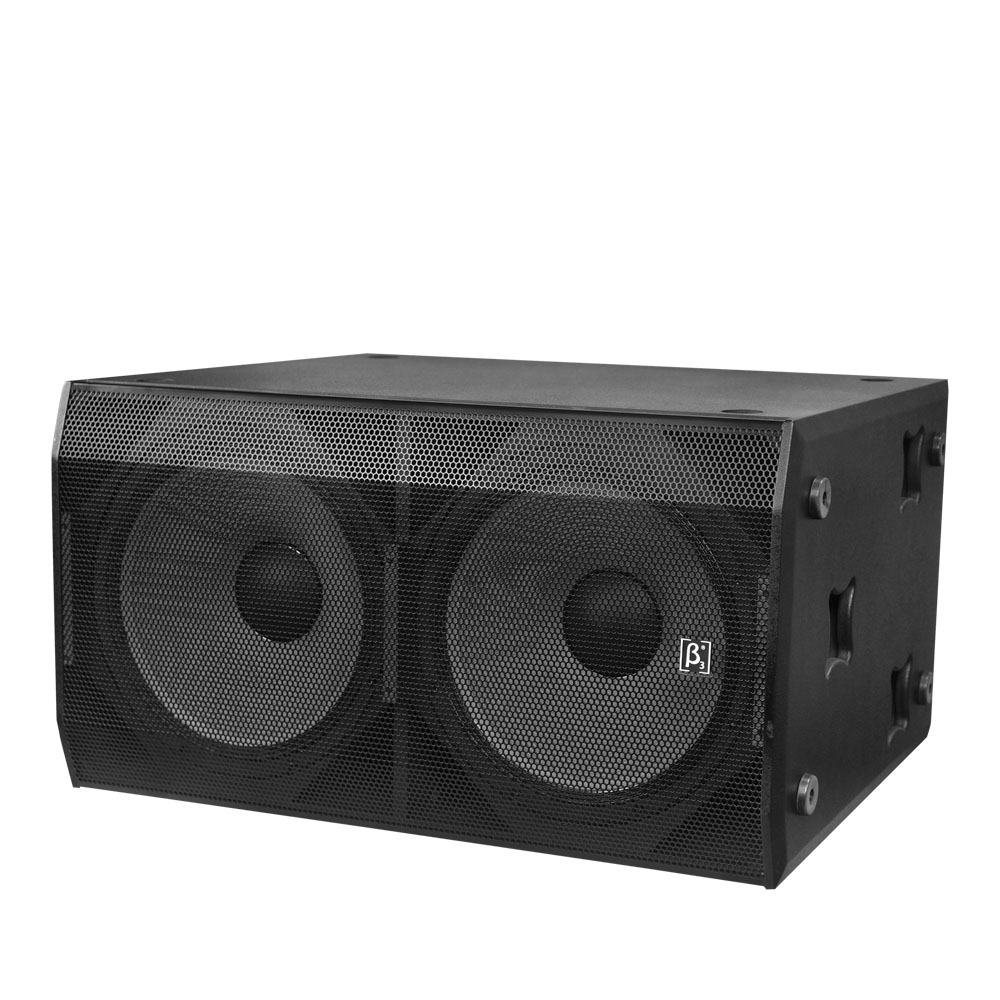

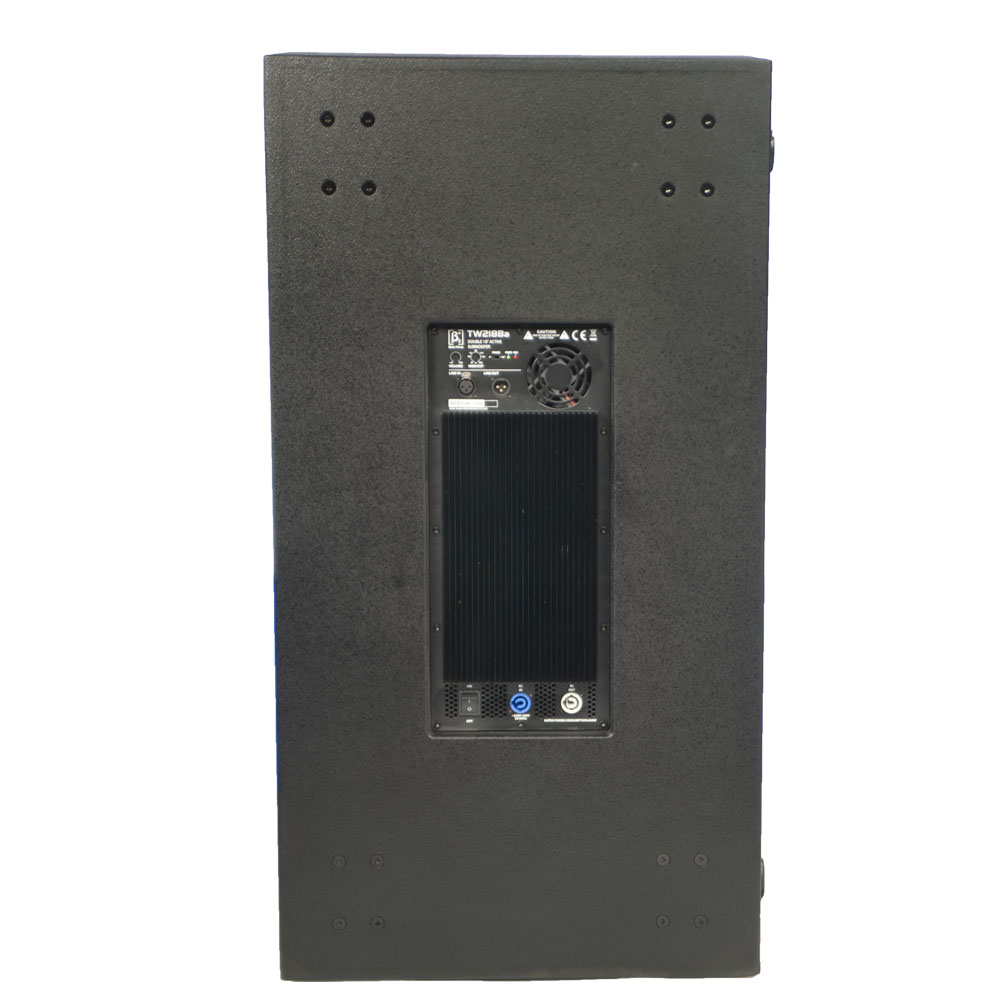

TW218Ba Dual 18" Active Subwoofer
TW218Ba Dual 18" Active Subwoofer
TW218Ba Dual 18" Active Subwoofer
TW218Ba Dual 18" Active Subwoofer

TW218Ba

Dual 18" Active Subwoofer

Portable and installed wooden loudspeaker used in applications including sound reinforcement in Front of House and Foldback applications in house of worship,events,clubs,rehearsal etc. Both active and passive version deliver extraordinary performance at unmatched value.


Features

  • Light weight powered 2x18” subwoofer
  • 4500W continuous Class D power module
  • Strong power penetrating with impact.
  • Switching power supply design
  • Favorable power module protection system.
  • Superior heat dissipation to allow long-time full loaded working.
  • Master volume, high cut, phase select, power / peak indication available
  • Computer aided design to optimise frequency and phase response
  • Combine with any TW or T-series high power speaker for extended full range requency, high quality music reproduction
  • NEUTRIK PowerCON input and output power supply connector
  • Power coated protective grill
  • Durable Polyurethane textured base paint

Specifications

Acoustical specifications
Frequency Response(-3db):
40Hz-200Hz
Max SPL @ 1m:
132dB/138dB(PEAK)
Transducers
Woofer:
2 x 18" LF
Input/Output section
Input Connectors:
Input: 1 x XLR; Output: 1 x XLR
Power section
Total Power:
4500W(RMS);
Nominal Impedance (Ohm):
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Cabinet/Case Material:
Plywood
Handles:
6 × Wooden handles
Grille:
Powder coated grill
Color:
Black
Size
Dimension (W x D x H):
567 x 786 x 1075mm / (22.3 x 30.9 x 42.3in)
Package Dimensions (W x D x H):
1185 x 895 x 685mm / (46.7 x 35.2 x 27in)
Weight
Net Weight:
86 kg / 189.6 lb
Gross Weight:
91 kg / 200.6 lb
