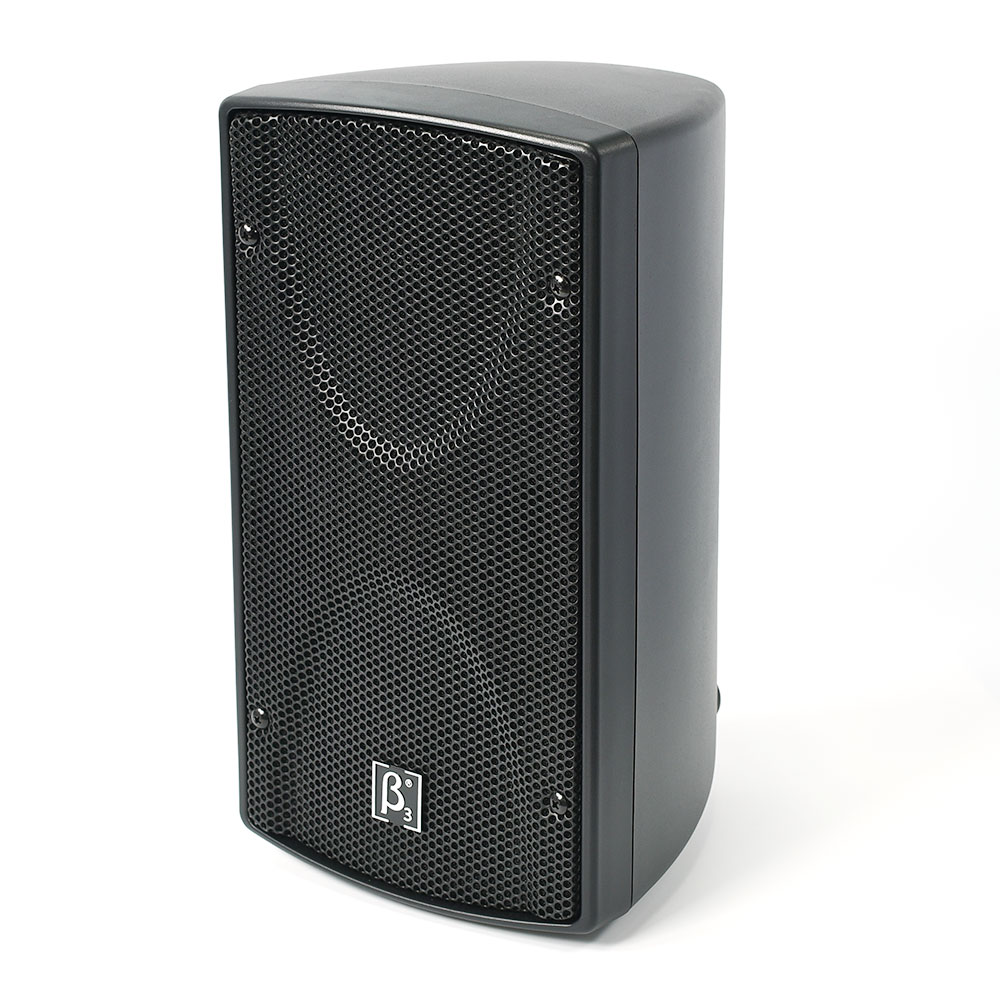

S400a

4" Two Way Active Speaker

Professional portable and installed plastic loudspeakers where high sound quality is required. Can be used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship, Events, Clubs, Rehearsal Halls etc. The S Active Series is suitable for music and vocal reproduction in demanding applications.


Features

  • High output SPL and sensitivity
  • 2 x 4” high power transducers
  • 1 x 1” diaphragm compression driver
  • 120º x 120º controlled coverage pattern
  • Built-in power amplifier module
  • Master volume control
  • 2 x XLR connectors
  • Injection molded
  • Cabinet design for FOH use
  • Suitable for use as a main system with or without sub speaker augmentation
  • Portable system (stand), or permanent installation (wall, ceiling, under balcony)
  • Powder coated grill with foam backing
  • Comes with convenient mounting bracket
  • Available in black or white

Specifications

Acoustical specifications
Frequency Response(-3db):
100Hz-20kHz
Max SPL @ 1m:
112dB/118dB(PEAK)
Dispersion (H x V):
120° x 120°
Transducers
Compression driver:
1 x 1" HF
Woofer:
2 x 4" LF

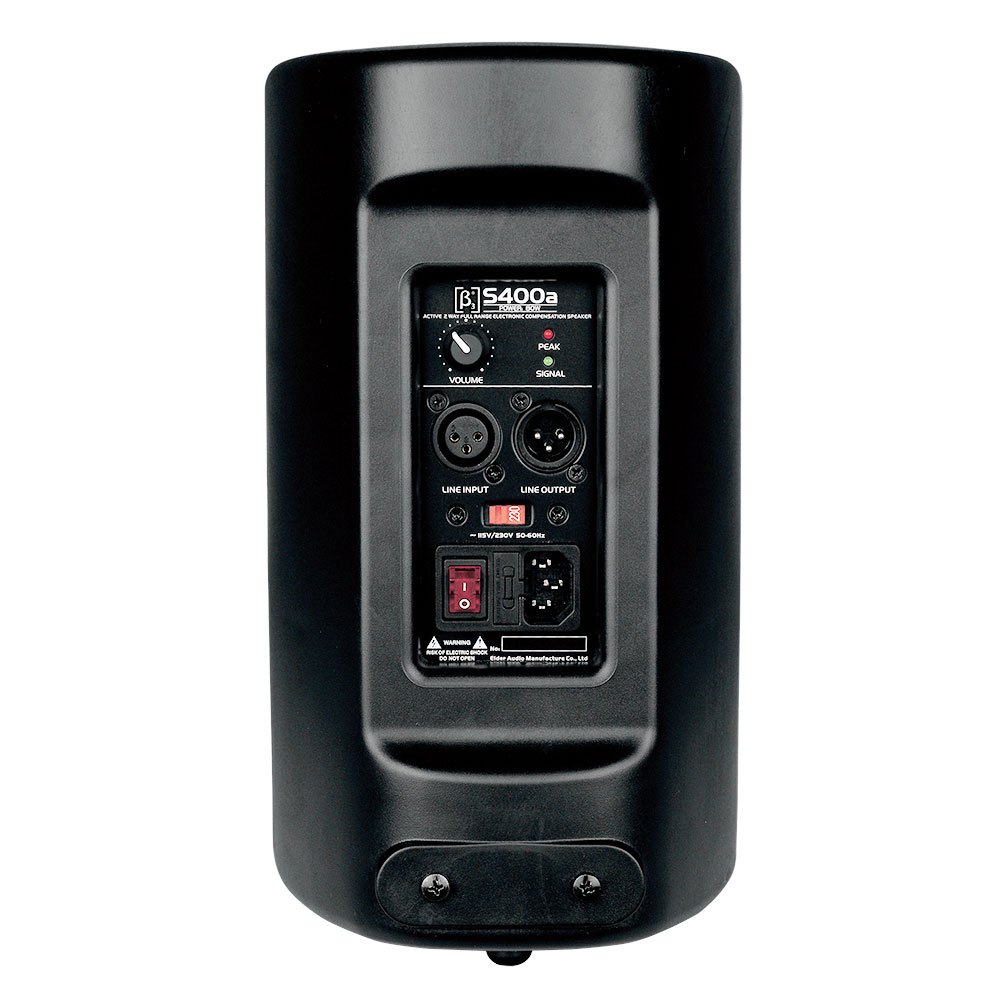

Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
2 x XLR
Processor section
Crossover frequencies:
2kHz
Power section
Total Power:
100W
Nominal Impedance (Ohm):
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
182 x 182 x 320mm / (7.2 x 7.2 x 12.6in)
Package Dimensions (W x D x H):
230 x 230 x 375mm / (9.1 x 9.1 x 14.8in)
Weight
Net Weight:
6 kg / 13.2 lb
Gross Weight:
7 kg / 15.4 lb

S400a Application

    S400a Installation

      S400a Parts

        S400a Cases

          S400a Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              β3_S400aPlastic_Speaker_Chinese_Manualβ3_S400aPlastic_Speaker_Chinese_Manual 1β3_S400aPlastic_Speaker_Chinese_Manual  2003KB 2018-07-12 02:25:39
              β3_S400aPlastic_Speaker_English_Manualβ3_S400aPlastic_Speaker_English_Manual 1β3_S400aPlastic_Speaker_English_Manual  2003.92KB 2018-07-12 02:25:39
