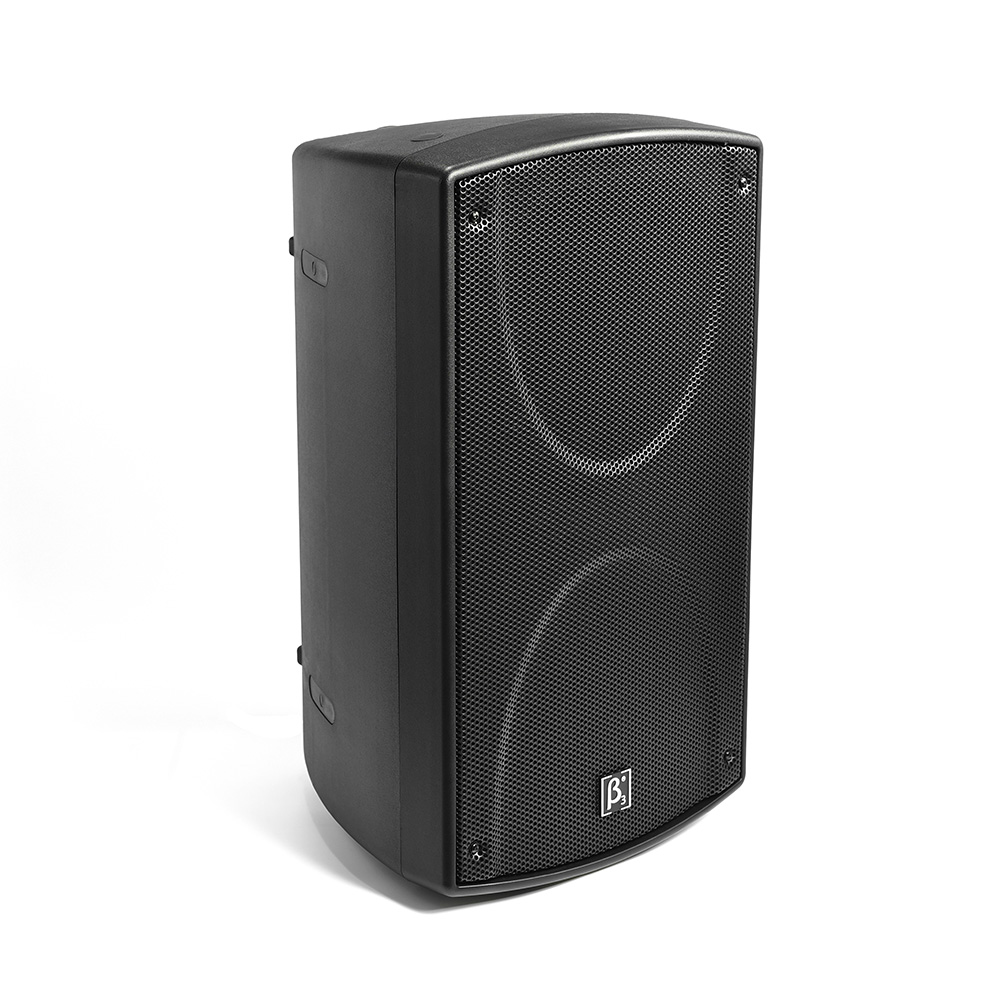

S1200B

12" LF Speaker

Professional portable and installed plastic loudspeakers where high sound quality is required. Can be used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship, Events, Clubs, Rehearsal Halls etc. The S Series is suitable for music and vocal reproduction in demanding applications.


Features

  • High output SPL and sensitivity
  • 2 x 12” high power transducers
  • Injection molded
  • 2 x NL4 connector
  • Cabinet design for FOH use
  • Suitable for use to augment the main system
  • Portable system (stand), or permanent installation (wall, ceiling)
  • Powder coated grill with foam backing
  • Available in black or white

Specifications

Acoustical specifications
Frequency Response(-3db):
50Hz-1.8kHz
Max SPL @ 1m:
128dB/134dB(PEAK)
Transducers
Woofer:
2 x 12" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
99dB
Processor section
Crossover frequencies:
<250Hz
Power section
Total Power:
800W(RMS); 1600W(PROGRAM); 3200W(PEAK)
Nominal Impedance (Ohm):
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
416 x 423 x 721mm / (16.4 x 16.7 x 28.4in)
Package Dimensions (W x D x H):
485 x 485 x 792mm / (19.1 x 19.1 x 31.2in)
Weight
Net Weight:
24.5 kg / 54 lb
Gross Weight:
28 kg / 61.7 lb

S1200B Application

    S1200B Installation

      S1200B Parts

        S1200B Collocation

          Videos

            Downloads

            FilenameVersionLanguageSizeUpdated
            β3_S1200B_Plastic_Speaker_Chinese_Manualβ3_S1200B_Plastic_Speaker_Chinese_Manual 1β3_S1200B_Plastic_Speaker_Chinese_Manual  2242.4KB 2018-07-12 02:25:39
            β3_S1200B_Plastic_Speaker_English_Manualβ3_S1200B_Plastic_Speaker_English_Manual 1β3_S1200B_Plastic_Speaker_English_Manual  2242.05KB 2018-07-12 02:25:39
