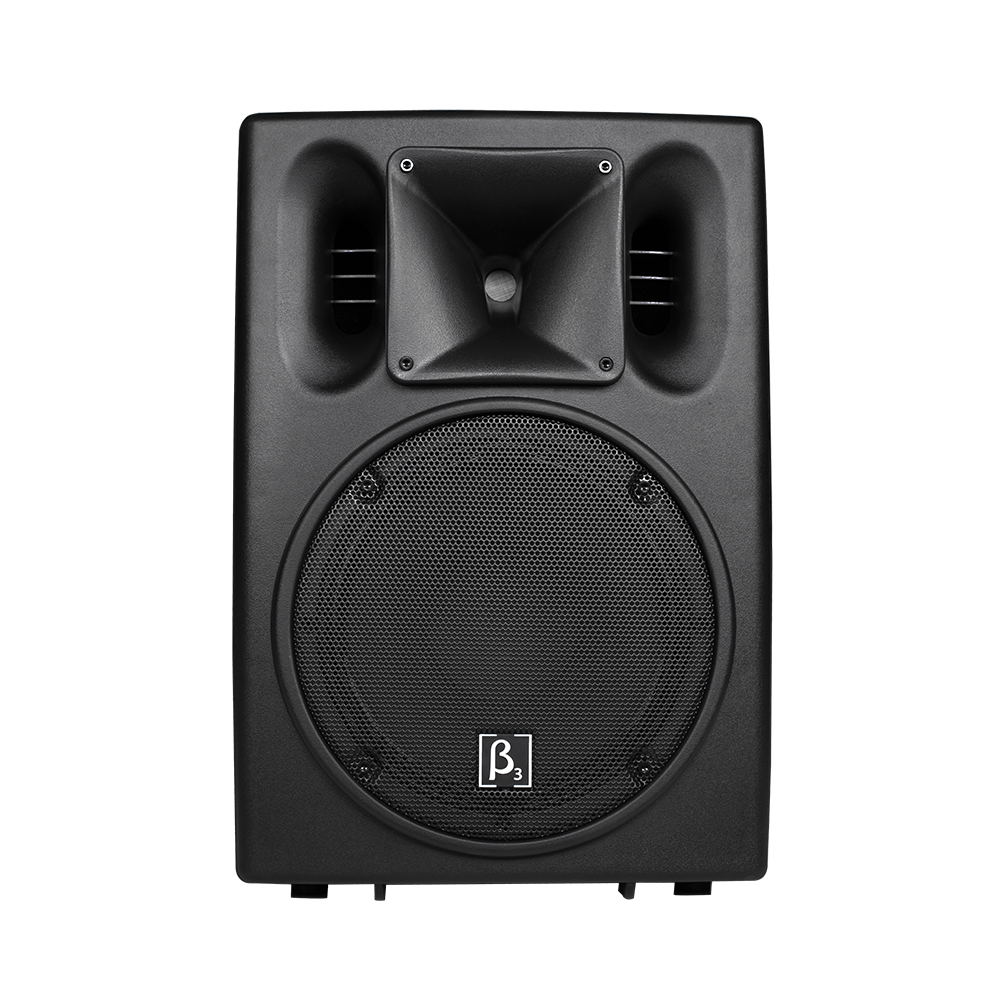

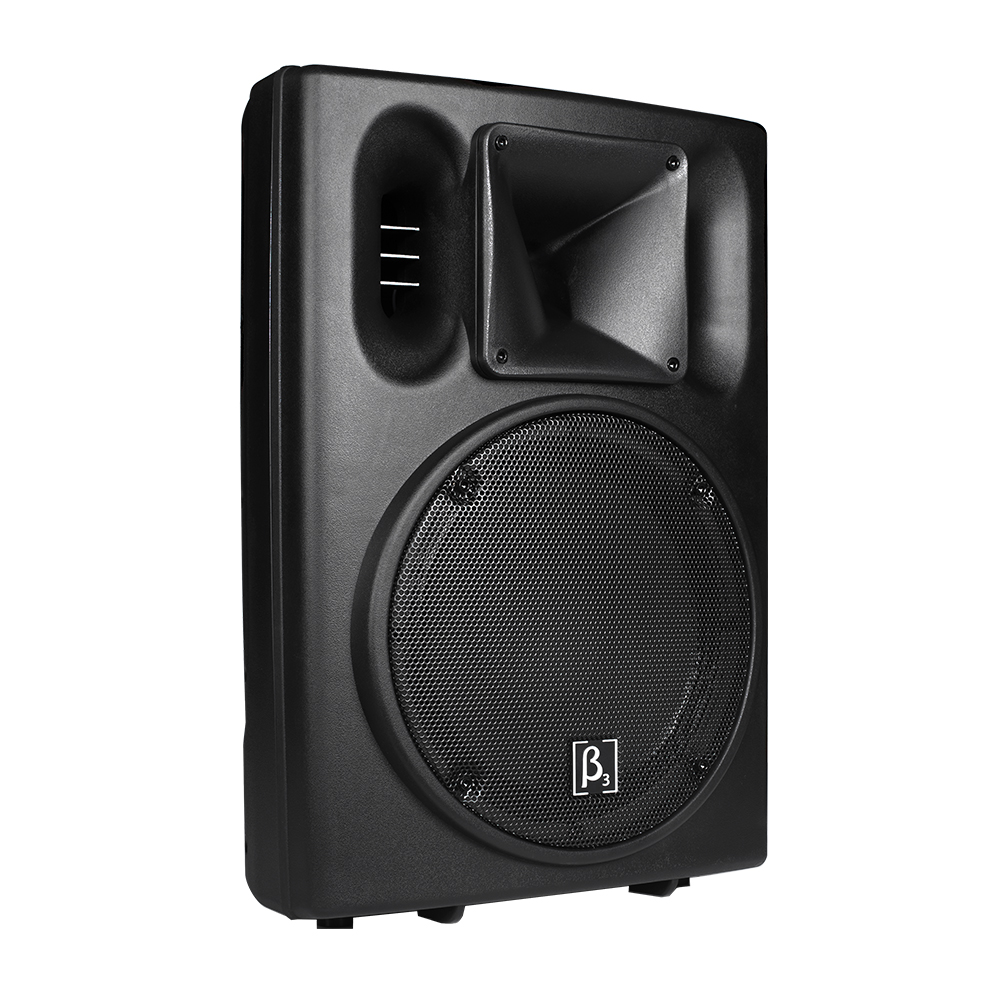

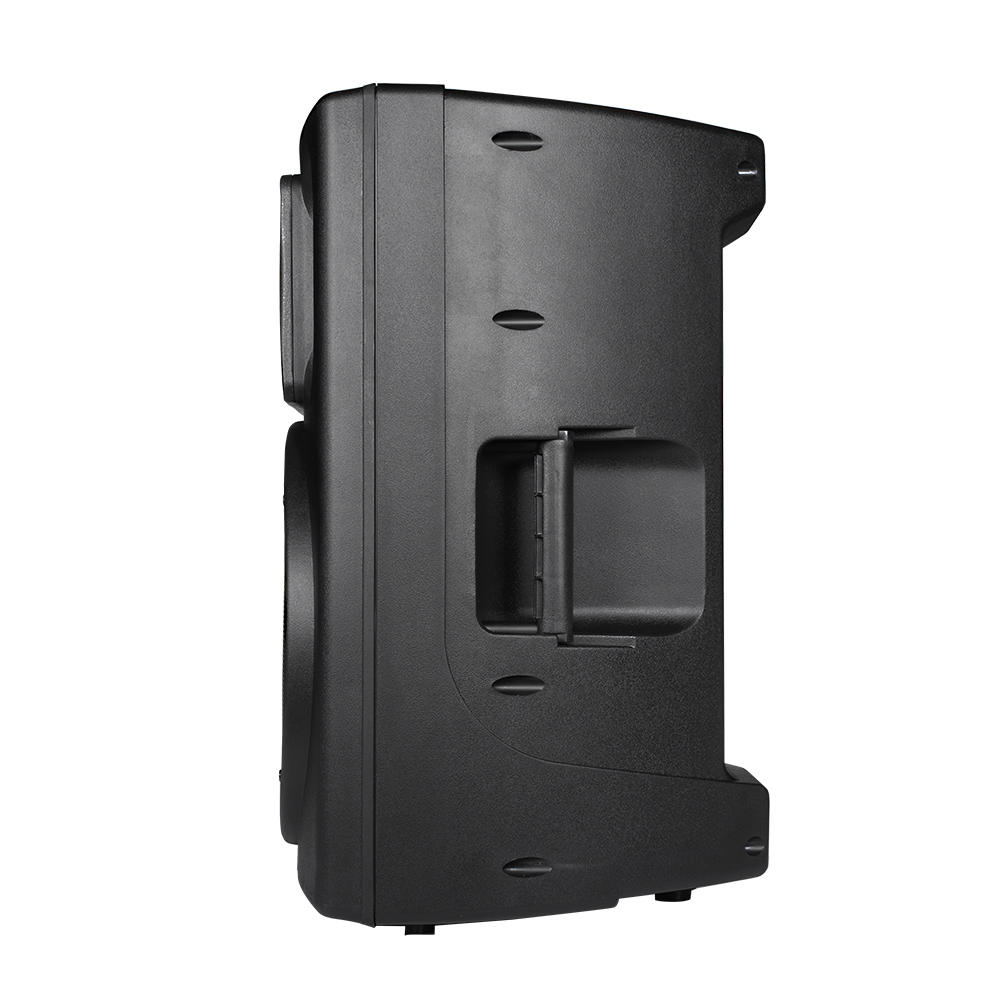

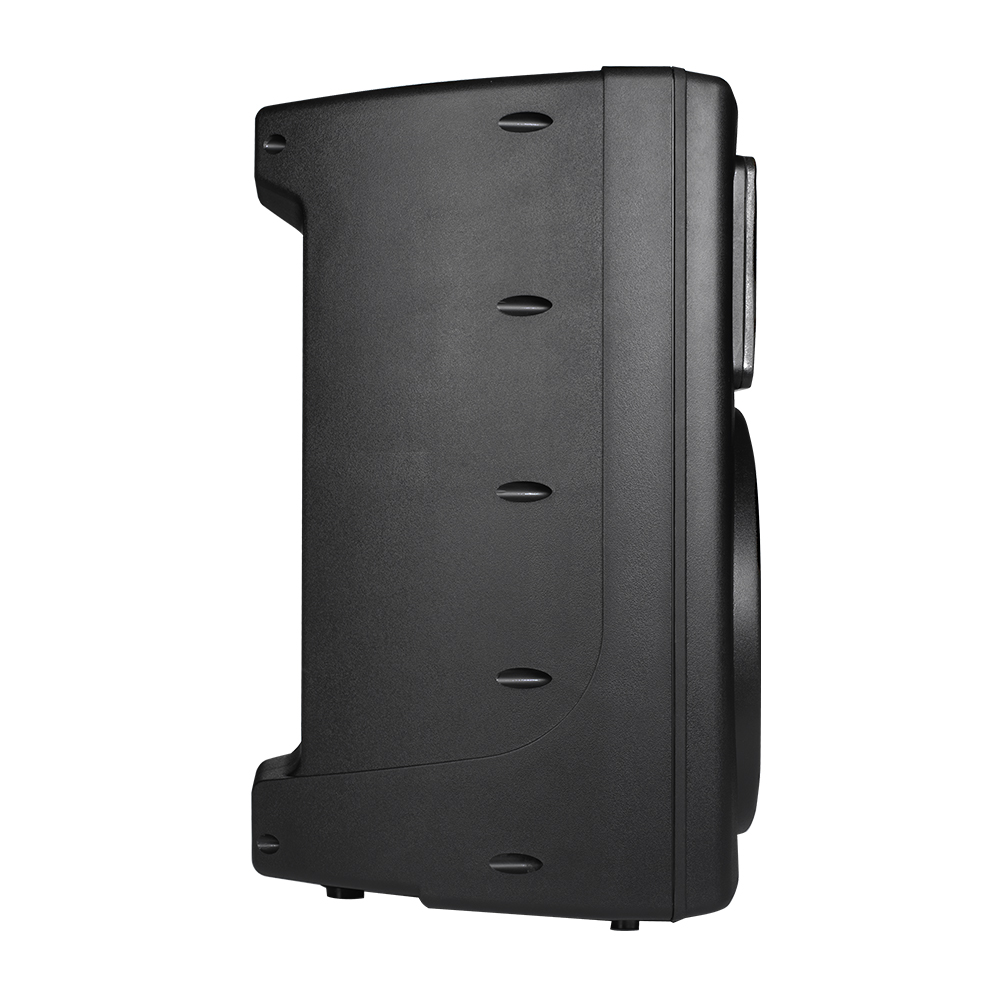

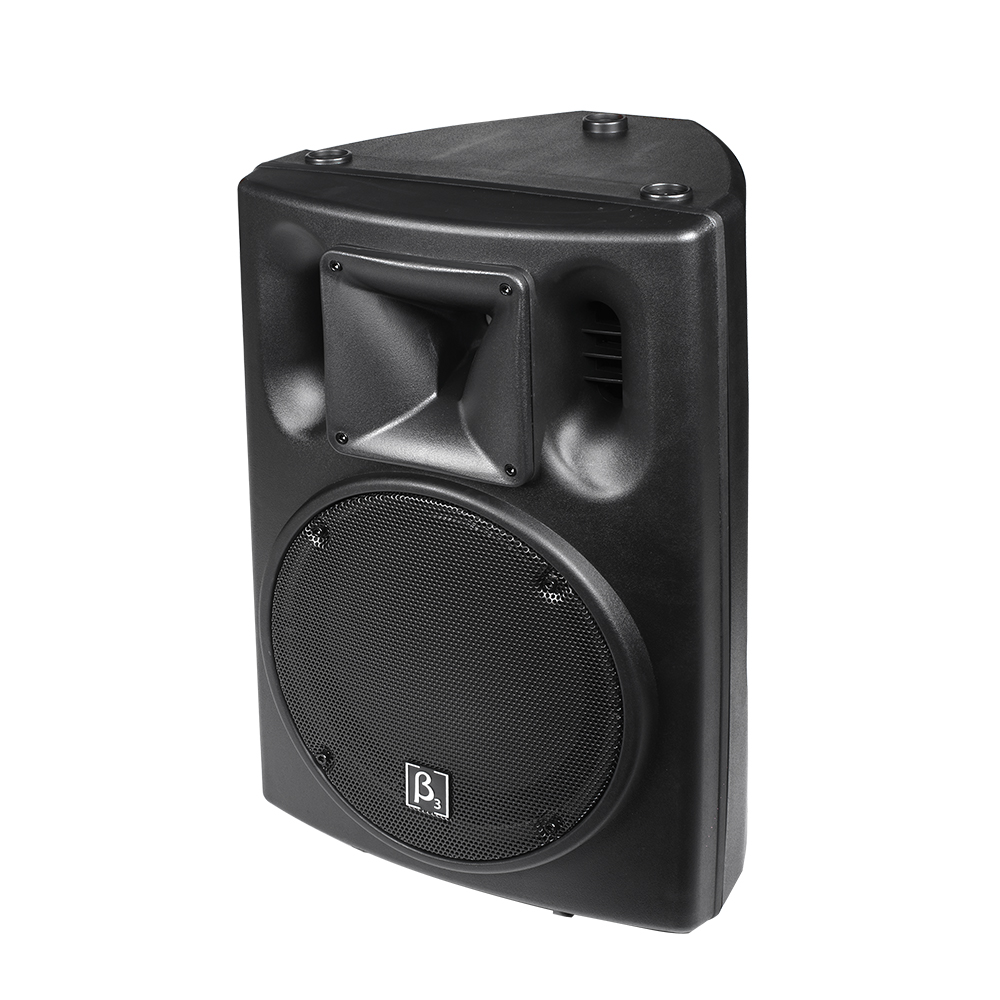

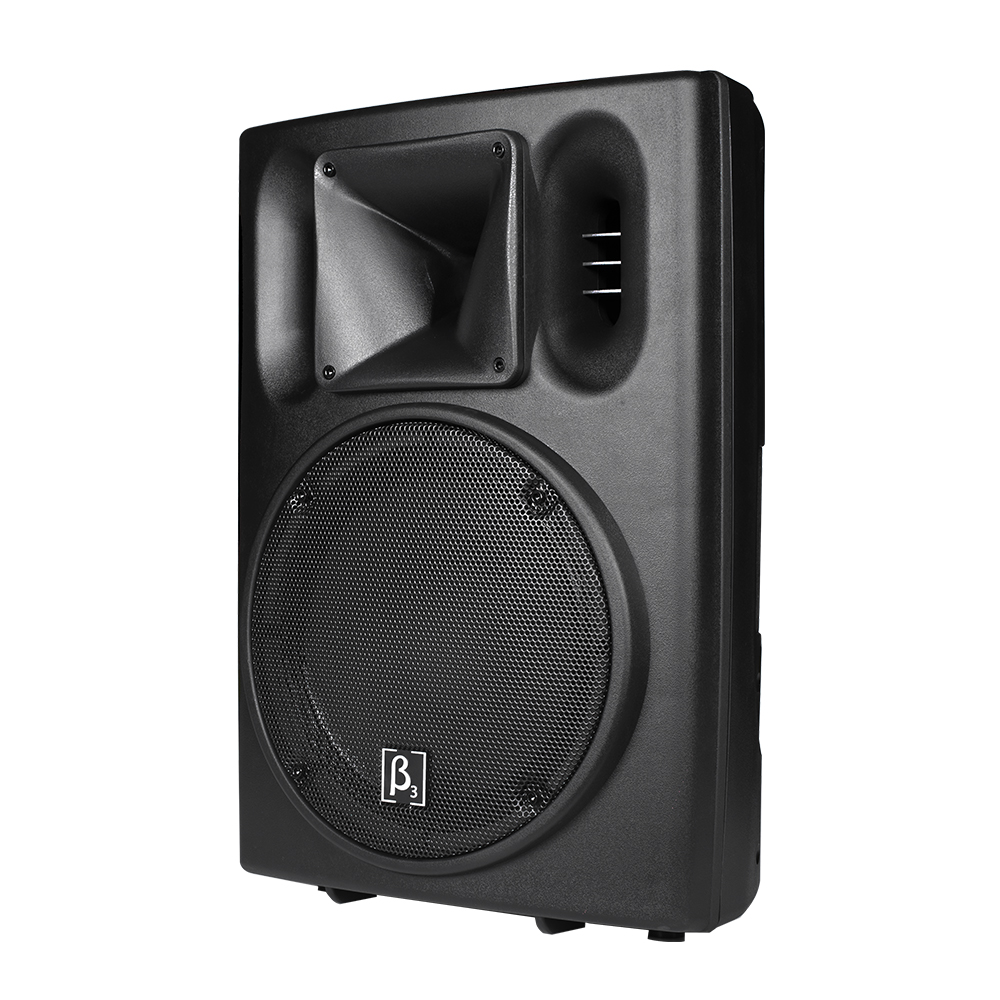

U15

15" Two Way Full Range Plastic Speaker

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship,Events, Clubs, Rehearsal Halls etc. The U Active Series delivers extraordinary performance at unmatched value.


Features

  • Weatherproof version available
  • High output SPL and sensitivity
  • 1 x 15” high power transducer with 50mm voice coil
  • 1 x 1.7” diaphragm compression driver
  • Rotatable Horn: 50º-100º x 55º controlled coverage pattern
  • Heavy duty protective grill
  • Injection molded

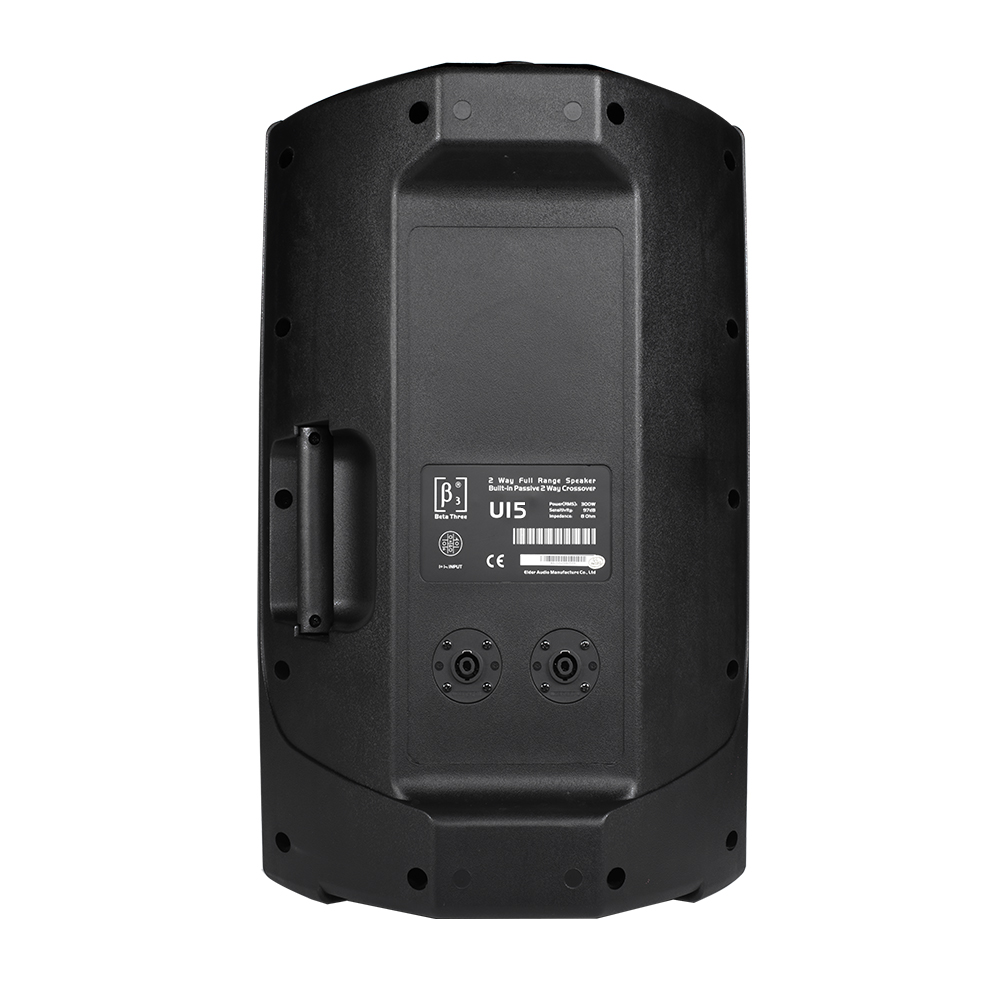

  • 2 x NL4 connector
  • Cabinet design for FOH and Monitor use
  • Suitable for use as a main system with or without sub speaker augmentation
  • Portable system (stand), or permanent installation (wall, ceiling)
  • Arrays with all active high power U Series sub speakers for extended low frequency, high quality music reproduction
  • Monitor kit - optional

Specifications

Acoustical specifications
Frequency Response(-3db):
40Hz-18kHz
Max SPL @ 1m:
121dB(PEAK)
Dispersion (H x V):
50-100° x 55°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
1 x 15" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
98dB
Power section
Total Power:
300W(RMS)
Nominal Impedance (Ohm):
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
485 x 460 x 700mm / (19.1 x 18.1 x 27.6in)
Package Dimensions (W x D x H):
545 x 515 x 800mm / (21.5 x 20.3 x 31.5in)
Weight
Net Weight:
26 kg / 57.3 lb
Gross Weight:
28 kg / 61.7 lb
