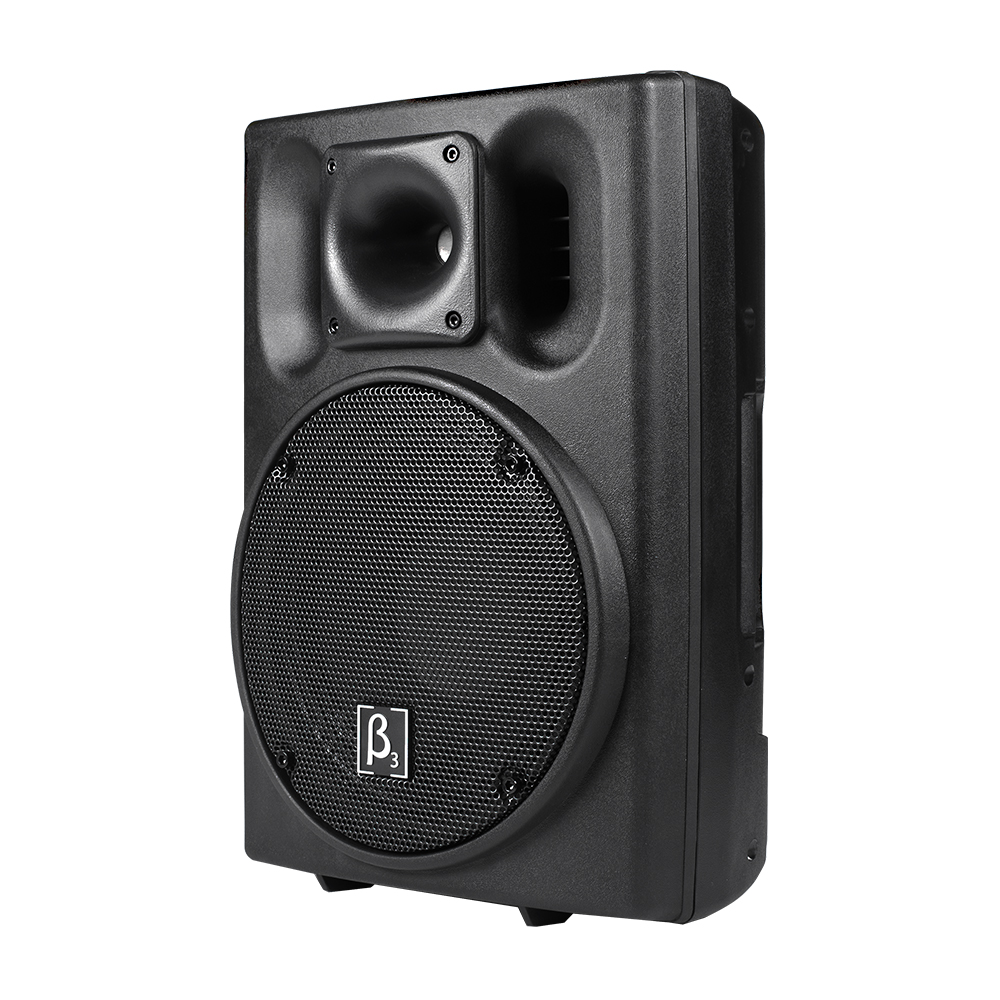

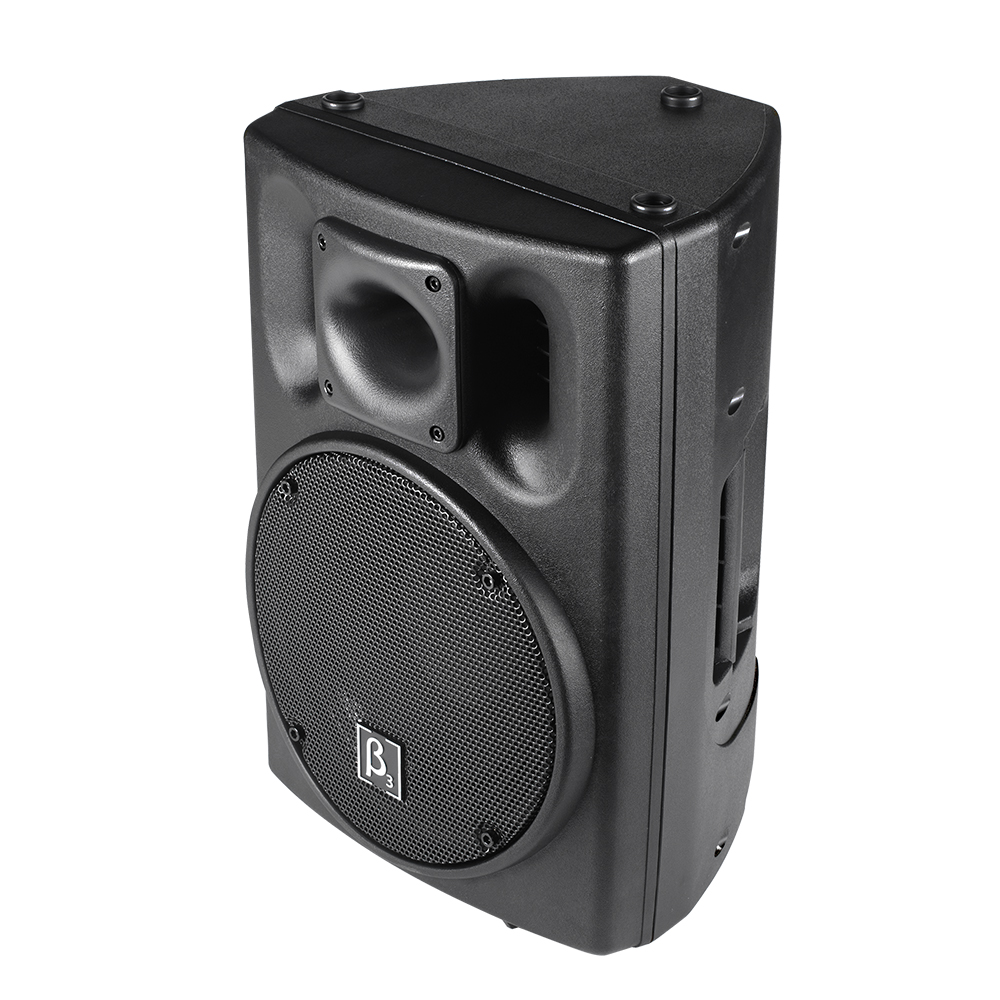

U15Ba

15" LF Active Speaker

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship,Events, Clubs, Rehearsal Halls etc. The U Active Series delivers extraordinary performance at unmatched value.


Features

  • High output SPL and sensitivity
  • 1 x 15” high power low frequency transducer with 50mm voice coil
  • Heavy duty protective grill
  • Injection molded
  • 2 x NL4 connector
  • Cabinet design for FOH
  • Suitable for use with any full range or mid/high speaker cabinets for extended low frequency, high quality music reproduction
  • Integral 35mm pole receptacle for mounting full range or mid/high speaker
  • cabinet

Specifications

Acoustical specifications
Frequency Response(-3db):
80Hz-250Hz
Max SPL @ 1m:
120dB(PEAK)
Transducers
Woofer:
1 x 15" LF

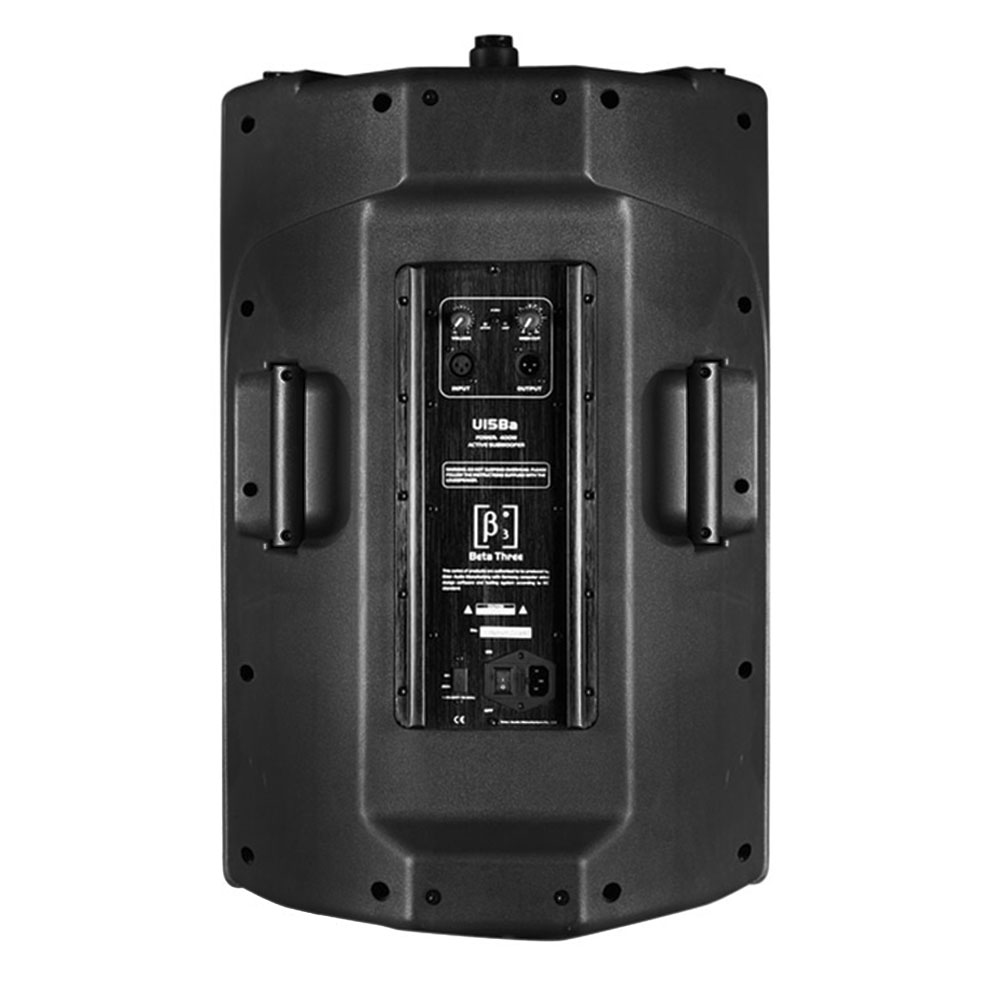

Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
XLR K3P
Power section
Total Power:
400W
Nominal Impedance (Ohm):
Voltage range:
AC 110V/220V~, 50Hz/60Hz
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
485 x 460 x 700mm / (19.1 x 18.1 x 27.6in)
Package Dimensions (W x D x H):
545 x 515 x 800mm / (21.5 x 20.3 x 31.5in)
Weight
Net Weight:
30.5 kg / 67.2 lb
Gross Weight:
33.7 kg / 74.3 lb
