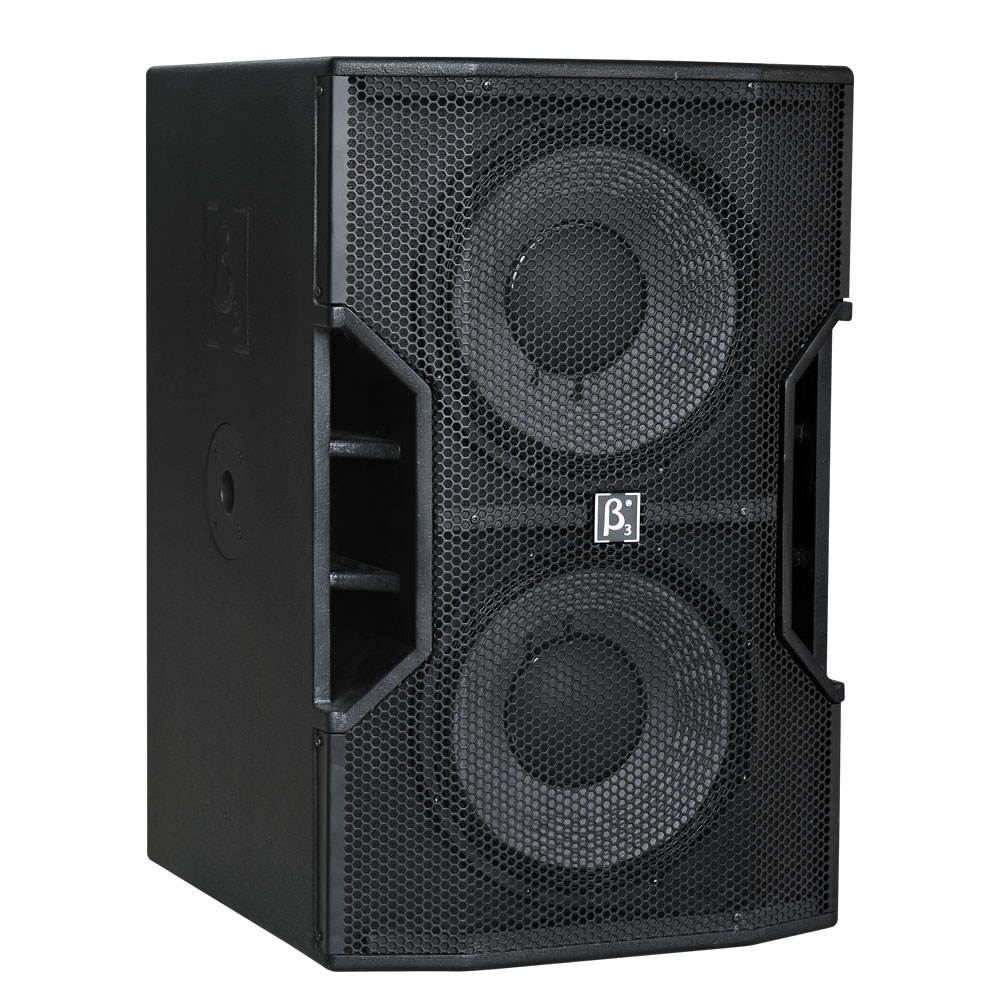

T212Ba

Dual 12" LF Active Wooden Speaker

Portable and installed wooden loudspeakers used in applications including sound reinforcement in Front of House and applications in house of worship, events, clubs, rehearsal etc. Both active and passive version deliver extraordinary performance at unmatched value.


Features

  • Light weight powered bass speaker
  • 2500 watt continuous Class D power modules
  • Extensive DSP enhances system performance
  • Heavy duty protective grill
  • High intensity design wooden cabinet
  • 35mm pole mount on top
  • M8 rigging points are convenient for different installation
  • Suitable for use with any full range or mid/high speaker cabinets for extended
  • low frequency, high quality music reproduction

Specifications

Acoustical specifications
Frequency Response(-3db):
40Hz-150Hz
Max SPL @ 1m:
135dB/141dB(PEAK)
Transducers
Woofer:
2 x 12" LF

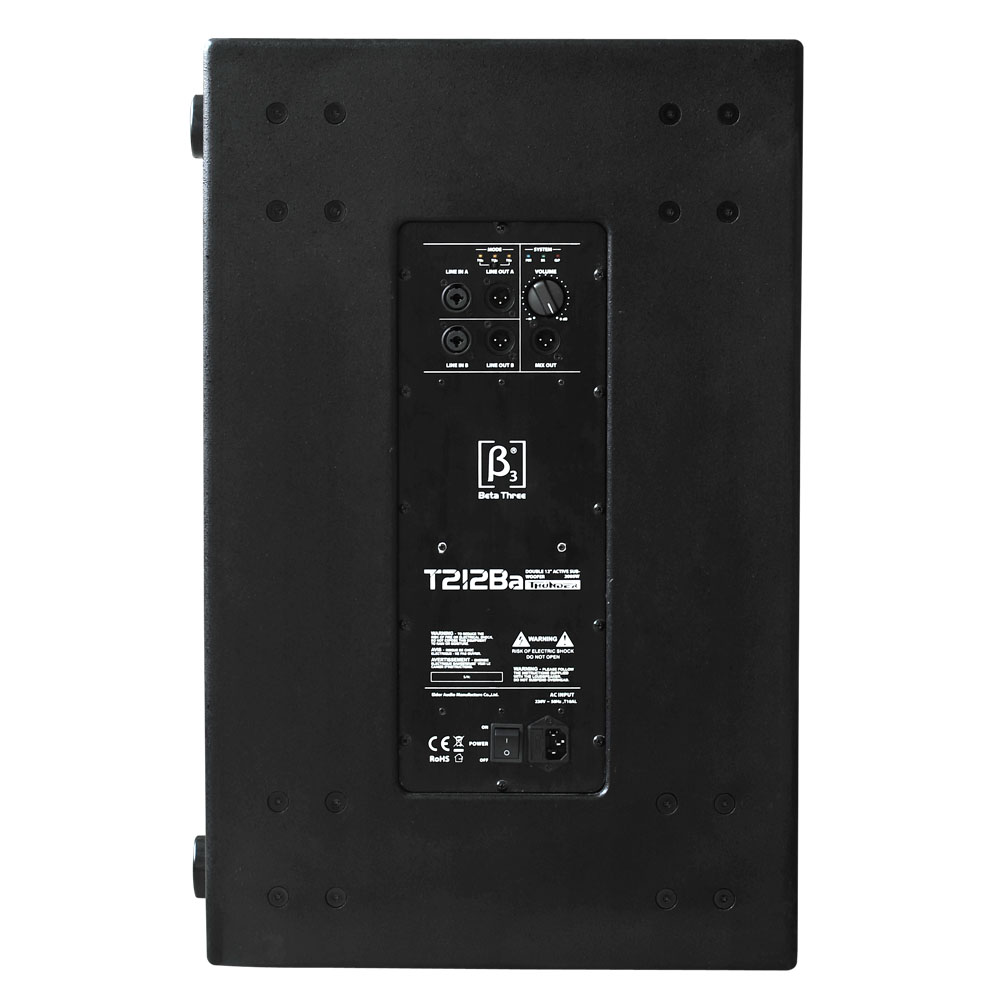

Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
2 x Combo input, 2 x XLR output
Power section
Total Power:
2000W(RMS)
Nominal Impedance (Ohm):
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
460 x 520 x 720mm / (18.1 x 20.5 x 28.3in)
Package Dimensions (W x D x H):
630 x 580 x 850mm / (24.8 x 22.8 x 33.5in)
Weight
Net Weight:
42 kg / 92.6 lb
Gross Weight:
45 kg / 99.2 lb

T212Ba Application

    T212Ba Installation

      T212Ba Parts

        T212Ba Cases

          T212Ba Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              β3_T212Ba(100V-120V)_PA_English_Manualβ3_T212Ba(100V-120V)_PA_English_Manual 1β3_T212Ba(100V-120V)_PA_English_Manual  973.82KB 2018-07-12 02:25:39
              β3_T212Ba(220V-240V)_PA_English_Manualβ3_T212Ba(220V-240V)_PA_English_Manual 1β3_T212Ba(220V-240V)_PA_English_Manual  990.36KB 2018-07-12 02:25:39
              β3_T212Ba_PA_Chinese_Manualβ3_T212Ba_PA_Chinese_Manual 1β3_T212Ba_PA_Chinese_Manual  1212.06KB 2018-07-12 02:25:39
