Electronics

Electronics

The Beta Three® Electronics includes a series of meticulously engineered and manufactured professional audio equipment, such as digital signal processors, power sequencers, equalizers, and speaker management systems. This series of electronics are of premium quality, and perfectly suited to be configured in any sound reinforcement system in a wide range of applications.

PX128 Professional Sequence Power
PX128 Professional Sequence Power

PX128

Professional Sequence Power

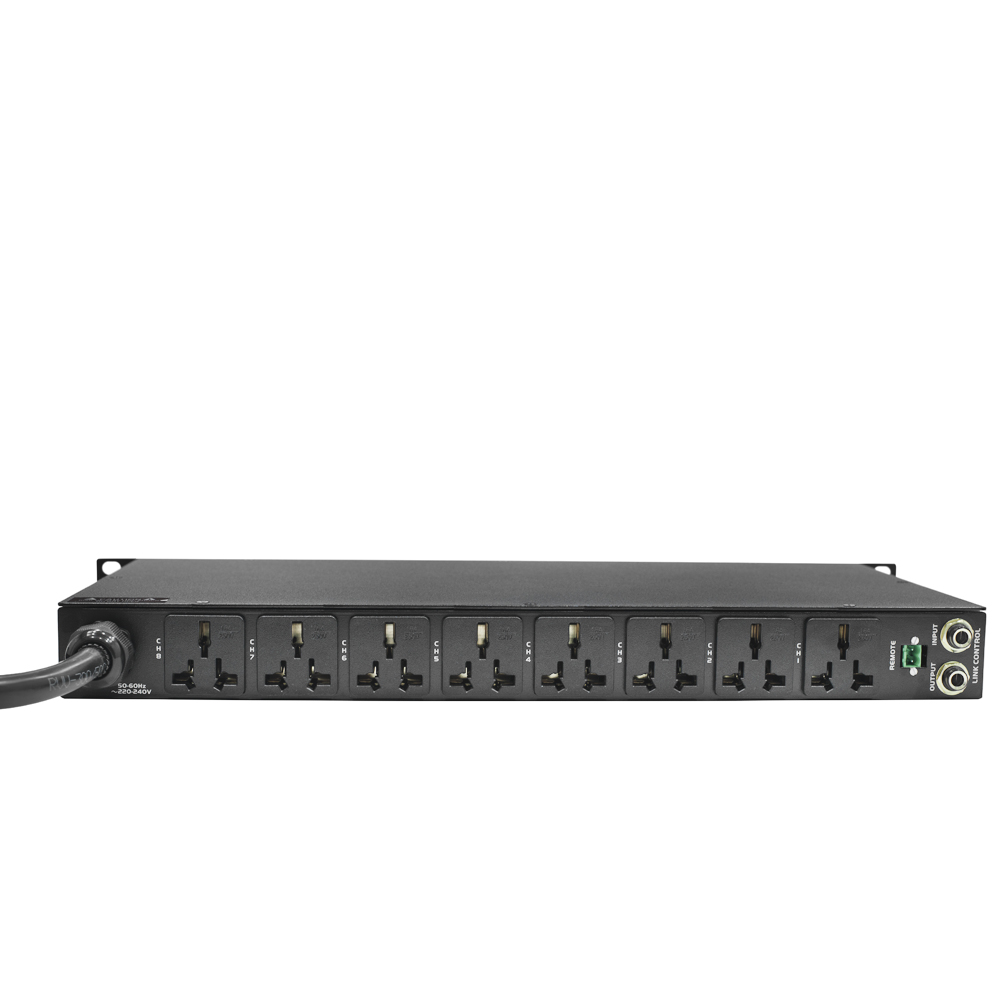

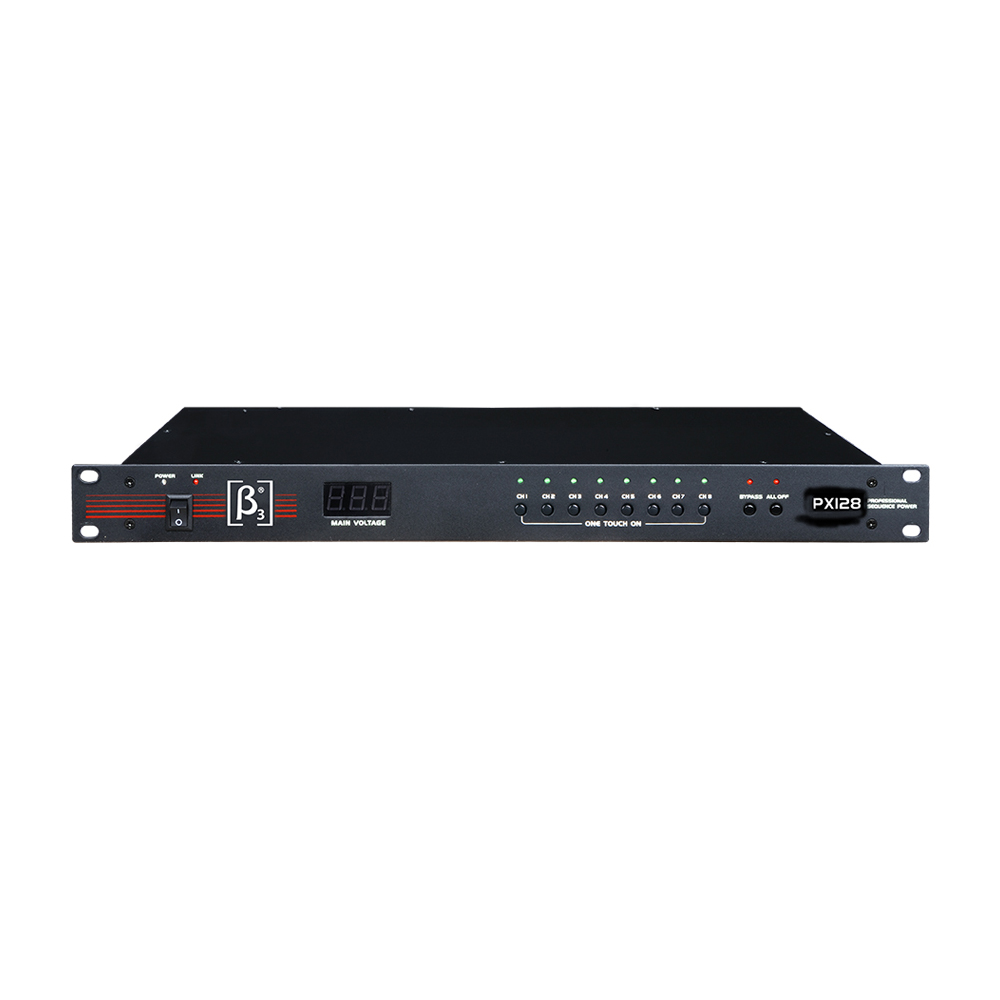

PX128 is a professional sequence power distributor. It can distribute main power into eight power outputs each with 2kW power output, and turn on/off every output power sequentially, so that to effectively reduce the shock to system, specially cater for large sound reinforcement venue.


Features

  • One main power input, six or eight controlled power output
  • Built-in processor, turn on clockwise, turn off anti-clockwise, available for
  • network connection, easy operation.
  • LED indication for each channel turn on/off
  • BYPASS switch and independent switch control for every channel, flexible usage
  • Cute and solid shape

Specifications

Total Max. Output (RMS)
16KW
Per Channel Max. Output (RMS)
2KW
Sequence Delay Time
1s
Parallel Connection
available
Bypass Function
available
Voltage
220V 50Hz/60Hz
N.W.
5Kg
G.W.
6Kg
Dimension (WxHxD)
484*222*44.5 mm
Packing (WxHxD)
555*310*78mm

PX128 Application

    PX128 Installation

      PX128 Parts

        PX128 Collocation

          Videos

            Downloads

            FilenameVersionLanguageSizeUpdated
            PX128β3 PX128 Datasheet 1.0PX128  200KB 2024-03-29 14:27:51
            β3_PX128_PX128B_PX136_Electronic_Periphery_Chinese_Manualβ3_PX128_PX128B_PX136_Electronic_Periphery_Chinese_Manual 1β3_PX128_PX128B_PX136_Electronic_Periphery_Chinese_Manual  580KB 2018-07-12 02:25:39
            β3_PX128B PX128_PX136_Electronic_Periphery_English_Manualβ3_PX128B PX128_PX136_Electronic_Periphery_English_Manual 1β3_PX128B PX128_PX136_Electronic_Periphery_English_Manual  218.51KB 2018-07-12 02:25:39
