XC2.6 - Digital Speaker Controller
XC2.6 - Digital Speaker Controller

XC2.6

Digital Speaker Controller

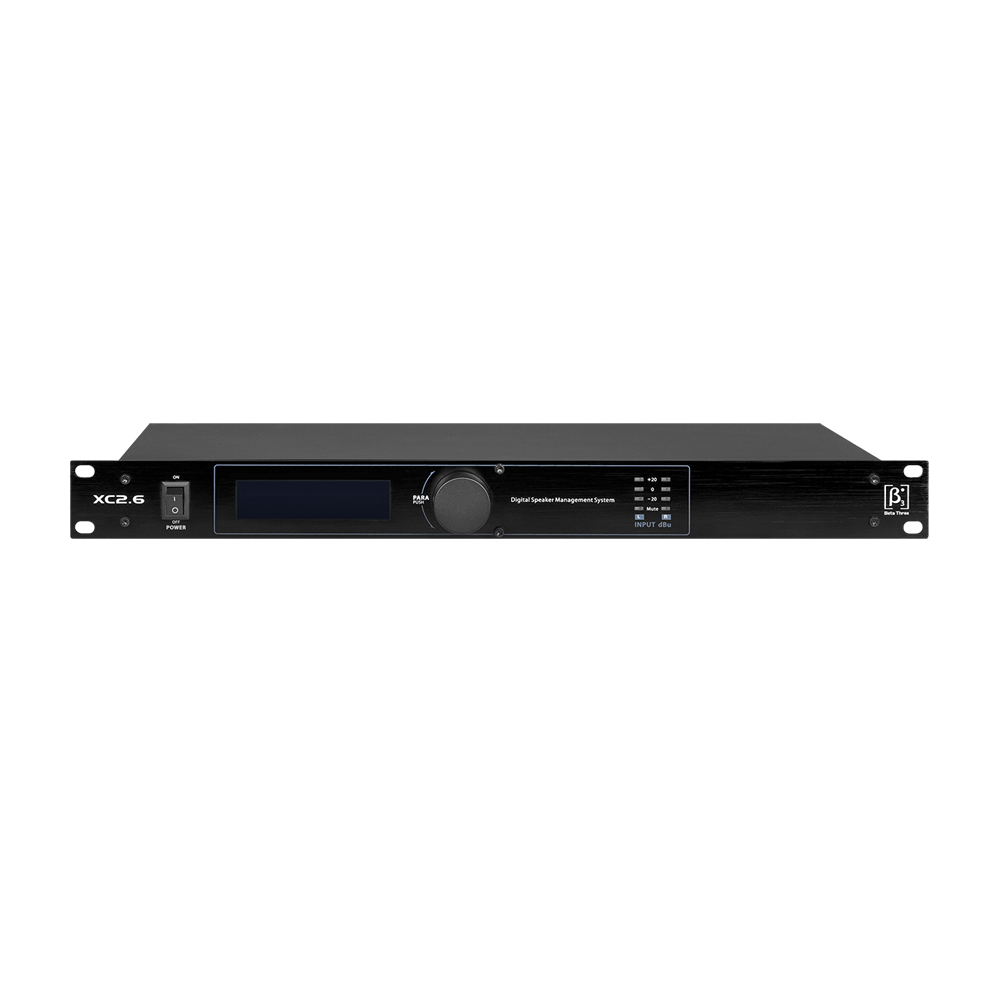

The Beta Three® XC2.6 is a 1U integrated speaker management processor. This device is easily programmable to meet al installation applications.


Features

  • Multi functions process: one controller can meet cross over, EQ and dynamic process.
  • The signal route are all digital process,48 digital DSP and 24 digital line AD/DA transfer technology to ensure the sound is dynamic and clear.
  • Classical calculation and double precise filter to meet PA dynamic and precise requirement.
  • The filter and signal dynamic process point in the signal route can make It is better to fit the speaker.
  • Professional XLR in-out socket is very durable.
  • Perfect hardware anti disturb(RF/ESD protection) with strong software correction technology to make the system run well.
  • Well-suited programmer update software, it can update all kinds of speaker programmer to the certain state by USP connecting to the computer.
  • Panle signal dynamic indication.
  • Panel key+coder to sort and transfer programmer quickly.
  • LCD display programmer information for sorting.

Specifications

Analog Input

Input:
balance XLR-3-32 input socket
Input Impedance:
unbalance≥10kΩ,balance≥20kΩ
Max input level:
≥+20dBu (THD+N = 0.1%)
A/D Convertor:
48kHz sample frequency, 24bits linear


Analog Output

Input:
balance XLR-3-32 out put socket
Output Impedance:
unbalance≤50Ω,balance≤100Ω
Load impedance:
≥600Ω
Max input level:
≥+20dBu (THD+N = 0.1%)


Simulation Sound

Frequency response:
20Hz~20 kHz (+0.3/-0.3dB), 10Hz~30kHz (+0.3/-3.0dB)
Dynamic range:
≥110dB(A -Weight)
Total distortion and noise :THD+N≤0.008%([email protected] Excluding the right to)
Intermodulation Distortion :≤0.02%([email protected]/7kHz)
Min time of delaying:
about 1.2ms (we set the delaying parameter of signal input and output as 0)


Others

Power requirement:
AC 220V 50Hz
Power consuming:
≤18W
The fuse:
[email protected] AC delaying
Dimension(W×D×H):
482×172×45mm
Weight:
3.0kg
Operation temperature:
0~+40℃
Storage temperature:
-10~+60℃
