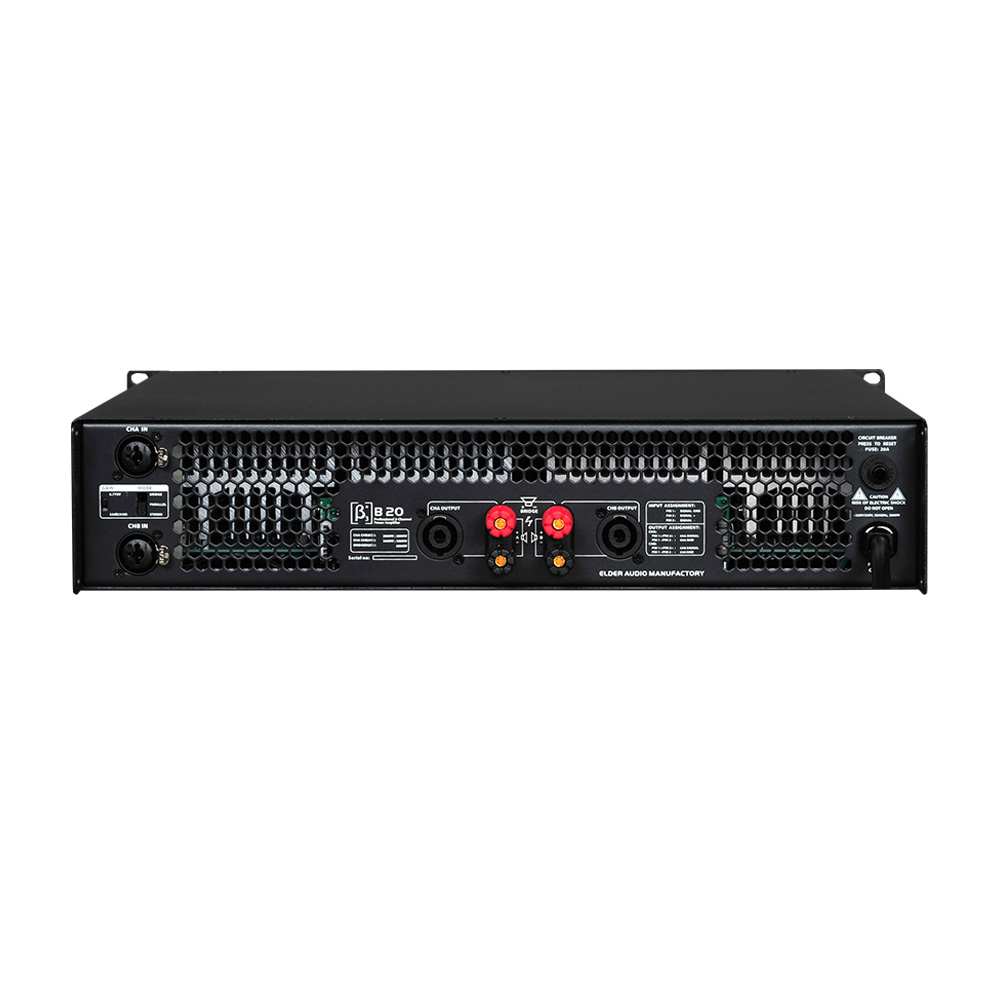

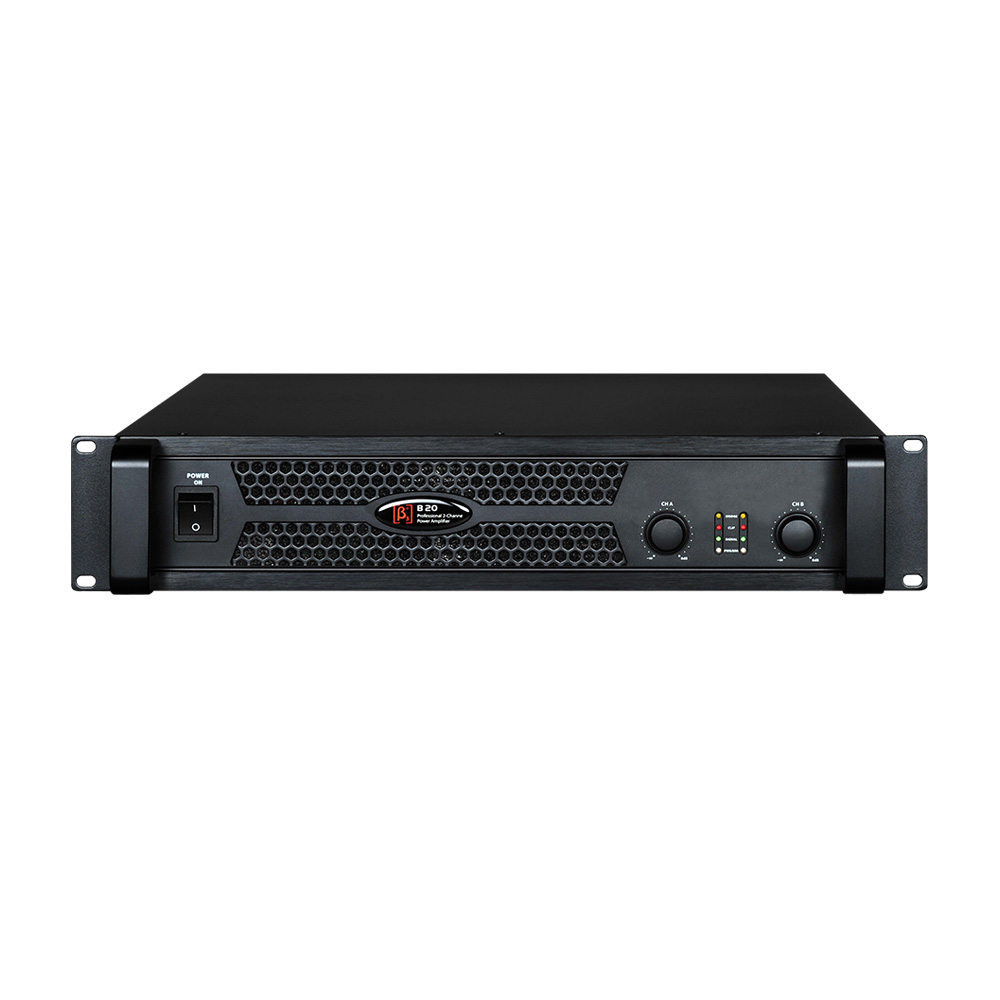

B20

Professional Class H Power Amplifier

The Beta Three® B Series professional amplifiers is new designed high-performance professional power amplifiers with low distortion high damping factor and smooth sound.


Features

  • Housed in a rugged,all-steel 2U chassis
  • Unique radiator sctructure for efficient cooling.
  • Designed for efficient with circuit protection to avoid the demage caused by the mistake operation.
  • Power input overvoltage, undervoltage, anti-surge protection and switching impact protection.
  • To avoid abnormal and failure of the PA system to cause damage to the speaker by DC output protection and high-frequency sustained energy limit
  • Over temperature protection automatically

Specifications

Rated Power (Stereo 8Ω)

2200W×2
Rated Power (Stereo 4Ω)3600W×2
Rated Power (Bridge 8Ω)
6800W
Peak Output Voltage
195V
Type
Class H
Frequency Response
20Hz-20kHz(<± 0.25dB)
Input Sensitivity(32dB/x40, 8Ω)
3.15V RMS
Max Gain(0.775V)
44dB
THD (@1kHz)<0.025%

IMD (@60Hz/7kHz 4:1)

<0.005%
Phase Response(@20Hz-20kHz)
<±15°
SNR(@1kHz, x40/32dB, A ) ≥113dB
Damping Factor(100Hz)
>500(100Hz)
Conversion Rate
15V/μs
Input Impedance >20kΩ
>18kΩ
Separating Degree(1kHz)
>75dB
Average Current Consumption
10A
Maxiumum Current Consumption
19A
Dimension (W x D x H)483mm x 452mm x 88mm
Gross Weight15kg
