SAK206

6" Two Way Full Range Speaker

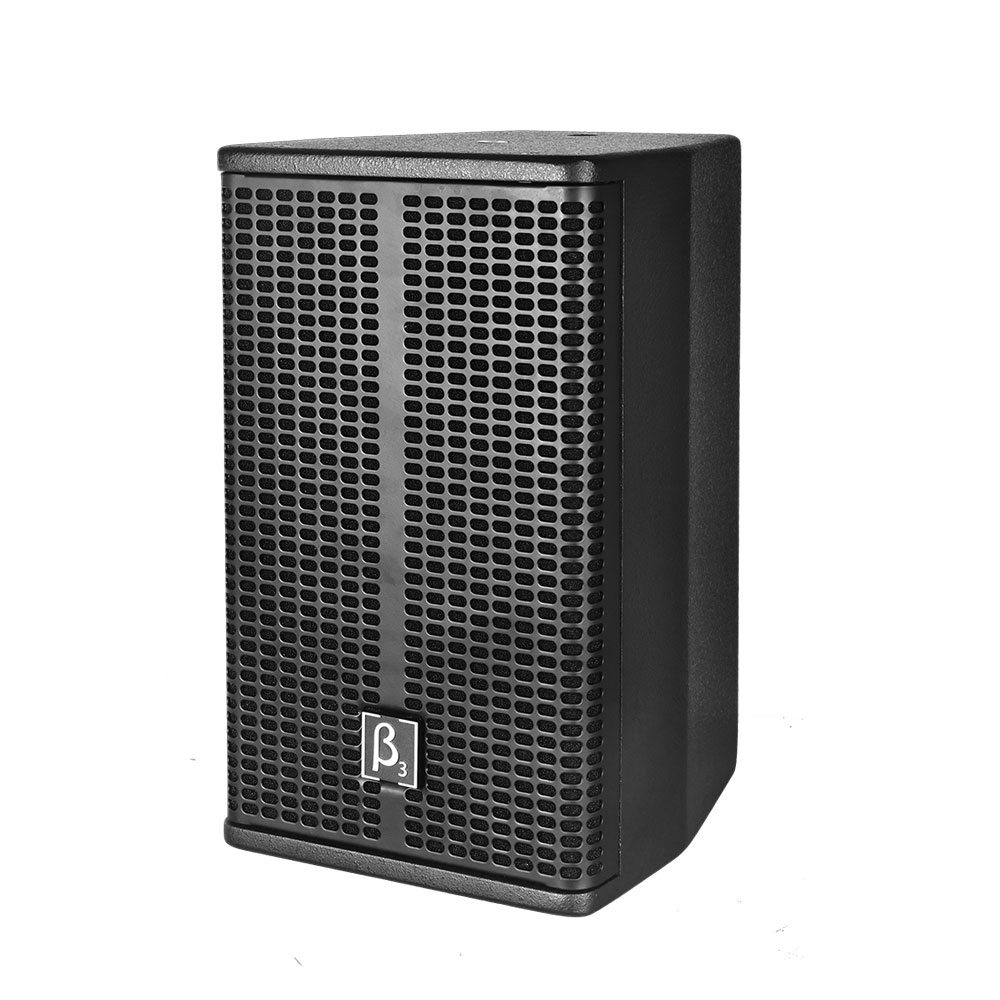

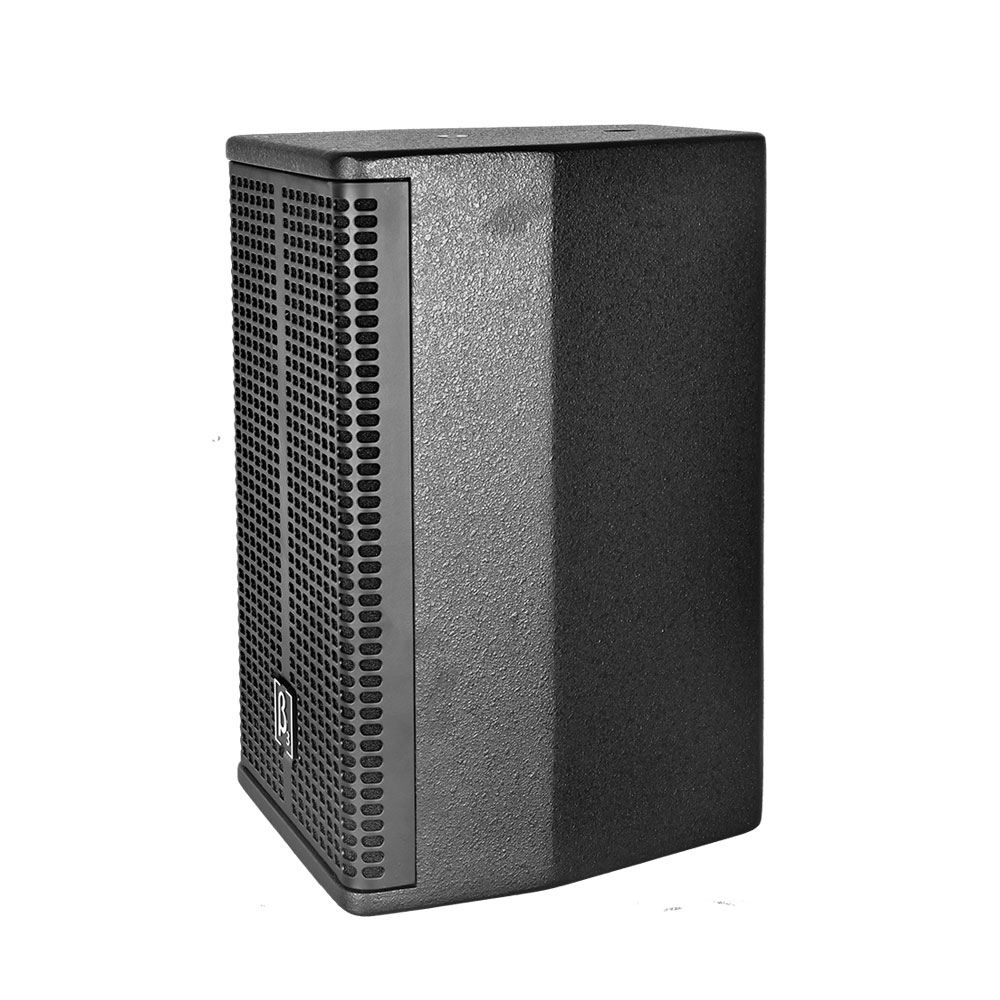

SAK206 is a 2-way full-range speaker with high sensitivity, high sound pressure and excellent directivity control. It is used in small and medium-sized sound reinforcement places that require high sound pressure and high reliability. It is suitable for use in public places such as full-range sound reinforcement, voice sound reinforcement, conference systems, and background music. It can also be used for monitoring, feedback or fill in fixed or live performance systems.SAK206 is composed of a 6-inch low frequency unit and a 1-inch PEI polymer diaphragm high-frequency compression driver, which is made of laminate and surface baking process. The SAK206 adopts a multifunctional structural design, which is suitable for touring performances and fixed installations. Professionally designed installation accessories and 3×M8 hoisting points can adapt to different environments for convenient and quick installation and hanging.


Features

◇Two-unit two-way full-band, high sound pressure and high sensitivity speaker

◇A 6-inch high-power woofer

◇A 1-inch PEI tweeter polymer diaphragm 25mm core tweeter compression driver

◇Used in public places such as full-range sound reinforcement, language sound reinforcement conference system, background music, multi-function halls, etc.

◇For high-quality output music playback, it can be used with this series of high-energy subwoofers

Specifications

Acoustical specifications
Frequency Response(-3db):
80Hz-19kHz
Max SPL @ 1m:
113dB/119dB(PEAK)
Dispersion (H x V):
120° x 120°
Transducers
Compression driver:
1 x 1" HF
Woofer:
1 x 6" LF
Input/Output section

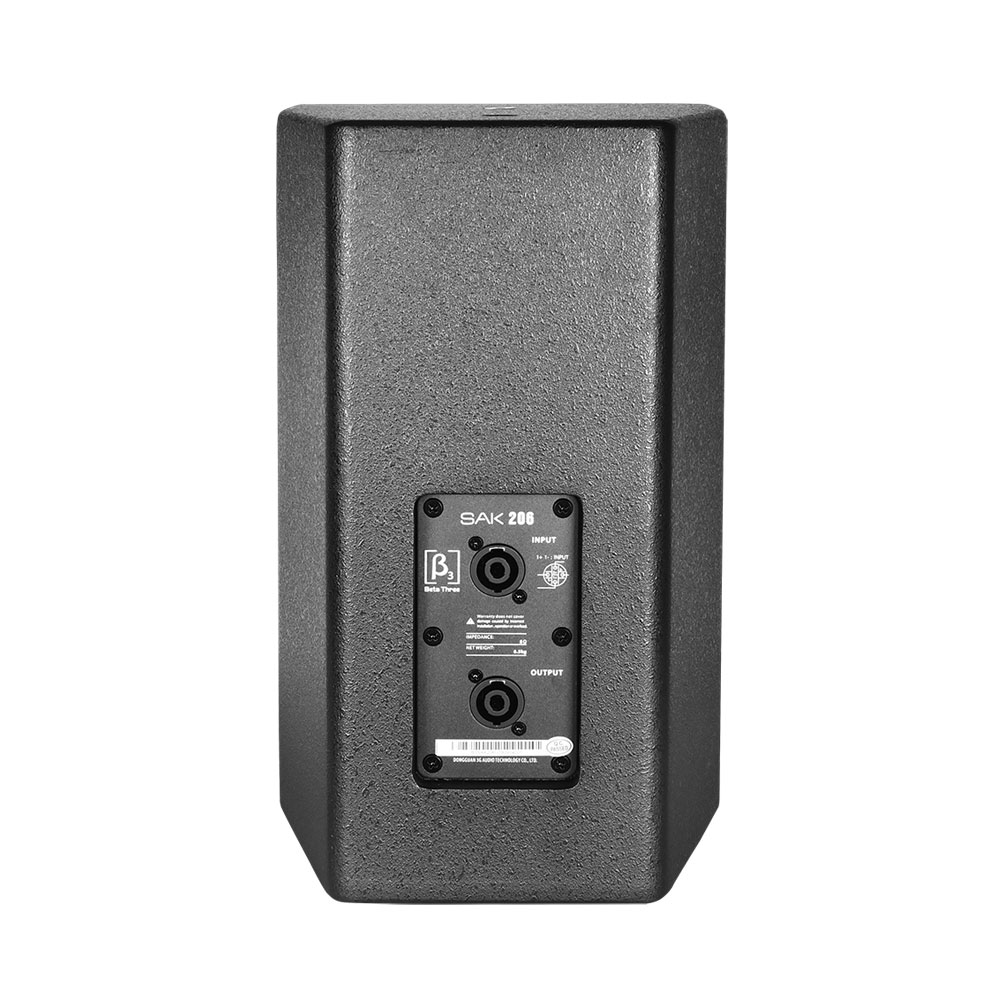

Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
93dB
Processor section
Crossover frequencies:
3.1kHz
Power section
Total Power:
100W(RMS); 200W(MUSIC); 400W(PEAK);
Nominal Impedance (Ohm):
Physical specifications
Cabinet/Case Material:
Polypropylene injection moulding
Hardware:

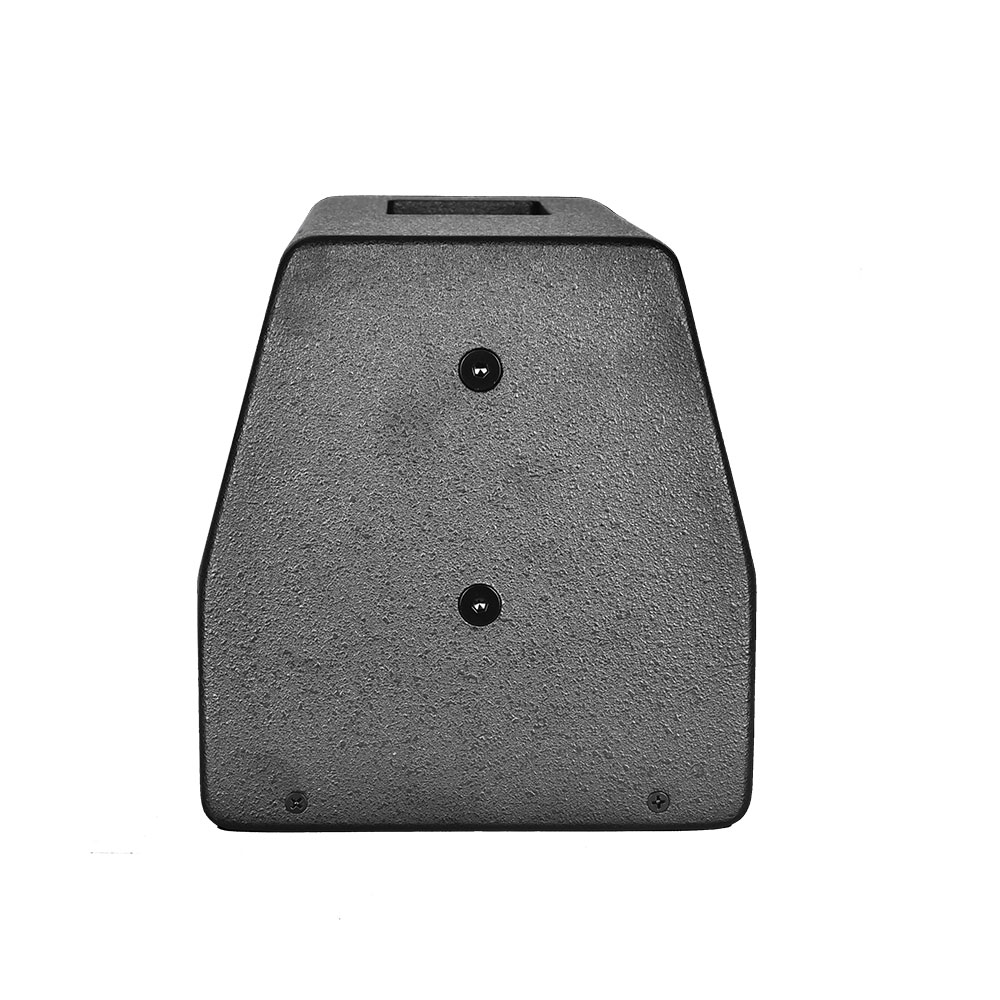

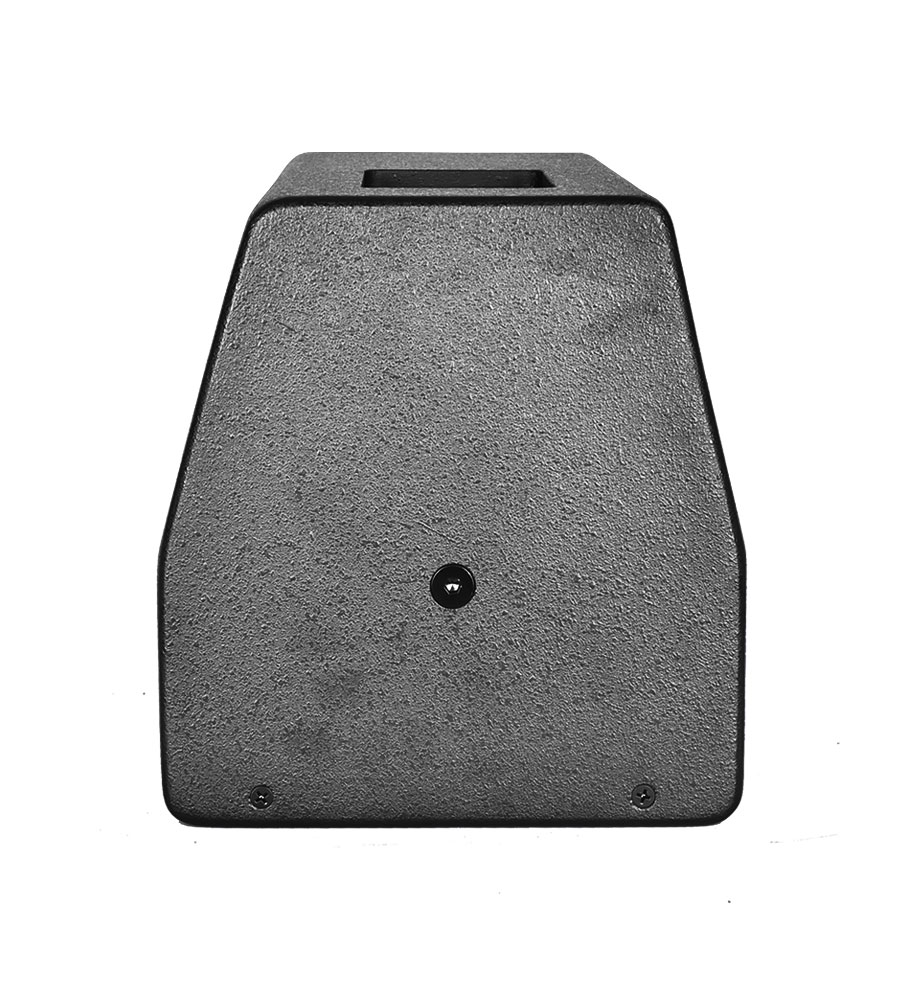

3 x M8 Bracket lifting point
Grille:
Powder Coated Steel with Grille Cloth
Color:
Black
Size
Dimension (W x D x H):
215 x 230 x 350mm / (8.5 x 9.1 x 13.8in)
Package Dimensions (W x D x H):
580 x 300 x 455mm / (22.8 x 11.8 x 17.9in)
Weight
Net Weight:
6.5 kg / 14.3 lb
Gross Weight:
14 kg / 30.9 lb

SAK206 Application

    SAK206 Installation

      SAK206 Parts

        SAK206 Cases

          SAK206 Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              SAK206β3 SAK206 Datasheet 1.0SAK206  200KB 2022-05-16 09:09:16
