SAK4.8 - 4" Two Way Full Range Speaker

SAK4.8

4" Two Way Full Range Speaker

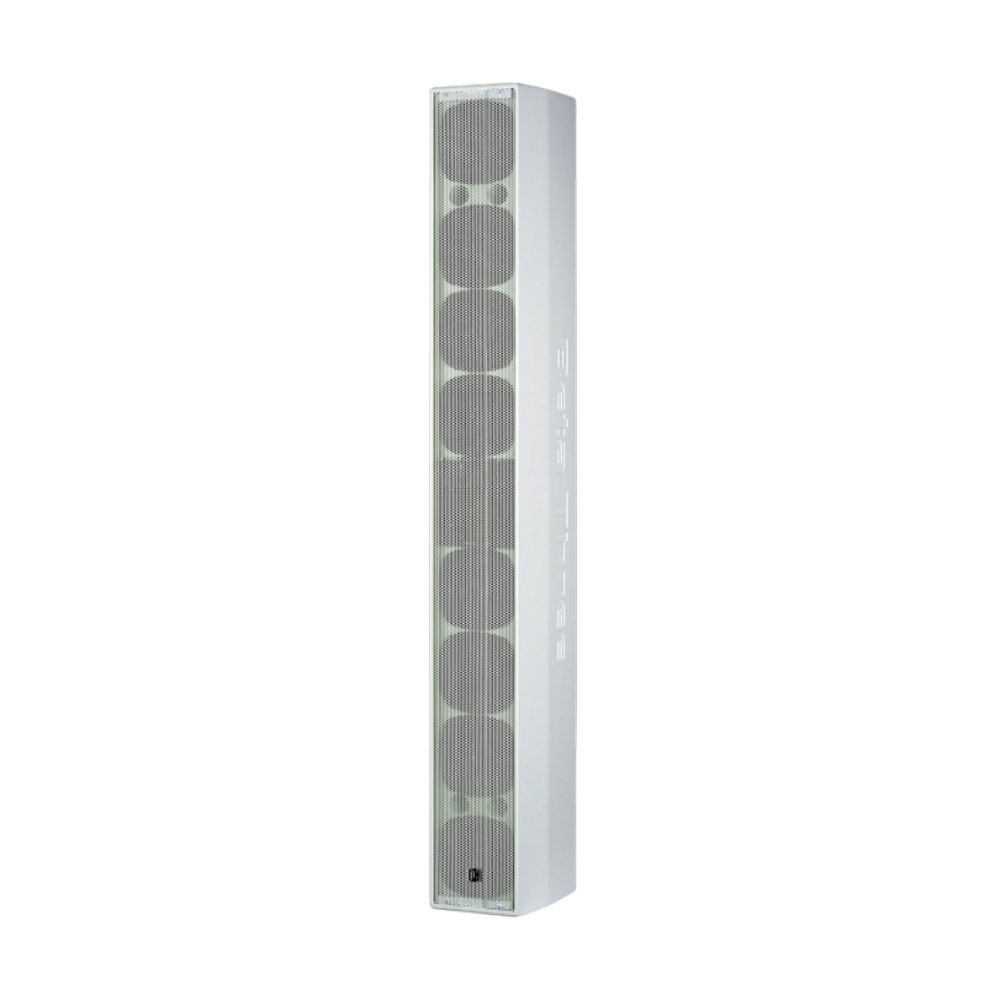

The SAK4.8 speaker is a medium-sized sound column speaker in the SAK series speakers with a nine-unit structure and a surface spraying fine-point paint process. The upper limit frequency of a single 4-inch full-range unit reaches 18kHz. The full-frequency unit adopts a high-power voice coil with a diameter of 25mm. The voice coil adopts a bias line, and the voice coil frame adopts a high-strength aluminum material, which not only strengthens the strength of the voice coil, but also increases the power bearing capacity of the voice coil. The design of the symmetrical magnetic circuit of the unit reduces the odd-order harmonic distortion of the low-frequency part to a low level, which fully meets the needs of the human ear for sound quality.


Features

◇A medium-sized column speaker composed of a 4-inch full-range unit and a 1.75-inch treble compression driver

◇The box is made of imported laminate, and the surface is made of paint

◇Various installation methods and corresponding optional installation accessories, suitable for installation in various places

◇The sound quality of the speaker: clear, full, and heavy

Specifications

Acoustical specifications
Frequency Response(-3db):
80Hz-18kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Dispersion (H x V):
150° x 30°
Transducers
Compression driver:
1 x 1.75" HF
Midrange:
4 x 4" MF
Woofer:
4 x 4" LF
Input/Output section
Input Connectors:
Terminals
Sensitivity (1W @ 1m):
94dB
Power section
Total Power:
240W(RMS); 480W(MUSIC); 960W(PEAK);
Nominal Impedance (Ohm):
Physical specifications
Cabinet/Case Material:
15mm Plywood
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size
Dimension (W x D x H):
164 x 233 x 1138mm / (6.5 x 9.2 x 44.8in)
Package Dimensions (W x D x H):
310 x 248 x 1245mm / (12.2 x 9.8 x 49in)
Weight
Net Weight:
16.7 kg / 36.8 lb
Gross Weight:
18.2 kg / 40.1 lb

SAK4.8 Application

    SAK4.8 Installation

      SAK4.8 Parts

        SAK4.8 Cases

          SAK4.8 Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              SAK4.8β3 SAK4.8 Datasheet 1.0SAK4.8  200KB 2022-05-16 10:33:54
