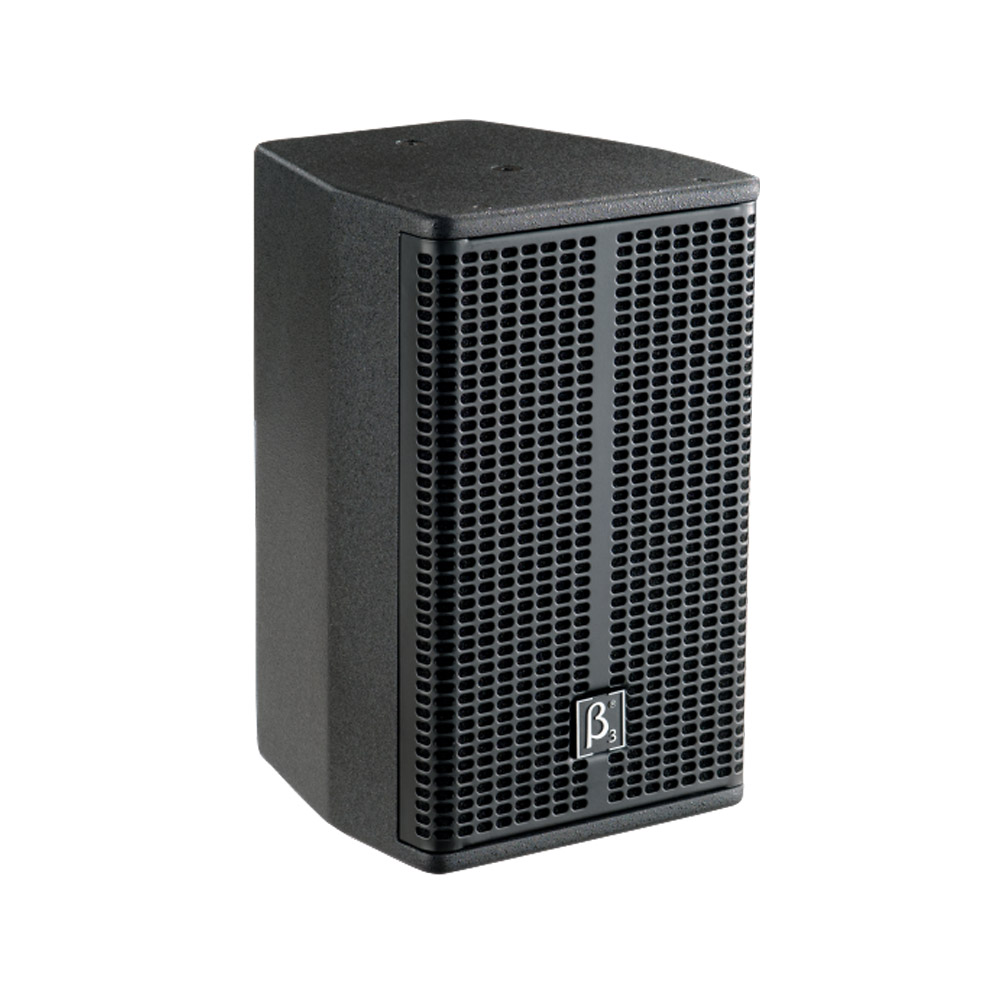

SAK208 - 8" Two Way Full Range Speaker

SAK208

8" Two Way Full Range Speaker

SAK208 is a 2-way full-range speaker with high sensitivity, high sound pressure and excellent directivity control. It is used in small and medium-sized sound reinforcement places that require high sound pressure and high reliability. Can be used alone or with SAK series low frequency loudspeakers. Computer simulation design obtains good frequency response and phase characteristics. It is suitable for full-range sound reinforcement, language sound reinforcement, conference systems, background music, bars and dance halls and other public places. It can also be used for monitoring, monitoring or fill in large sound engineering or touring systems.SAK208 is composed of an 8-inch low frequency unit and a 1-inch PEI polymer diaphragm high-frequency compression driver, which is made of laminate and surface paint process. The SAK208 adopts a multifunctional structural design, suitable for touring performances and fixed installations. Professionally designed installation accessories and 7×M8 hoisting points can adapt to different environments for convenient and quick installation and hanging


Features

◇ Two-unit two-way full-band, high sound pressure and high sensitivity speaker

◇ An 8-inch high-power woofer

◇ A 1 inch PEI polymer diaphragm treble compression driver

◇ 7×M8 bracket hoisting point

Specifications

Acoustical specifications
Frequency Response(-3db):
80Hz-19kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Dispersion (H x V):
80° x 65°
Transducers
Compression driver:
1 x 1" HF
Woofer:
1 x 8" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
96dB
Power section
Total Power:
150W(RMS); 300W(MUSIC); 600W(PEAK);
Nominal Impedance (Ohm):
Physical specifications
Cabinet/Case Material:
15mm Plywood
Hardware:
7 x M8 Bracket lifting point
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size
Dimension (W x D x H):
245 x 260 x 380mm / (9.6 x 10.2 x 15in)
Package Dimensions (W x D x H):
655 x 340 x 485mm / (25.8 x 13.4 x 19.1in)
Weight
Net Weight:
7.5 kg / 16.5 lb
Gross Weight:
16 kg / 35.3 lb

SAK208 Application

    SAK208 Installation

      SAK208 Parts

        SAK208 Cases

          SAK208 Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              SAK208β3 SAK208 Datasheet 1.0SAK208  200KB 2022-05-18 06:44:02
