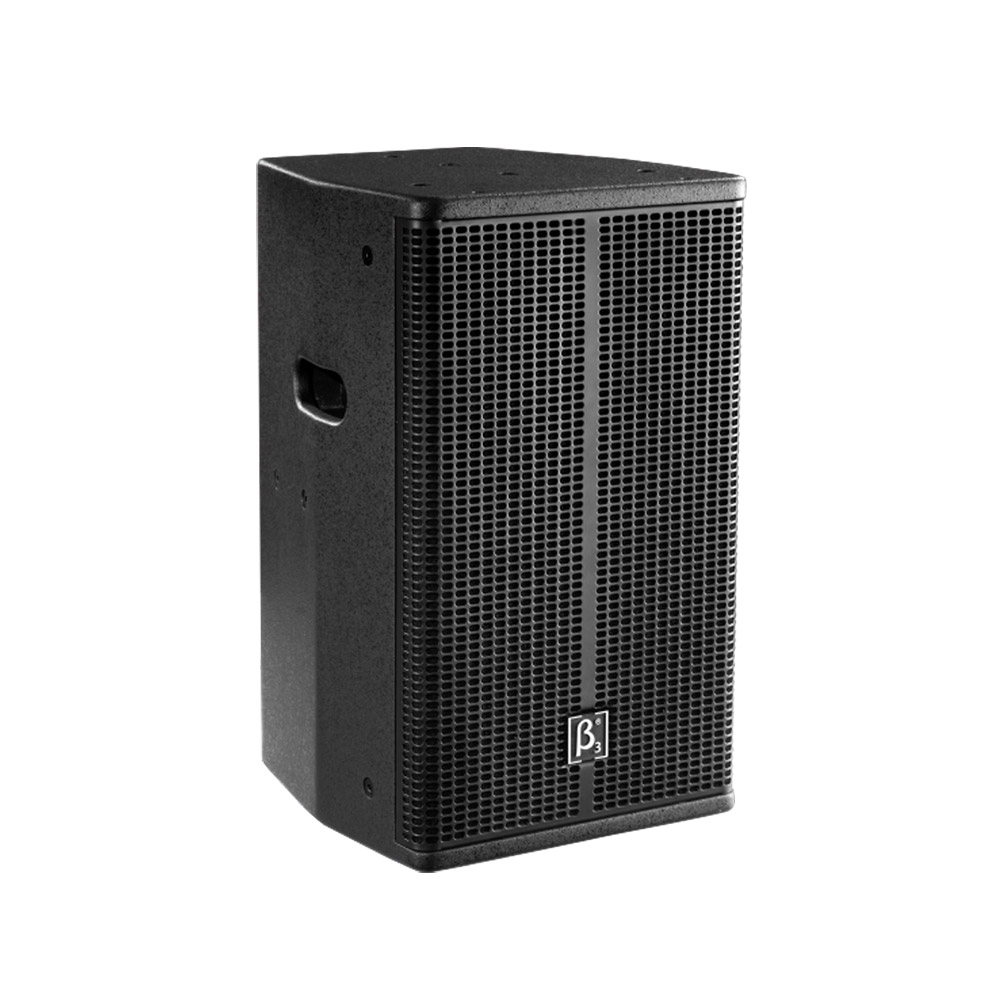

SAK210 - 10" Two Way Full Range Speaker

SAK210

10" Two Way Full Range Speaker

SAK210 is a two-unit two-way full-range passive professional speaker. Consists of a 10-inch Cloth edge woofer and a 1.3-inch titanium diaphragm tweeter compression driver. Great dynamics, high sensitivity, clear mid and high frequencies, and good low frequency dynamics. The box body is made of laminate, with a wooden wedge structure, and the surface polyurethane paint has strong anti-wear ability. The tensile strength of the box itself reaches 4500N. The hoisting method of the speaker adopts a special hoisting form to bear the tensile force of 3000N at a single point, reaching a hoisting safety factor higher than 7 times. The surface mesh of the speaker is made of Q235, and the surface is sprayed with powder, so that the surface mesh not only has high strength, but also has good resistance to salt spray, and its ability to resist salt spray (5% sodium hydroxide) Up to 96 hours, in actual use, it can be used continuously for 5 years without rusting without damage.


Features

◇Two-unit two-way full-band high sound pressure, high sensitivity speaker

◇A 10-inch high-power woofer

◇A 1.3-inch composite membrane 34mm tweeter compression driver

◇Used in public places such as full-range sound reinforcement, language sound reinforcement conference system, background music, multi-function halls, etc.

◇For high-quality music playback, it can be used with this series of subwoofers

Specifications

Acoustical specifications
Frequency Response(-3db):
65Hz-19kHz
Max SPL @ 1m:
120dB/126dB(PEAK)
Dispersion (H x V):
80° x 70°
Transducers
Compression driver:
1 x 3" HF
Woofer:
1 x 10" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
96dB
Power section
Total Power:
300W(RMS); 600W(MUSIC); 1200W(PEAK);
Nominal Impedance (Ohm):
Physical specifications
Cabinet/Case Material:
15mm Plywood
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size
Dimension (W x D x H):
320 x 350 x 530mm / (12.6 x 13.8 x 20.9in)
Package Dimensions (W x D x H):
455 x 425 x 635mm / (17.9 x 16.7 x 25in)
Weight
Net Weight:
16.5 kg / 36.4 lb
Gross Weight:
18.5 kg / 40.8 lb

SAK210 Application

    SAK210 Installation

      SAK210 Parts

        SAK210 Cases

          SAK210 Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              SAK210β3 SAK210 Datasheet 1.0SAK210  200KB 2022-05-16 06:05:58
