The VX Series cabinets use a single driver and 90 x 60 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, VX Series is poised to uphold 3G Audio reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge.Designed as an all-purpose speaker with the Musician & DJ in mind, each VX Series cabinet features 3 channels. The cabinet supports Bluetooth streaming and EQ pushbutton controls for Concert, Club & Monitor modes.

VX10a - 10" Two-Way Full-Range Active Speaker
VX10a - 10" Two-Way Full-Range Active Speaker
VX10a - 10" Two-Way Full-Range Active Speaker
VX10a - 10" Two-Way Full-Range Active Speaker
VX10a - 10" Two-Way Full-Range Active Speaker
VX10a - 10" Two-Way Full-Range Active Speaker
VX10a - 10" Two-Way Full-Range Active Speaker
VX10a - 10" Two-Way Full-Range Active Speaker
VX10a - 10" Two-Way Full-Range Active Speaker
VX10a - 10" Two-Way Full-Range Active Speaker

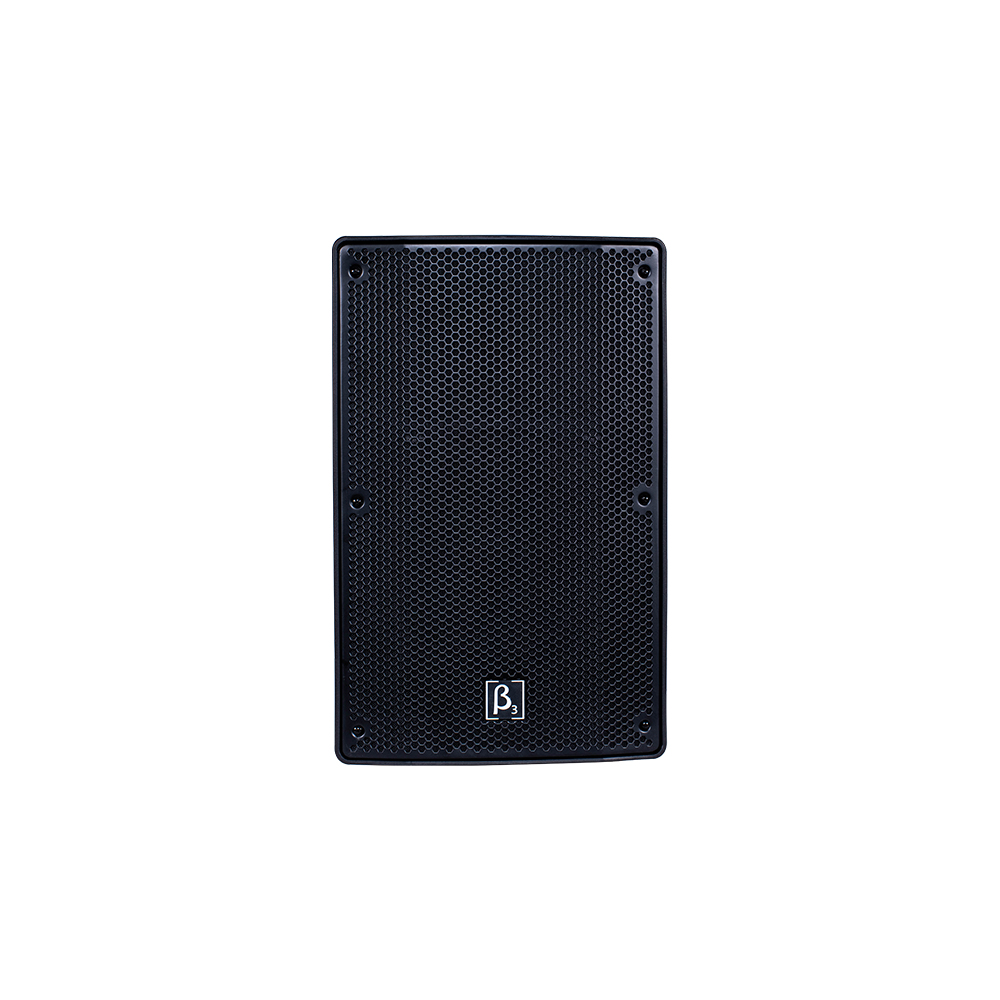

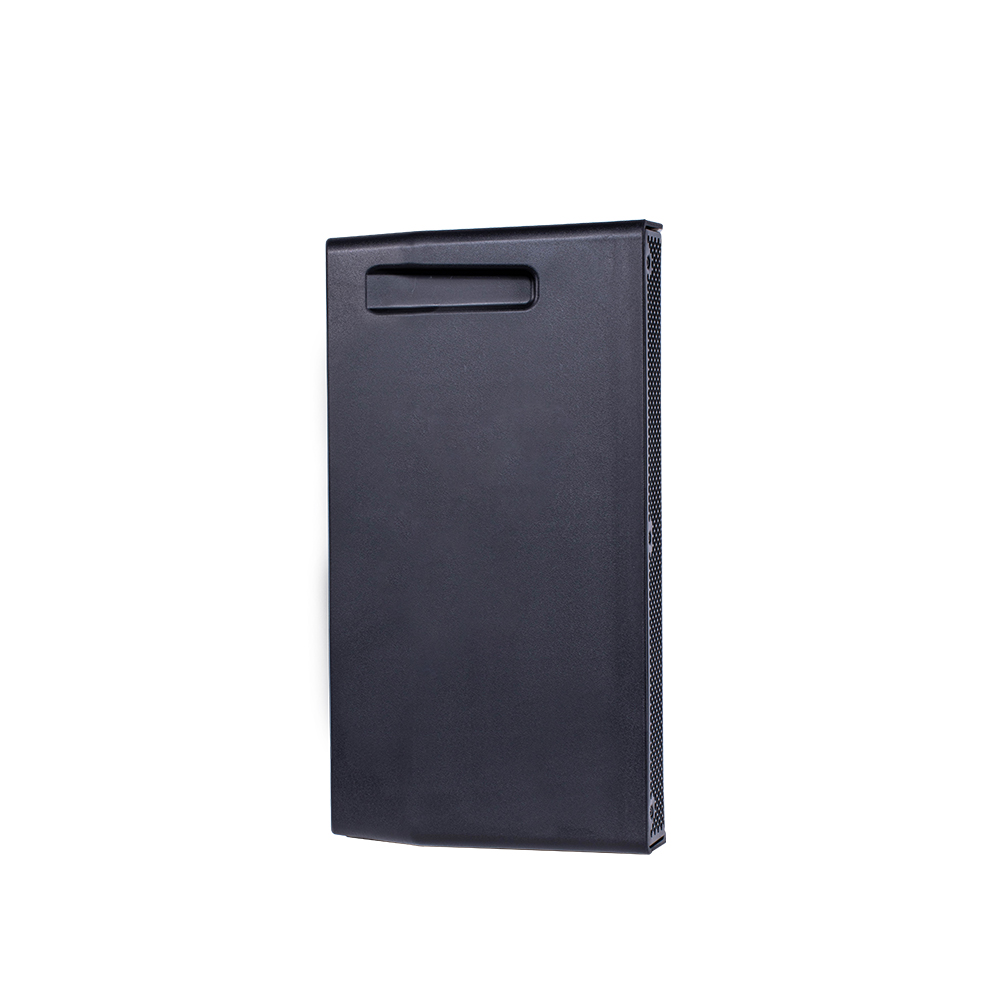

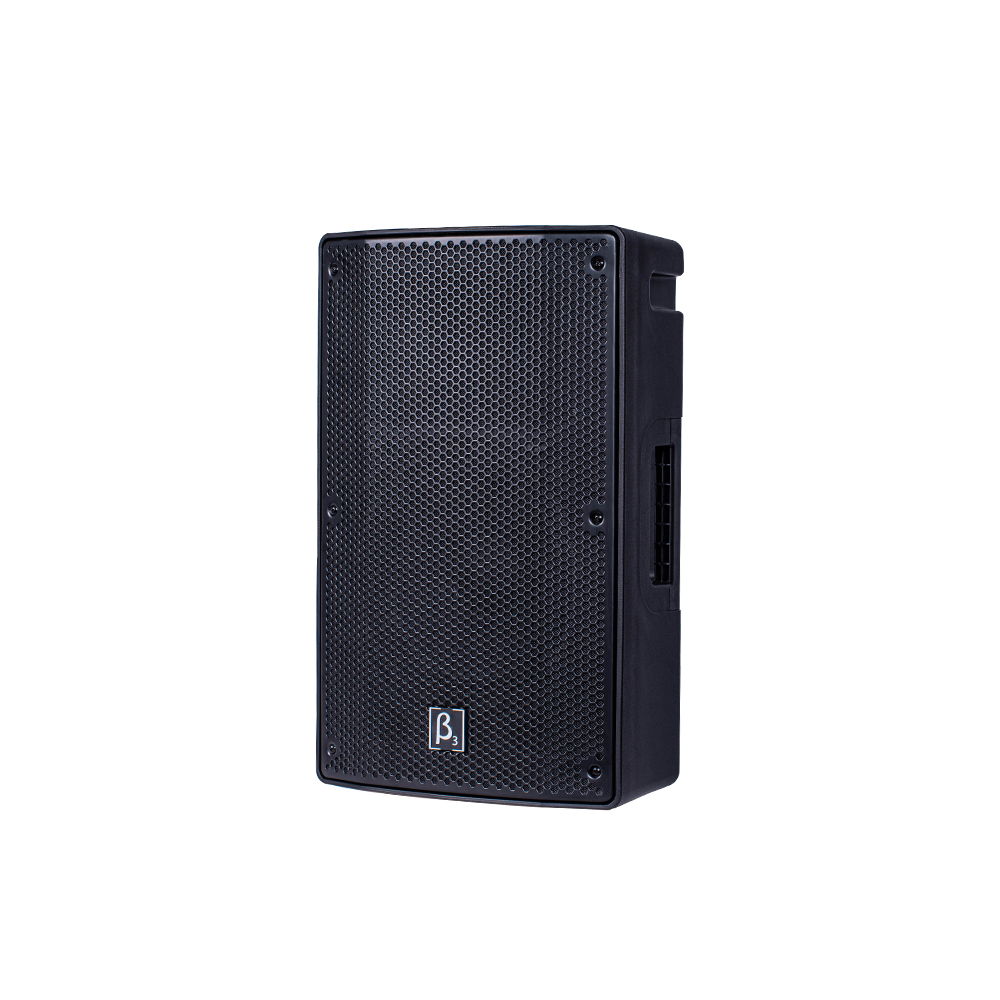

VX10a

10" Two-Way Full-Range Active Speaker



The VX series of multifunctional speaker system is designed for various applications requiring sound solutions of high durability and portability.

The cabinet is made of engineering plastics, with a special medium that is specially added to improve sound quality. Equipped with excellent wear-resistance, along with outstanding sound quality performance.

VX10a is a two-way full-range active speaker composed of a 10" LF woofer and a 1" HF compression driver with Titanium diaphragm. Its characteristics include big dynamic, high sensitivity,clear MF and HF with powerful LF.

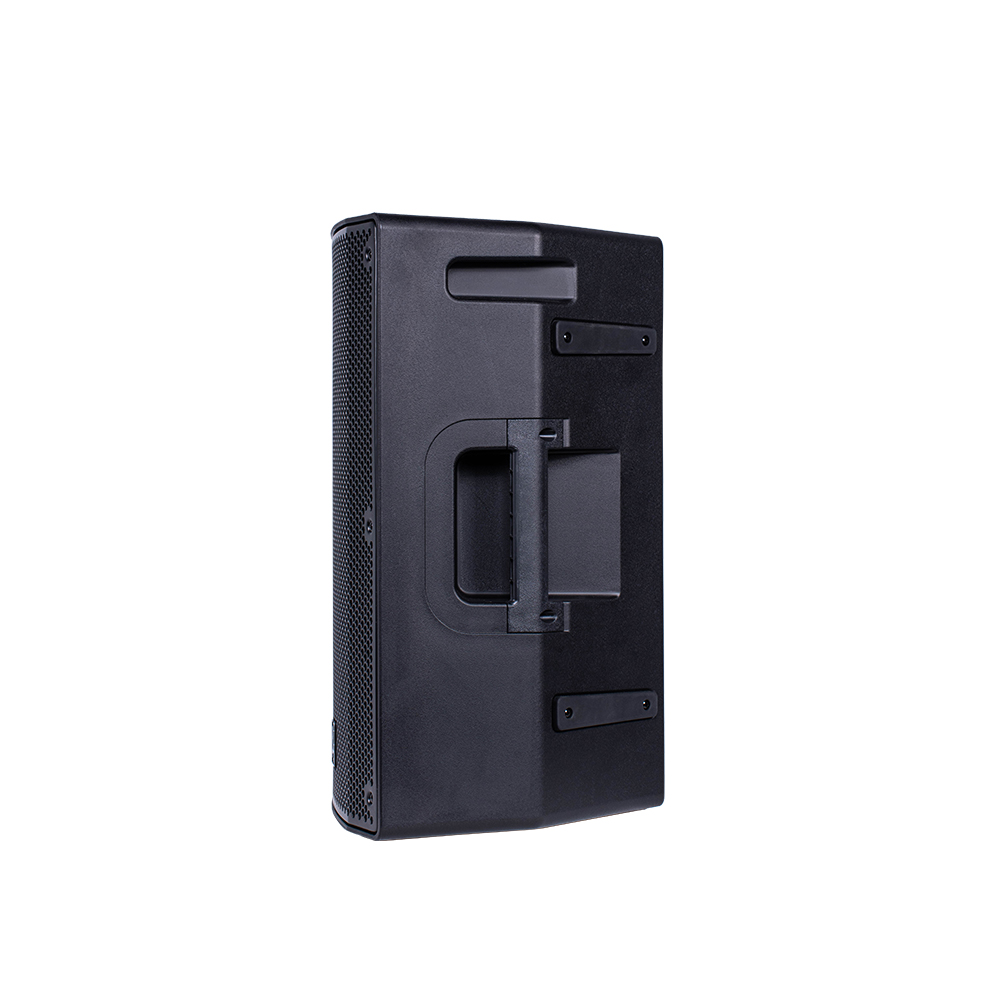

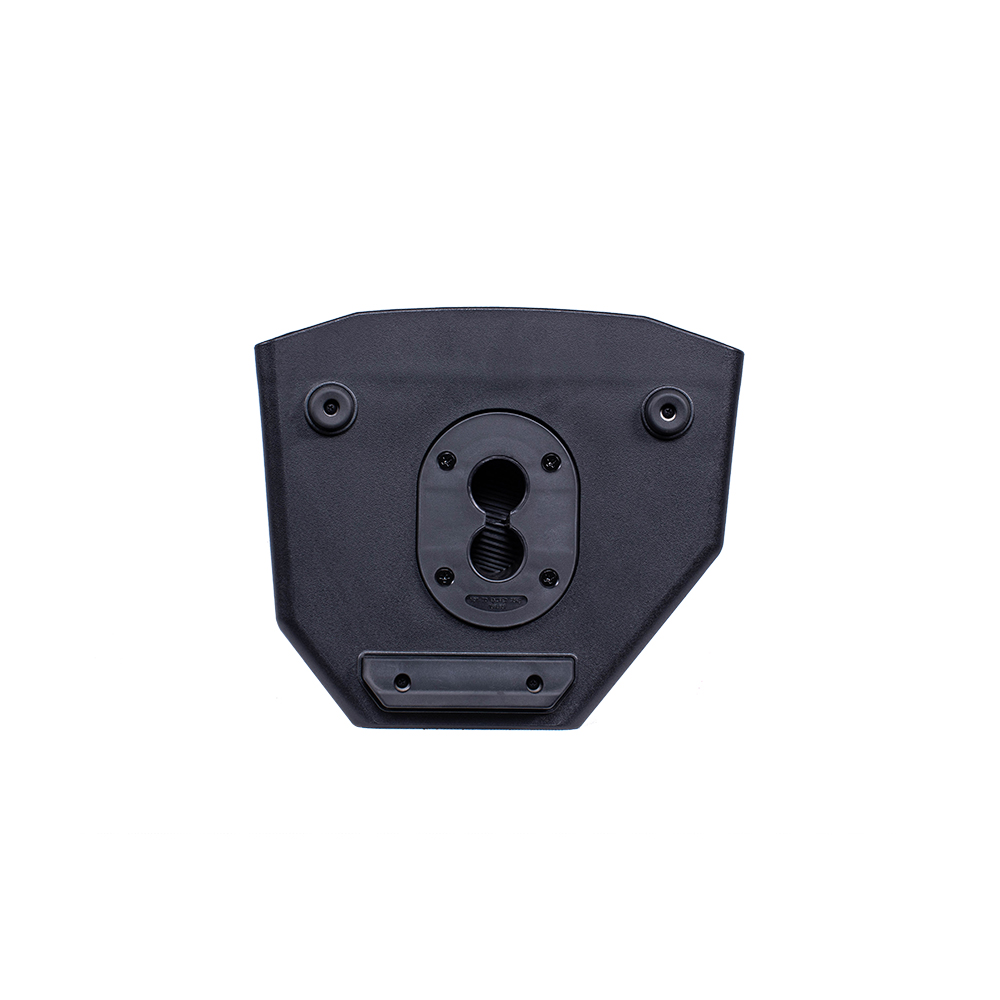

 VX10a adopts the design of combining the horn with the cabinet, with rigging points surrounding the cabinet, and there are mounting holes at the bottom of the cabinet to facilitate the formation of an array. Standard hosting structure and 2-way XLR/TRS input mode ensures ease of use and simple installation.




Features

• 1000 watts (peak) 500 watts (program)

• Superior DSP processing with component protection

• 12-inch woofers with 2.5-inch voice coils

• 1-inch HF compression drivers

• 90° x 60° HF dispersion

• Dual purpose full-range and wedge monitor speaker

• Ultra-clear reproduction throughout the whole audio bandwidth

• Lightweight and high efficiency bi-amped power module

• Low distortion and high power-handling 12-inch woofers

• Recessed control panel

• Master Level control with Activity indicator (cabinet level adjustment)

• 3 Performance modes, Concert, Club and Monitor

• Defeatable 3 channel mixer with level controls and Clip indicators

• Bluetooth® input / streaming, not affected by Mixer Defeat

• 2 Microphone Inputs with level control and phantom power

• 1/4-inch TRS Instrument and Line Inputs

• 1/8-inch Aux Input for connecting mono or stereo audio sources

• An XLR Main In and Link output for easy connection and looping

• Selectable Sub filter (HPF) for connecting a subwoofer

• ABS / Polypropylene cabinet construction

• Tough, full length metal grille


Specifications

Acoustical specifications
Frequency Response(-3db):
55Hz-18kHz
Max SPL @ 1m:
114dB/120dB(PEAK)
Dispersion (H x V):
90°° x 60°°
Transducers
Compression driver:
1 x 1" HF
Woofer:
1 x 10" LF
Input/Output section
Input signal:
100 Hz HP with Sub, Mixer IN/OUT, Stereo/Mono out, 3.5mm Aux in, BT streaming
Input Connectors:
2 x XLR, 2 x 1/4", 1/8", Bluetooth and Main in (XLR)
Processor section
Crossover frequencies:
1.6kHz
Power section
Total Power:
250W(RMS); 500W(MUSIC); 1000W(PEAK);
Nominal Impedance (Ohm):
Cooling:
Speed controlled fan
Voltage range:
AC 110V/230V, 50Hz/60Hz
Physical specifications
Cabinet/Case Material:
Polypropylene Cabinet, ABS baffle, metal grille
Handles:
2 x Plastic Handles(1 x Side / 1 x Back)
Grille:
Powder Coated Steel with Grille Cloth
Color:
Black
Size
Dimension (W x D x H):
337 x 290 x 528mm / (13.3 x 11.4 x 20.8in)
Package Dimensions (W x D x H):
400 x 350 x 585mm / (15.7 x 13.8 x 23in)
Weight
Net Weight:
12.6 kg / 27.8 lb
Gross Weight:
15.5 kg / 34.2 lb

VX10a Application

    VX10a Installation

      VX10a Parts

        VX10a Cases

          VX10a Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              VX10aβ3 VX10a Datasheet 1.0VX10a  200KB 2022-05-29 01:57:11
              β3_VX10A_PA_English_Manualβ3_VX10A_PA_English_Manual 1β3_VX10A_PA_English_Manual  3792KB 2022-05-09 15:32:55
              β3_VX10A_PA_Chinese_Manualβ3_VX10A_PA_Chinese_Manual 1β3_VX10A_PA_Chinese_Manual  3802KB 2022-05-09 15:33:33
