TL Line Array Series

TL Line Array Series

The Beta Three® TL line array series is a series of outstanding rental and touring solutions for live entertainments, sports events, speech reinforcement, and other venues where a line array system is desired. The TL series contains various models consisting of active and passive models for horizontal and vertical deployment complemented by reliable flying equipment. Selected models are also available in the weatherproof version, making them ideally suited for any outdoor application requiring a line array system with state-of-the-art sound performance and optimal scalability.

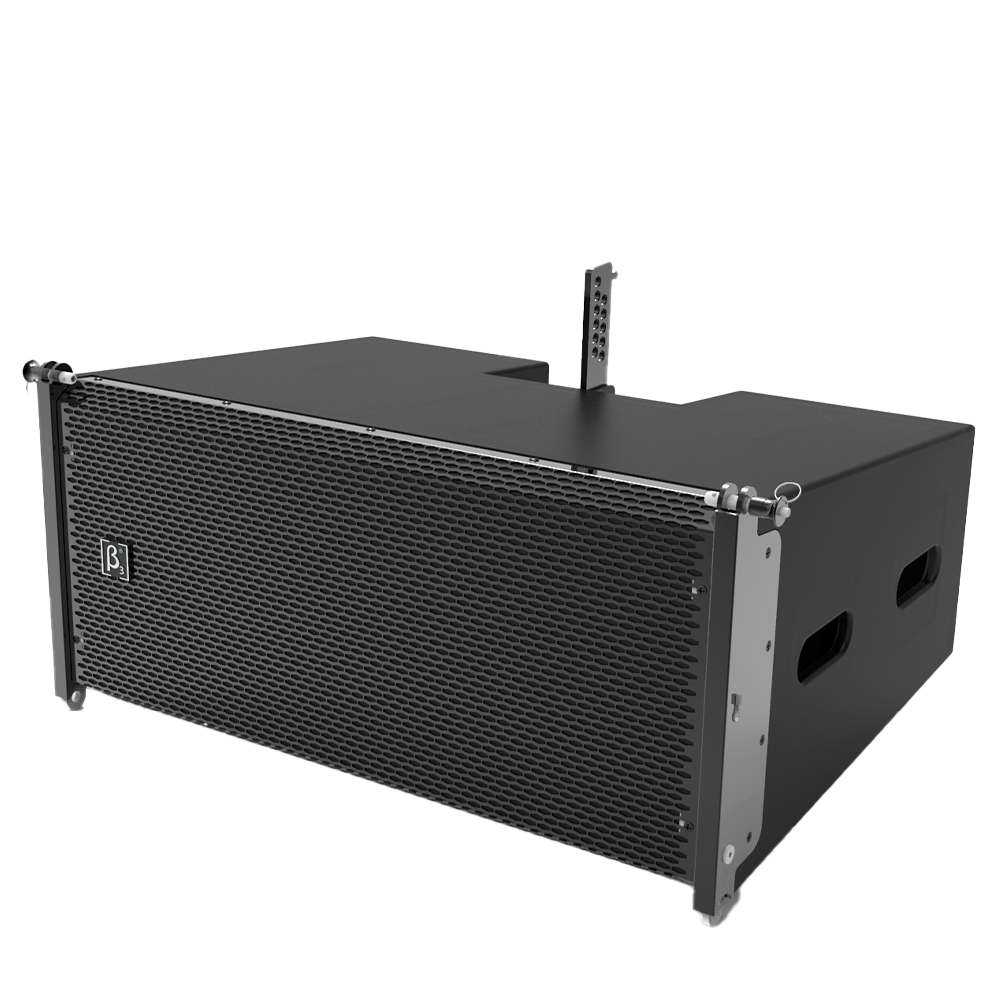

TL212B Dual 12" Subwoofer Line Array Speaker

TL212B

Dual 12" Subwoofer Line Array Speaker

The Beta Three® TL212B is a compact subwoofer specially designed for touring applications that require powerful bass and extended low frequency response. It comes with 2 x 12" high-efficiency drivers and delivers up to 3200W peak power output. Along with the TL210 full-frequency speakers, the entire line array system is perfectly suited for applications such as concert halls, Houses of Worships, stadiums, auditoriums, and other applications requiring superior sound and speech intelligibility.


Features

  • 2 x 12" high power woofers
  • High quality birch plywood
  • High SPL output and sensitivity
  • 3200W peak power output
  • Perfect line array solution arrayed with TL210 full-frequency speakers
  • Multiple installations ranging from ground-stacked, suspended, or mounted

Specifications

Acoustical specifications
Frequency Response(-3db):
50Hz-1.5kHz
Max SPL @ 1m:
127dB/133dB(PEAK)
Transducers
Woofer:
2 x 12" LF
Input/Output section
Input Connectors:
2 x NL4
Power section
Total Power:
800W(RMS); 1600W(MUSIC); 3200W(PEAK);
Nominal Impedance (Ohm):
Physical specifications
Cabinet/Case Material:
18mm Plywood
Handles:
4 x Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size
Dimension (W x D x H):
800 x 590 x 395mm / (31.5 x 23.2 x 15.6in)
Package Dimensions (W x D x H):
715 x 515 x 945mm / (28.1 x 20.3 x 37.2in)
Weight
Net Weight:
41.5 kg / 91.5 lb
Gross Weight:
45.5 kg / 100.3 lb

TL212B Application

    TL212B Installation

      TL212B Parts

        TL212B Cases

          TL212B Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              TL212Bβ3 TL212B Datasheet 1.0TL212B  200KB 2024-03-28 21:41:31
              β3_TL212B_PA_Chinese_Manualβ3_TL212B_PA_Chinese_Manual 1β3_TL212B_PA_Chinese_Manual  1748KB 2020-06-10 16:47:27
