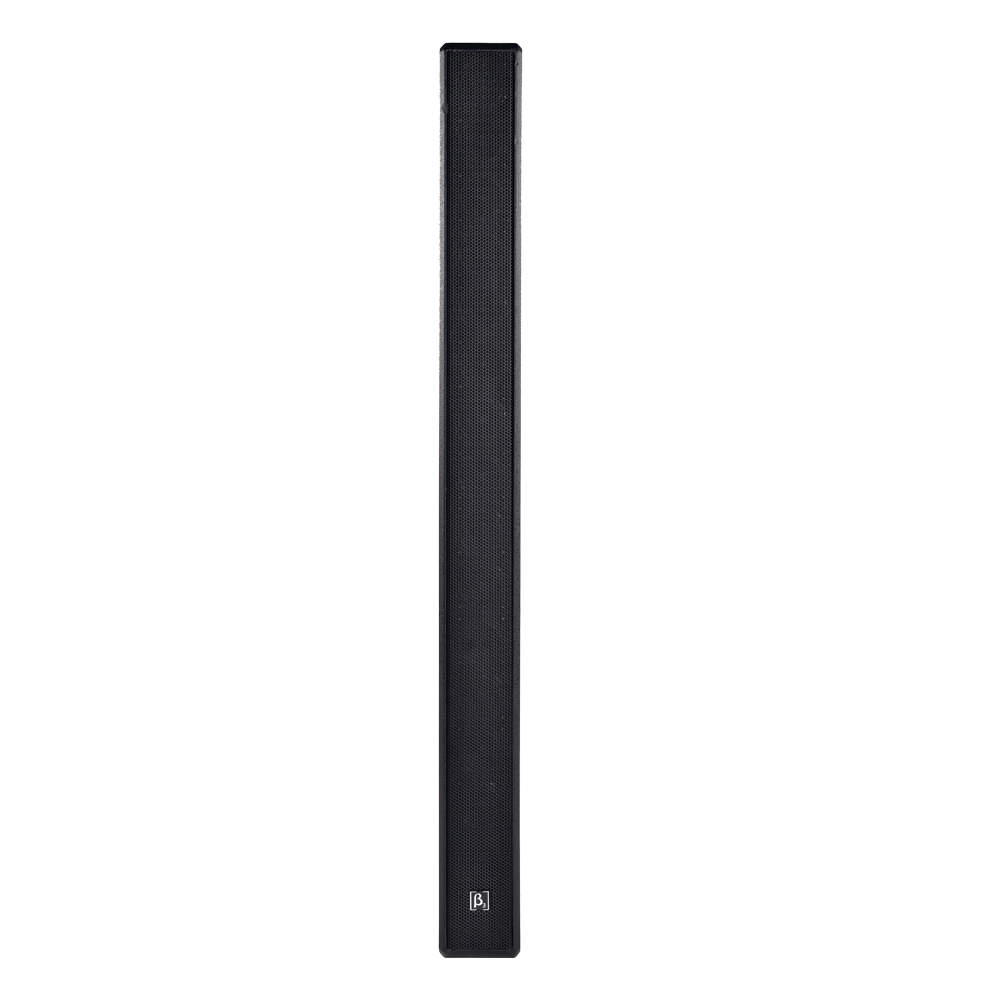

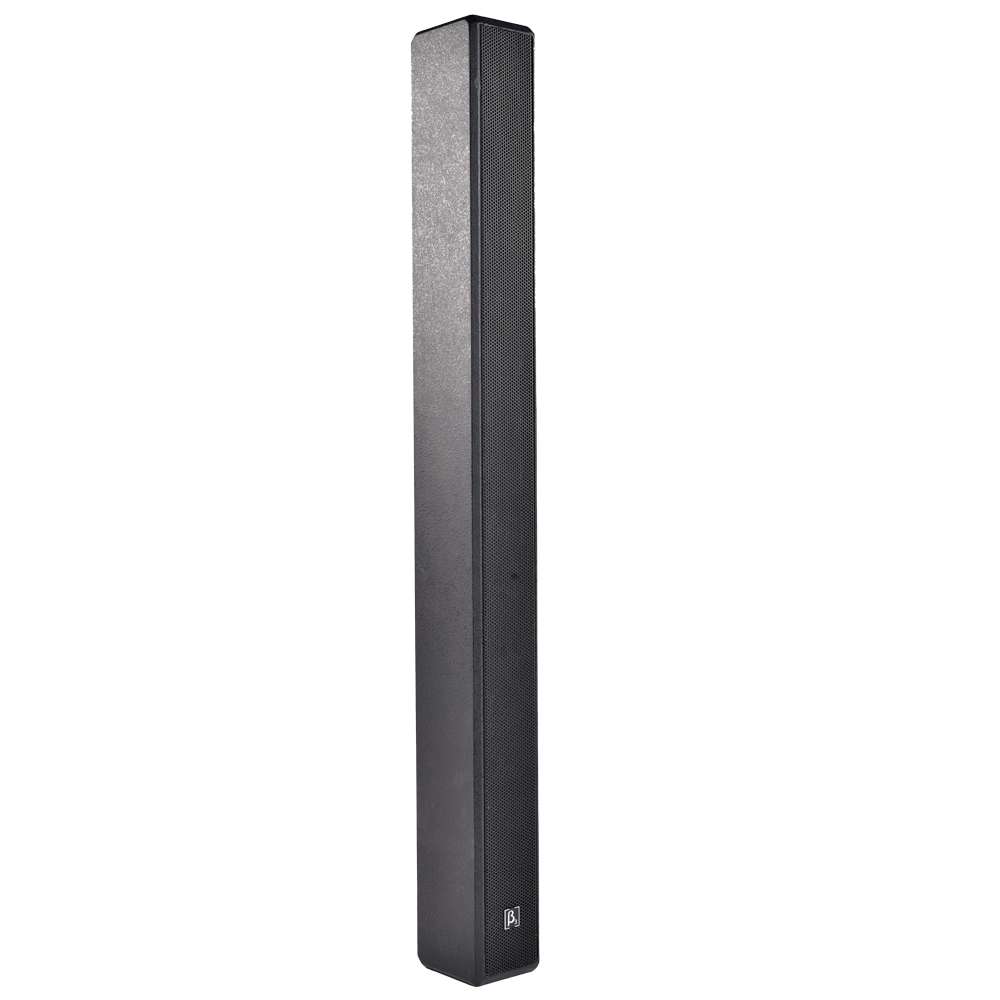

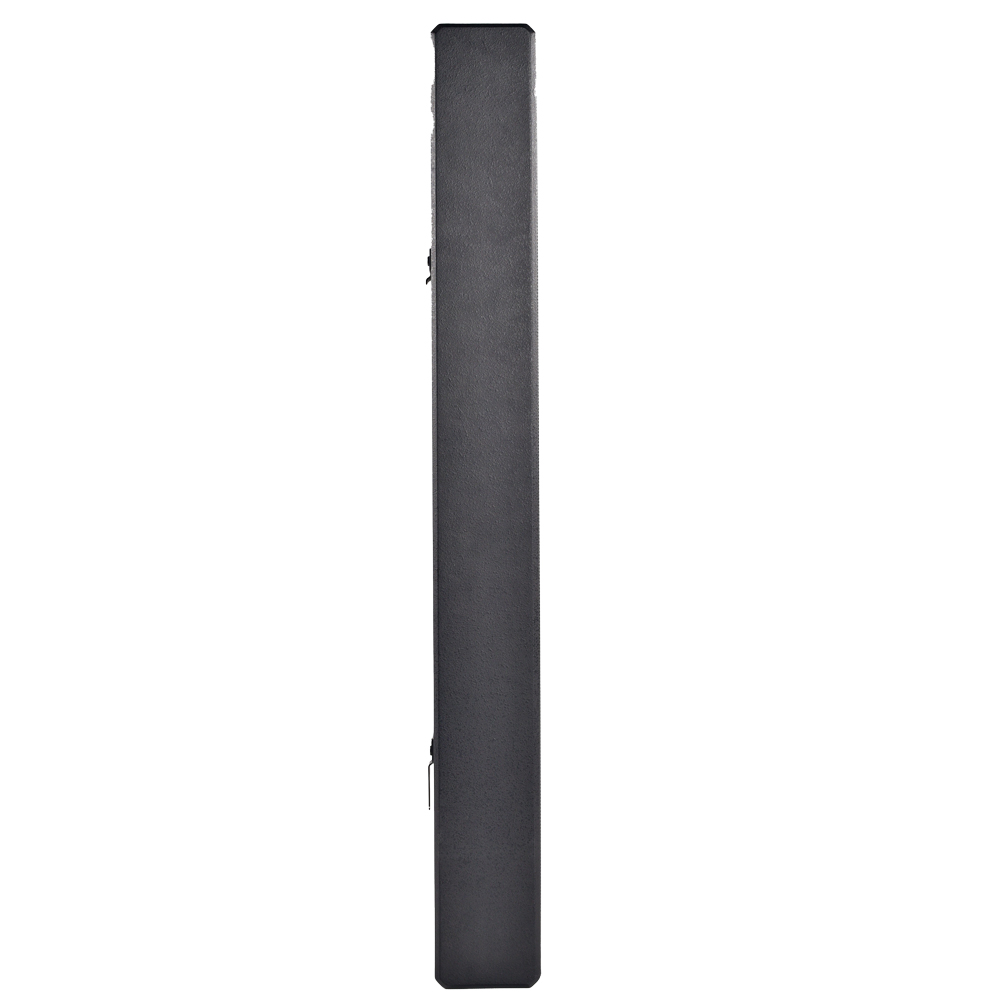

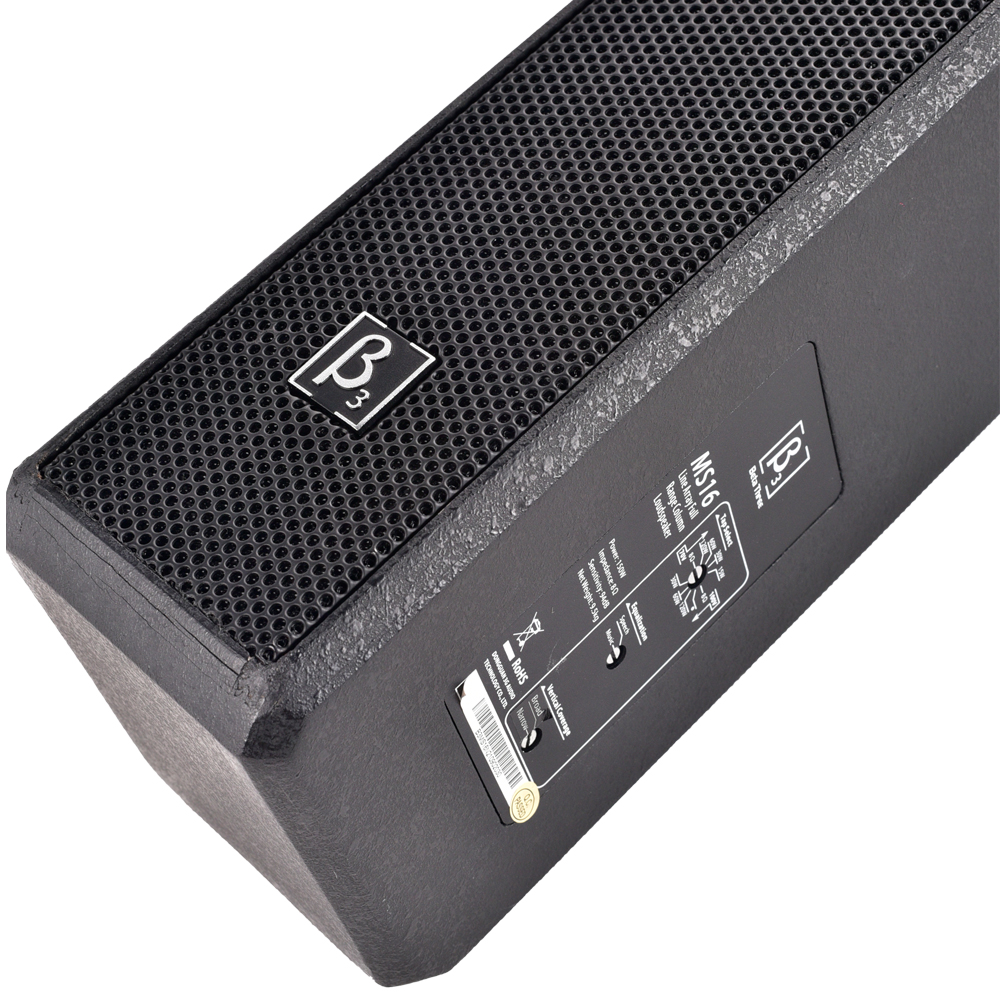

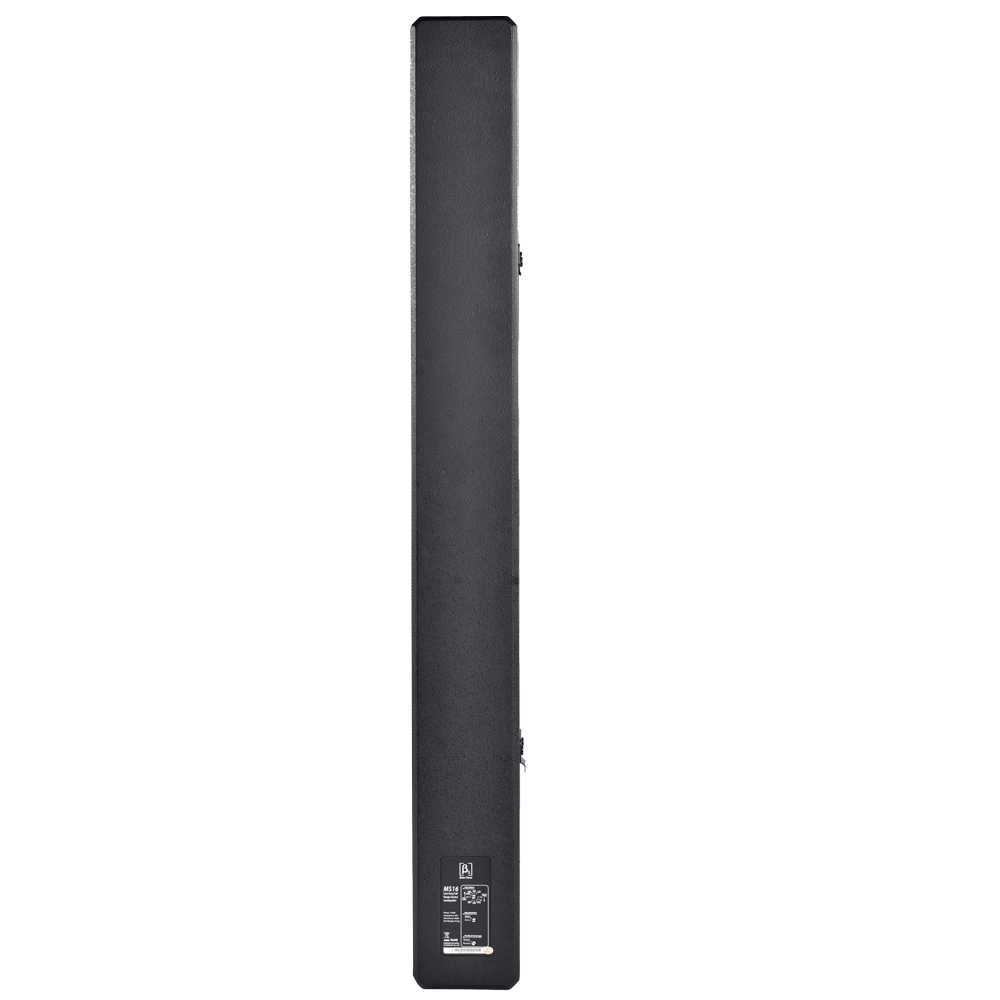

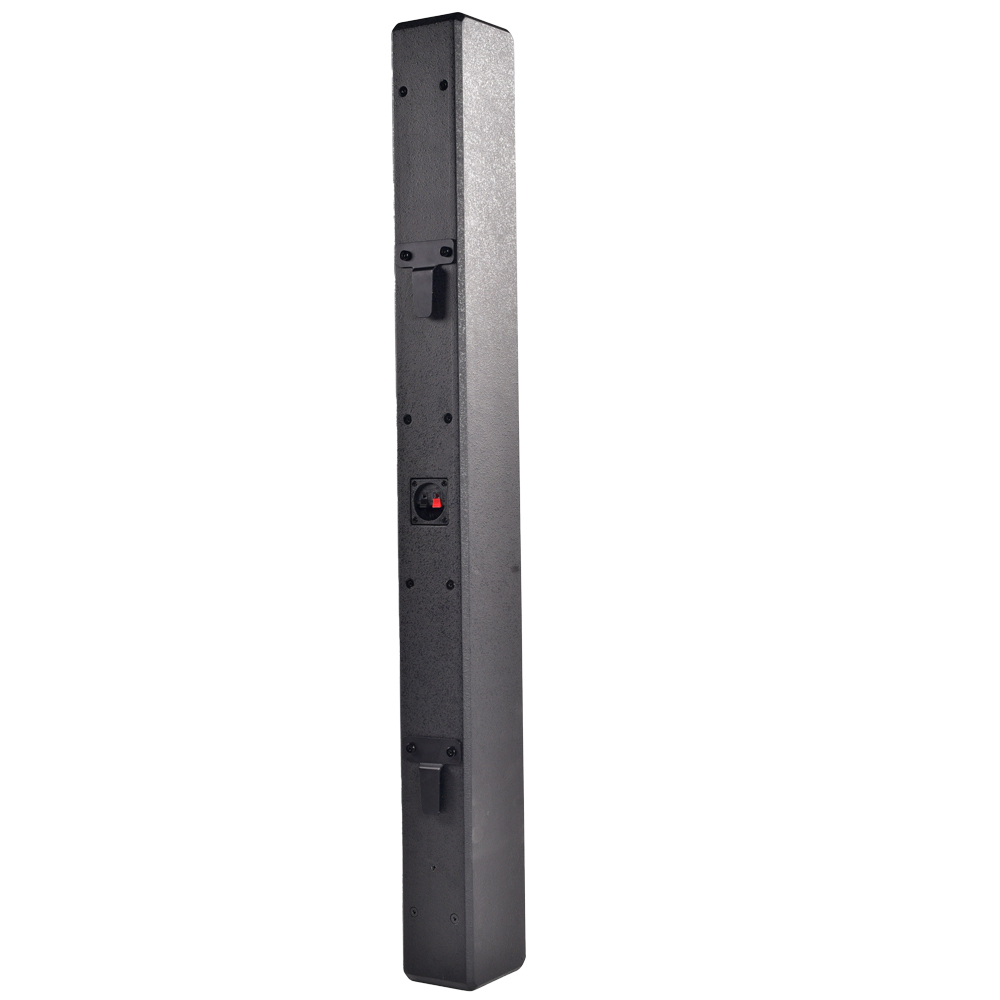

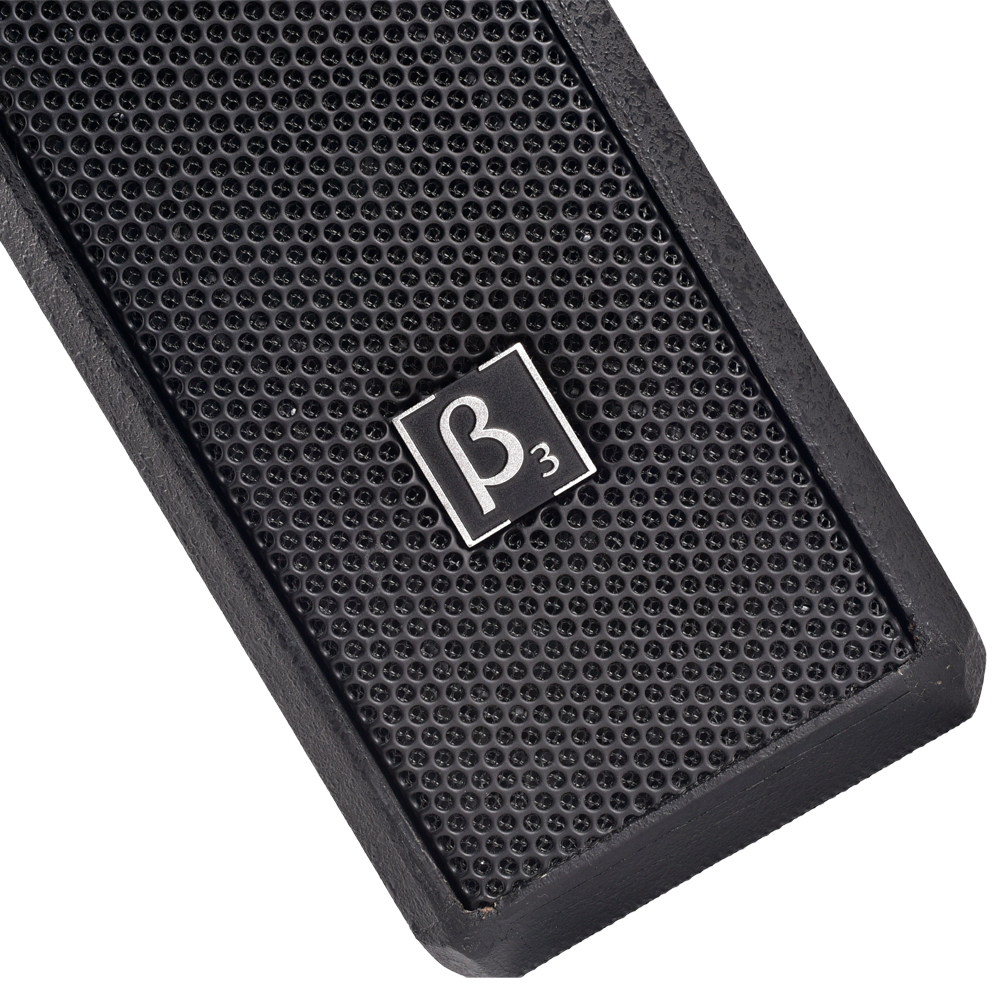

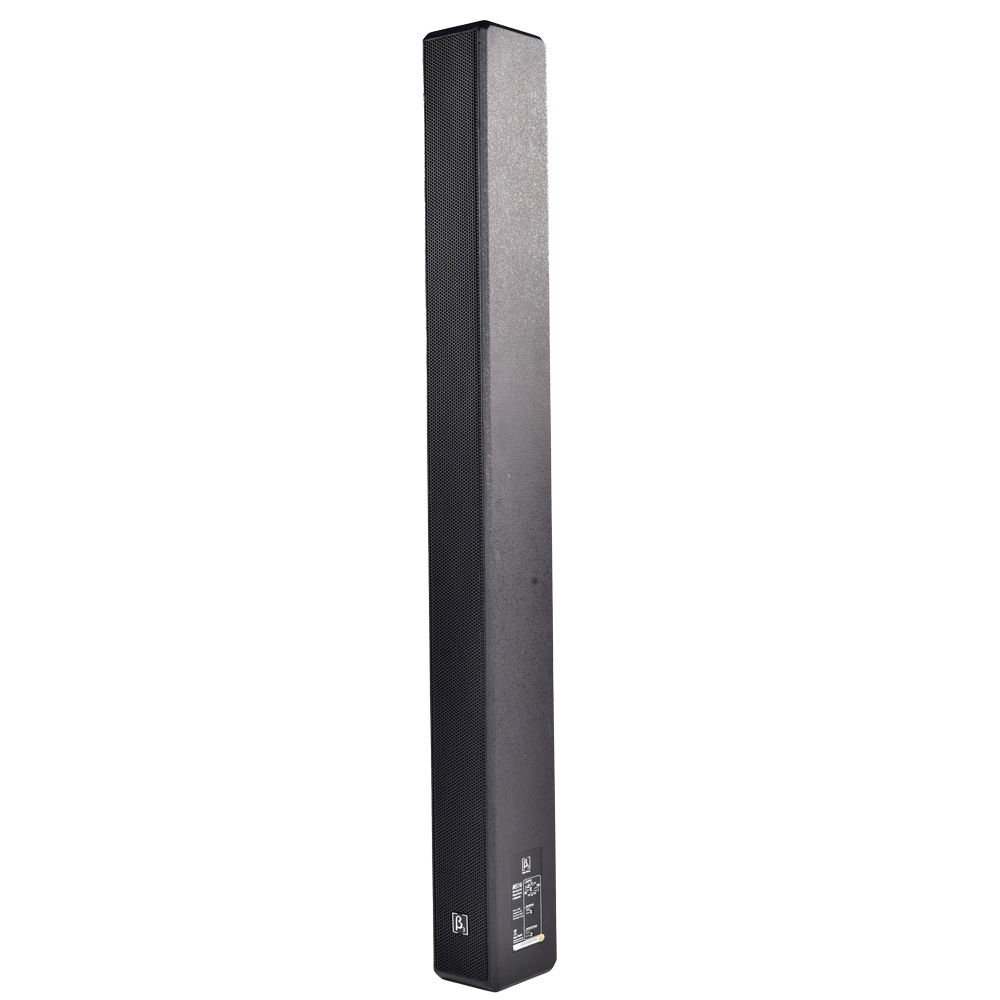

MS16

Two Way Full Range Column Speaker

MS16 is a compact and elegant passive column speaker designed and manufactured to provide outstanding projection as well as uniform coverage and sound quality. Composed of 16 x 2.75" full-range drivers, MS16 adopts a symmetrical design in its driver placements to provide more control in the speaker's vertical coverage. Utilizing an unique joinery that eliminates the use of screws in the construction of the enclosure, MS16 offers a stylish appearance while keeping its low-profile.


Features

  • High quality birch plywood cabinet

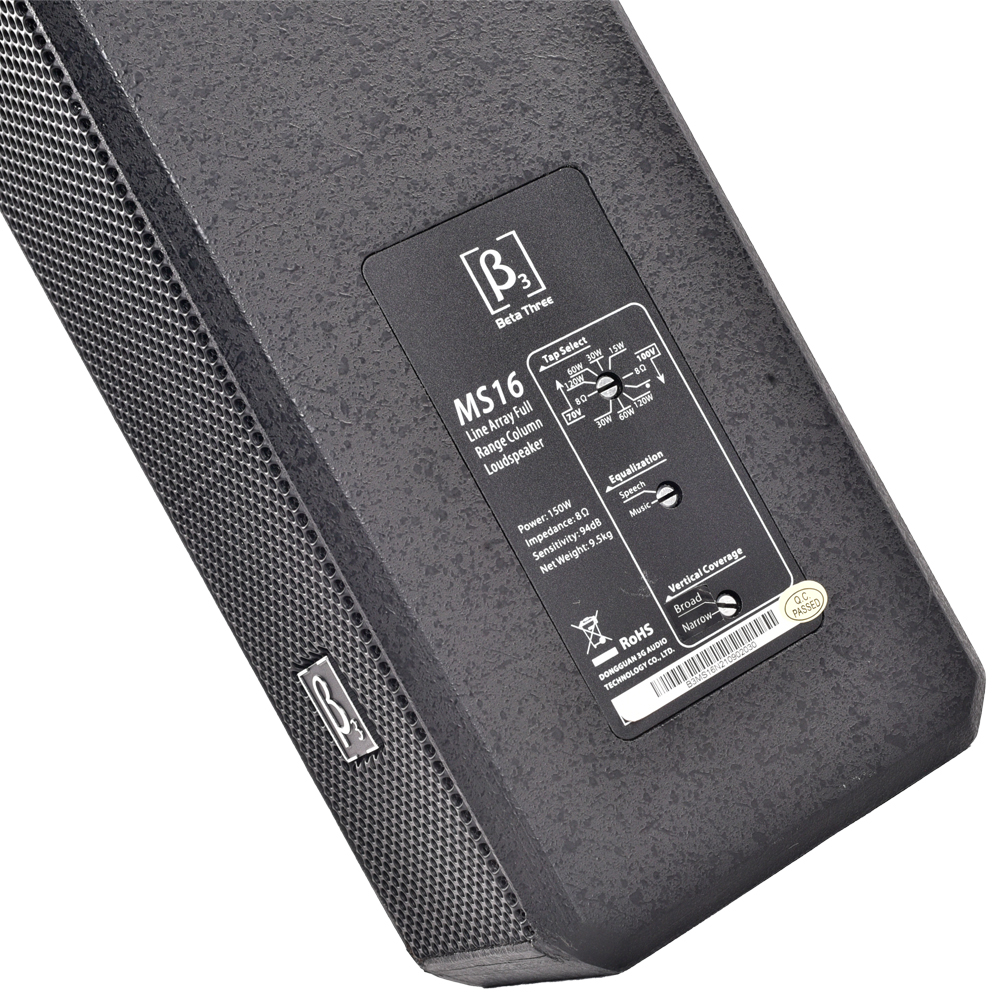

  • Built-in 70V/100V transformer, together with 8Ω direct capability

  • Speech/Music mode available

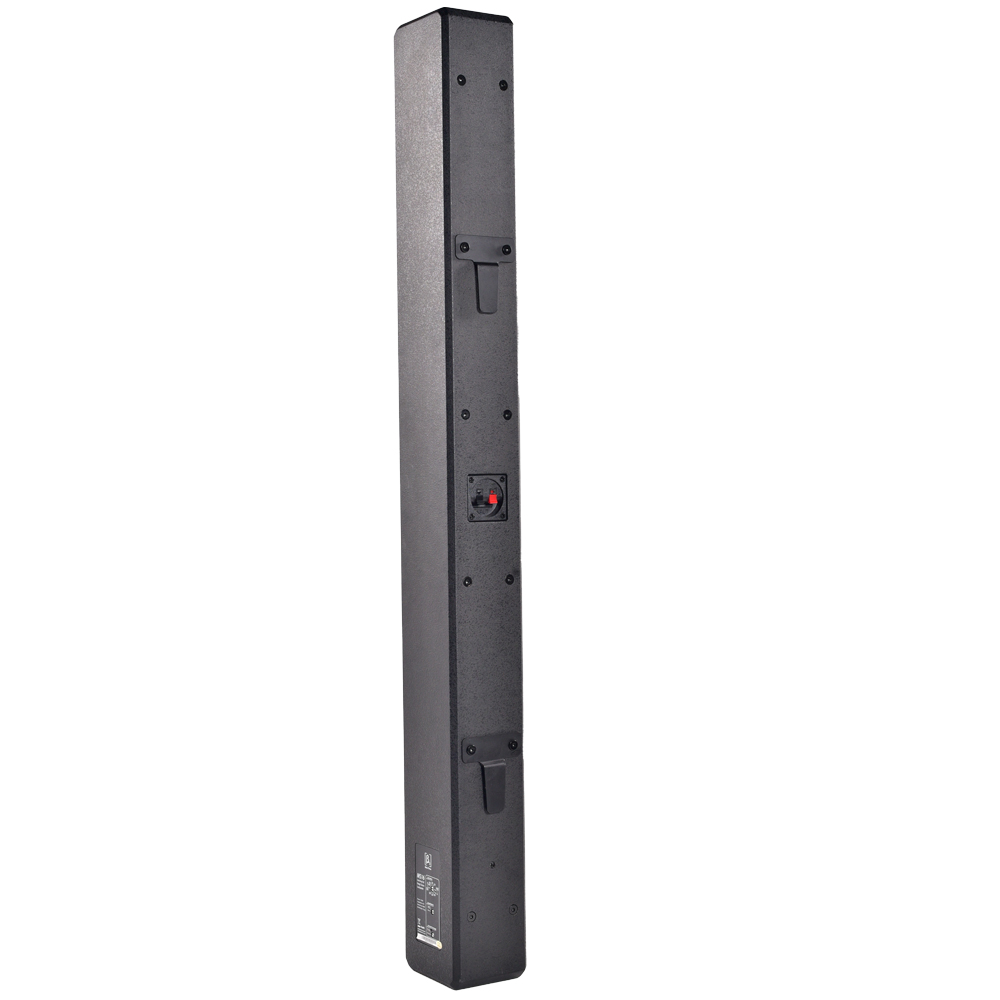

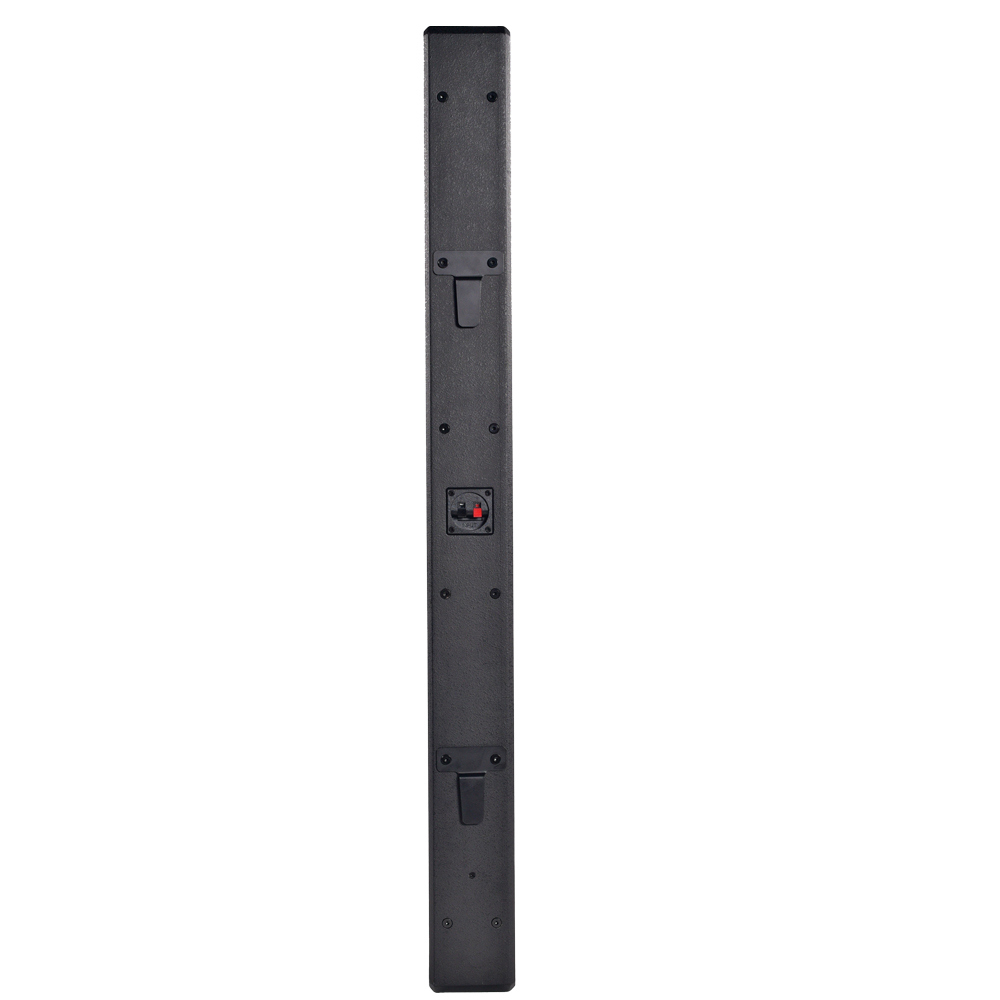

  • Multiple mounting available
  • Suited for multifunctional halls, schools, places of worship, auditoriums, conference rooms, and other performance venues
  • Available in black/white

Specifications

Acoustical specifications
Frequency Response(-3db):
150 Hz - 20 KHz
Max SPL @ 1m:
120dB
Dispersion (H x V):
160° x 45°
Transducers
Transducer Driver:
16 x 2.75" Full Range Speaker
Input/Output section
Sensitivity (1W @ 1m):
94dB
Power section
Total Power:
120W
Nominal Impedance (Ohm):
8 Ω
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
104 x 130 x 1160mm / (4.1 x 5.1 x 45.7in)
Package Dimensions (W x D x H):
145 x 170 x 1260mm / (5.7 x 6.7 x 49.6in)
Weight
Net Weight:
9.5 kg / 20.9 lb
Gross Weight:
10.5 kg / 23.1 lb

MS16 Application

    MS16 Installation

      MS16 Parts

        MS16 Cases

          MS16 Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              β3_MS16_PA_Chinese_Manualβ3_MS16_PA_Chinese_Manual 1β3_MS16_PA_Chinese_Manual  1453KB 2020-06-10 16:55:40
