MS8

Two Way Full Range Column Speaker

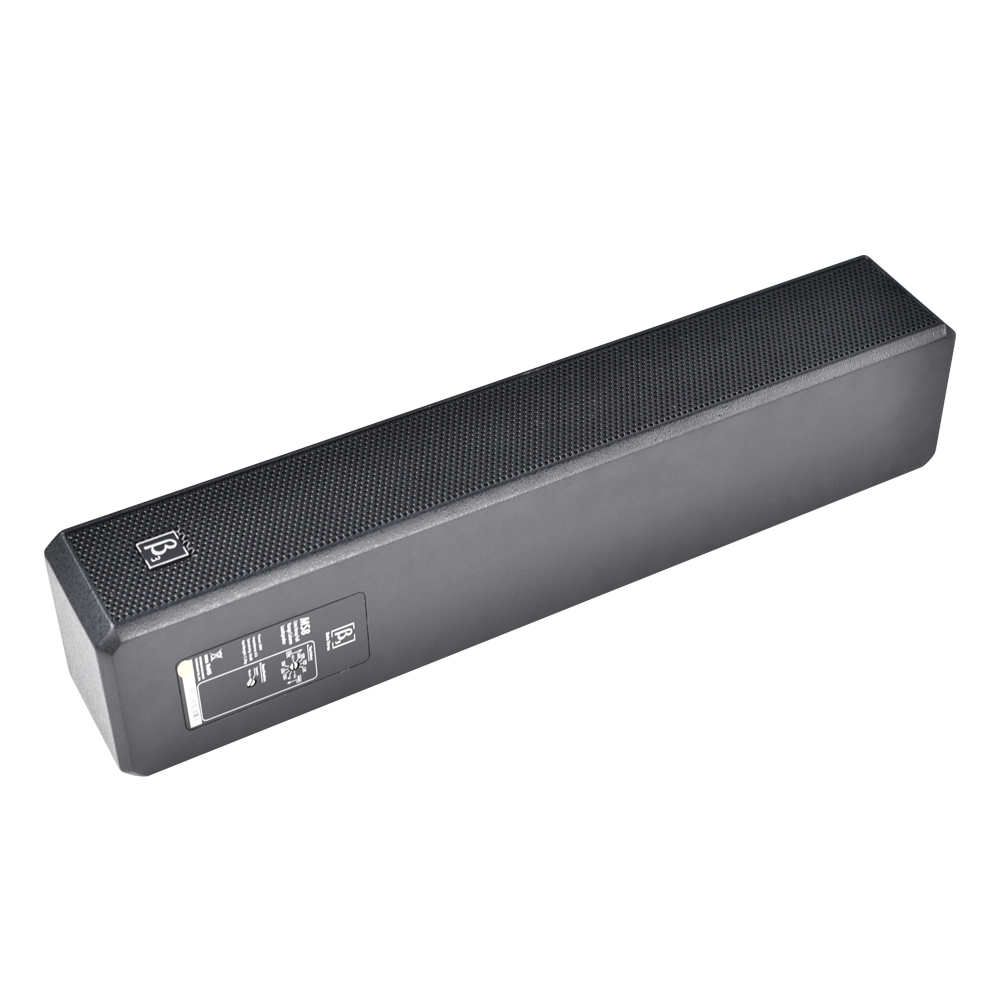

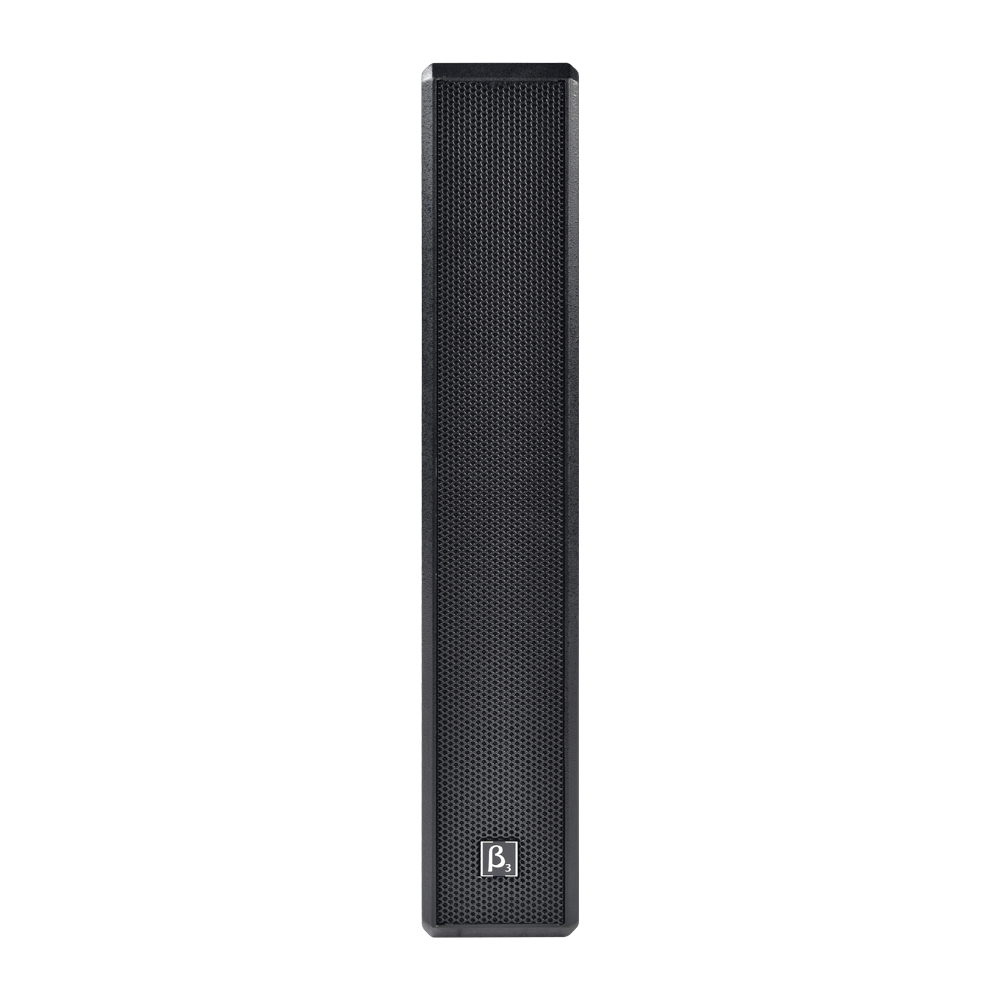

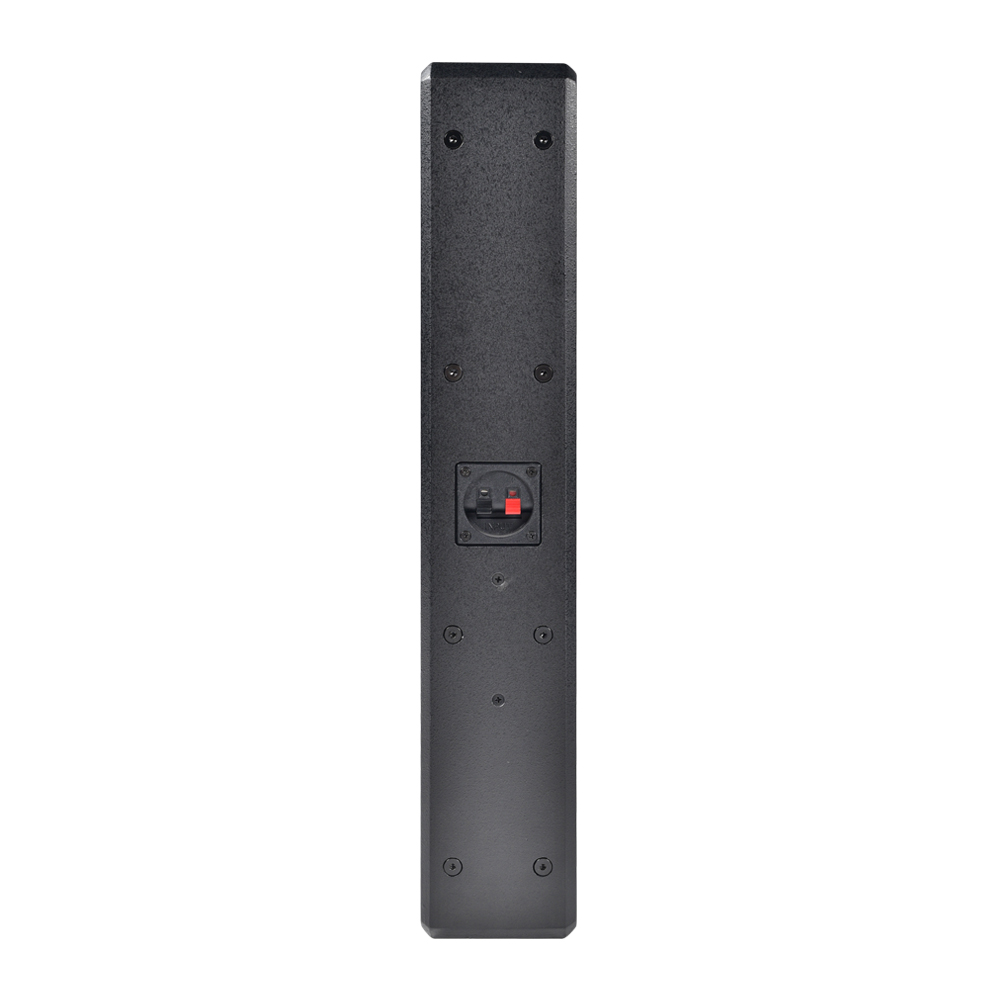

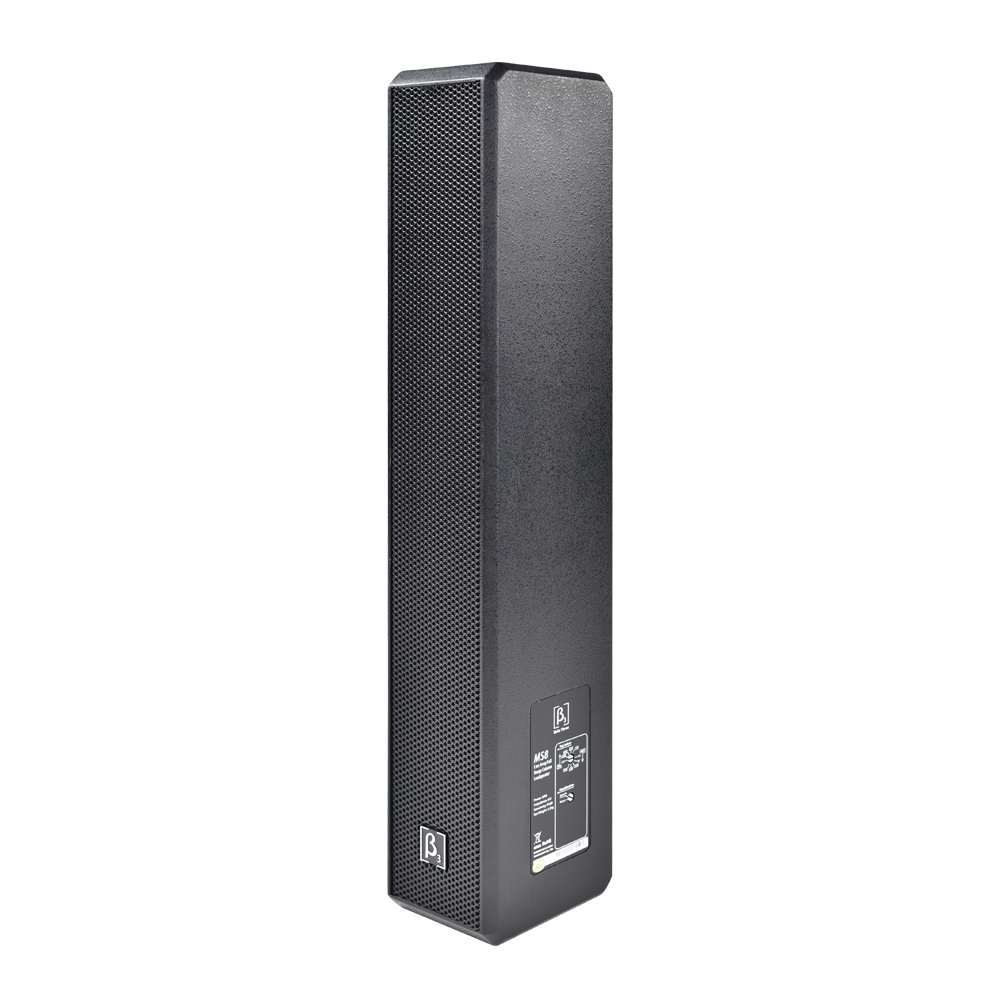

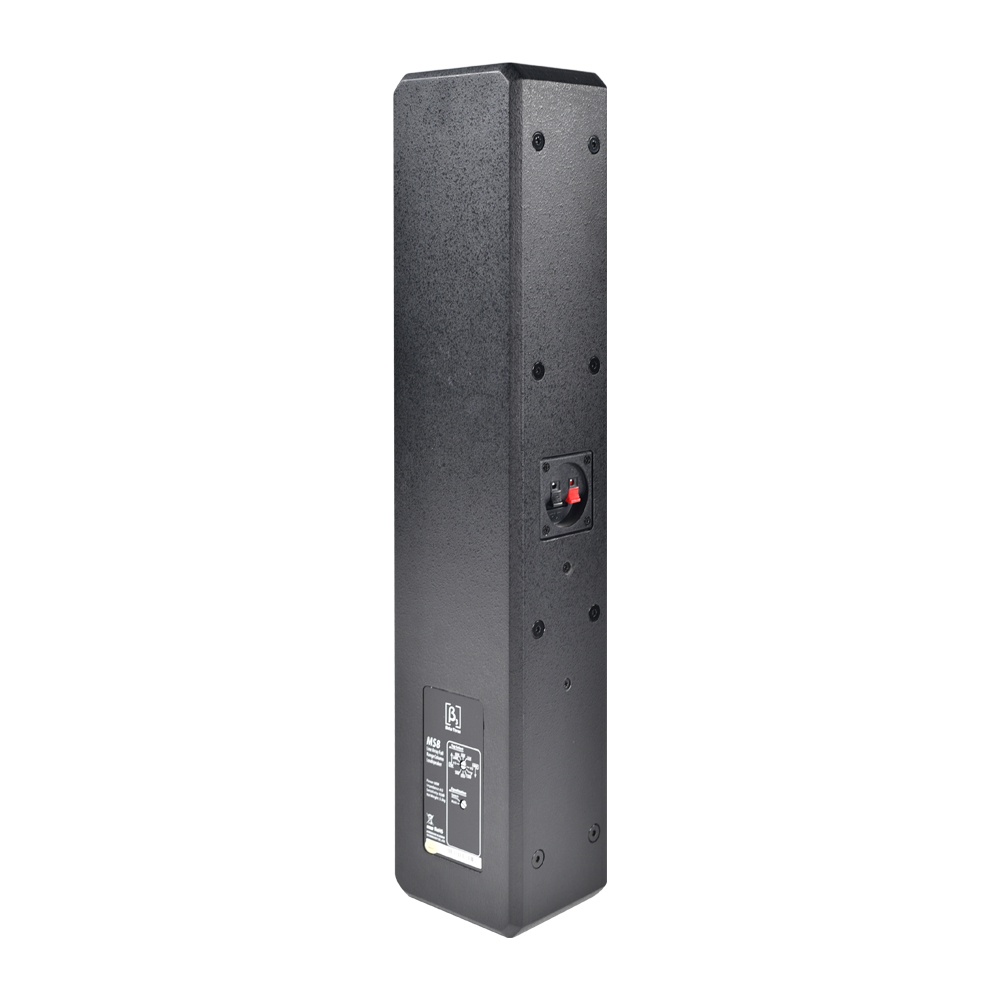

MS8 is a compact and elegant passive column speaker designed and manufactured to provide outstanding projection as well as uniform coverage and sound quality. Composed of 8 x 2.75" full-range drivers, MS8 adopts a symmetrical design in its driver placements to provide more control in the speaker's vertical coverage. Utilizing an unique joinery that eliminates the use of screws in the construction of the enclosure, MS8 offers a stylish appearance while keeping its low-profile.


Features

  • High quality birch plywood cabinet
  • Built-in 70V/100V transformer, together with 6Ω direct capability

  • Speech/Music mode available

  • Multiple mounting available
  • Suited for multifunctional halls, schools, places of worship, auditoriums, conference rooms, and other performance venues
  • Available in black/white


Specifications

Acoustical specifications
Frequency Response(-3db):
200Hz-20kHz
Max SPL @ 1m:
119dB,music116dB
Dispersion (H x V):
160° x 45°
Transducers
Transducer Driver:
8 x 2.75" Full Range Speaker
Input/Output section
Sensitivity (1W @ 1m):
90dB
Power section
Total Power:
60W
Nominal Impedance (Ohm):
6 Ω
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
104 x 130 x 610mm / (4.1 x 5.1 x 24in)
Package Dimensions (W x D x H):
145 x 170 x 650mm / (5.7 x 6.7 x 25.6in)
Weight
Net Weight:
5.1 kg / 11.2 lb
Gross Weight:
5.75 kg / 12.7 lb

MS8 Application

    MS8 Installation

      MS8 Parts

        MS8 Cases

          MS8 Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              β3_MS8_PA_Chinese_Manualβ3_MS8_PA_Chinese_Manual 1β3_MS8_PA_Chinese_Manual  1459KB 2020-06-10 16:59:15
