db24100 - Remote directional matrix audio engine system

db24100

Remote directional matrix audio engine system

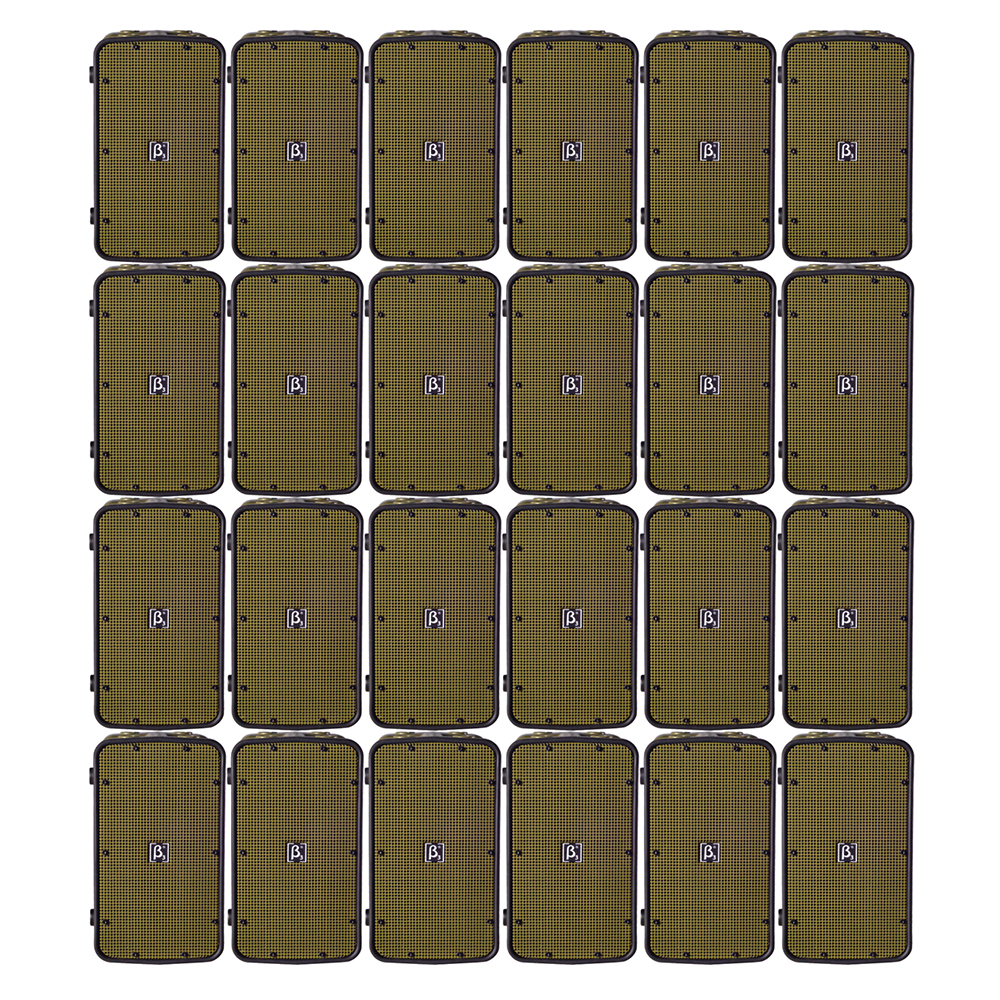

db24100 consists of 24pcs db100II,one db100C II controller and 4 channel power supply which can achieve the function of new concept in ultra long-throw high SPL sound wall.As a high-tech police device,the operator could speak to the device and ask targets for cooperation on-site, the device can be aimed at the target if they does not respond properly,concentrate high decibel warning voice to enforce target to cooperate for the action. the significant message, instruction and warning could be clearly delivered to 5km away because of its concentrated direction and high power output,Also instructions and warnings can reach a peak of 130db at 100 meters to enforce target for cooperation .


Features

  • With function of waterproof,dustproof (IP45),drop resistance Equipped Mp3 player and wireless microphone(optional), can play the content at any time you need

  • Enable 5000 meters transmission of important information,instructions and warnings

  • Application for using in crowd control or evacuation, warnning and disperse,military exercises, prevention emergency evacuation,remote warning guidance, entrance control and illegal immigrant

Specifications

Acoustical specifications
Frequency Response(-3db):
200Hz-5kHz(-15db)
Max SPL @ 1m:
130dB (PEAK,100m)
Dispersion (H x V):
40° x 40°
Transducers
Input/Output section
Power section
Cooling:
natural
Physical specifications
Size
Dimension (W x D x H):
1362 x 380.5 x 1588mm / (53.6 x 15 x 62.5in)
Weight
