db2700 - Remote Audio Engine System
db2700 - Remote Audio Engine System

db2700

Remote Audio Engine System

Long throw speaker is a new type of strong sound and non-lethal equipment which has the advantages of high reliability, stable performance, accurate direction and easy operation. The system comes with MP3 player, signal source access, anti-howling high sensitivity microphone and many other input sources. It is easy to move and could be installed quickly.


Features

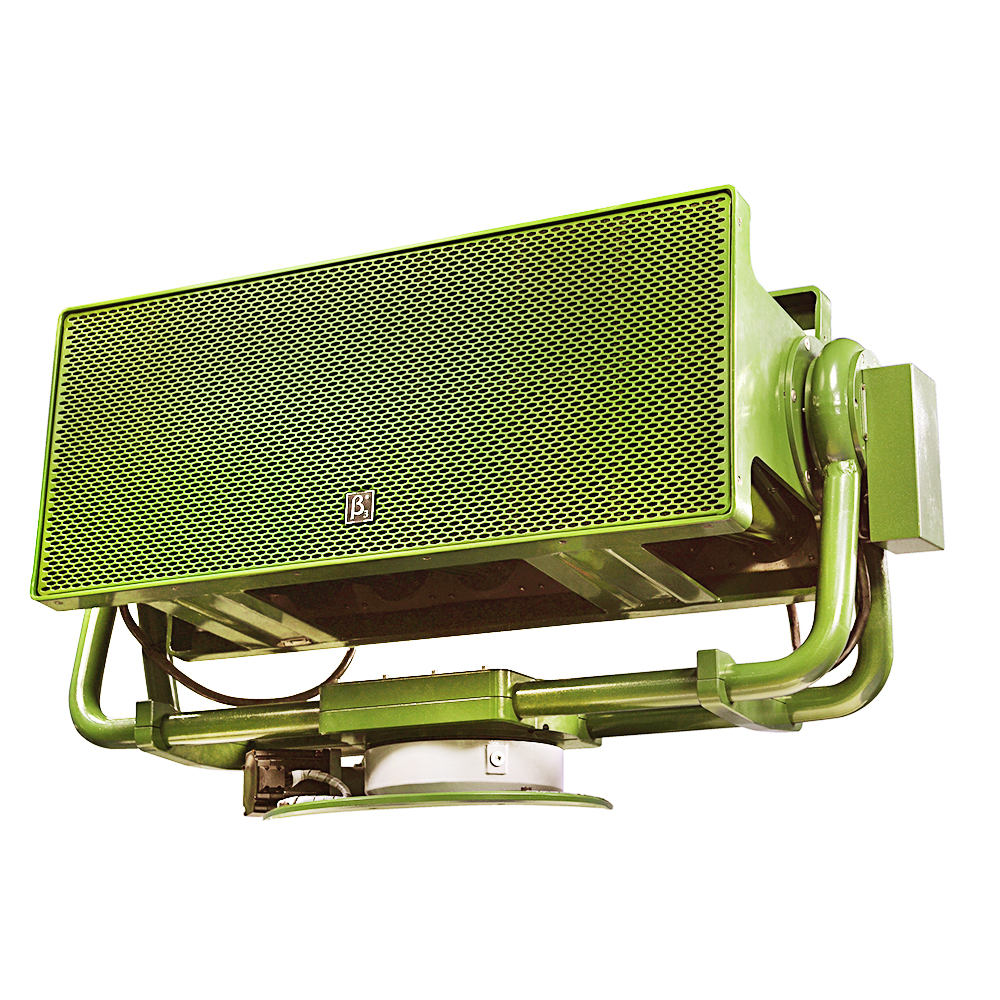

  • dB2700 long throw system consists of 5 parts: long throw speaker, control system, digital audio power amplifier, rotating clouds terrace and power manager.

  • dB2700 system can send a strong sound orientation in large area. suitable for short distance (in 100m) dispersion, deterrence,

  • stability, long distance sound reinforcement, broadcasting, voice warning(3~5 kilometers).

  • The rotating clouds terrace can make precise directional adjustment of the long throw speaker: horizontal +/-90º, vertical -15 ºo to +30 º.

  • The sensitivity of the long throw speaker is 116dB, currently as one of the highest acoustic performance of similar products in domestic market, won a number of national patents.

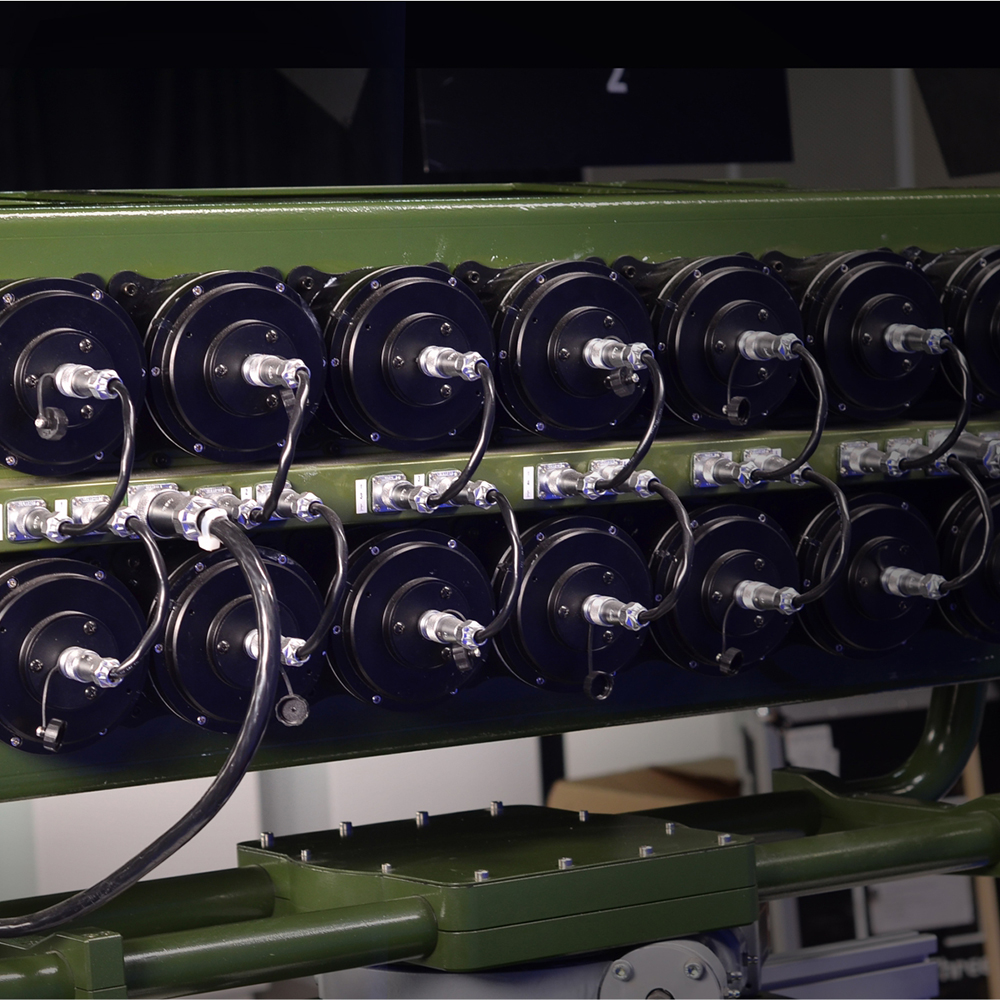

  • The Long throw speaker consists of 14 compression drivers with die-casting horn, with the advantages of high SPL, long throw directive send strong sound and close range plane wave propagation and long distance sector wave propagation

Specifications

Acoustical specifications
Frequency Response(-3db):
300Hz-5kHz(-15dB)
Max SPL @ 1m:
118dB(PEAK,100m)
Dispersion (H x V):
50° x 15°
Transducers
Input/Output section
Power section
Total Power:
80W
Nominal Impedance (Ohm):
Voltage range:
AC 210V/230V, 50Hz/60Hz
Physical specifications
Size
Dimension (W x D x H):
1300 x 750 x 650mm / (51.2 x 29.5 x 25.6in)
Weight
Net Weight:
163 kg / 359.4 lb
