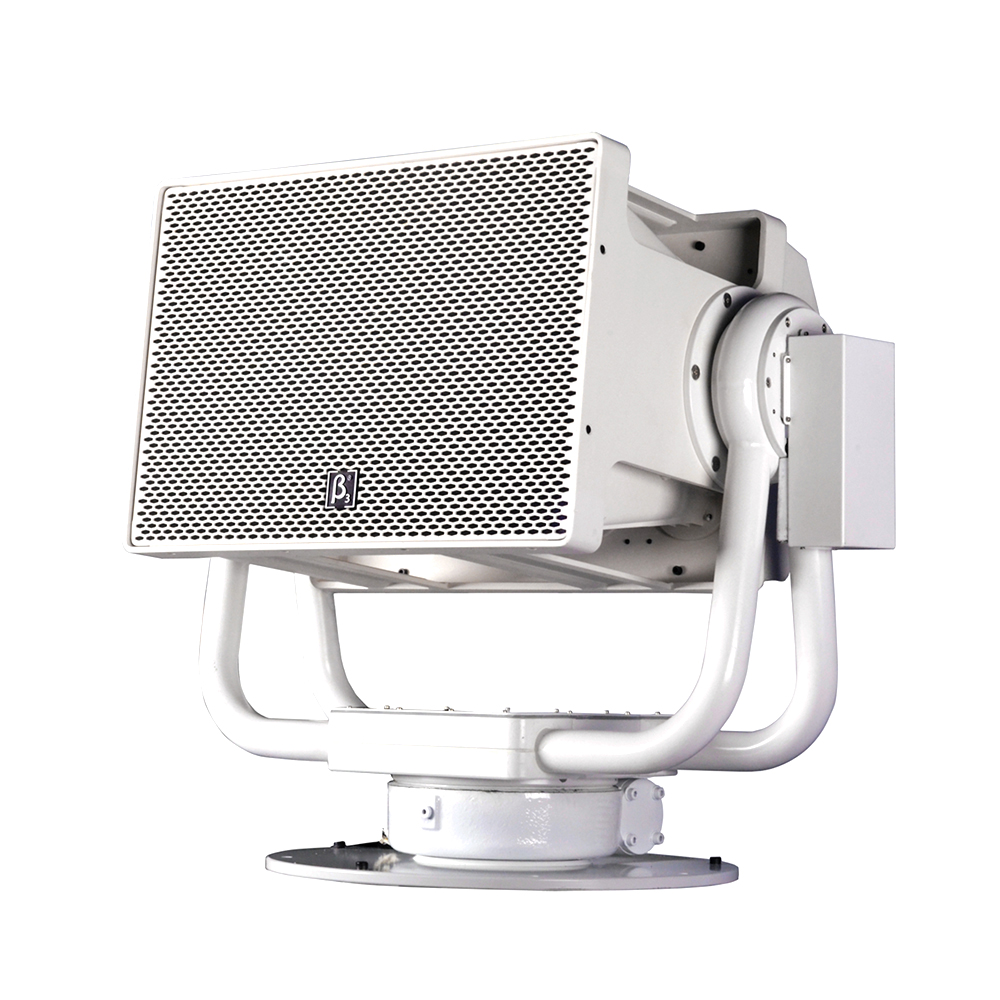

db2400 - Remote Audio Engine System


Remote Audio Engine System

As a new non-lethal sound equipment , characterized by high reliability, stable performance, precise directivity, easy operation, system comes with an MP3 player, signal source connected, and anti-howling high sensitivity microphone input source, portable, for quick installation


  • db2400 consists of db100 active speaker,one db100C controller and DA2400 digital signal amplifier, rotating clouds terrace, Power supply manager

  • db2400 can send a strong sound orientation in large area. suitable for short distance (in 100m) dispersion, deterrence, stability, long distance sound reinforcement, broadcasting, voice warning(3~5 kilometers).

  • The rotating clouds terrace can make precise directional adjustment of the long throw speaker: horizontal +/-90º, vertical -15 ºo to +30 º

  • db2400 sensitivity more than 116dB, currently as one of the highest acoustic performance of similar products in domestic market, won a number of national patents,

  • db2400 consists of 8 compression drivers with die-casting horn, with the advantages of high SPL, long throw directive send strong sound and close range plane wave propagation and long distance sector wave propagation


Acoustical specifications
Frequency Response(-3db):
Max SPL @ 1m:
Dispersion (H x V):
50° x 40°
Input/Output section
Power section
Total Power:
80W(RMS); 160W(MUSIC); 320W(PEAK);
Nominal Impedance (Ohm):
Voltage range:
AC 210V/230V, 50Hz/60Hz
Physical specifications
Dimension (W x D x H):
900 x 550 x 68mm / (35.4 x 21.7 x 2.7in)
Net Weight:
130 kg / 286.6 lb

db2400 Application

    db2400 Installation

      db2400 Parts

        db2400 Cases

          db2400 Collocation



              db2400β3 db2400 Datasheet 1.0db2400  200KB 2022-05-21 23:23:31
