The Beta Three® line array series is a series of outstanding rental and touring solutions for live entertainments, sports events, speech reinforcement, and other venues where a line array system is desired. The line array series contains various models consisting of active and passive models for horizontal and vertical deployment complemented by reliable flying equipment. Selected models are also available in the weatherproof version, making them ideally suited for any outdoor application requiring a line array system with state-of-the-art sound performance and optimal scalability.

TLB-101 - Dual 12" Subwoofer
TLB-101 - Dual 12" Subwoofer
TLB-101 - Dual 12" Subwoofer

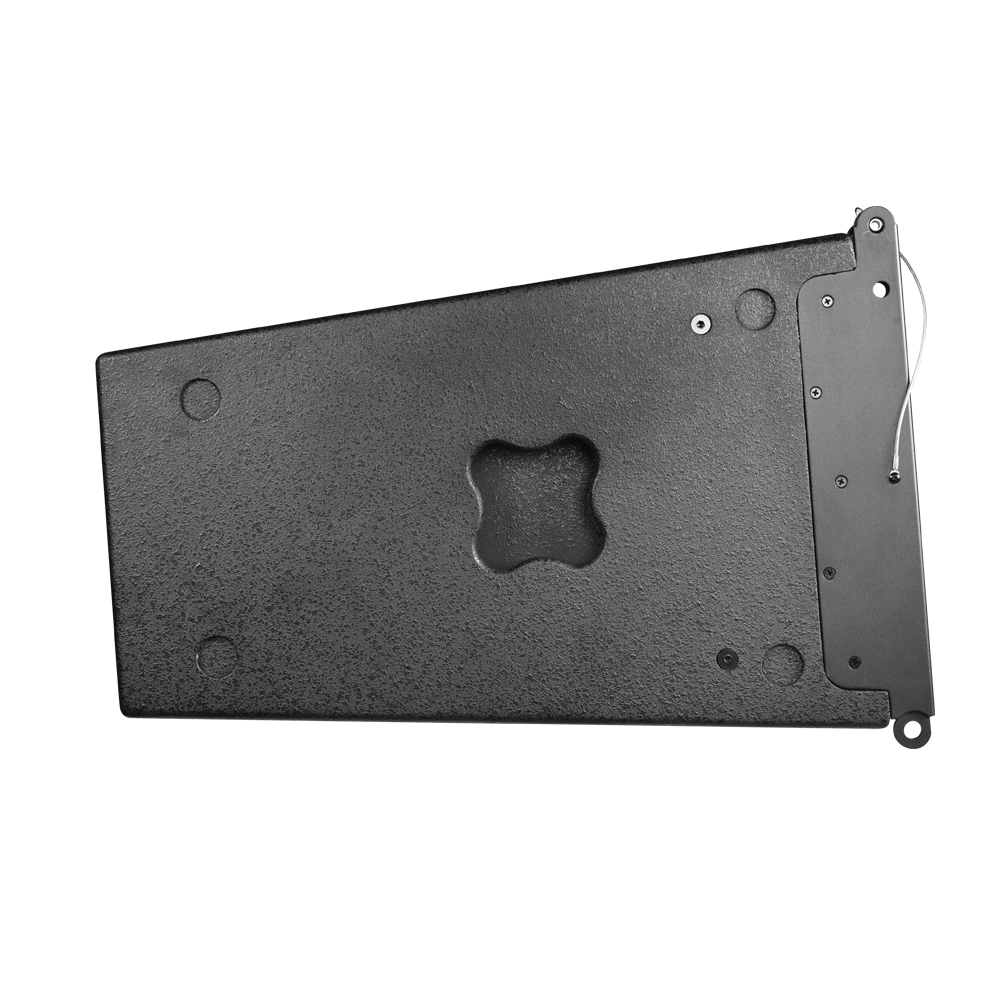

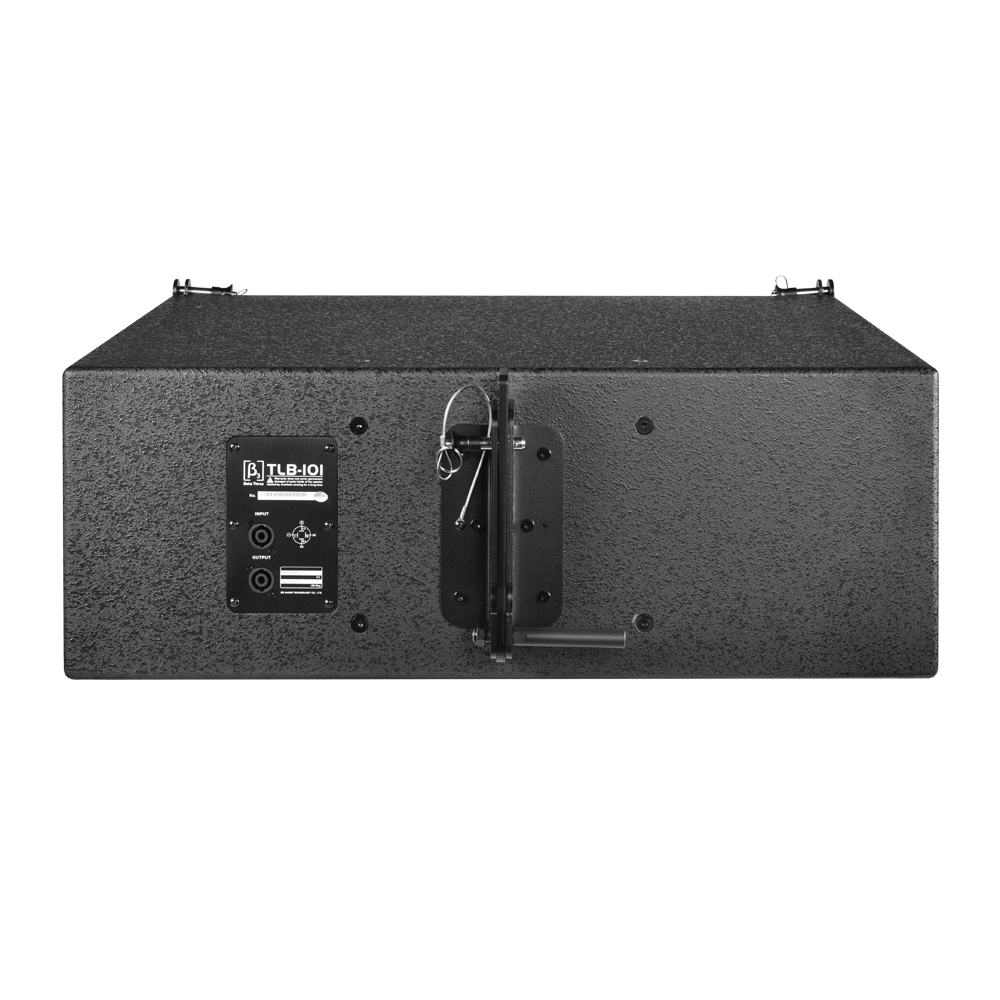

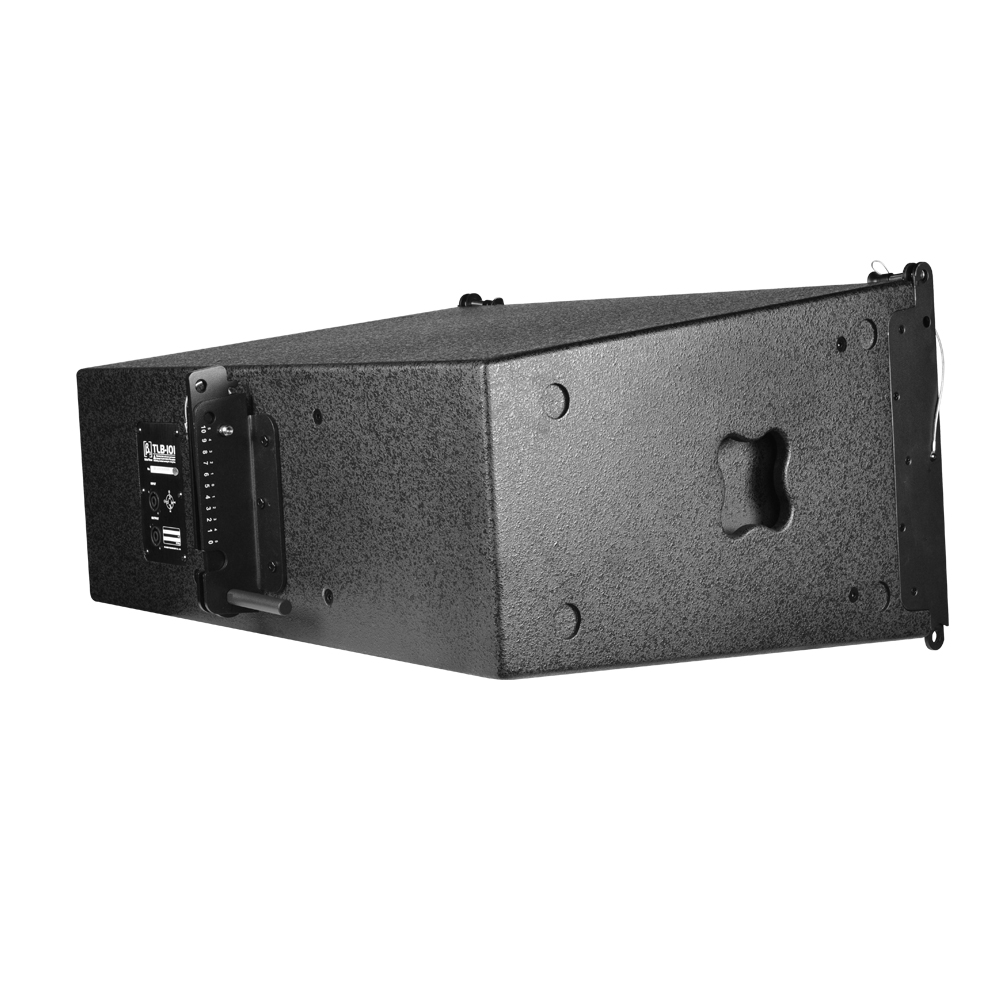

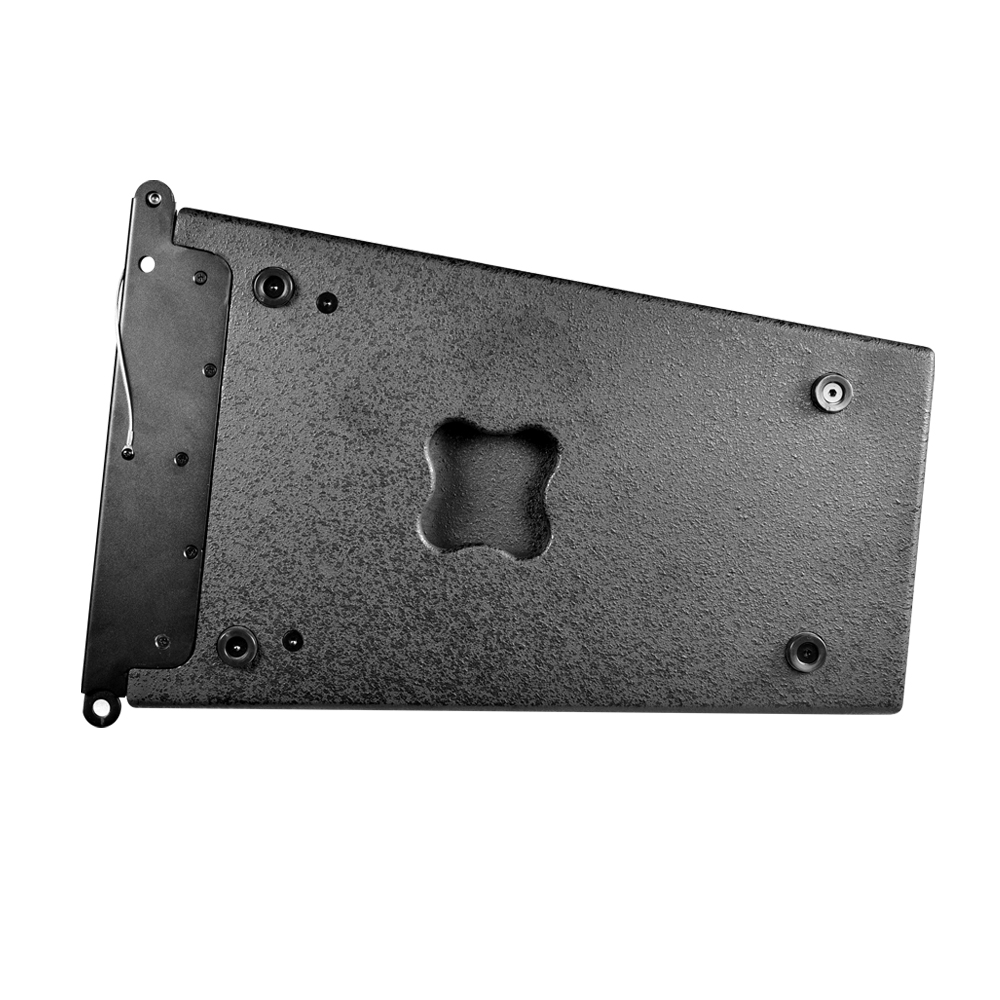

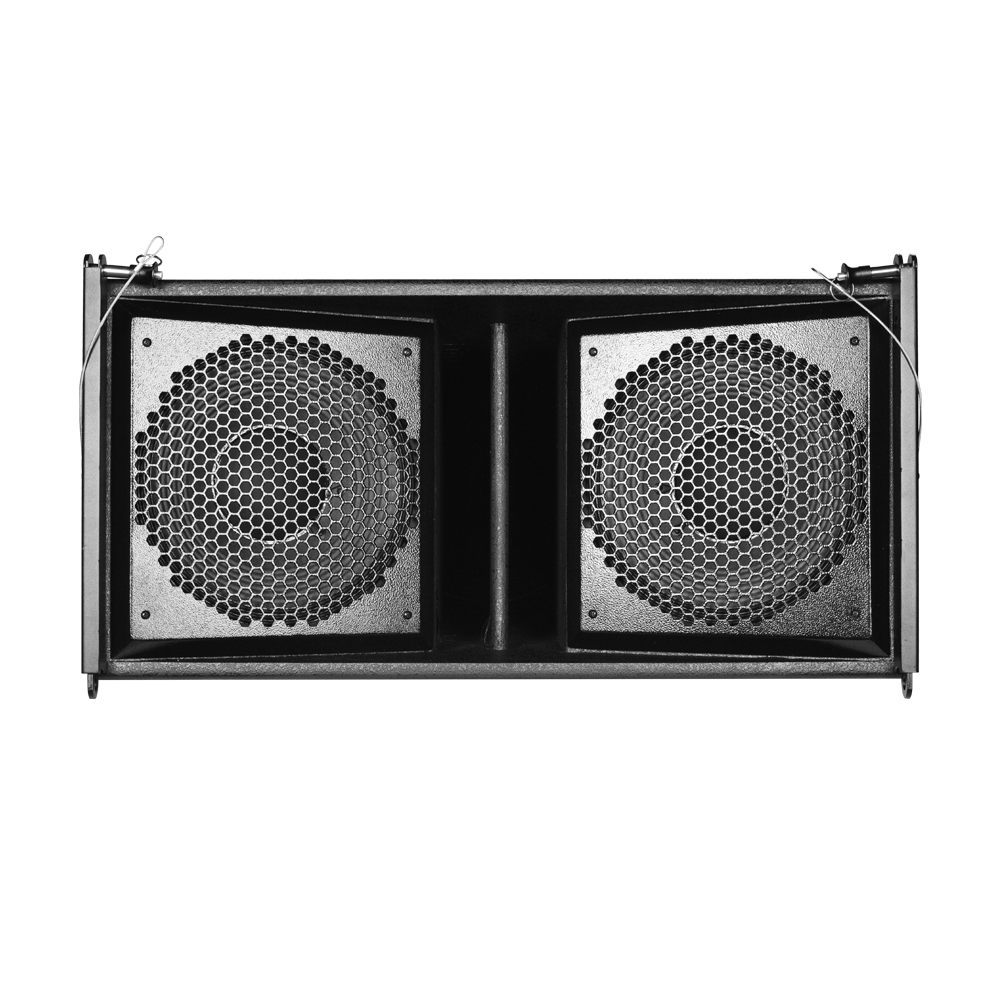

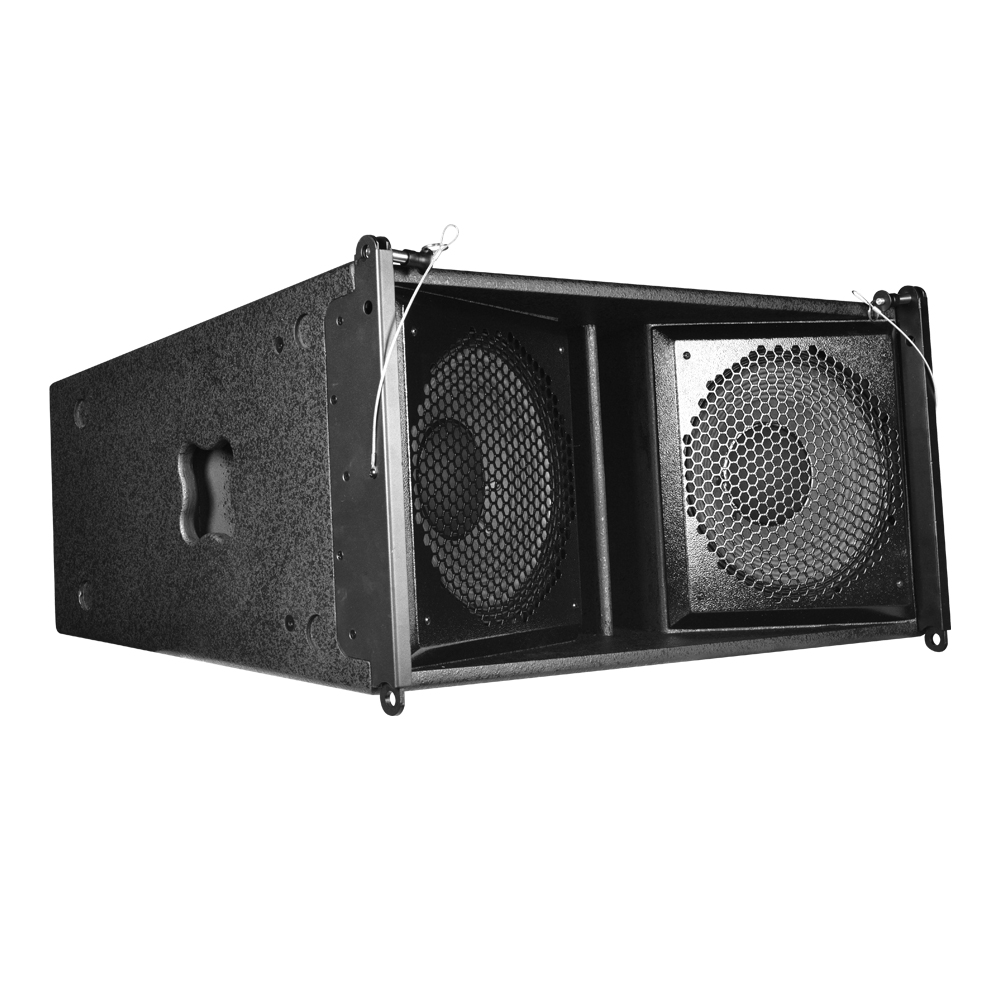

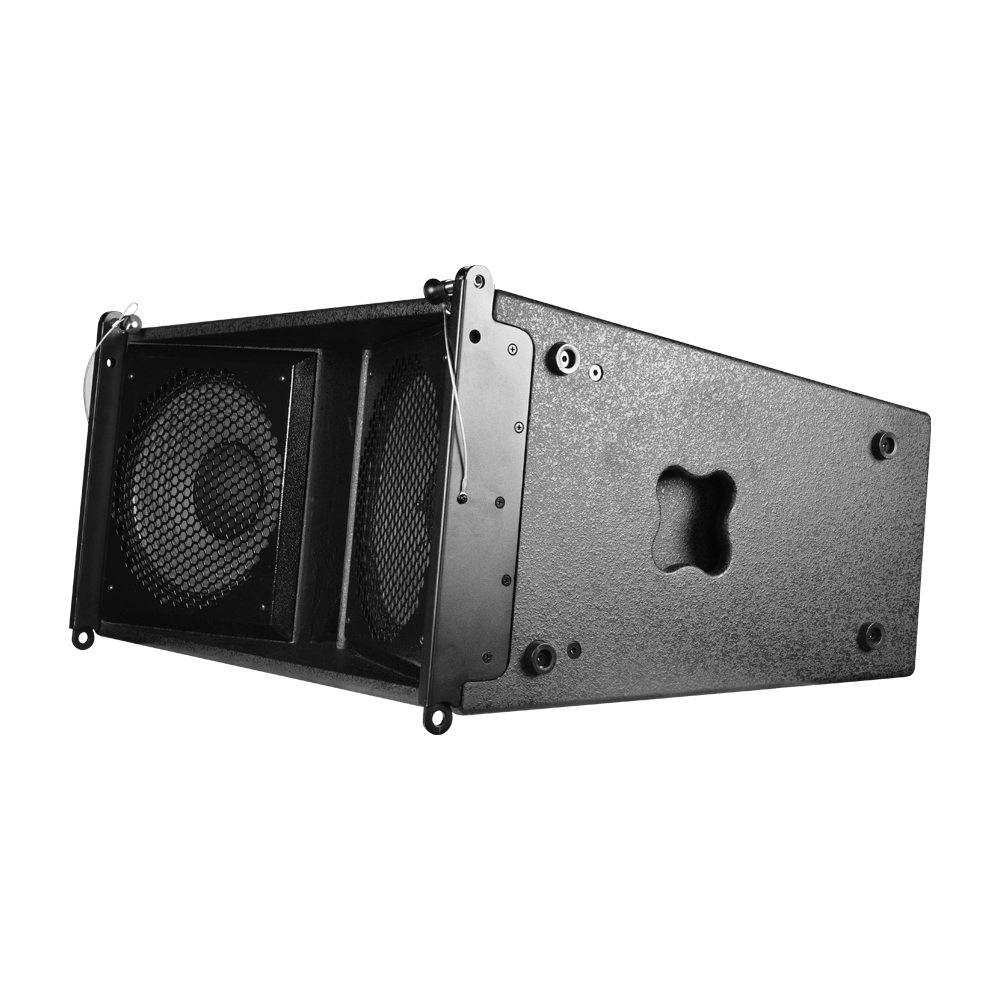

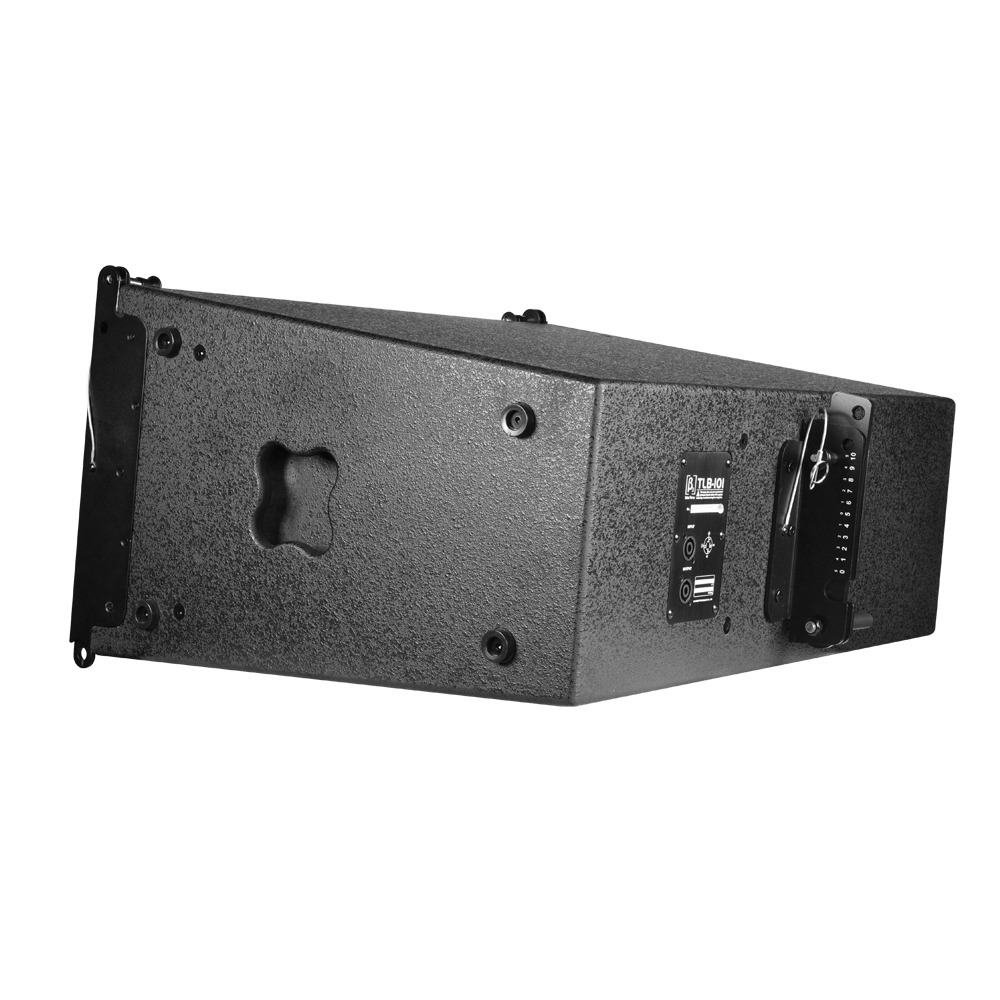

TLB-101

Dual 12" Subwoofer

The Beta Three® TLB-101 subwoofer line array loudspeaker that can be used in applications including sound reinforcement for Houses of Worship, Events, Indoor Stadiums, Theme Parks, Multifunctional Auditoriums, Schools, and Transit Terminals etc. These are excellent for live, rental and portable sound reinforcement applications. The TLB Series line array loudspeaker delivers extraordinary performance and natural sounding music is required at unmatched value.　
　

Features

  • Weatherproof version (TLB-101F) available (IP46)

  • High SPL and sensitivity

  • Dual 12” ferrite low frequency transducer

  • 2×NL4 connectors

  • Trapezoidal cabinet with integrated flywear and locking pins

  • Stainless steel grill

  • Combine with Bate three ® line array TLA101F series high power speaker for extended full range frequency, high quality music reproduction.

  • Computer aided design to optimize frequency and phase response

  • Rigging allows adjustment from 0°- 5°in 1°increment

  • Cabinet constructed by Russian outdoor plywood

  • Durable weatherproof polyurethane textured base paint

  • All terminals are weatherproof

Specifications

Acoustical specifications
Frequency Response(-3db):
50Hz-250Hz
Max SPL @ 1m:
129dB/135dB(PEAK)
Transducers
Woofer:
2 x 12" Subwoofer
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
100dB
Power section
Total Power:
800W(RMS); 1600W(MUSIC); 3200W(PEAK);
Nominal Impedance (Ohm):
4Ω
Physical specifications
Cabinet/Case Material:
Birch plywood
Handles:
2 × Iron handles
Grille:
Weather resistant polyurethane finish, black powder coating for grille.
Color:
Black
Size
Dimension (W x D x H):
800 x 595 x 388mm / (31.5 x 23.4 x 15.3in)
Package Dimensions (W x D x H):
935 x 560 x 815mm / (36.8 x 22 x 32.1in)
Weight
Net Weight:
45.5 kg / 100.3 lb
Gross Weight:
49.5 kg / 109.1 lb
