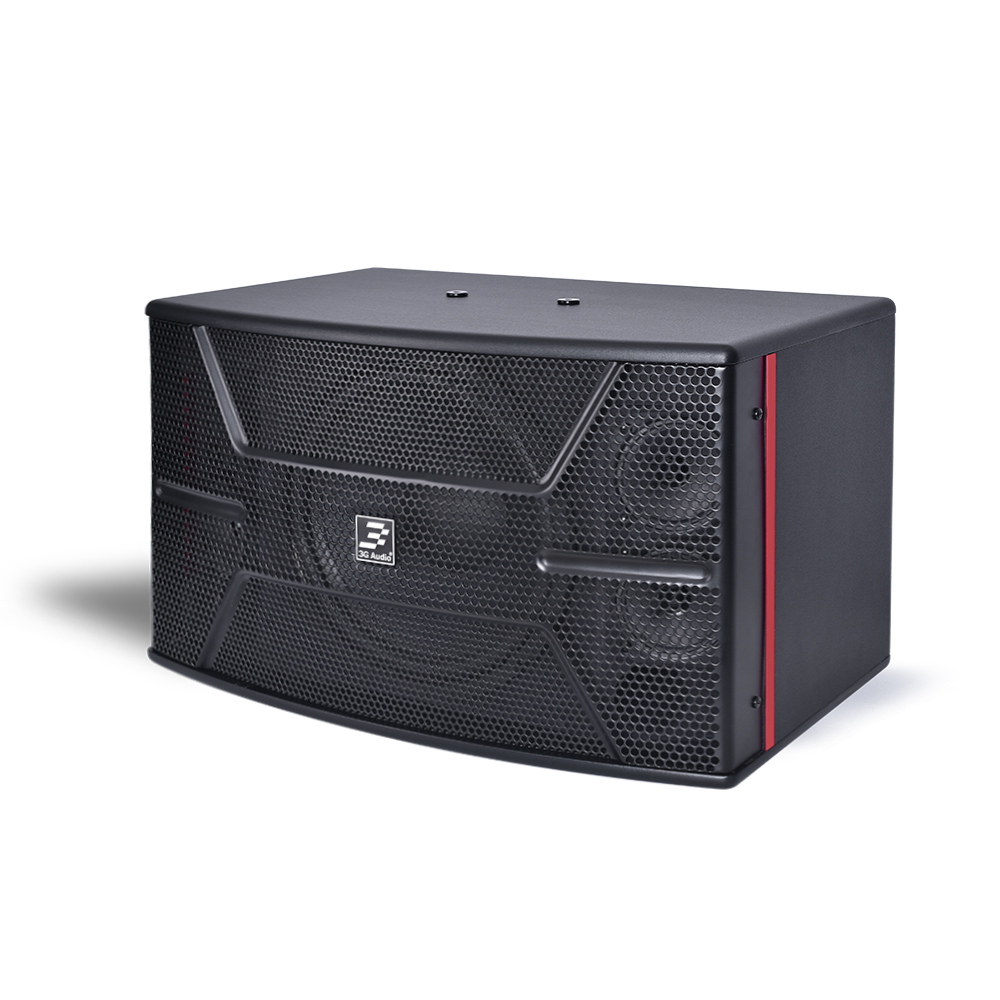

KO-10H

10" Built-in Three-way Full Range Speaker

KO-10H is a three-way full range professional kara- oke speaker. It consists of 1pc powerful 10" woofer and 4pcs paper cone driver. With high SPL and sen- sitivity. The sound is clear and powerful.


Features

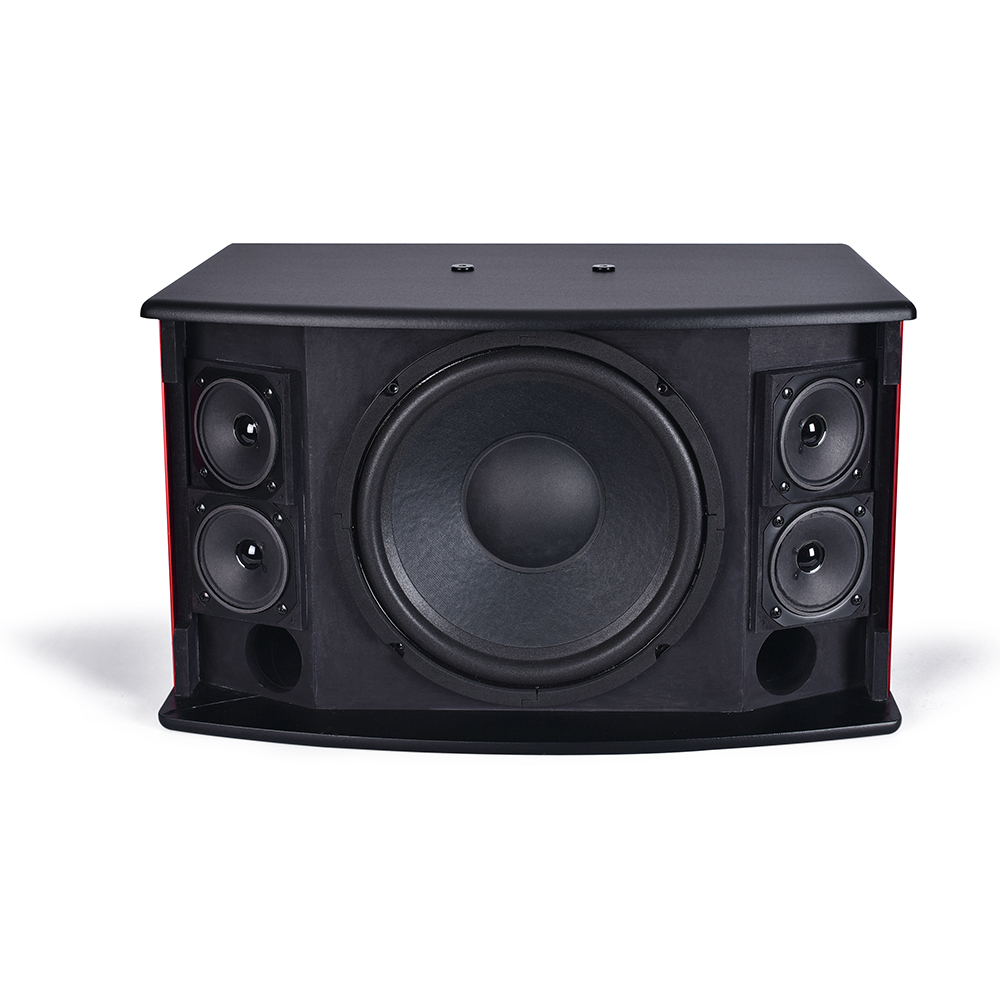

  • 4 x 3" paper cone driver

  • 1 x 10" powerful woofer

  • Dispersion:125° x 110°

  • Crossover point at 1kHz

  • Frequency Response(-3dB):45Hz-18kHz

  • Sensitivity: 90dB, Max SPL:119dB

  • Rated Power: 100W, Peak Power:400W

  • 2 x M8 rigging point


Specifications

Acoustical specifications
Frequency Response(-3db):
45Hz-18kHz
Max SPL @ 1m:
113dB/119dB(PEAK)
Dispersion (H x V):
125° x 110°
Transducers
Compression driver:
4 x 3" paper cone driver
Woofer:
1 x 10" LF
Input/Output section
Sensitivity (1W @ 1m):
90dB
Processor section
Crossover frequencies:
2.8kHz
Power section
Total Power:
100W
Nominal Impedance (Ohm):
Connections:
1 x terminal plate
Physical specifications
Cabinet/Case Material:
Medium density fiberboard + Chipboard
Handles:
2xM8 hanging point
Grille:
Black PVC leather covering Black grille
Color:
Black
Size
Dimension (W x D x H):
498 x 317 x 292mm / (19.6 x 12.5 x 11.5in)
Package Dimensions (W x D x H):
740 x 390 x 630mm / (29.1 x 15.4 x 24.8in)
Weight
Net Weight:
12.4 kg / 27.3 lb
Gross Weight:
28 kg / 61.7 lb
