BS5002 - Versatile Full-Range Plastic Speaker

BS5002

Versatile Full-Range Plastic Speaker

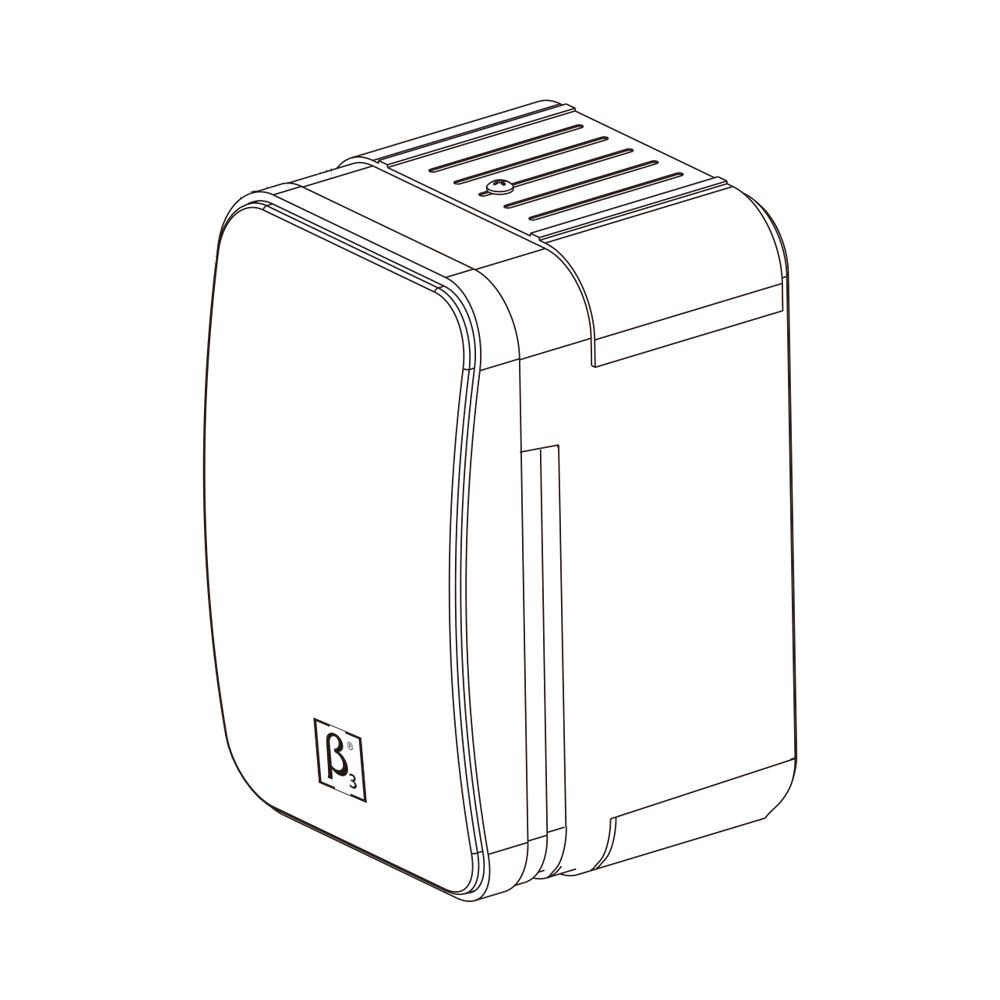

BS5002T is a two-way full range bass reflex speaker box comprised of 5.25"LF unit and 0.5"PEI tweeter. A switchable transformer built at the back allows for 7W/15W/30W/8Ω working mode. With an optional U bracket, the compact and exquisite design is smartly used for public address in meeting rooms, schools, office buildings, where high quality sound reinforcement is needed for small and medium venues.


Features

  • Mini two way full range public address speaker
  • Switchable 7W/15W/30W input and 8 Ohm input
  • Mounting bracket available, hospitable installation

Specifications

Acoustical specifications
Frequency Response(-3db):
60Hz-20kHz
Max SPL @ 1m:
106dB/112dB(PEAK)
Dispersion (H x V):
150° x 150°
Transducers
Compression driver:
1 x 0.5" PEI tweeter
Woofer:
1 x 5.25" LF
Input/Output section
Input Connectors:
Block terminal
Sensitivity (1W @ 1m):
86dB
Processor section
Crossover frequencies:
3.7kHz
Power section
Total Power:
50W(RMS); 100W(MUSIC); 200W(PEAK)
Nominal Impedance (Ohm):
Physical specifications
Cabinet/Case Material:
Plastic
Grille:
Enclosure and grill with black painted
Color:
Black
Size
Dimension (W x D x H):
146.5 x 146 x 230mm / (5.8 x 5.7 x 9.1in)
Package Dimensions (W x D x H):
385 x 220 x 315mm / (15.2 x 8.7 x 12.4in)
Weight
Net Weight:
2.6 kg / 5.7 lb
Gross Weight:
6.6 kg / 14.6 lb
