VR110

3 Transducers 2-way 10" Full Range Loudspeaker

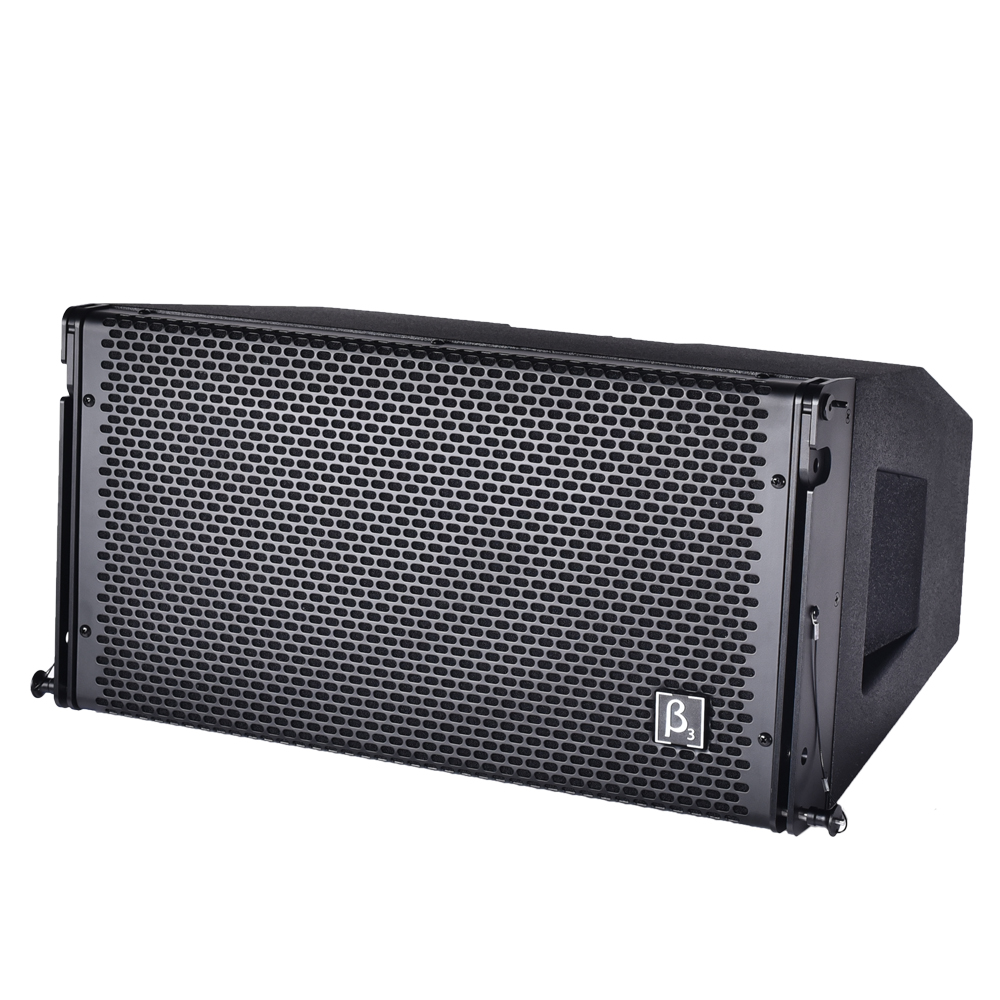

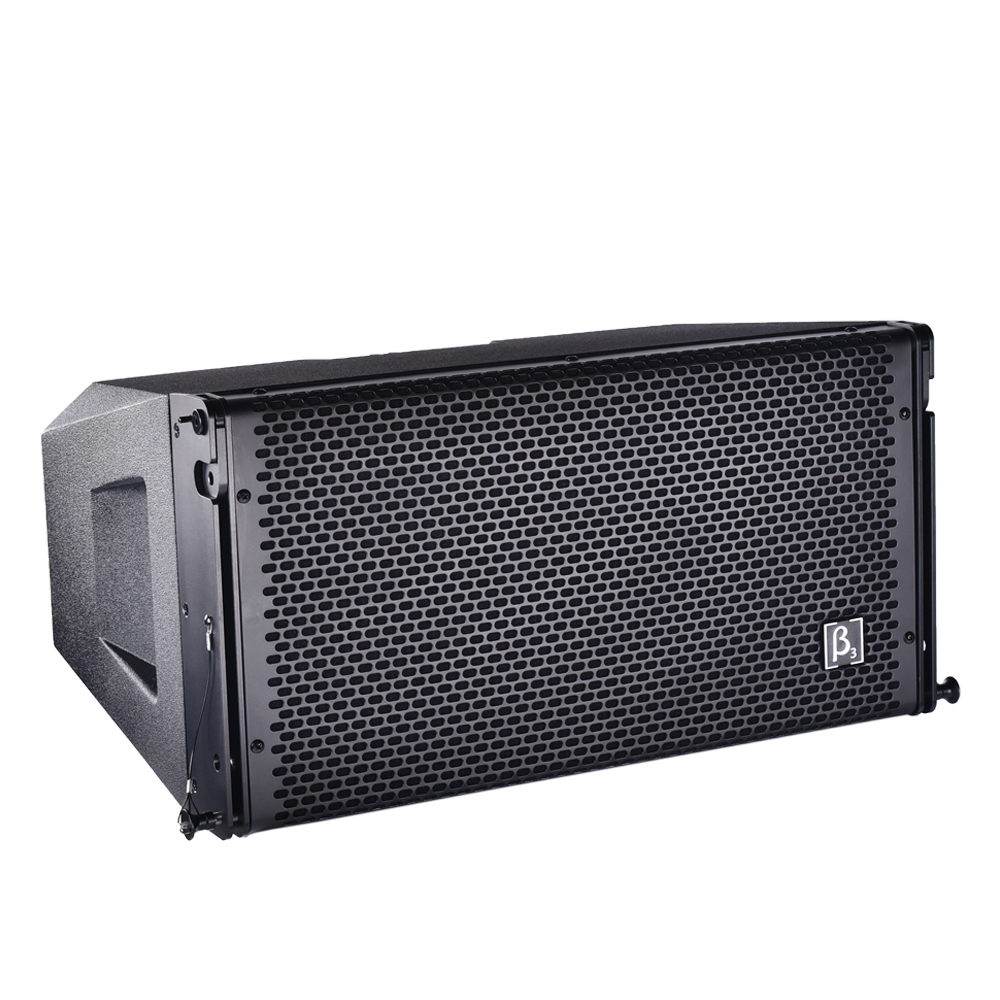

β3 VR110 full range speaker comprised by one 10" Neodymium woofer and dual 44mm Neodymium drivers, it belongs to one of the VEYRON series Medium full-frequency speakers. The woofer unit uses a 65mm voice coil. The speaker crossover handled very reasonable.

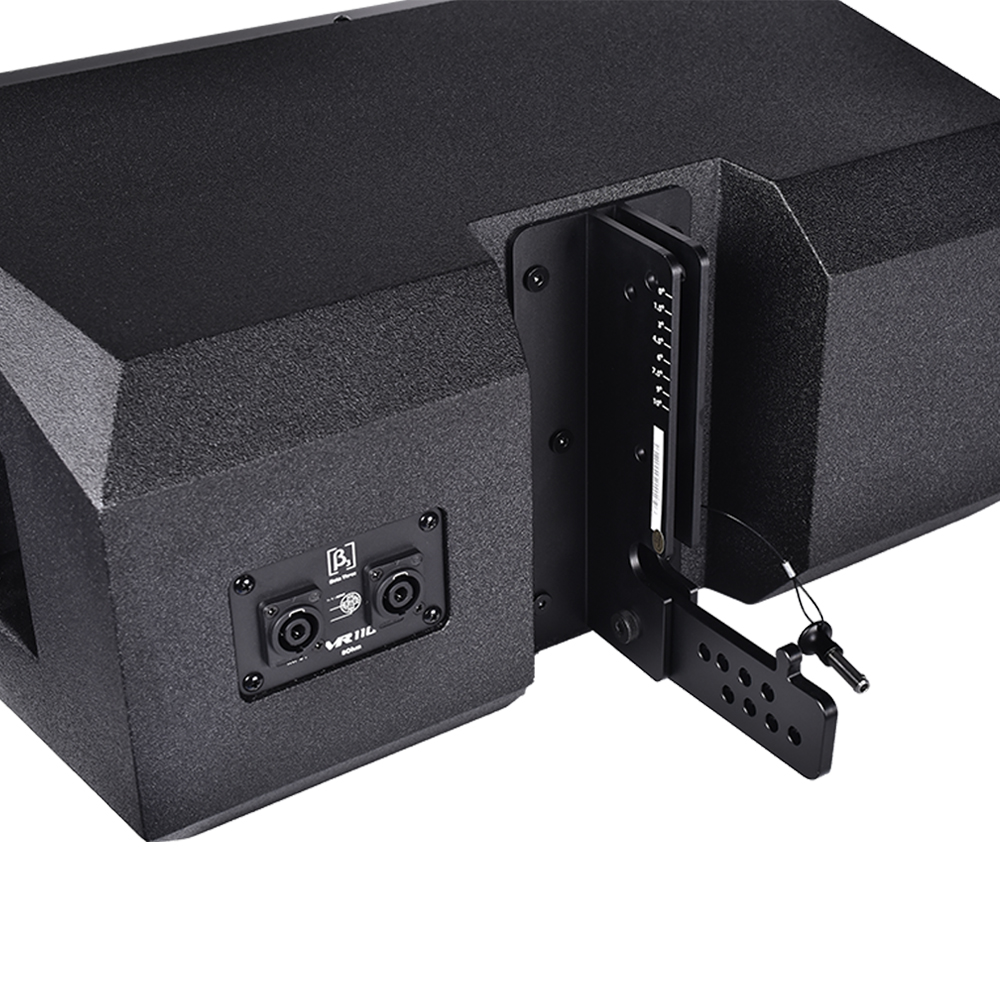

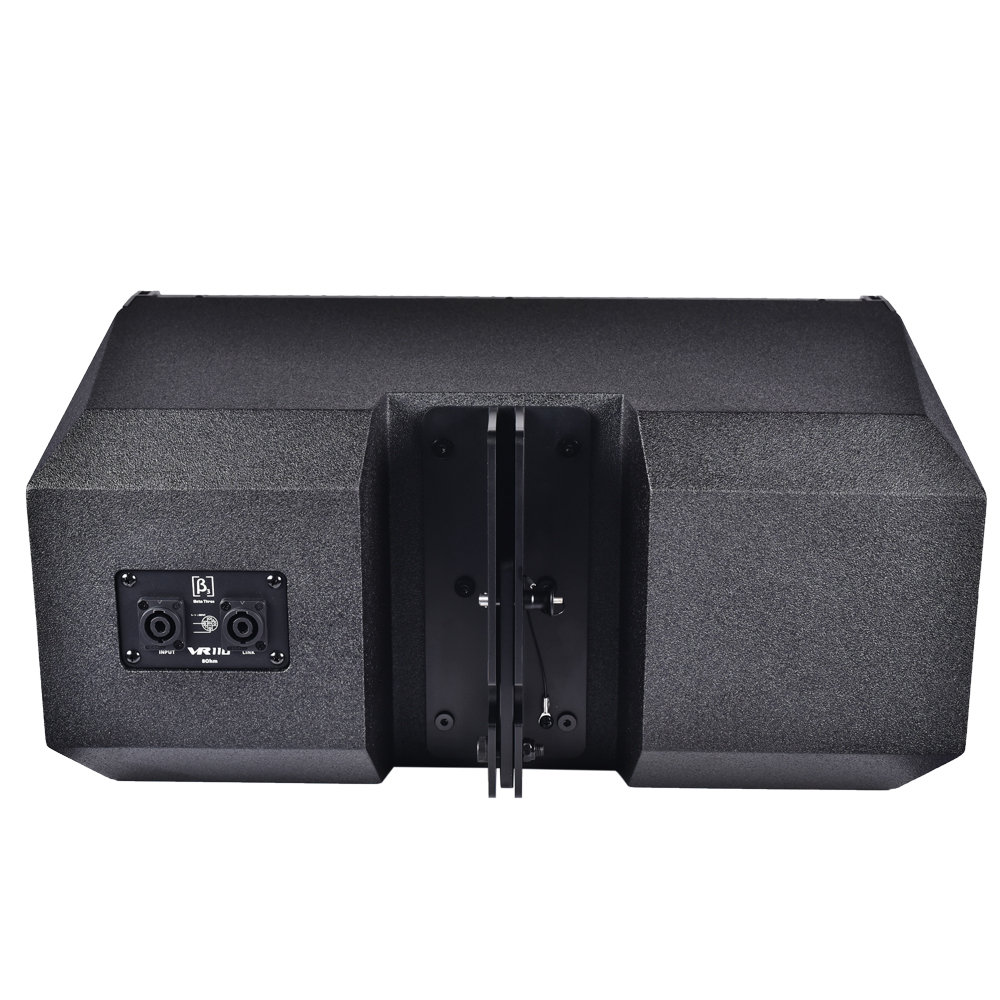

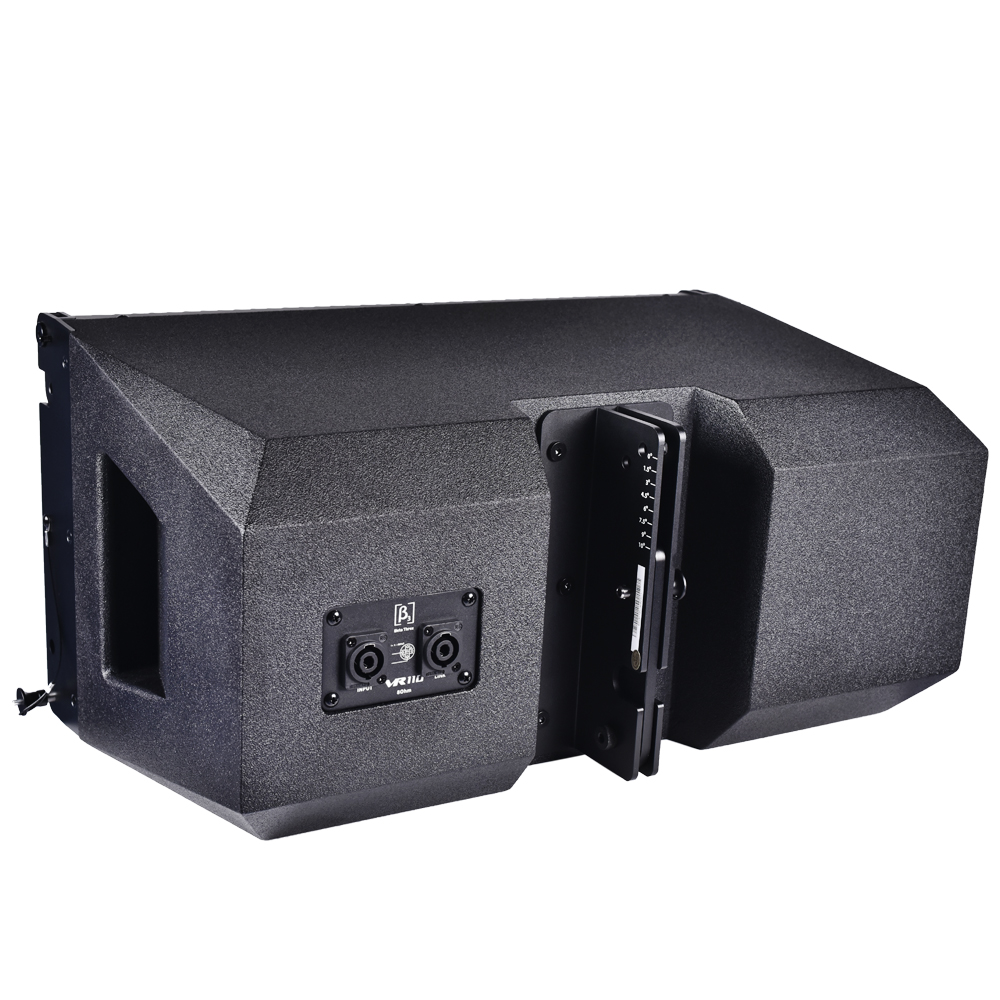

Regarding structure of VR110, it applies the appearance with new surface painting process by advanced painting technology. And its T shape structure makes hardware installation and uninstallation easily by lockpins. Furthermore, the speaker can be conveniently adjusted 10 degrees vertically by angle adjustment.

The woofer unite uses a large power 65mm voice coil. The material of voice coil skeleton is high intensity TIL and the voice coil is wrapped by round copper wires, which not only strengthen its power handling ability, but also improve its sensitivity.

44mm titanium voice coil of its HF driver is wrapped by aluminum flat wire ring. Patented technology of the high frequency waveguide and horns also help a lot to sound quality that completely satisfies customers' demands.

VR110 cabinet is made up of 15mm thick laminate, brand-new acoustic design with compact, smart and fashionable appearance. Its polyurethane paint stands wear and tear. The tensile resistance

of itself is up to 3500N. Customized lifting hardware is applied to installation. The speaker itself is not influenced by other.

external force, but its own weight, when lifting going on,The weight of all speakers suffered by customized hardware is reasonable designed by our engineers. And the hardware can suffer the max pulling force 45000N, 7 times to the safety standards of entire product.

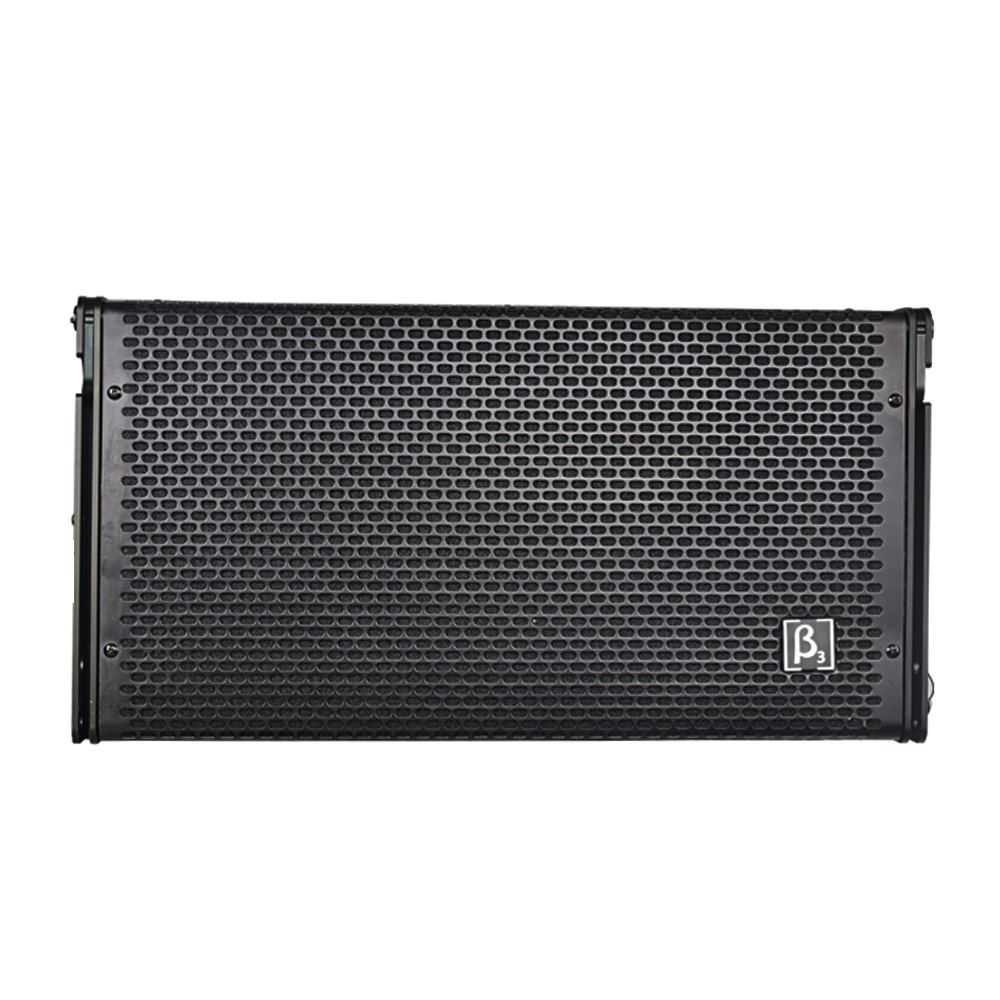

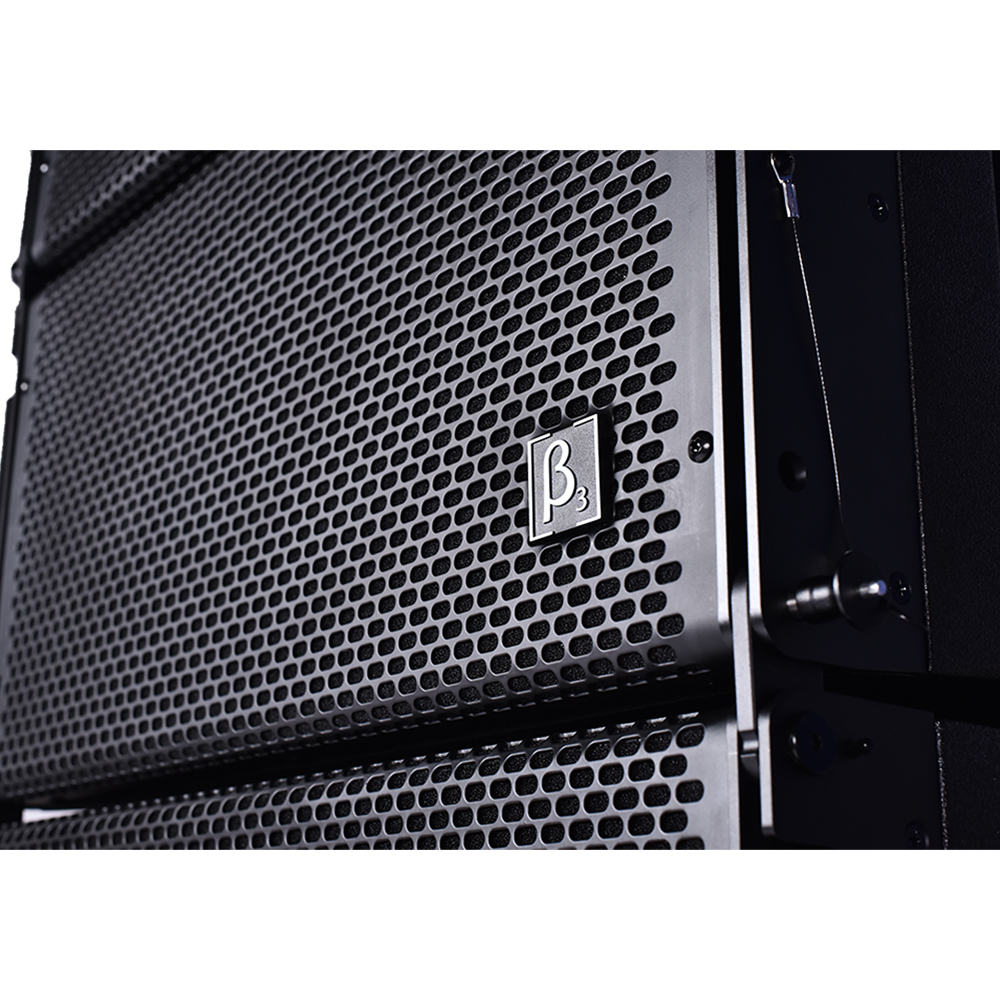

The front plate adopts overall grill design with grill material Q235, powder spray technology, which make the grill not only has high strength, but also has good.

salt-resistance. It can resist salt spray .Rain proof can be achieved by external stretching cloth design for iron grill.VR110 full range speaker, working with VR118Suba bass speaker, is used to the application including Gymnasium, theater, arena, living performance venue,etc.




Features

  • VR110 is a full range speaker of midium sized array system. It compriesed by a 10" Neodynium magnetic sub units, two 44mm Neodymium treble drivers and
  • built-in crossover.

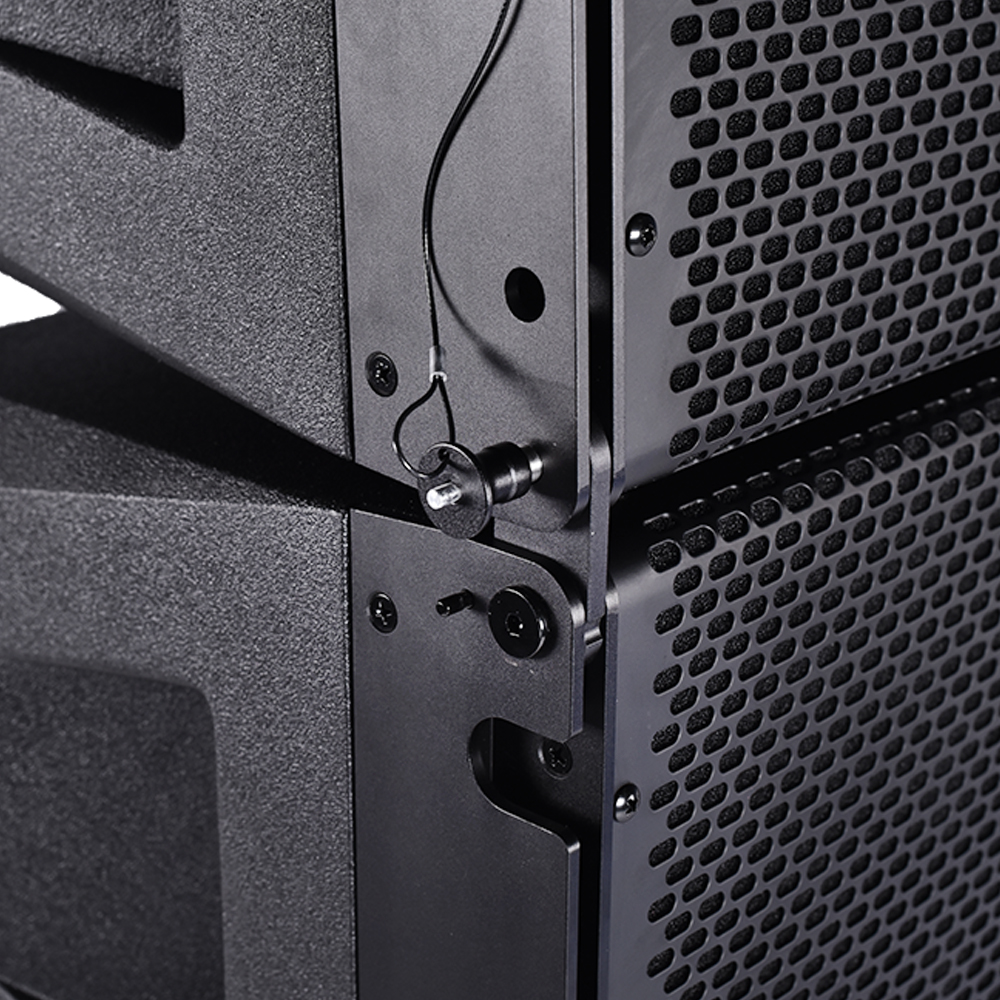

  • T-shaped cabinet and easy installation and uninstallation with lockpin,10°adjustable cabinet angle range.
  • 2pcs VR110 and 1pcs VR118suba make up excellent point source system.
  • Easily to install and uninstall.
  •  VR110 Features of Sound Quality: clear, full and powerful.


Specifications

Acoustical specifications
Frequency Response(-3db):
55Hz-18kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Dispersion (H x V):
100° x 30°
Transducers
Compression driver:
2 x 44mm Neo compression driver
Woofer:
1 x 10" Neo LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
97dB
Processor section
Crossover frequencies:
1.6KHz
Power section
Total Power:
250W(RMS); 500W(PROGRAM); 1000W(PEAK)
Nominal Impedance (Ohm):
Physical specifications
Cabinet/Case Material:
15mm Plywood
Hardware:
easy installation system
Grille:
surface of cabinet with Black polyurethane,spray surface of grill with black mesh
Color:
Black
Size
Dimension (W x D x H):
540 x 334 x 280mm / (21.3 x 13.1 x 11in)
Package Dimensions (W x D x H):
430 x 383 x 655mm / (16.9 x 15.1 x 25.8in)
Weight
Net Weight:
17 kg / 37.5 lb
Gross Weight:
19 kg / 41.9 lb

VR110 Application

    VR110 Installation

      VR110 Parts

        VR110 Cases

          VR110 Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              β3_VR110_PA_Chinese_Manualβ3_VR110_PA_Chinese_Manual 1β3_VR110_PA_Chinese_Manual  1553.2KB 2018-07-12 02:25:39
              β3_VR110_PA_English_Manualβ3_VR110_PA_English_Manual 1β3_VR110_PA_English_Manual  1553.2KB 2018-07-12 02:25:39
