Compact Active Line Array System

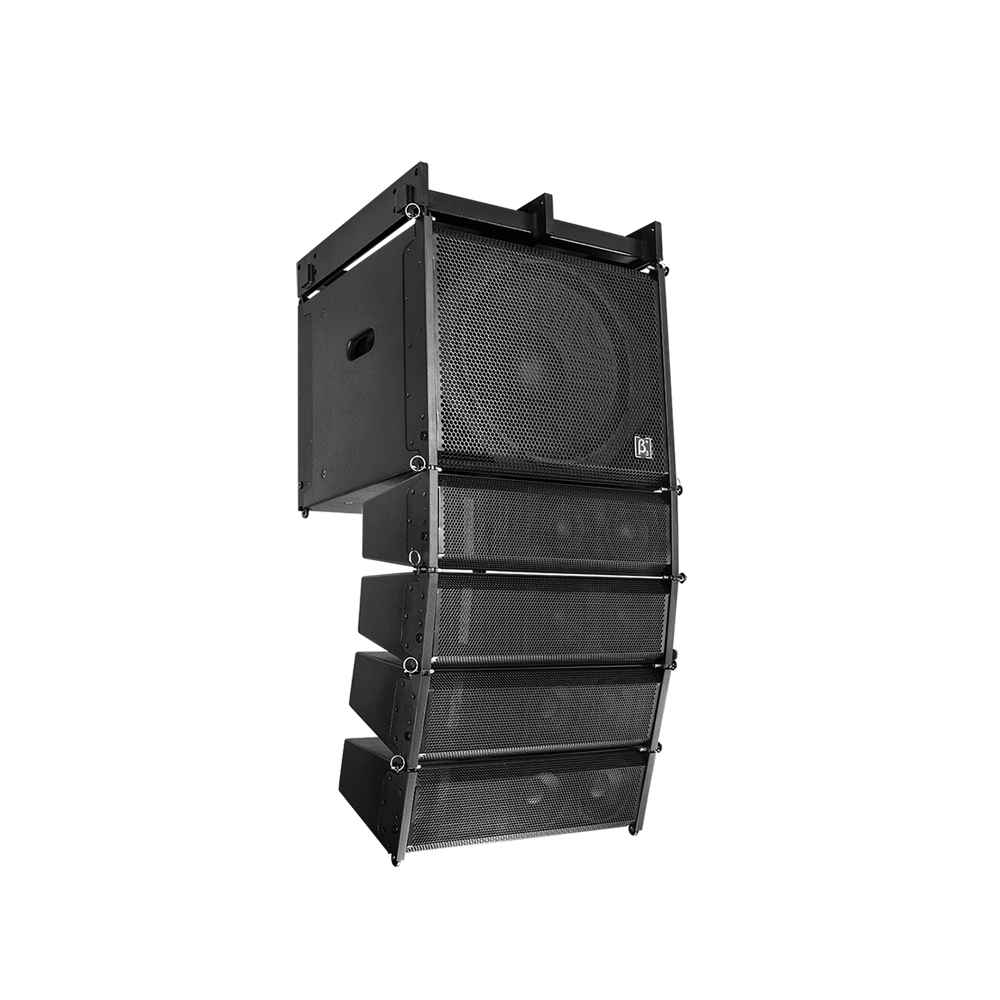

The R5/R15a line array system consists of  four R5 satellites and a R15a self-powered subwoofer. Thanks to its self-powered feature and compact size, R5/R15a is a plug and play line array system which is really easy to transport and install. These features and its power output make it a perfect choice for small and medium installations, such as conference rooms, auditorium, school, House of Worship, shopping-malls, etc. R5/R15a is made in high density plywood and it is available in two colours: black and white. Up to 1 x R15a + 8 x R5 can bt flown together.


  • Great flexibility in shaping array curvature
  • Adjustable angles from 0 to 10 degrees in 1.5" increments
  • Integrated amplifier & DSP modules
  • 300W + 500W amplifier
  • The built-in DSP allows control over each cluster at frequency  response, crossover point, slope, delay, gain  and limit
  • Perfect choice for small & medium applications
  • School, Live show, House of Worship, Multi-functional auditoriums


Acoustical specifications
Frequency Response(-3db):
Max SPL @ 1m:
Dispersion (H x V):
90° x 10°
Transducer Driver:
R5: 1 x 1.7" HF + 2 x 5" LF;R15a: 1 x 15" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
R5: 2 x NL4; R15a: 1 x NL4 + 4 x XLR
Power section
Total Power:
R5: 300W(8Ω); R15a: 500W(4Ω)
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Dimension (W x D x H):
R5: 350 x 245 x 645; R15a: 650 x 625 x 665; flying fram: 553 x 115 x 578
Package Dimensions (W x D x H):
R5: 350 x 245 x 645; R15a: 540 x 551 x 430; flying frame: 675 x 200 x 655
Net Weight:
62 kg / 136.7 lb
Gross Weight:
69 kg / 152.1 lb
