Electronics

Electronics

The Beta Three® Electronics includes a series of meticulously engineered and manufactured professional audio equipment, such as digital signal processors, power sequencers, equalizers, and speaker management systems. This series of electronics are of premium quality, and perfectly suited to be configured in any sound reinforcement system in a wide range of applications.

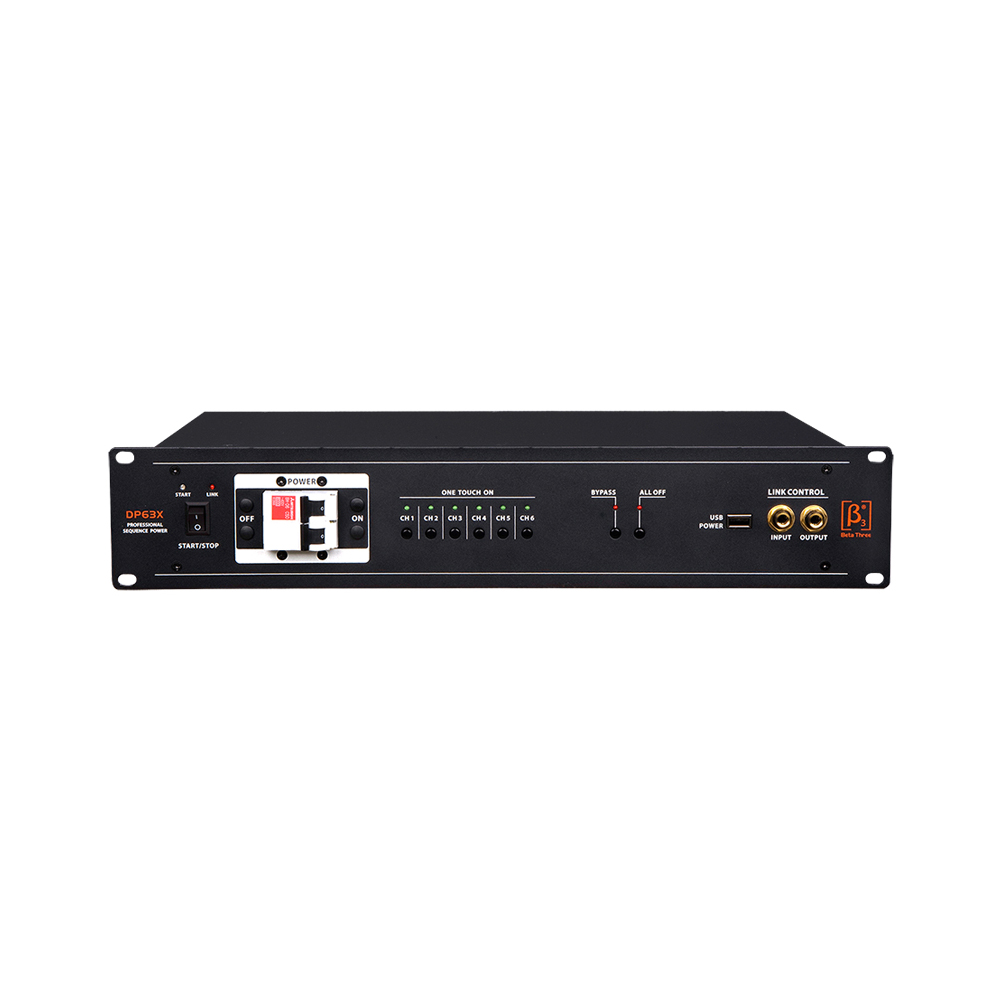

DP63X - Professional Power Sequencer

DP63X

Professional Power Sequencer

DP63X power sequencer can distribute mains power input into six channel power output. Suitable for large sound system installation.


Features

  • One main power input, six controlled power output
  • Internal Micro-processor control, can turn on in clockwise and turn off in anticlockwise,
  • also can be networked with another sequencers. LED indication for
  • every channel.
  • BYPASS switch and independent channel switch for flexible operation
  • Standard 2U rack height, easy for installation
  • Provide DC 5V/100mA power supply via USB port

Specifications

Max system power input18KW
Mixer port3KW
Connect/Disconnect delay time1s
Network connection controlYes
BYPASS functionYes
Operating voltage220V 50Hz-60Hz
Dimension ( W x D x H)483 x 88 x277mm
Package dimension525 x 128 x 340mm
Net weight
5.8kg
Gross weight
7.0kg

DP63X Application

    DP63X Installation

      DP63X Parts

        DP63X Cases

          DP63X Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              DP63Xβ3 DP63X Datasheet 1.0DP63X  200KB 2022-06-26 03:48:44
