PX128 - Professional Sequence Power
PX128 - Professional Sequence Power

PX128

Professional Sequence Power

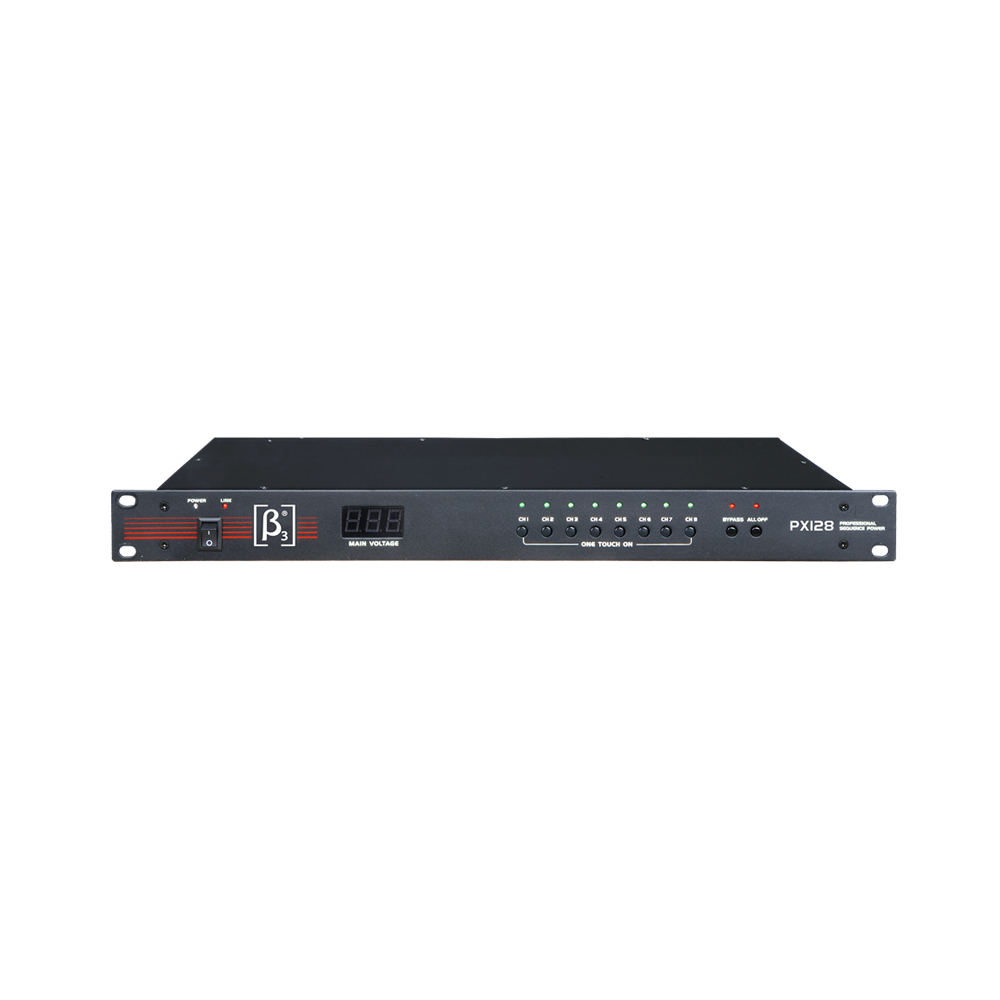

PX128 is a professional sequence power distributor. It can distribute main power into eight power outputs each with 2kW power output, and turn on/off every output power sequentially, so that to effectively reduce the shock to system, specially cater for large sound reinforcement venue.


Features

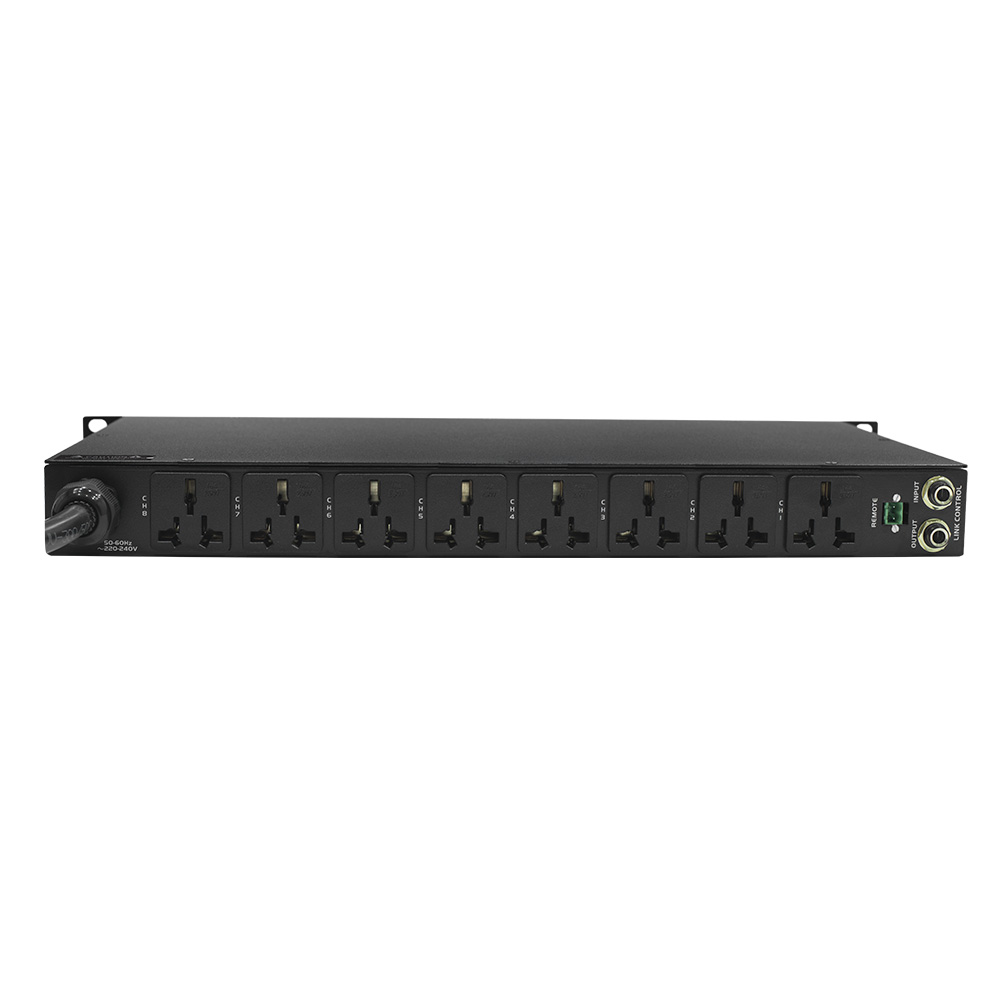

  • One main power input, eight controlled power output
  • Built-in processor, turn on clockwise, turn off anti-clockwise, available for
  • network connection, easy operation.
  • LED indication for each channel turn on/off
  • BYPASS switch and independent switch control for every channel, flexible usage
  • Cute and solid shape

Specifications

Total Max. Output (RMS)
16KW
Per Channel Max. Output (RMS)
2KW
Sequence Delay Time
1s
Parallel Connection
available
Bypass Function
available
Voltage
220V 50Hz/60Hz
N.W.
5Kg
G.W.
6Kg
Dimension (WxHxD)
484*222*44.5 mm
Packing (WxHxD)
555*310*78mm

PX128 Application

    PX128 Installation

      PX128 Parts

        PX128 Collocation

          Videos

            Downloads

            FilenameVersionLanguageSizeUpdated
            β3_PX128_PX128B_PX136_Electronic_Periphery_Chinese_Manualβ3_PX128_PX128B_PX136_Electronic_Periphery_Chinese_Manual 1β3_PX128_PX128B_PX136_Electronic_Periphery_Chinese_Manual  580KB 2018-07-12 02:25:39
            β3_PX128B PX128_PX136_Electronic_Periphery_English_Manualβ3_PX128B PX128_PX136_Electronic_Periphery_English_Manual 1β3_PX128B PX128_PX136_Electronic_Periphery_English_Manual  218.51KB 2018-07-12 02:25:39
