Professional Power Amplifier

CA series is the amplifier with big power and excellent performance. It can meet different audio avenues.


  • Big power,dynamic energy;
  • Innovative heat sink structure and high quality heat sink fan assure reliable working for a long time;
  • Loading impedance temperature-power-running voltage" can be controlled alternately, Speed of Fan is automatic adjusted by temperature. When load is too low or temperature is too high, the equipment can adjust the power supply and lower impedance of power, which improves sound quality and protect the equipment better. The reliability will be improved remarkably;
  • Low distortion;
  • High slew speed, outstanding sound quality and high transparent;
  • Low noise:S/N>108dB(A Weight);
  • 20Hz~20KHz <+0/-0.25 dB;wide frequency band;
  • Small dimension, 2U rack mounting.
  • CA3N is specially designed for low loading imedance, and can work for a long time under 2Ω.


Rated Power (Stereo 8Ω)

2 x 660W
Rated Power (Stereo 4Ω)2 x 1000W
Rated Power (Parallel mono 8Ω)2 x 660W
Rated Power (Parallel mono 4Ω)2 x 1000W
Rated Power (Bridged-mono 16Ω)1330W
Rated Power (Bridged-mono 8Ω)2000W
Frequency Response20Hz~20kHz(+0/-0.25dB)
THD <0.05%(10%Rated power)
IMD <0.1%(60Hz/7kHz,10%Rated power)
Phase difference<±15°
Damping Factor>800(8Ω/100Hz)
Total gain37.3±0.5dB
Difference of Channel gain<0.25dB
Input sensitivity1V
Slew Rate>80V/μs
Input impedanceUnbalanced input 10kΩ,Balanced input 20kΩ
Input connectorsThree pin XLR/6.35mm
Output connectorsSpeakon binding post, NL4 speakon
CoolingFour fans,stepless shifting, Cooling airflow from front to back

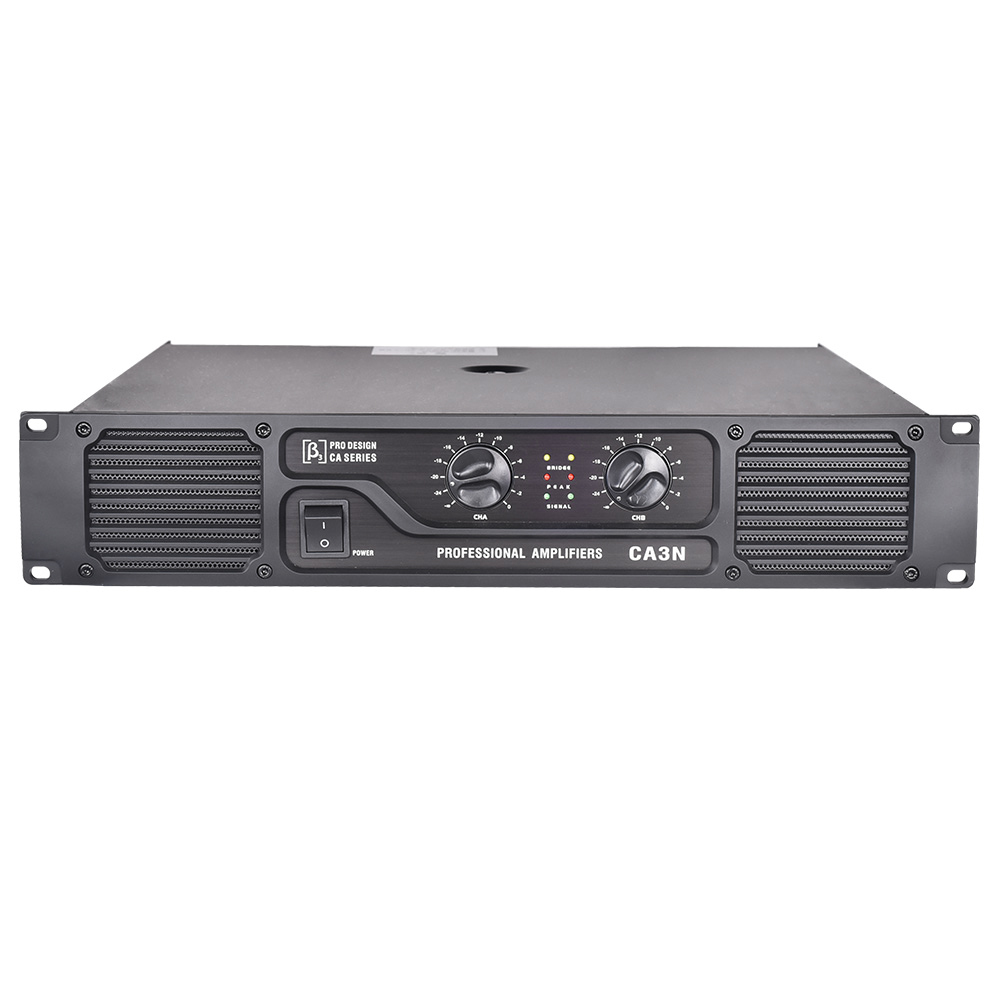

Controls on front panelSwitch of AC,Gain controlling knob for channel A and B

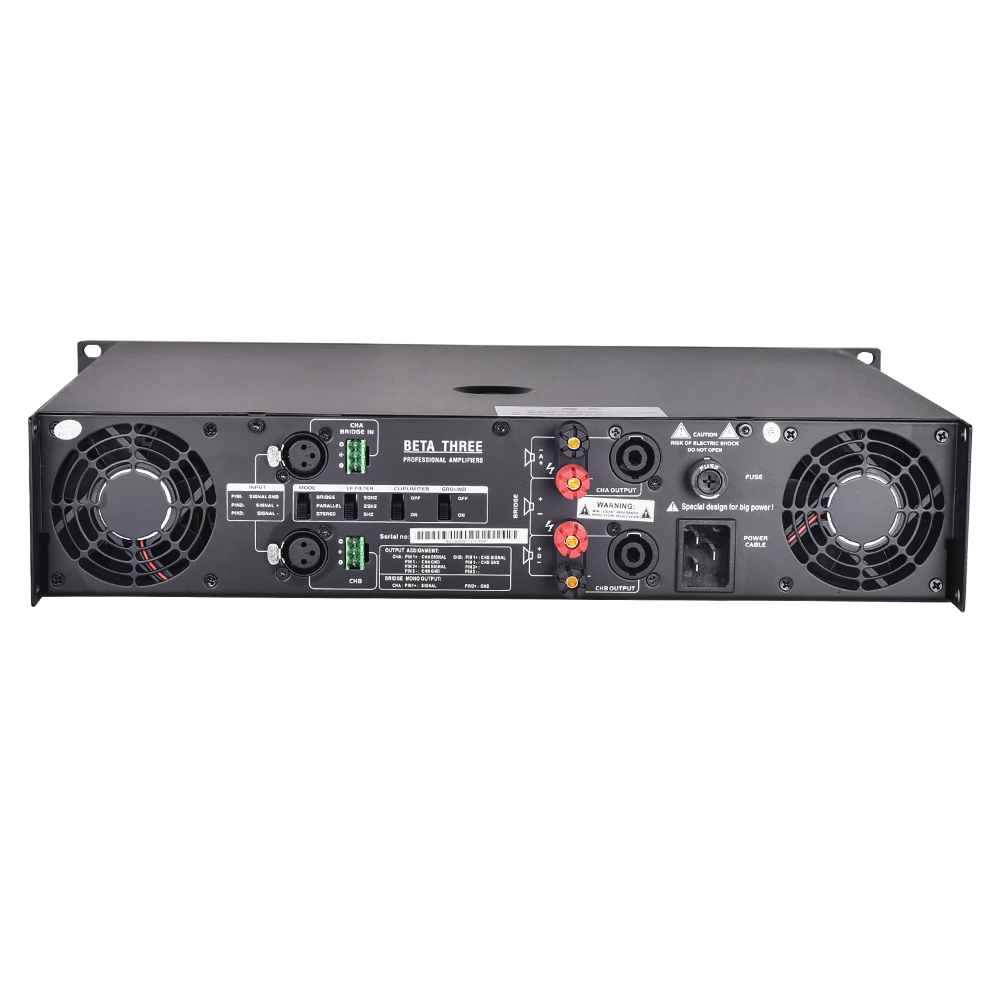

Controls on rear panelParallel/Stereo/Bridge, LF cutting,Grounding,Limit
Indicator on front panelYellow-Bridge,Red-Overload,Green-Signal
Amplifier protectionShort Circuit, Maladjustment of DC, Overload, Overheat ,Etc
Power supplyAC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz), 1000VA
Environment TemperatureWorking temperature: -10℃~40℃ Storing temperature: -25℃~80℃
Environment humidity≤90%
Dimension (W x D x H)483×375×88mm
Net Weight18kg
