T Series Class AB Amplifier

T Series Class AB Amplifier

The Beta Three® T Series 3U professional amplifiers are engineered and manufactured for a comprehensive range of sound reinforcement applications that require high power capacity for an extended period. The innovative circuit design optimizes high efficiency and provides convenient and ease of use operative controls for end-users.

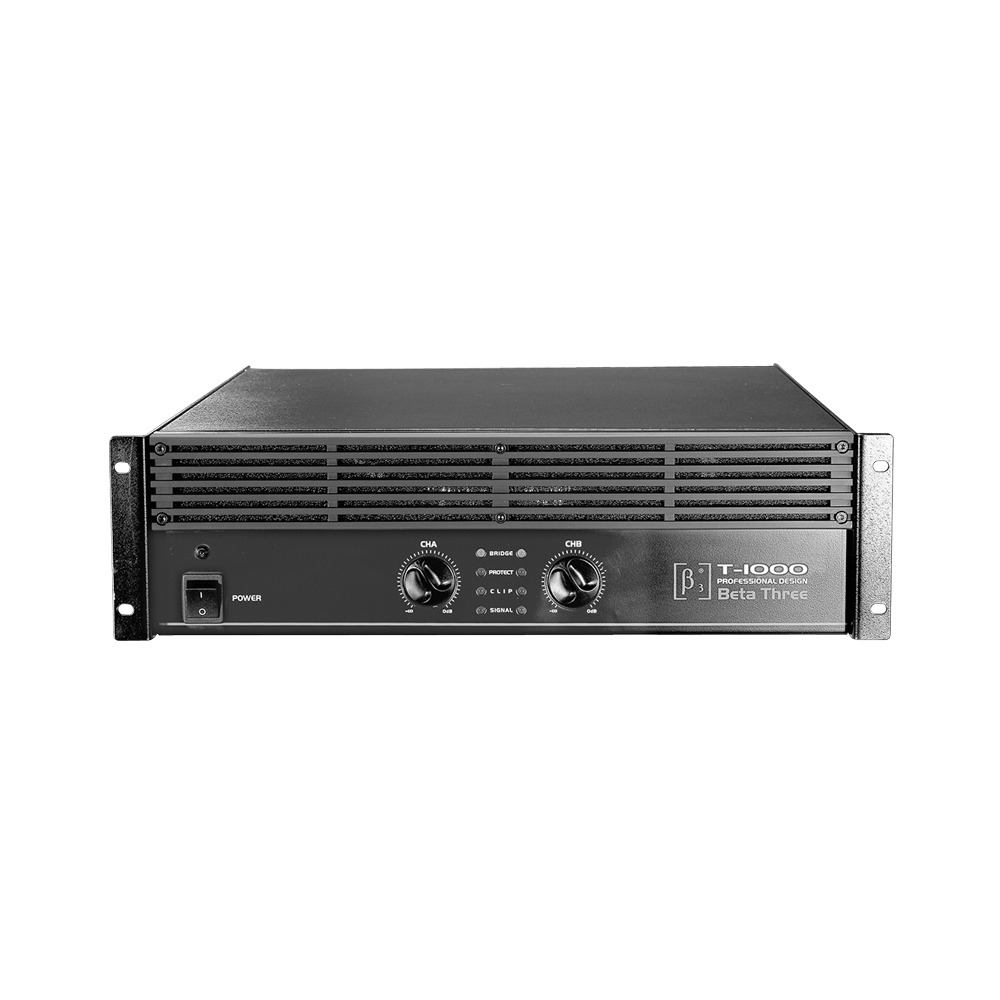

T-1000 - Professional Power Amplifier

T-1000

Professional Power Amplifier




Features

  • Professional 2-ch power Amplifier

Specifications

Rated Power (Stereo 8Ω)

2 x 300W
Rated Power (Stereo 4Ω)
2 x 450W
Rated Power (Bridged-mono 8Ω)1000W
Rated Power (Bridged-mono 4Ω)1200W
Frequency Response20Hz-50kHz (+/-0.1dB)
SNR105dB(a-weighted) at full output and 28 dB gain
THD <0.03% from 20Hz-50kHz to 1kHz increasing linear to 0.1% at 50kHz
IMD <0.03% from 10mW to 300W, 400W, 550W, 1000W at 28 dB gain
Slew Rate>26V per microsecond
Damping Factor(100Hz) >200 from 20Hz-400Hz
Load impedancerated for 16,8,4,2ohm use. Safe with all types of loads, even reactive ones
Required AC mains220V-240V, 50Hz
AC line connectorStandard three-wire grounded connector
Dimension (W x D x H)485mm x 445mm x 130mm
Net Weight20kg


T-1000 Application

    T-1000 Installation

      T-1000 Parts

        T-1000 Cases

          T-1000 Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              T-1000β3 T-1000 Datasheet 1.0T-1000  200KB 2022-05-21 22:19:37
              β3_T-1000-2000-3000_Chinese_Manualβ3_T-1000-2000-3000_Chinese_Manual 1β3_T-1000-2000-3000_Chinese_Manual  1958.27KB 2018-07-12 02:25:39
              β3_T-1000-2000-3000_English_Manualβ3_T-1000-2000-3000_English_Manual 1β3_T-1000-2000-3000_English_Manual  1830.19KB 2018-07-12 02:25:39
