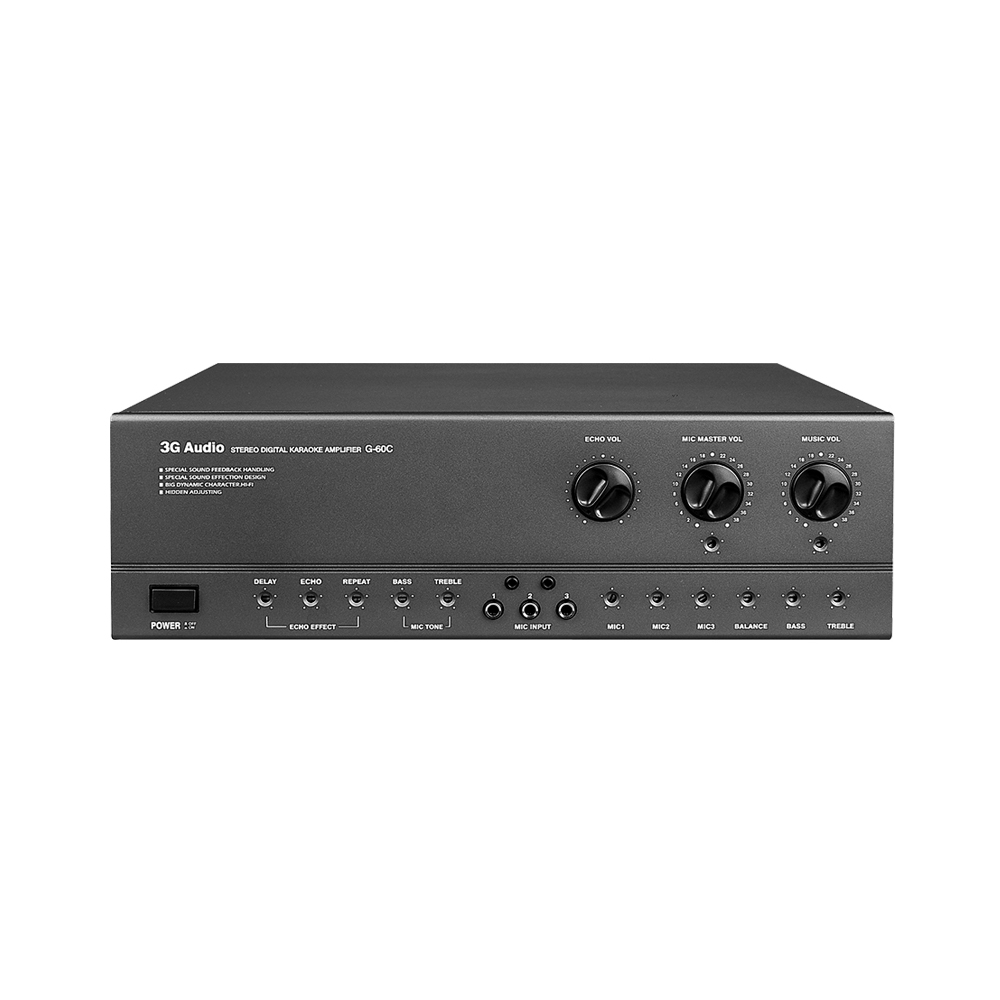

G-60C - Stereo Mixing Karaoke Amplifier

G-60C

Stereo Mixing Karaoke Amplifier

Special sound feedback handling Special sound effection design Big dynamic character.Hi-Hi Hideen adjusting


Features

  • Full range audio amplifier, suit for karaoke and conference sound reinforcement.
  • Inhibiting whistle strongly.
  • Multi-mode singing style.
  • Special design for KTV room, high reliability.
  • Able to connect two group speakers simultaneously.
  • Special drive design of human voice to make voice rich and nature
  • strong cooling fan makes sure long-term working.
  • Four audio input, 4 video input, 3 mic input.
  • 1 audio output, 1 video ouput,  L/R outputs
  • Music volume control, effect control
  • Mic general volume, build-in mic tone control and mic volume control.
  • Mic echo feedback degree control
  • Build in music key changer function
  • A screen displying key changing and signal state
  • A hand-held remote controller
  • Specifications

    Rated Power (RMS)

    125W+125W(8Ω)
    THD (@1kHz)0.3% 20Hz-20KHz
    Frequency Response(-3dB20Hz - 20KHz ±2dB
    Input Sensitivity/Impedance

    Microphone: 0.5mv-100mv/2KΩ

    Line: 0.707v/51KΩ

    Video: 1Vp-p/75Ω

    Pitch Control

    Music: Bass(Gain/Attenuation) ±12dB

             Treble(Gain/Attenuation) ±12dB

    MIC: Bass(Gain/Attenuation) ±12dB

           Treble(Gain/Attenuation)±12dB
    Effect Type


    Output Sensitivity/Impedance

    Audio: 0.707V/1KΩ

    Vedio: 1Vp-p/75Ω

    Microphone Balance Input/output

    Microphone Output: 0-2Vp-p

    Microphone Mixing Input: MAX:3.3Vp-p(150W-8Ω)

    Short Circuit Protection

    Output Impedance: 2-16Ω

    Recommendatory Impedance: 8Ω

    Power Supply

    AC 110V-240V/50Hz

    Standard Power SupplyAC 220V/50Hz
    Power Consumption380W
    AC Power Outlets

    Switched: 200W

    Unswitched: 300W

    Static Power Consumption

    20W
    Net Weight (1 pc)10.5kg
    Gross Weight (1 pc)12kg
    Dimension(W×D×H)495x426x190(MM)
