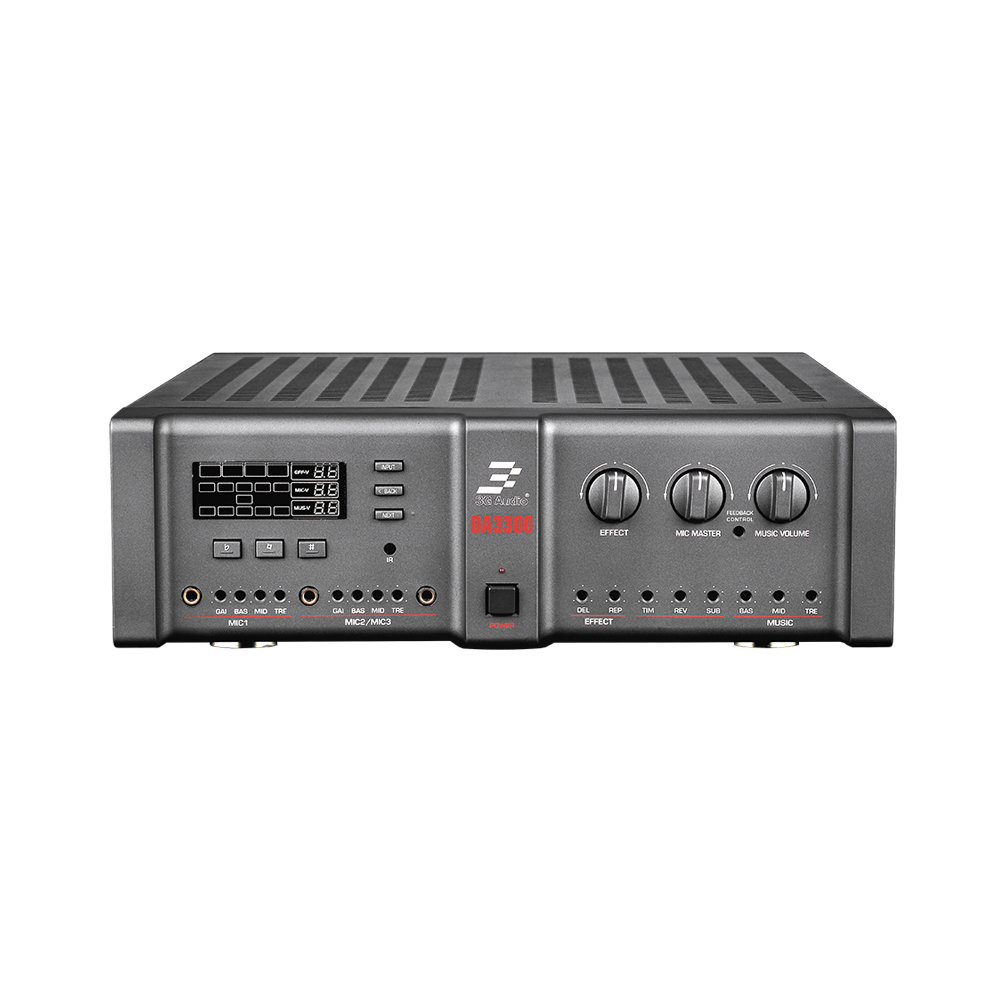

DA3300 Digital Karaoke Amplifier

DA3300

Digital Karaoke Amplifier




Features

  • 3-channel Music/Video Input, Automatic/Manual Sound Resource Switchable, 5 MIC Inputs in 2 Groups, Individual
  • Volume Control etc.
  • ±8 dB Treble, Mediant and Bass Control in Each Music Channel and MIC Channel.
  • DSP technology, LCD screen, SCM production process.
  • Have Mic volume knob, Mic effect volume knob and music volume knob. Each level can be shown in the LED display. MIC effect and music volume can be adjusted in L.R and center channel.
  • Mute, Vocal Cancelation, Key Changer, Automatic singalong, S Terminal Line Control.
  • Have Max Volume limitation and save current volume level function.

Specifications

Output Power(1kHz,8Ω)

300W×3
THD (@1kHz)<0.05% (20Hz-20kHz,8Ω)
Frequency Response(-3dB20Hz-20kHz±1dB
Input SensitivityFront Mic:20mV±10%/2KΩ,Rear Mic:40mV±10%/2KΩ
Input ImpedanceLine:200mV±10%/10KΩ Videio:1Vp-p /75Ω
Tone Control

±8Ω

Music: Bass\Middle\Treble: 100Hz\1.6kHz\10kHz

Mic: Bass\Middle\Treble:100Hz\1.6kHz\6.3kHz

EffectECHO/REV/ECHO+REV
Output Impedance4-16Ω
Rated Impedance
PowerAC~110-220V,50Hz/60Hz
Power Supply220V-230V 50/60Hz, 1000VA
AC Power OutletsSwitched:200W Unsumption(2 Way):300W
Static Power Dissipation30W
Net Weight (1 pc)14.5kg
Gross Weight (1 pc)15kg
Dimension(W×D×H)507×422×202mm

DA3300 Application

    DA3300 Installation

      DA3300 Parts

        DA3300 Cases

          DA3300 Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              DA3300β3 DA3300 Datasheet 1.0DA3300  200KB 2024-03-28 23:17:51
