BS Series PA Speaker

BS Series PA Speaker

The Beta Three® BS series is meticulously engineered and manufactured to offer sophisticated solutions for speech, music, and distributed sound reinforcement in an extremely compact and versatile enclosure in various public address applications. It is especially suited for retail stores, night clubs, shopping malls, supermarkets, and many other small- to medium-sized venues requiring optimal sound performance.

BS4002 - Aluminium Public Address Speaker
BS4002 - Aluminium Public Address Speaker
BS4002 - Aluminium Public Address Speaker
BS4002 - Aluminium Public Address Speaker
BS4002 - Aluminium Public Address Speaker

BS4002

Aluminium Public Address Speaker

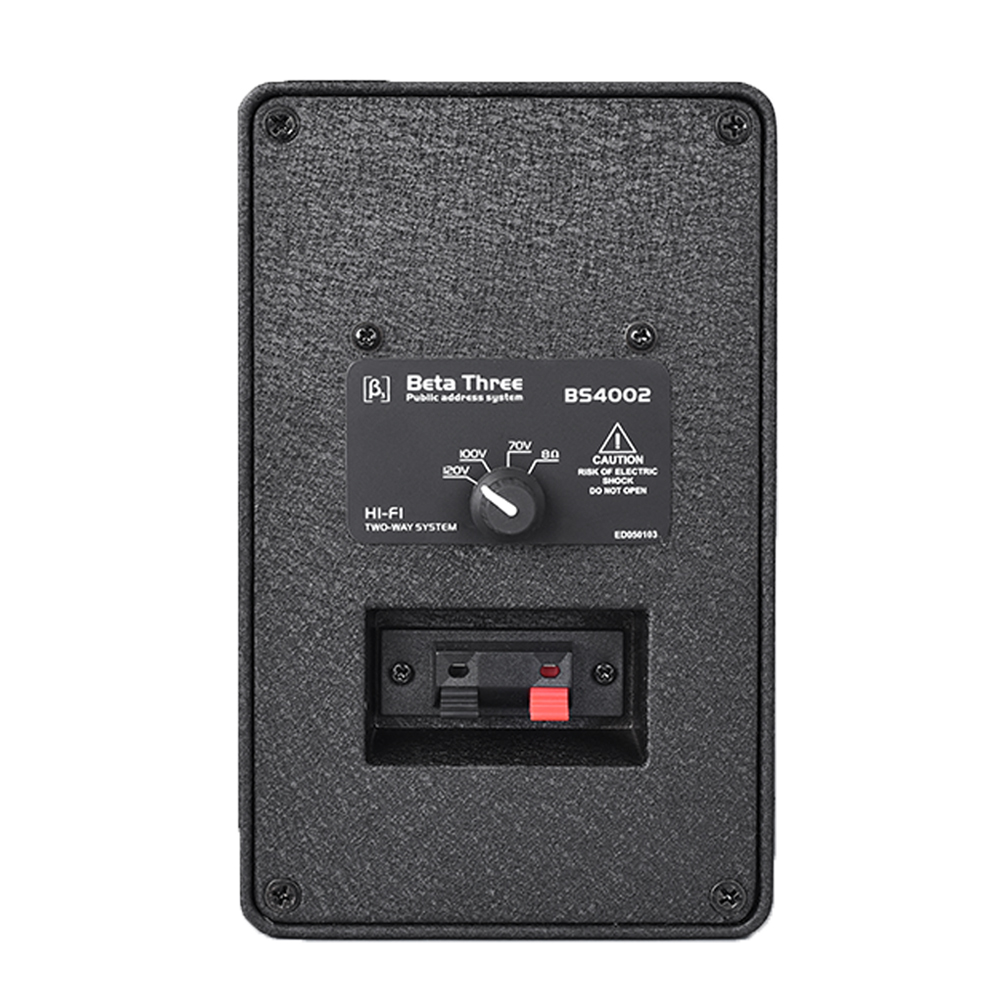

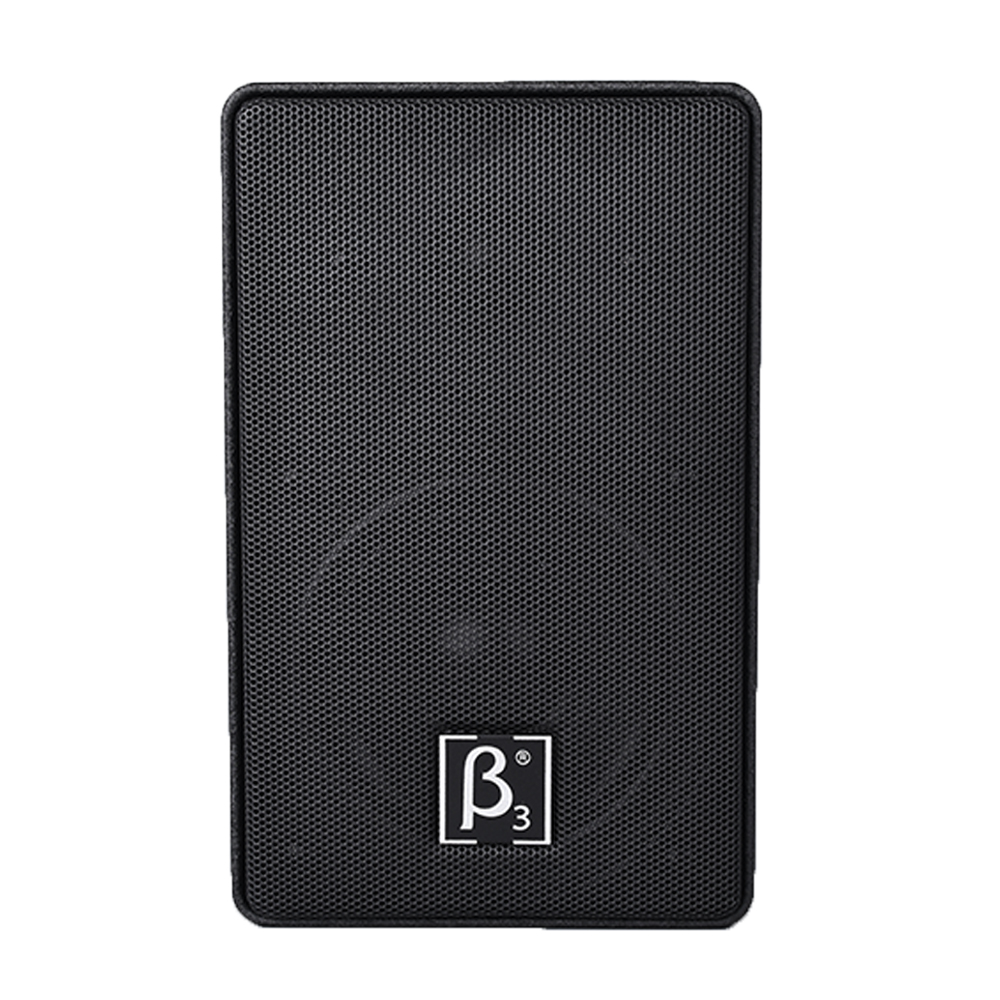

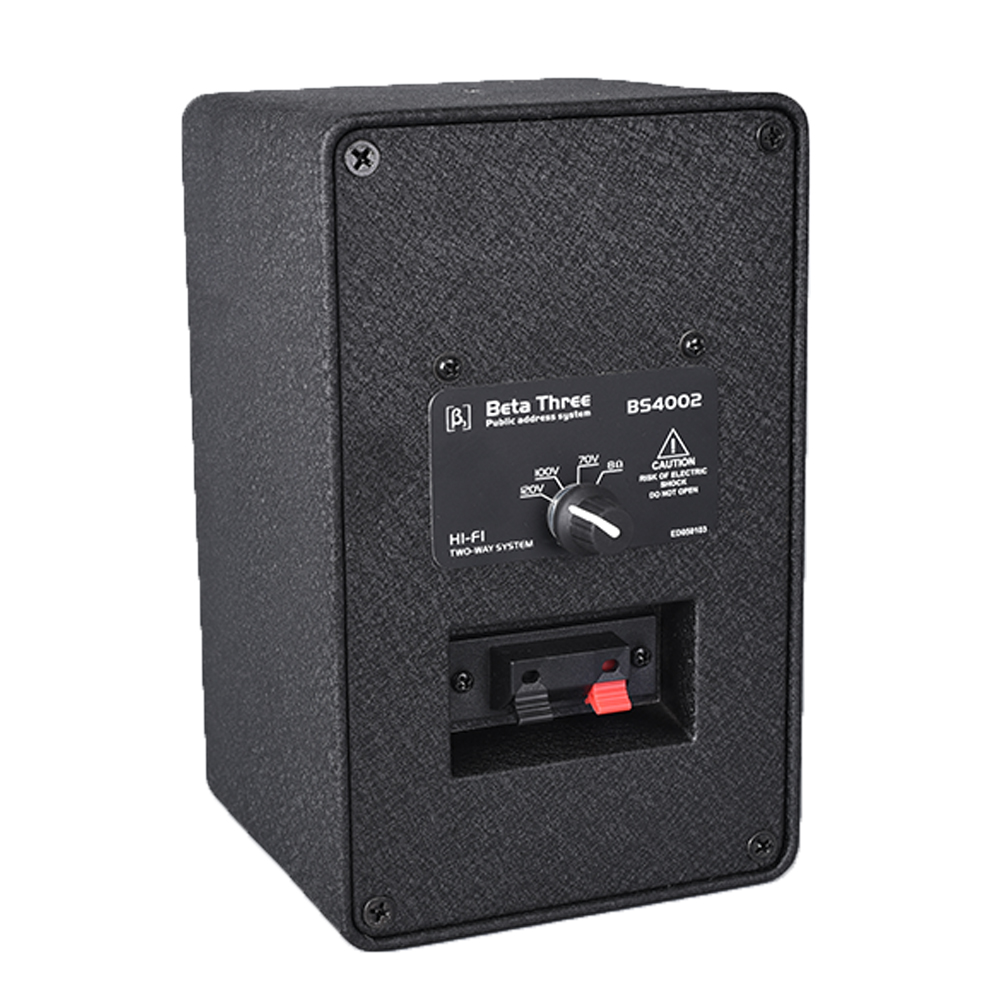

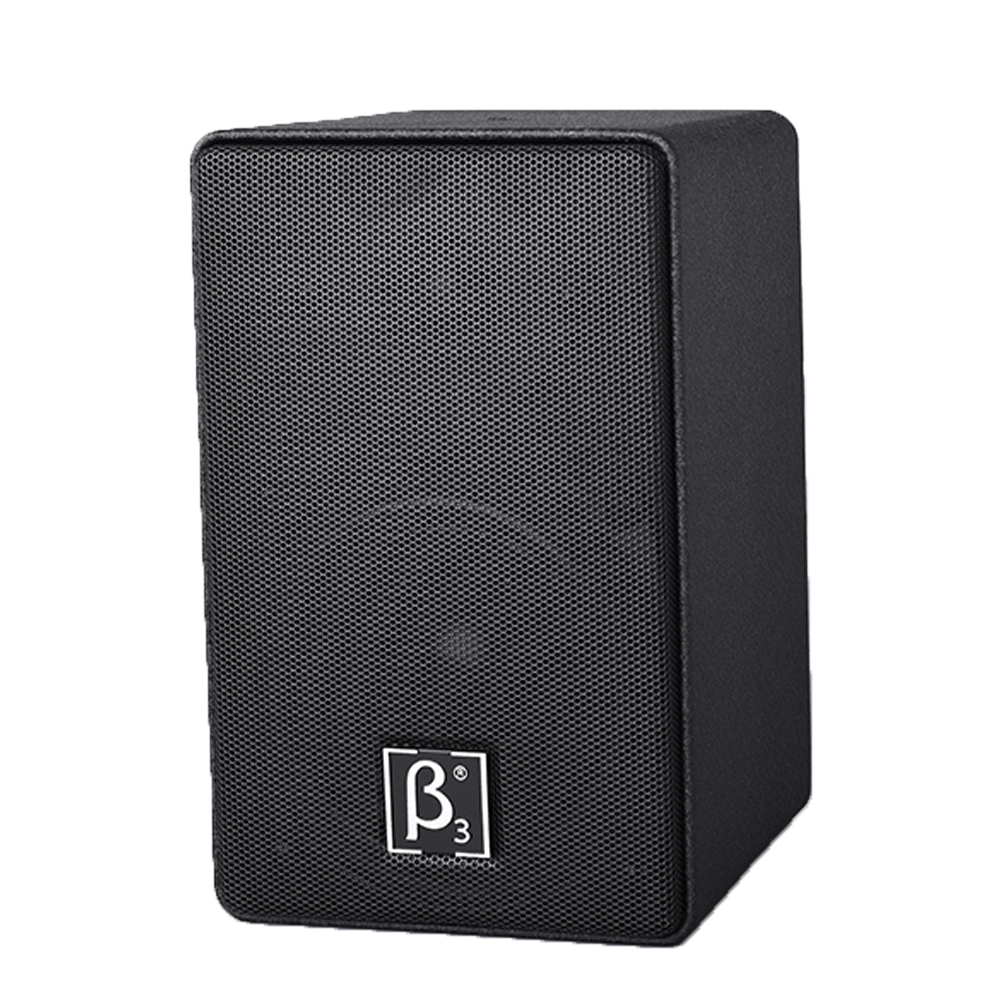

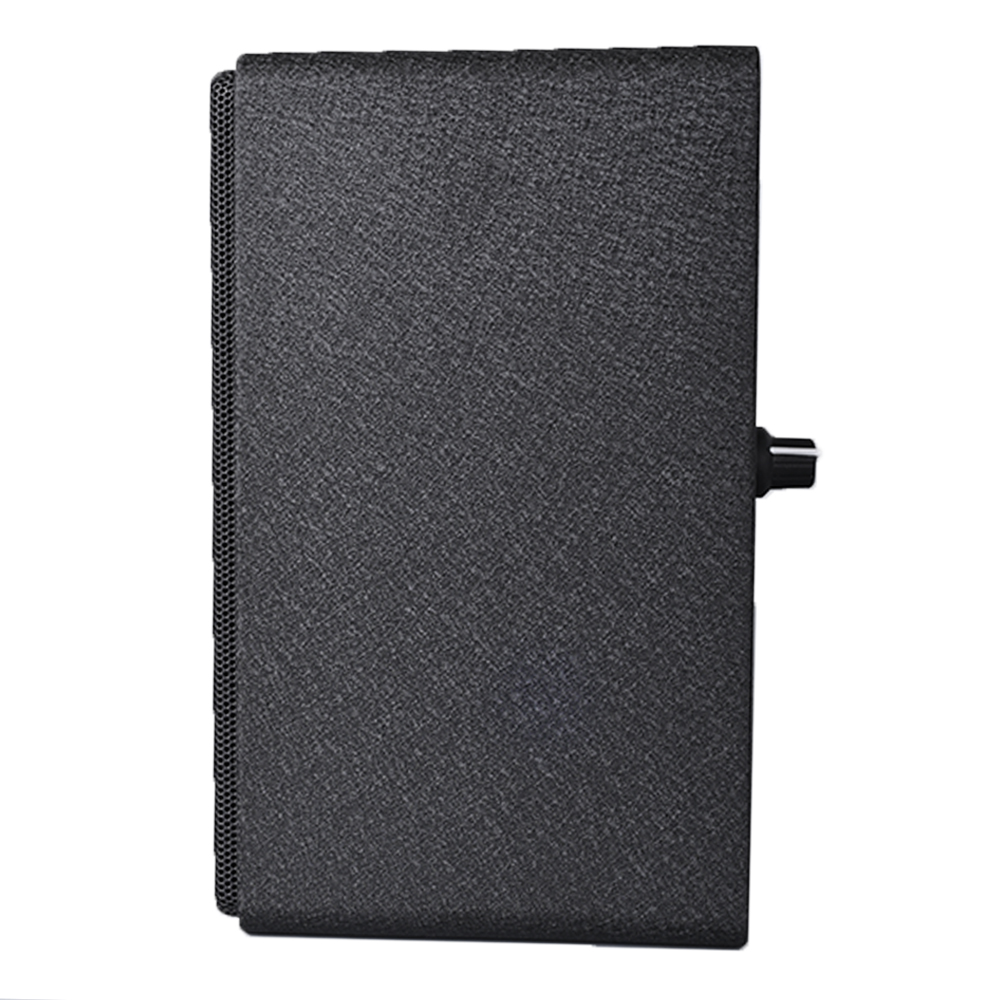

BS4002 is a compact portable Hi-Fi public address speaker. Airtight structure, toasting paint aluminum alloy enclosure, with suited 10W transformer. Suitable for public avenues such as plaza, supermarket, pub, chain store... Optional combining using with Beta Three public address amplifier.


Features

  • Mini two way full range Hi-Fi public address speaker
  • One 4 long throw woofer
  • One 20mm soft dome driver
  • Toasting paint aluminum alloy enclosure
  • Switchable 120V, 100V and 70V input and 6 Ohm input
  • Mounting bracket available, hospitable installation

Specifications

Acoustical specifications
Frequency Response(-3db):
80Hz-20kHz
Max SPL @ 1m:
100dB/106dB(PEAK)
Transducers
Compression driver:
1 x 20mm HF
Woofer:
1 x 4" LF
Input/Output section
Input Connectors:
Push terminal
Sensitivity (1W @ 1m):
87dB
Power section
Total Power:
20W(RMS);
Nominal Impedance (Ohm):
Voltage range:
70V/100V/120V
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
185 x 105 x 110mm / (7.3 x 4.1 x 4.3in)
Package Dimensions (W x D x H):
220 x 168 x 288mm / (8.7 x 6.6 x 11.3in)
Weight
Net Weight:
2.15 kg / 4.7 lb
Gross Weight:
4.8 kg / 10.6 lb

BS4002 Application

    BS4002 Installation

      BS4002 Parts

        BS4002 Cases

          BS4002 Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              BS4002β3 BS4002 Datasheet 1.0BS4002  200KB 2022-07-05 22:01:18
              β3_BS4002_Public_broadcast_speaker_English_Manualβ3_BS4002_Public_broadcast_speaker_English_Manual 1β3_BS4002_Public_broadcast_speaker_English_Manual  3873.59KB 2018-07-12 02:25:39
